Balboa Direct Topside Control Panel User Manual

1. Produktua amaitu daview

The Balboa Direct Topside Control Panel, model BWG TP200T (part number 57282), is an electronic control unit designed for hot tubs and spas. It features a compact oval shape with four buttons for controlling various spa functions including temperature, jets, lighting, and auxiliary features. This topside panel is a complete unit, ready for installation, and comes with a 6-foot cord.

Ezaugarri nagusiak:

• Electronic Topside Control Panel
• Model: TP200T
• 4-Button Configuration: Temp, Jets, Light, Aux
• Forma Obalatua
• Kablearen luzera: 6 oin
• Panel Size: 4-5/16 x 1-1/2 inches

1.1. irudia: Aurrealdea view of the Balboa TP200T topside control panel, showing the display and four control buttons, with its attached cable coiled beside it.

1.2. Irudia: Atzealdea view of the Balboa TP200T topside control panel, showing the adhesive backing, internal components, and the attached cable with a yellow "STOP!" warning tag.

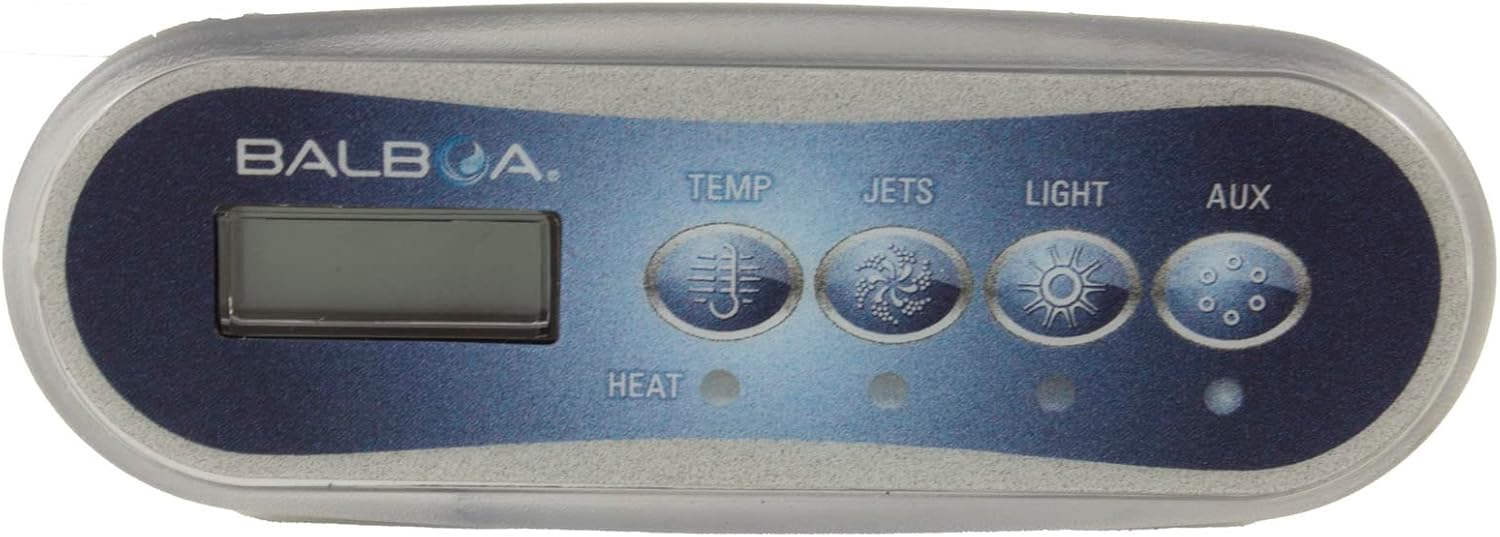

1.3. irudia: Aurrealde zehatza view of the Balboa TP200T topside control panel, highlighting the "BALBOA" branding, digital display, and the four function buttons: Temp, Jets, Light, and Aux.

2. Konfigurazioa eta instalazioa

Segurtasun informazio garrantzitsua: Installation should only be performed by a qualified technician. Always disconnect power to the spa at the main breaker before attempting any installation or maintenance. Failure to do so can result in serious injury or death.

Instalazio urratsak:

1. Potentzia deskonexioa: Ensure the spa's power supply is completely disconnected at the circuit breaker. Verify with a voltage probatzailea.
2. Remove Old Panel (if applicable): Carefully remove the existing topside control panel. Note the routing of its cable.
3. Garbitu Muntatzeko Azalera: Clean the area where the new panel will be mounted. Ensure it is dry and free of debris for proper adhesion.
4. Kable Berriaren Ibilbidea: Carefully route the 6-foot cable of the new TP200T panel through the spa's cabinet to the control pack. Avoid kinks or sharp bends in the cable.
5. Connect to Control Pack: Locate the appropriate receptacle on the spa's control pack for the topside panel. Align the connector correctly and push firmly until it clicks into place. Refer to your spa's main control pack manual for specific port locations.
6. Panel berria muntatu: Remove the protective backing from the adhesive on the rear of the TP200T panel. Carefully position the panel over the opening and press firmly to secure it. Ensure it is level and flush with the spa surface.
7. Energia berreskuratzea: Once the panel is securely mounted and connected, restore power to the spa at the main breaker.
8. Hasierako proba: Power on the spa and test all functions of the new topside panel (temperature adjustment, jets, light, auxiliary).

3. Funtzionamendu-argibideak

The Balboa TP200T topside control panel provides intuitive control over your spa's primary functions. The display will show the current water temperature or other relevant information.

Botoiaren funtzioak:

• TEMP (Temperature): Press this button to adjust the desired water temperature. Subsequent presses or holding the button may cycle through temperature settings or allow for precise adjustment depending on the spa's main control system configuration.
• JETS: Activates or deactivates the spa's jet pumps. Multiple presses may cycle through different jet speeds or activate additional pumps if available.
• ARGIA: Turns the spa's internal lighting system on or off. Repeated presses may cycle through different light modes or colors, if supported by your spa's lighting system.
• AUX (Auxiliary): Controls an auxiliary function, which can vary depending on your spa's configuration. This might include a secondary pump, a blower, or another accessory. Refer to your spa's main user manual for the specific function assigned to the AUX button.

Oharra: The exact behavior of each button may depend on the specific Balboa control system (e.g., BP series) and the spa manufacturer's programming. Always consult your spa's comprehensive user manual for detailed operational instructions.

4. Mantentzea

Proper maintenance of your topside control panel will ensure its longevity and continued functionality.

Garbiketa:

• Gainazalaren garbiketa: Gently wipe the surface of the control panel with a soft, damp cloth. Use only mild, non-abrasive cleaners.
• Saihestu produktu kimiko gogorrak: Do not use abrasive cleaners, solvents, or alcohol-based products, as these can damage the panel's finish and display.
• Uraren esposizioa: While the panel is designed for spa environments, avoid directing high-pressure water streams directly at the panel.

Arreta orokorra:

• Kableen ikuskapena: Periodically inspect the cable for any signs of wear, cuts, or damage. If damage is found, replace the panel immediately.
• Ingurumena babestea: Protect the panel from extreme temperatures and direct prolonged sunlight when the spa is not in use, if possible.

5. Arazoak

This section provides solutions to common issues you might encounter with your Balboa TP200T topside control panel. For more complex issues, consult a qualified spa technician.

For error codes displayed on the panel, refer to your spa's main control system manual (e.g., Balboa BP Series manual) for specific diagnostic information.

6. Zehaztapenak

7. Bermea eta Laguntza

Specific warranty information for the Balboa Direct Topside Control Panel (BWG TP200T, 57282) is typically provided by the retailer or the spa manufacturer. Please refer to your purchase documentation or contact the point of sale for details regarding warranty coverage and terms.

For technical support or assistance with installation and troubleshooting beyond the scope of this manual, it is recommended to contact a certified spa technician or the Balboa Water Group customer support directly. You can often find contact information on the official Balboa Water Group website or through your spa manufacturer.

Sareko baliabideak:

• Balboa Water Group Official Webgunea: www.balboawatergroup.com (for general product information and support contacts)
