Generic TCL L5 5033E / L5 Go 5133A LCD Display Touch Screen Assembly Instruction Manual

1. Sarrera

This document provides essential instructions for the proper installation, handling, and care of your new Generic LCD Display Touch Screen Assembly for TCL L5 5033E and TCL L5 Go 5133A mobile phones. Please read this manual thoroughly before attempting any installation to ensure correct procedure and prevent damage to the product or your device.

2. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean daudela:

• 1x LCD Screen Replacement (for TCL L5 5033E / L5 Go 5133A)
• 1x Precision Screwdriver
• 1x Plastic Triangle Pry Tool
• 1x Suction Cup
• 1x Double-Sided Adhesive

The received product will be identical to the images provided.

3. Important Notes Before Installation

• Instalazio profesionala gomendatzen da: Replacing a phone screen requires technical skills and specialized tools. Professional installation is strongly recommended to avoid damage to your device.
• Egiaztatu eredua: Ensure you have purchased the correct LCD assembly for your specific phone model (TCL L5 5033E or TCL L5 Go 5133A). Incorrect parts may not fit or function properly.
• Pre-Shipment Check: Every item is strictly checked before shipment to ensure it is in good working condition.
• Damage Responsibility: We are not responsible for any damage caused to your phone or the replacement screen during the installation process if performed incorrectly.

4. Setup and Pre-Installation Procedures

4.1. LCD with Frame vs. No Frame

This product is available in two configurations: with frame and without frame.

• LCD With Frame: The touch screen, display, and frame are pre-glued together. This option is generally easier to install as it involves replacing the entire display part.
• LCD No Frame: The touch screen and display are glued together, but the frame is not included. You will need to transfer your old phone's frame to the new assembly. This process is more complex and not recommended for inexperienced users.

4.2. Test Before Installation

Before fully installing the screen, it is crucial to perform a test. Do not remove any protective films or tags proba fase honetan zehar.

1. Carefully disassemble your mobile phone.
2. Connect the new replacement LCD assembly to the motherboard of your phone. Ensure the audio cable (if applicable) is also connected.
3. Piztu telefonoa.
4. Test the display functionality (check for dead pixels, color accuracy) and touch screen responsiveness across the entire surface.
5. If the test is successful, proceed with the full installation. If any issues arise, contact customer support immediately and do not force installation.

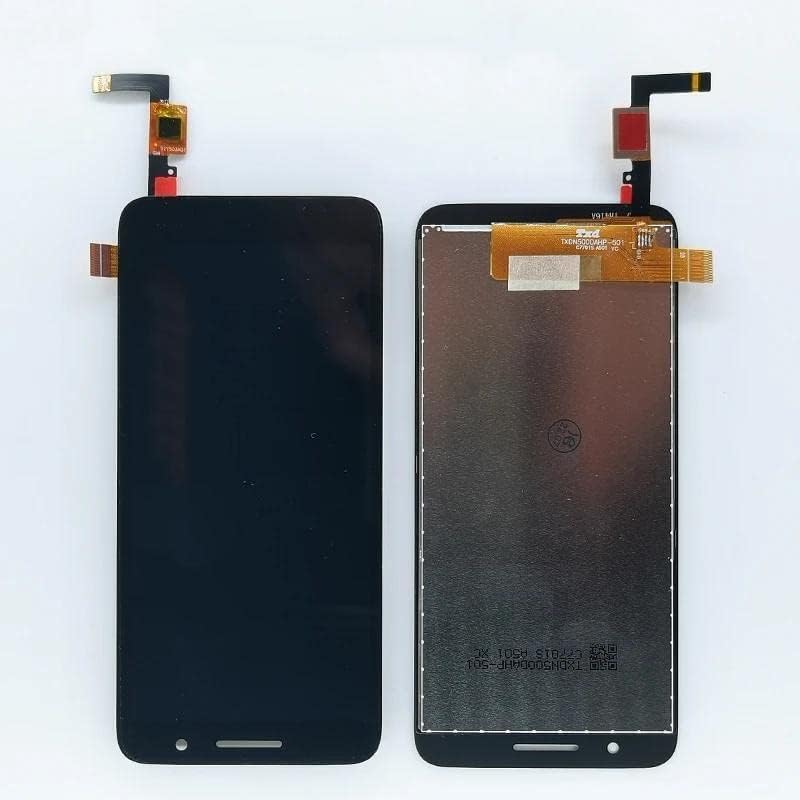

1. irudia: Aurrealdea view of the LCD Display Touch Screen Assembly. This shows the display surface and the overall shape of the component.

4.3. Static Electricity Precautions

Static electricity can damage electronic components. Before attempting any installation, ensure you ground yourself using an ESD (electrostatic discharge) strap. This will prevent static electricity from harming the sensitive electronics within your phone and the new display assembly.

4.4. Kableen manipulazioa

The LCD cable is delicate. Ensure it is not over-bent, especially beyond 90 degrees. Excessive bending can cause damage, leading to a black display or other malfunctions.

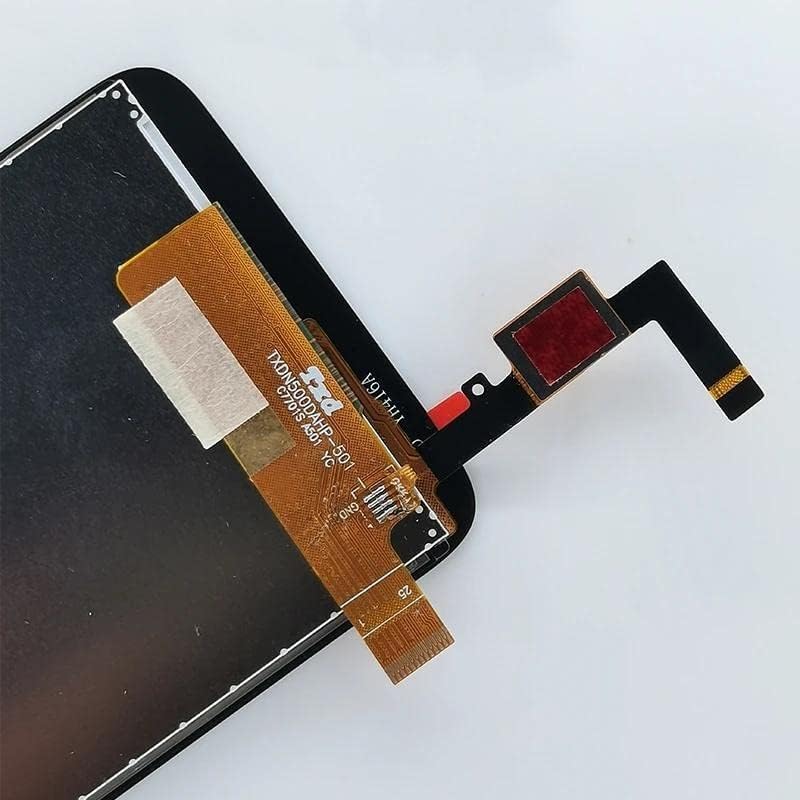

Image 2: Close-up of the flex cable connection on the LCD assembly. Handle this component with extreme care to avoid damage.

5. Funtzionamendua (Instalazio osteko egiaztapena)

After successful installation and reassembly of your device, perform a final check:

• Power on your phone.
• Verify that the display functions correctly, showing clear images and proper colors.
• Test the touch screen responsiveness across all areas of the screen.
• Check for any light leakage or uneven backlighting.
• Ensure all phone functions (e.g., calls, apps) are working as expected.

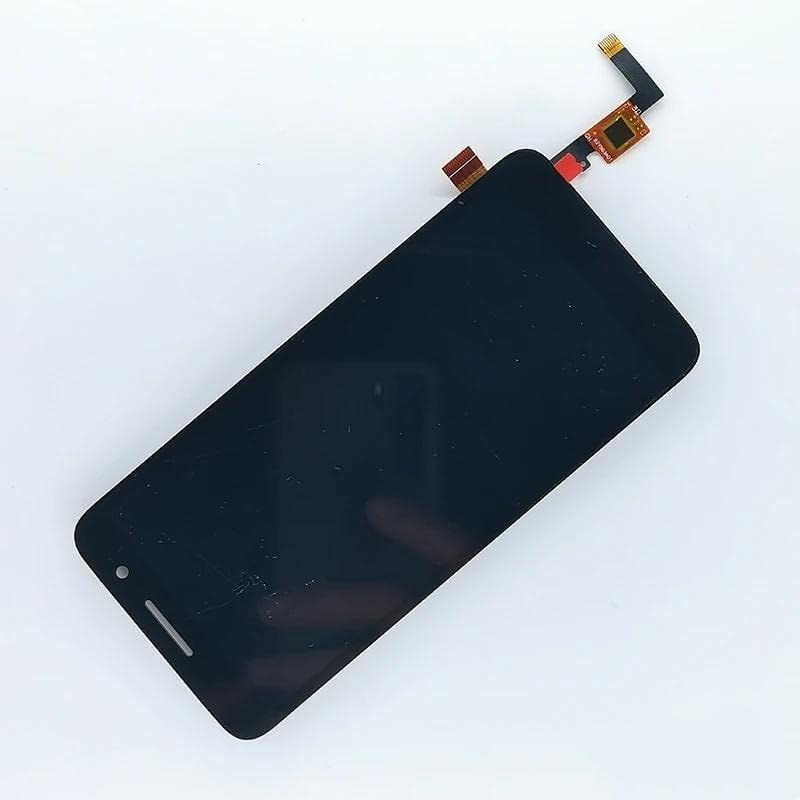

3. irudia: Angelua view of the LCD assembly, showing the front display and side profile.

6. Mantentzea

To ensure the longevity and optimal performance of your new LCD display:

• Garbiketa: Erabili zapi leun eta lihorik gabekoa, apur bat lehortuaampUrarekin edo pantaila-garbitzaile batekin garbitu, pantaila astiro-astiro garbitzeko. Saihestu produktu kimiko gogorrak edo material urratzaileak.
• Babesa: Consider using a screen protector and a protective case for your phone to guard against scratches and impacts.
• Eraginak saihestu: Protect your phone from drops and impacts, which can damage the screen.
• Tenperatura: Avoid exposing your phone to extreme temperatures, as this can affect display performance.

Image 4: Another angled perspective of the LCD assembly, highlighting its slim profile.

7. Arazoak

Instalazioaren ondoren arazorik izanez gero, kontuan hartu arazo eta irtenbide ohikoenak:

• Black Display: If the screen remains black after powering on, ensure the LCD cable is securely connected and has not been over-bent (see Section 4.4). Recheck all connections.
• Ukipen-pantaila erantzuten ez duena: Verify that the touch screen flex cable is properly seated. A loose connection can cause unresponsiveness.
• Display Anomalies (e.g., lines, spots): This could indicate a damaged display or an issue with the connection. Recheck the flex cable and ensure no debris is present in the connector.
• Telefonoa ez da pizten: Ensure the battery is properly connected and charged. If the phone still doesn't power on, the issue might be unrelated to the screen replacement.

Arazoa konpontzeko urratsek ez badute konpontzen, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

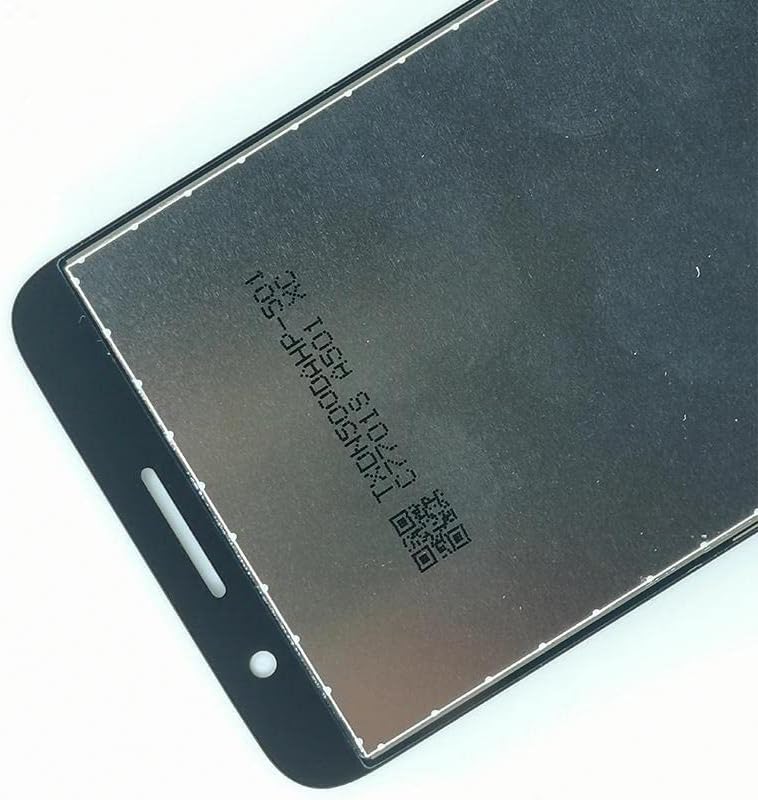

Image 5: Close-up of the back of the LCD assembly, showing manufacturing details and a QR code. This area should be handled carefully.

8. Zehaztapenak

9. Bermea eta Laguntza

If you have any questions or encounter issues with your product, please contact the seller, SHOWGOOD Digital, directly. They are committed to providing support and will respond to inquiries within 24 hours.

For returns or replacements, please refer to the seller's return policy, which typically allows for returns within 30 days.
