1. Sarrera
Thank you for choosing the sectec 4G Solar Battery Powered Mini PTZ Camera. This manual provides essential information for the proper installation, operation, and maintenance of your security camera. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
This camera is designed for outdoor security, featuring 4G connectivity, solar power, a built-in battery, Pan & Tilt control, PIR detection, and HD night vision.
2. Segurtasun informazioa
- Ziurtatu kamera leku egonkor batean instalatuta dagoela erortzea saihesteko.
- Ez jarri kamera muturreko tenperaturetan, hezetasunean edo ingurune korrosiboetan.
- Erabili emandako edo gomendatutako osagarriak soilik.
- Gorde kamera eta haren osagaiak haurren eskura ez dauden lekuetan.
- Ez saiatu kamera desmuntatzen edo aldatzen, horrek bermea baliogabetuko baitu.
- Ensure proper sealing of all ports after installation to maintain waterproof integrity.
3. Paketearen edukia
Egiaztatu elementu guztiak zure paketean daudela:
- sectec 4G Solar Battery Powered Mini PTZ Camera
- Eguzki-panela
- Muntatzeko Torlojuak
- Erabiltzailearen eskuliburua (dokumentu hau)
- SIM Card (if included with your purchase)
4. Produktua amaitu daview
The sectec 4G Solar Battery Powered Mini PTZ Camera integrates a camera unit with a solar panel and mounting bracket. It features a durable, weather-resistant design suitable for outdoor use.
4.1. irudia: Aurrealdea view of the sectec 4G Solar Battery Powered Mini PTZ Camera, highlighting its compact design and integrated solar panel.
Key components include the camera lens, infrared LEDs for night vision, a microphone and speaker for two-way audio, a SIM card slot, a TF card slot, and the solar panel for continuous power.
5. Konfigurazioa
5.1 SIM txartelaren instalazioa
This camera requires a 4G SIM card for network connectivity. Ensure the SIM card is activated and has an active data plan before insertion.
- Locate the SIM card slot on the camera body. This is typically protected by a rubber cover to ensure waterproofing.
- Carefully open the cover and insert the 4G SIM card into the designated slot with the correct orientation.
- Close the rubber cover firmly to prevent water ingress.
Figure 5.1: Illustration of 4G SIM card insertion and the concept of 4G remote monitoring.
5.2 Kamera muntatzea
The camera is designed for wall mounting. Choose a location that provides optimal surveillance coverage and receives sufficient sunlight for the solar panel.
- Markatu zulatzeko puntuak horman, kameraren muntaketa-euskarria txantiloi gisa erabiliz.
- Egin zuloak markatutako posizioetan.
- Insert wall anchors (if necessary for your wall type).
- Lotu muntatzeko euskarria horman emandako torlojuak erabiliz.
- Attach the camera unit to the mounted bracket, ensuring it is securely fastened.
5.3 Solar Panel Connection and Power
The integrated solar panel charges the camera's built-in battery, providing continuous power. Ensure the solar panel is positioned to receive direct sunlight for several hours daily.
Figure 5.2: The solar panel converts sunlight into electrical energy to power the camera and charge its internal battery.
5.4 Initial App Configuration
Download the official sectec application from your smartphone's app store. Follow the in-app instructions to register an account and add your camera. This typically involves scanning a QR code on the camera or entering its device ID.
6. Funtzionamendua
6.1 4G urruneko monitorizazioa
Once the SIM card is installed and the camera is connected to the 4G network, you can monitor your property remotely from anywhere using the sectec app on your mobile phone. The camera transmits video signals via 4G signals.
6.2 Panoramika eta inklinazio kontrola
The camera features Pan (horizontal) and Tilt (vertical) movement, allowing you to adjust the viewing angle remotely via the app. The camera can pan 355° and tilt 90°.
Figure 6.1: Remote control of camera pan and tilt functions via the mobile application.
6.3 PIR Detection
The camera is equipped with Passive Infrared (PIR) detection, which senses heat signatures from moving objects, primarily humans. This helps in reducing false alarms caused by non-human movements.

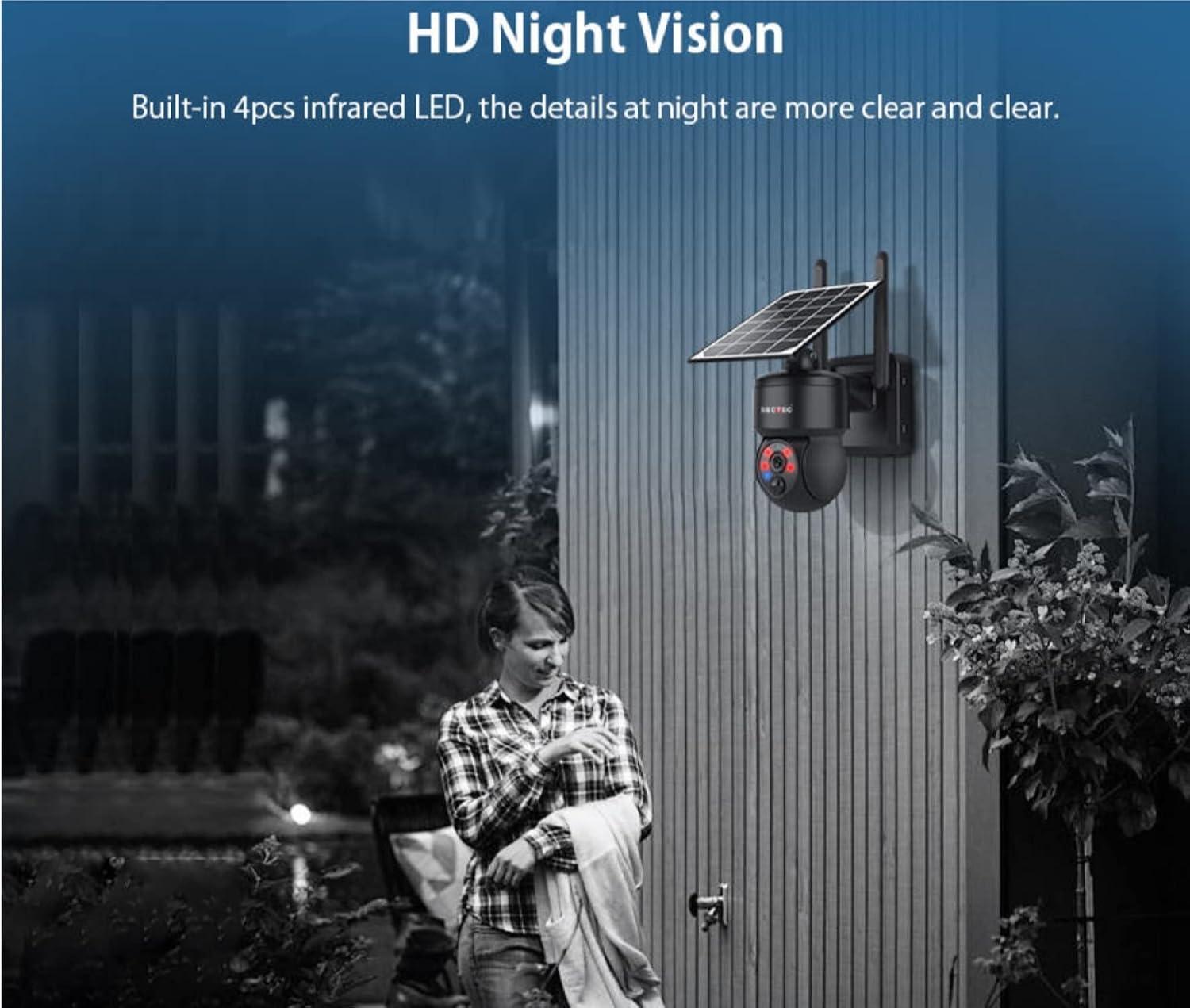

6.4 HD Night Vision
The camera includes built-in infrared LEDs that provide clear black-and-white video footage in low-light or no-light conditions. The details at night are clear and visible.
Figure 6.2: The camera's HD Night Vision capability, providing clear images in darkness.
6.5 Bi norabideko audioa
Utilize the integrated microphone and speaker to communicate with individuals near the camera. This feature allows for real-time two-way conversations through the mobile application.
6.6 Biltegiratze aukerak
The camera supports both TF card storage (local storage) and cloud storage options. Refer to the app for setting up and managing your preferred storage method.
7. Mantentzea
- Garbiketa: Garbitu kameraren lentea eta eguzki-panela aldizka zapi leun eta lehor batekin.amp cloth to remove dust and dirt. Ensure the solar panel is clean for efficient charging.
- Bateria zaintzea: While solar-powered, the built-in battery benefits from consistent charging. Avoid prolonged periods of complete discharge.
- Firmware eguneraketak: Check the mobile application periodically for available firmware updates to ensure optimal performance and security.
8. Arazoak
- Kamera ez da pizten: Ensure the solar panel is receiving sufficient sunlight. Check if the battery has enough charge.
- 4G seinalerik ez: Verify the SIM card is correctly inserted and activated. Check your mobile network coverage in the camera's location.
- Aplikazioaren konexio arazoak: Ensure your smartphone has a stable internet connection. Restart the app and the camera.
- Bideoaren kalitate eskasa: Garbitu kameraren lentea. Ziurtatu ez dagoela oztoporik kameraren eremuan. view.
- PIR detection not working: Check the sensitivity settings in the app. Ensure there are no objects constantly moving in the detection zone that might interfere.
9. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Modelo zenbakia | ST-517C-3M-4G-US |
| Barruko/Kanpoko erabilera | Kanpoan |
| Energia iturria | Bateriak, Eguzkia |
| Konektibitate-protokoloa | Wi-Fi (for initial setup/local access), 4G (for remote monitoring) |
| Haririk gabeko Komunikazio Teknologia | 4G |
| Muntatze Mota | Hormako Muntaia |
| Bideo Harrapaketa Ebazpena | 720p (Note: Product image indicates 1080P Ultra HD, please verify actual resolution) |
| Forma-faktorea | Kupula |
| Ezaugarri Berezia | Night Vision, PIR Detection, Pan & Tilt Control, Waterproof, Two-way Audio |
| Produktuaren neurriak (L x W x H) | 5 x 7 x 12 hazbete (127 x 178 x 305 mm gutxi gorabehera) |
| UPC | 197644556021 |
Figure 9.1: Detailed dimensions of the camera unit with solar panel.
10. Bermea eta Laguntza
Bermea: Mesedez, kontsultatu zure erosketa-dokumentazioa edo dendariarena. webwebgunean, zure produktuari aplikatzen zaizkion bermearen xehetasun eta baldintza zehatzak ikusteko.
Laguntza teknikoa: For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact sectec customer service through the contact information provided with your purchase or on the official sectec webgunea.
