1. Produktua amaitu daview
The GARVEE Commercial Glass Polisher is an electric wine glass polishing machine designed for efficient and streak-free drying of various glassware. Equipped with 5 microfiber polishing brushes and a hot air drying system, it significantly reduces the time and effort required for manual polishing, making it ideal for bars, restaurants, hotels, and wineries.
Figure 1.1: GARVEE Commercial Glass Polisher with examples of polished glassware.
2. Segurtasun-argibide garrantzitsuak
Sute, deskarga elektriko edo lesio arriskua murrizteko, jarraitu beti oinarrizko segurtasun neurriak tresna hau erabiltzean.
- Irakurri argibide guztiak aparatua erabili aurretik.
- Do not immerse the machine body in water or other liquids.
- Ziurtatu elikadura hornidura bolumenarekin bat datorrelatage specified on the appliance (110V).
- Deskonektatu entxufetik erabiltzen ez duzunean eta garbitu aurretik.
- Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
- Mantendu eskuak eta objektu arrotzak mugikorreko piezetatik urrun funtzionamenduan zehar.
- This machine is designed for drying and polishing cups only. Do not use it for cleaning cups, as excessive moisture inside the machine can shorten its lifespan.
- Erabili fabrikatzaileak gomendatutako edo saltzen dituen eranskinak soilik.
- Ez erabili kanpoan.
- Ez utzi kablea mahaiaren edo erakusmahaiaren ertzetik zintzilik zintzilik, ezta gainazal beroak ukitu ere.
- Jarri beti gailua gainazal egonkor eta berdinean.
3. Produktuaren osagaiak
The GARVEE Commercial Glass Polisher comes with the following components:
- 1 x Wine Glass Polishing Machine Unit
- 5 x Microfiber Polishing Brushes (detachable)
- 1 x korronte egokitzailea
The main unit features a durable 304 stainless steel construction and includes the motor, heating element, and brush mounts. The microfiber brushes are designed to be gentle on glassware while effectively polishing.
4. Zehaztapen Teknikoak
| Zehaztapena | Xehetasuna |
|---|---|
| Ereduaren izena | PHO_0Y4TG989 |
| Marka | Garvee |
| Kolorea | Zilarrezkoa |
| Materiala | 304 Stainless Steel, Microfiber |
| liburukiatage | 110V |
| Entxufe estandarra | US |
| Pintzel kopurua | 5 |
| Lehortzeko Tenperatura | 55-65 ℃ / 131-149 ℉ |
| Laneko Eraginkortasuna | 330 Glasses/hour |
| Produktuaren neurriak (L*W*H) | 24.8 x 13 x 18.7 hazbete (63 x 33 x 47.5 cm) |
| Pisu Gordina | 15 kg (33 lb) |
| Compatible Cup Diameter | 1.18 - 3.93 hazbete (3-10 cm) |
Figure 4.1: Product dimensions for the GARVEE Commercial Glass Polisher.
5. Konfigurazio gida
- Despaketatzea: Carefully remove the glass polisher and all components from the packaging. Retain packaging for future storage or transport.
- Lekua: Place the machine on a stable, flat, and dry surface. Ensure there is adequate space around the unit for ventilation and operation.
- Eskuila instalatzea: The 5 microfiber polishing brushes are typically pre-installed. If not, gently push each brush onto its designated spindle until securely seated.
- Potentzia-konexioa: Connect the power adapter to the machine and then plug it into a standard 110V electrical outlet.
- Hasierako egiaztapena: Before first use, ensure all brushes are spinning freely and the hot air system is functioning by briefly turning on the machine.
6. Funtzionamendu-argibideak
The GARVEE Commercial Glass Polisher is designed for quick and efficient drying and polishing of various glass types. It can polish a glass in 5-10 seconds, achieving up to 330 glasses per hour.
Figure 6.1: The polisher can efficiently dry and polish a glass in approximately 8 seconds.
6.1 Hot Air Drying System
The machine features a hot air drying system that provides a stable airflow of approximately 136℉ (58℃) through the blow tubes. This ensures the brushes remain dry and helps prevent water stains and residues on your glassware, resulting in crystal clear finishes.
Figure 6.2: Illustration of the hot air drying system ensuring dry brushes and streak-free results.
6.2 Compatible Glassware
This polisher is suitable for cups with a diameter ranging from 1.18 to 3.93 inches (3-10 cm). This includes various types of wine glasses, champagne flutes, cocktail glasses, and other standard glassware.
Figure 6.3: The polisher accommodates various cup types within the specified diameter range.
6.3 Polishing Process
Follow these steps for optimal polishing results:

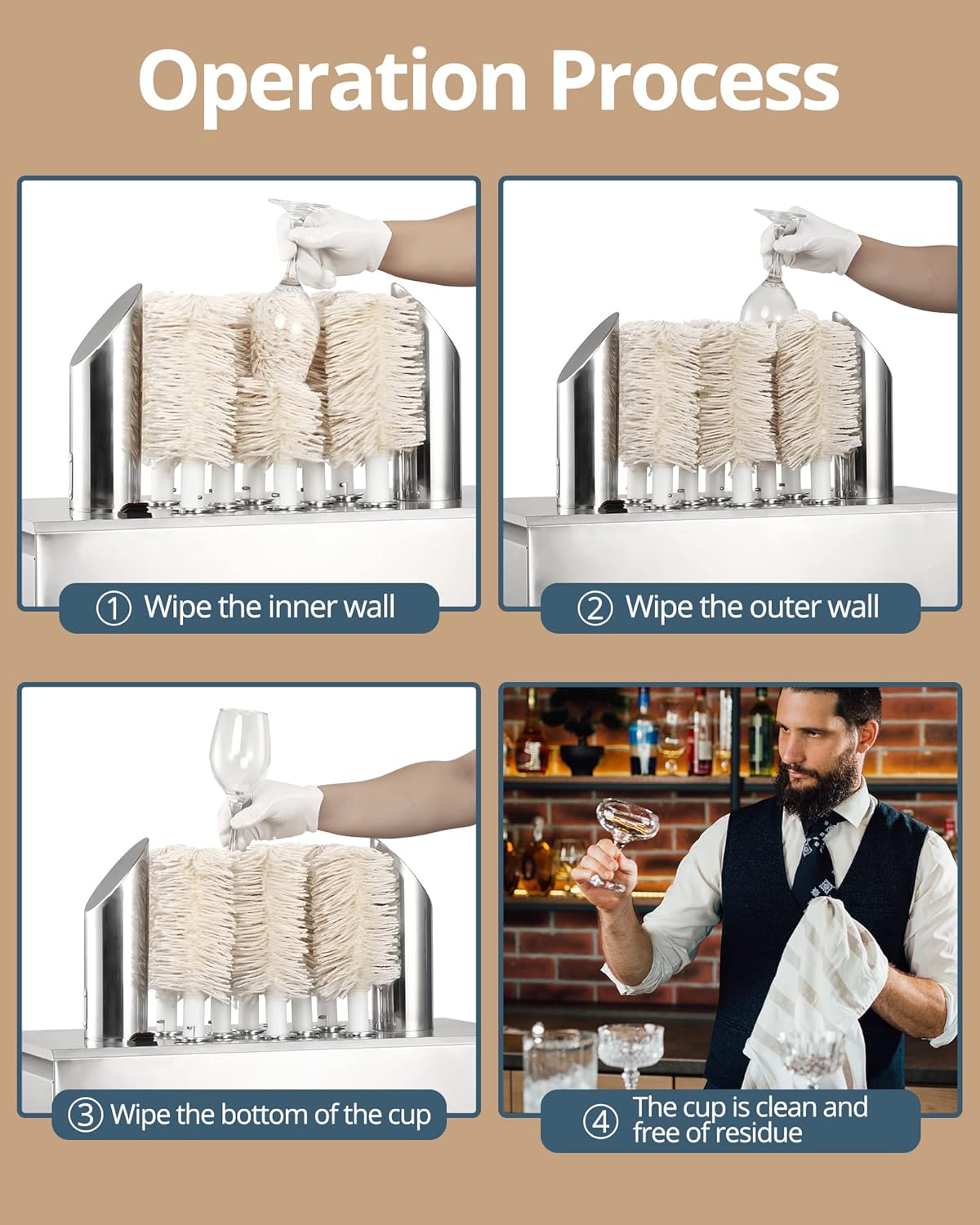

Figure 6.4: Step-by-step guide for using the glass polisher.
- Step 1: Wipe the Inner Wall: Gently insert the glass onto one of the central brushes, allowing it to polish the inner surface.
- Step 2: Wipe the Outer Wall: Move the glass to engage the outer brushes, ensuring the exterior surface is polished.
- Step 3: Wipe the Bottom of the Cup: Position the base of the glass against a brush to polish the bottom.
- Step 4: Inspect: Remove the glass and inspect for a clean, residue-free, and sparkling finish.
After polishing, the glass should be crystal clear and free of water spots or fingerprints.
Figure 6.5: A properly polished glass will be clear and free of residue.
7. Mantentzea eta Garbiketa
Regular maintenance ensures the longevity and optimal performance of your GARVEE Commercial Glass Polisher.
7.1 Pintzelak garbitzea
The 5 detachable microfiber brushes are designed for easy cleaning. They can be removed and placed in a dishwasher for thorough cleaning. Ensure brushes are completely dry before re-attaching them to the machine or storing them.
Figure 7.1: Detachable brushes are dishwasher safe for convenient cleaning.
7.2 Cleaning the Machine Body
- Deskonektatu beti makina garbitu aurretik.
- Garbitu makinaren kanpoaldea iragarkiarekinamp oihalik. Ez erabili garbitzaile urratzailerik eta ez murgildu unitatea uretan.
- Ziurtatu barneko osagaietan likidorik sartzen ez dela.
- Regularly check for any debris or glass fragments around the brush spindles and remove them carefully.
Important Note: This machine is for polishing and drying only. Do not use it to wash or clean wet cups, as this can introduce excessive moisture and damage internal components.
8. Arazoak
If you encounter issues with your GARVEE Commercial Glass Polisher, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Makina ez da pizten. | No power supply; Power switch off; Damaged power cord. | Ensure the machine is properly plugged into a live outlet. Check the power switch. Inspect the power cord for damage; if damaged, contact customer support. |
| Brushes are not spinning or spinning slowly. | Obstruction; Brushes not properly seated; Motor issue. | Unplug the machine and check for any obstructions around the brushes. Ensure brushes are securely pushed onto their spindles. If the problem persists, contact customer support. |
| Glasses have streaks or water spots after polishing. | Brushes are wet or dirty; Glasses were too wet before polishing; Insufficient drying time. | Ensure brushes are clean and dry (clean them if necessary). Make sure glasses are only damp, not wet, before polishing. Allow the hot air system to warm up briefly before use. Ensure proper polishing technique (refer to Section 6.3). |
| Machine is making unusual noise. | Loose component; Obstruction; Motor issue. | Unplug the machine and check for any loose parts or obstructions. If the noise persists, discontinue use and contact customer support. |
9. Bermea eta bezeroarentzako laguntza
For warranty information, technical support, or service inquiries regarding your GARVEE Commercial Glass Polisher, please contact the manufacturer directly through their official website or the retailer from whom the product was purchased. Please have your model number (PHO_0Y4TG989) and purchase date available when contacting support.
Laguntza gehiago lortzeko, jo dezakezu produktuaren orria Amazonen.
