NEEWER GM16 Motorized Tripod Pan Head User Manual

1. Sarrera

The NEEWER GM16 Motorized Tripod Pan Head is an advanced device engineered to enhance your photography and videography experience. It offers precise 3600 rotation, app-controlled functionality, and multiple operating modes, making it ideal for capturing dynamic time-lapses, smooth panoramic videos, and stable live streams. This manual will guide you through the setup, operation, and maintenance of your GM16 pan head.

Figure 1: NEEWER GM16 Motorized Tripod Pan Head Overview

2. Paketearen edukia

Mesedez, egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela:

• 1 x GM16 Motorized Pan Head
• 1 x NP-F550 Battery
• 1 x Bateria kargagailua
• 1 x USB C motako kablea
• 1 x Screw Adapter
• 1 x Erabiltzailearen eskuliburua

2. irudia: Paketearen edukia

3. Produktuaren ezaugarriak

• Aplikazioen kontrol adimenduna: Control the GM16 wirelessly using the NEEWER APP for precise adjustments and zero latency. It allows for customized presets and group control of multiple units.
• 3 Customizable Modes: Offers Manual, Live Video, and Time Lapse modes for diverse shooting scenarios.
• Ultra Silent & Smooth Rotation: Equipped with a motor operating below 30dB, ensuring quiet and stable performance for dynamic shots.
• Portable & Battery Powered: Comes with a 2600mAh NP-F550 battery and charger, supporting continuous operation via 5V/2A USB power.
• Bateragarritasun zabala: Features a top 1/4" screw for cameras/smartphones and a bottom 3/8" thread for tripods/monopods/sliders.

4. Konfigurazioa

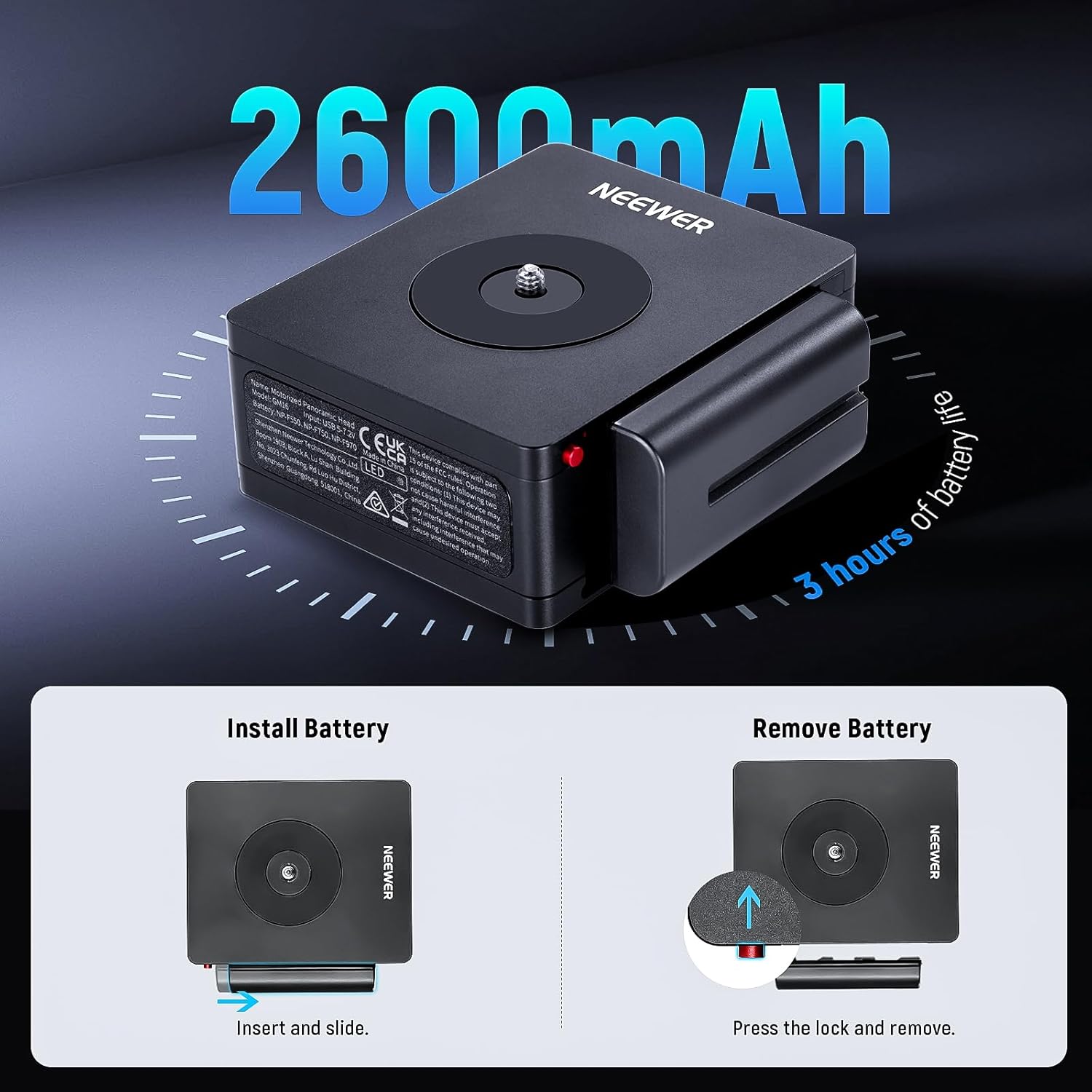

4.1 Bateriaren instalazioa

To power the GM16, install the included NP-F550 battery:

1. Align the NP-F550 battery with the battery slot on the side of the pan head.
2. Gently insert and slide the battery into the slot until it clicks securely into place.
3. To remove the battery, press the red release button located near the battery slot and slide the battery out.

Figure 3: Battery Installation and Removal

4.2 Mounting the Pan Head

The GM16 can be mounted on various supports and can hold different devices:

• Mounting to a Tripod/Monopod: Use the 3/8" thread at the bottom of the pan head to attach it to a compatible tripod or monopod. An included 1/4" to 3/8" screw adapter is provided for versatility.
• Attaching a Camera/Smartphone: The 1/4" screw on top of the pan head is compatible with most DSLRs, mirrorless cameras, camcorders, and smartphone holders (not included). Secure your device by screwing it onto the 1/4" screw.

Figure 4: Wide Compatibility and Mounting Options

4.3 Aplikazioaren konexioa

To utilize the smart control features, download and connect to the NEEWER APP:

1. Download the "NEEWER" app from your device's app store (iOS/Android).
2. Ziurtatu Bluetootha gaituta dagoela zure telefonoan.
3. Power on the GM16 pan head by pressing the power button.
4. Open the NEEWER app and follow the on-screen instructions to connect to the GM16 (look for "GM16" in the device list).

5. irudia: Aplikazio adimendunen kontrol interfazea

5. Funtzionamendu moduak

The GM16 offers three distinct operating modes accessible via the NEEWER APP:

5.1 Eskuzko modua

In Manual mode, you have direct control over the pan head's movement:

• Set the rotation direction (Clockwise/Counter-Clockwise).
• Adjust the sliding speed (Level 1–5).
• Choose the running mode (constant/slow).

5.2 Live Video Mode

This mode is designed for continuous video recording with controlled movement:

• Set the operating angles (200–10800).
• Specify the number of loops (0–10) for repetitive motion.
• Define the running time for the sequence.

Figure 6: Live Video Mode Interface

5.3 Time Lapse Mode

For capturing time-lapse sequences, configure the following settings:

• Set the operating angles for the pan movement.
• Adjust the shutter speed and frame-by-frame duration.
• Specify the number of shots (1–10000).
• Utilize the fixed point shoot feature for precise framing.

Oharra: A separate camera shutter release cable is required for taking time-lapse videos with a camera.

Figure 7: 3600 Auto Panorama and Smooth Rotation

6. Mantentzea

• Garbiketa: Use a soft, dry cloth to clean the exterior of the pan head. Avoid using harsh chemicals or abrasive materials.
• Bateria zaintzea: Store the NP-F550 battery in a cool, dry place when not in use. Fully charge the battery before extended storage and recharge every 3-6 months to maintain its health.
• Biltegiratzea: When not in use, store the pan head in its protective carrying case to prevent dust and damage.

7. Arazoak

• Gailua ez da pizten: Ensure the NP-F550 battery is correctly installed and charged. If using USB power, verify the cable and power source (5V/2A recommended).
• Aplikazioaren konexio arazoak: Ensure Bluetooth is enabled on your device and the GM16 is powered on. Restart both the app and the pan head if connection problems persist. Some users have reported occasional connection drops; restarting the app often resolves this.
• Motor not moving smoothly or making noise: Check the load capacity. The GM16 supports 22lb/10kg horizontal and 4.4lb/2kg vertical loads. Exceeding these limits can affect performance. Ensure no obstructions are blocking the rotation.
• Time-lapse not triggering camera: Confirm you have purchased and connected the correct camera shutter release cable. Verify settings in the NEEWER app for Time Lapse mode.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information and technical support, please refer to the warranty card included with your product or visit the official NEEWER website. You may also contact NEEWER customer service directly for assistance with product inquiries, troubleshooting, or replacement parts.

Webgunea: www.neewer.com
