MONDAWE 10x6.5 FT Rectangular Solar LED Patio Umbrella User Manual

1. Sarrera eta Overview

Thank you for choosing the MONDAWE Rectangular Market Umbrella. This umbrella is designed to provide shade and ambient lighting for various outdoor settings, including patios, gardens, decks, backyards, pools, and balconies. It features a robust aluminum frame, a convenient crank lift system for effortless opening and closing, and a push-button tilt function for optimal shade adjustment throughout the day.

Image: The MONDAWE Rectangular Market Umbrella with Solar LED Lights illuminated at night, covering a patio seating arrangement.

2. Segurtasun informazioa

• Always close the umbrella during strong winds, heavy rain, or severe weather conditions to prevent damage to the umbrella or potential injury.
• Ensure the umbrella base is stable and adequately weighted. An appropriate umbrella base is crucial for stability and may be sold separately.
• Keep hands, fingers, and clothing clear of moving parts, such as the crank mechanism and ribs, during operation.
• Do not use the umbrella near open flames or heat sources.
• Periodically inspect all components for wear and tear. Replace damaged parts immediately.

3. Paketearen edukia

Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela:

• Umbrella Canopy with Ribs and Solar LED Lights
• Goiko Polo Sekzioa
• Lower Pole Section (with crank mechanism)
• Solar Panel (pre-attached to the top of the canopy)

Note: An umbrella base is required for proper installation and stability. Please ensure you have a suitable base, which may be sold separately.

4. Konfigurazioa eta Muntaketa

1. Deskonprimitu osagaiak: Kontu handiz atera pieza guztiak paketetik eta jarri gainazal garbi eta lau batean.
2. Zutoina muntatu: Connect the upper pole section to the lower pole section. Ensure the spring button on one section clicks securely into the corresponding hole on the other section.
3. Oinarrian sartu: Place the assembled umbrella pole into a sturdy umbrella base (not included). Ensure the base is adequately weighted to prevent the umbrella from tipping over.

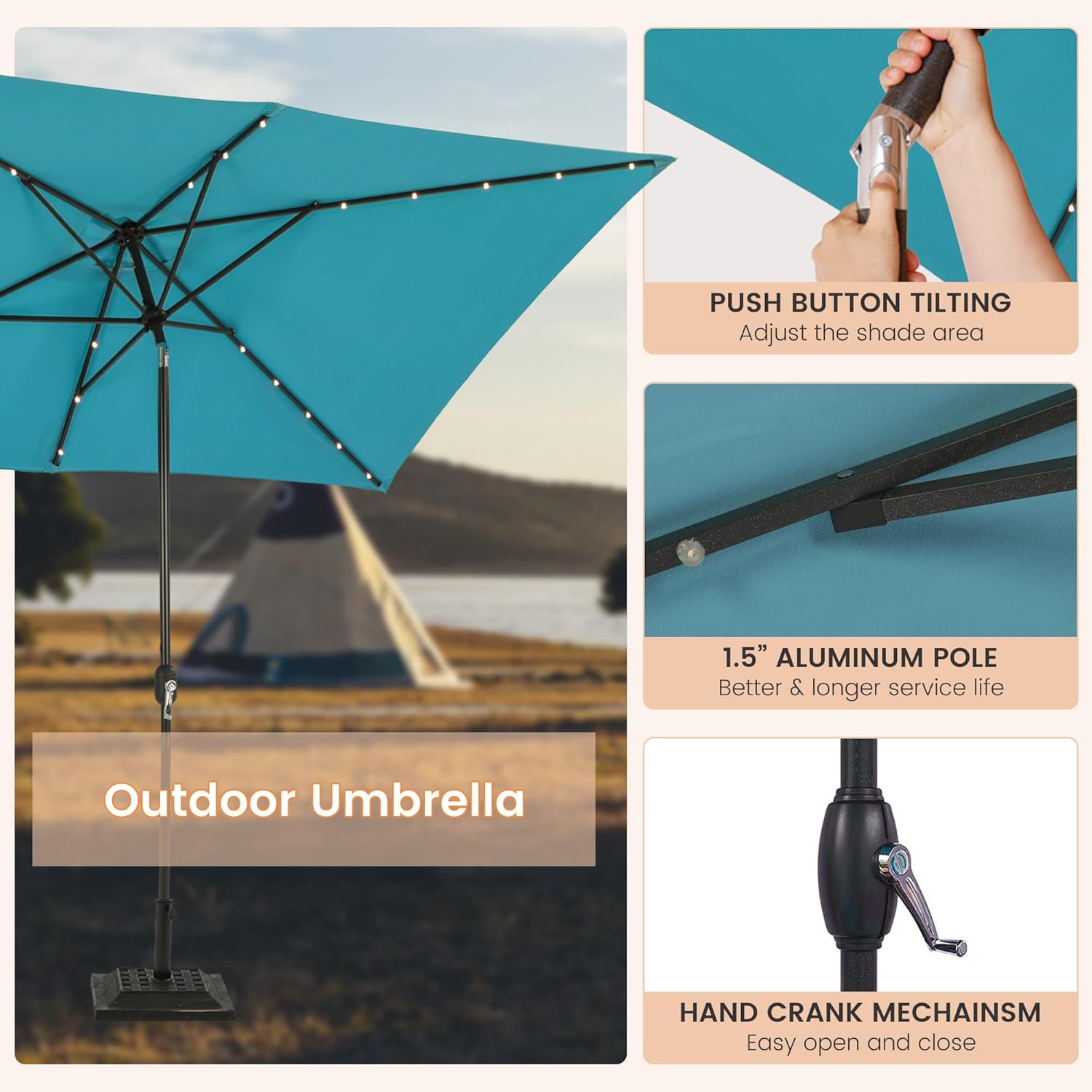

Irudia: Xehetasun handikoa view of the umbrella's operational features, including the push-button tilt, aluminum pole, and hand crank.

5. Funtzionamendu-argibideak

5.1 Aterkia irekitzea eta ixtea

• Irekitzeko: Locate the hand crank mechanism on the lower pole. Turn the crank handle clockwise until the umbrella canopy is fully extended and taut.
• Itxi: Turn the crank handle counter-clockwise until the umbrella canopy is fully retracted. Secure the canopy with the attached Velcro strap to keep it neatly folded.

5.2 Inklinazioa doitzea

• The umbrella features a push-button tilt function. Press the button located on the upper part of the lower pole.
• While holding the button, gently push the canopy in the desired direction to tilt it up to 45 degrees. Release the button to lock the tilt position.

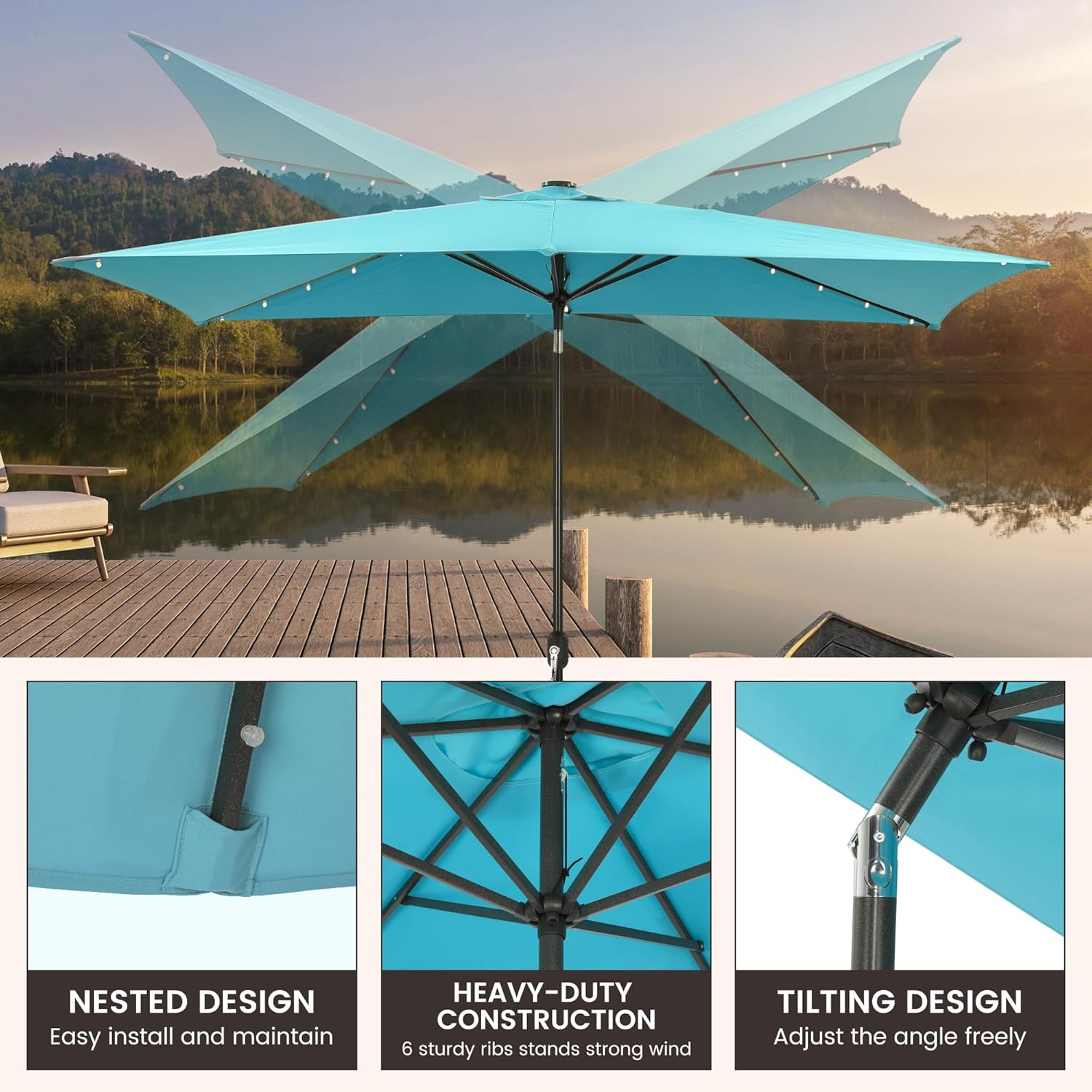

Image: The umbrella demonstrating its tilting capability, supported by 6 sturdy ribs.

5.3 Using the Solar LED Lights

• The umbrella is equipped with 26 LED lights powered by a solar panel located at the top of the canopy.
• Ensure the solar panel receives direct sunlight during the day for optimal charging.
• To activate the lights, locate the LED switch on the umbrella pole (refer to image below). Flip the switch to the 'ON' position. The lights will automatically turn on at dusk and off at dawn.
• A full charge typically provides 7-8 hours of illumination.

Image: Close-up of the LED switch on the pole and the solar panel at the canopy's apex.

6. Mantentzea

• Kanopia garbitzea: The 200g polyester canopy fabric is water repellent. To clean, wipe with a damp cloth and mild soap. For tougher stains, use a soft brush. Rinse thoroughly and allow to air dry completely before closing or storing.
• Cleaning the Pole and Ribs: Wipe the aluminum pole and iron ribs with a dry cloth or a damp cloth as needed to remove dust and dirt.
• Eguzki-panelaren zainketa: Keep the solar panel clean and free of debris to ensure efficient charging. Wipe it gently with a soft, damp oihal.
• Biltegiratzea: When not in use for extended periods, especially during off-season or harsh weather, close the umbrella, secure it with the Velcro strap, and store it in a dry, protected area. A protective cover is recommended.

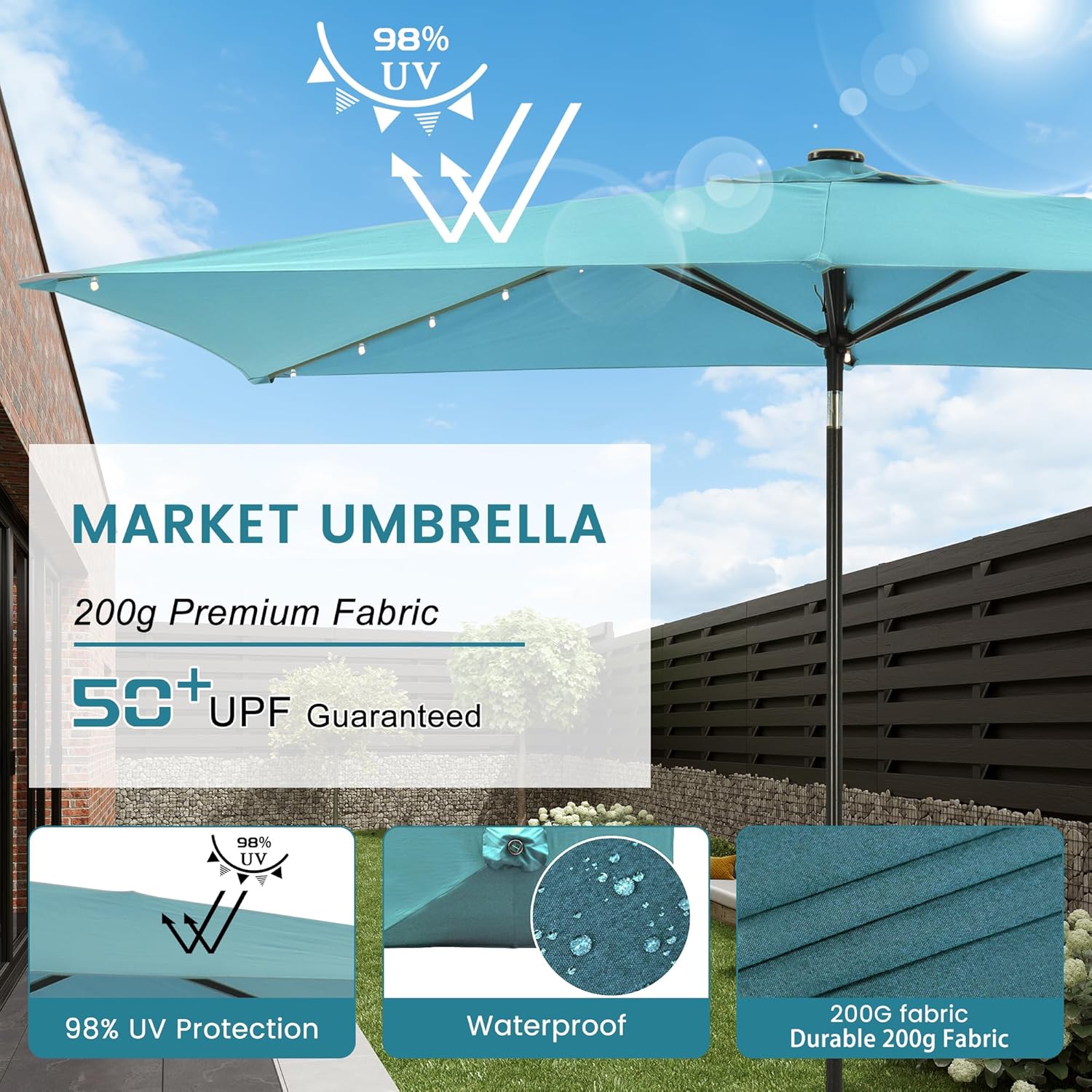

Image: Features of the umbrella fabric, highlighting its UV protection, waterproof quality, and 200g density.

7. Arazoak

• Argiak ez funtzionatzen:
  • Ensure the LED switch on the pole is in the 'ON' position.
  • Verify that the solar panel has received sufficient direct sunlight for charging (at least 8 hours).
  • Check for any obstructions on the solar panel that might be blocking sunlight.
• Umbrella Not Opening/Closing Smoothly:
  • Inspect the crank mechanism for any debris or obstructions.
  • Ensure the canopy fabric is not caught in the ribs or mechanism.
• Umbrella is Unstable:
  • Confirm that the umbrella pole is fully inserted and secured in a heavy, stable umbrella base.
  • Ensure the base is adequately weighted with sand or water if it is a fillable type.

8. Zehaztapenak

Image: Dimensional diagram of the MONDAWE Rectangular Market Umbrella.

9. Bermea eta Laguntza

For specific warranty information, please refer to the product packaging or contact MONDAWE customer support directly. Keep your purchase receipt as proof of purchase.

If you encounter any issues or have questions regarding your MONDAWE Rectangular Market Umbrella, please contact our customer support team for assistance.
