Liectroux G7 4-in-1 Robot Vacuum Cleaner User Manual

1. Produktua amaitu daview

The Liectroux G7 is an advanced 4-in-1 robot vacuum cleaner designed to simplify your home cleaning routine. It integrates vacuuming, sweeping, mopping, and an automatic self-cleaning function. Equipped with smart navigation and app control, it offers efficient and customizable cleaning.

Image 1.1: The Liectroux G7 robot vacuum demonstrating its 4-in-1 cleaning functions.

2. Paketearen edukia eta konfigurazioa

2.1 Zer dago kutxan

Konfiguratu aurretik, ziurtatu osagai guztiak daudela:

• 1 x Liectroux G7 Robot Vacuum
• 1 x Self-Cleaning Charging Base
• 1 x Water and Dust Integrated Reservoir
• 2 x Side Brushes (1 pair, special offer)
• 1 x Central Brush
• 2 x HEPA Filters (1 pair, special offer)
• 2 x Mop Cloths (1 pair, special offer)
• 2 x Dust Bags (1 pair, special offer)
• 1 x Garbiketa tresna
• 1 x Erabiltzailearen eskuliburua
• 1 x Urruneko kontrola

2.1 irudia: Xehetasun zehatza view of the Liectroux G7 package contents.

2.2 Hasierako konfigurazioa

1. Desegin: Kontu handiz kendu osagai guztiak ontzitik.
2. Alboko eskuilak instalatu: Attach the side brushes to the designated slots on the underside of the robot.
3. Kargatzeko oinarria jarri: Position the self-cleaning charging base against a wall in an open area, ensuring at least 0.5 meters of clear space on both sides and 1.5 meters in front. Plug the base into a 110V power outlet.
4. Charge Robot: Place the robot vacuum onto the charging base. Ensure the charging contacts align. The robot will begin charging automatically. Fully charge the robot before first use (approximately 2 hours).
5. Deskargatu aplikazioa: Download the Liectroux app from your smartphone's app store. Follow the in-app instructions to connect your robot to your home Wi-Fi network.

3. Funtzionamendu-argibideak

3.1 Garbiketa-ziklo bat abiaraztea

• Eskuzko hasiera: Press the power button on the robot or the remote control to start a cleaning cycle.
• Aplikazioen kontrola: Use the Liectroux app to start, pause, or stop cleaning, select cleaning modes, and schedule future cleanings.
• Ahots kontrola: Connect the robot to Amazon Alexa or Google Assistant. Use voice commands such as "Alexa, turn on robot vacuum" to initiate cleaning.

Image 3.1: Controlling the Liectroux G7 via voice commands with smart assistants.

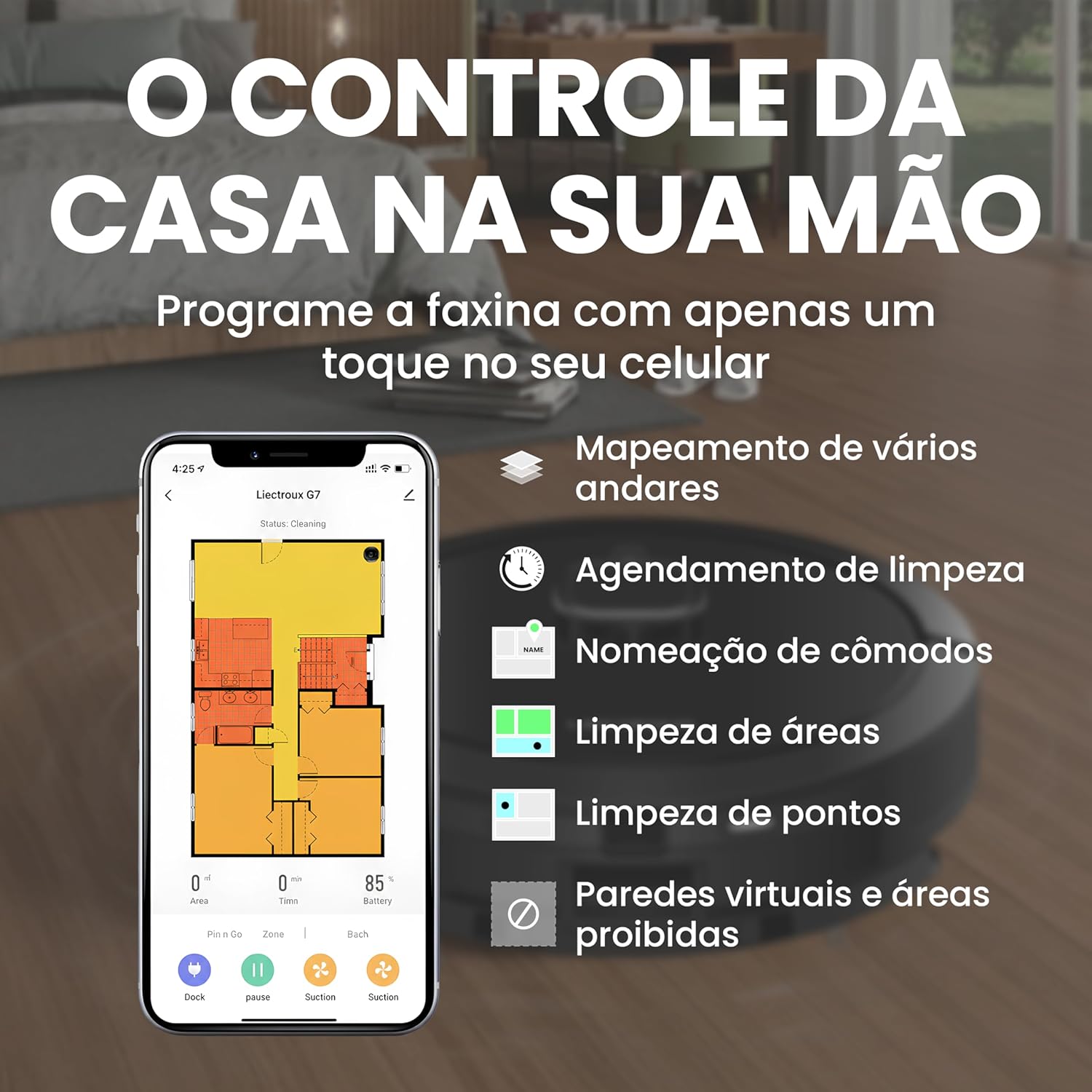

3.2 Smart Mapping and Customization

The Liectroux G7 features laser navigation and smart mapping technology. It identifies and maps your home's layout, allowing for highly personalized cleaning.

• Map Saving: The robot can save up to 5 different maps, useful for multi-floor homes.
• Eremu garbiketa: Select specific rooms or areas for cleaning via the app.
• Leku garbiketa: Direct the robot to clean a particular spot.
• Horma Birtualak/Debekatuta dauden Eremuak: Ezarri muga birtualak edo eremu mugatuak aplikazioan robotak espazio jakin batzuetan sartzea eragozteko.
• Room Naming: Customize room names within the app for easier management.

Image 3.2: Liectroux G7 app interface for smart mapping and cleaning customization.

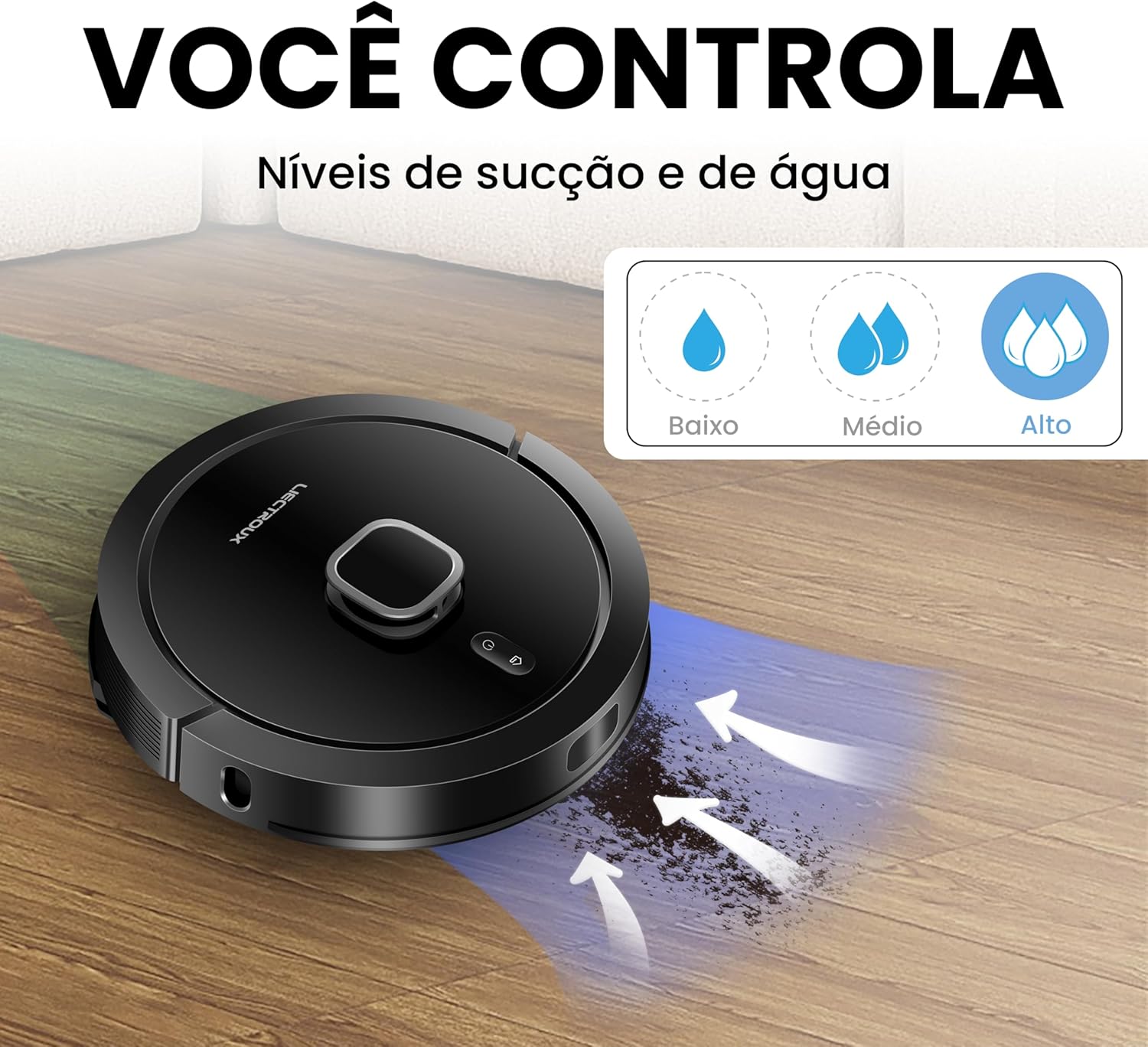

3.3 Suction and Water Level Adjustment

Adjust the suction power and water flow for mopping based on your cleaning needs and floor type. These settings can typically be controlled via the mobile app.

Image 3.3: Adjustable suction and water levels for customized cleaning.

3.4 Carpet Recognition

The robot is equipped with an ultrasonic carpet recognition system. It automatically detects carpets and adjusts suction power for a deeper clean on these surfaces.

4. Mantentzea

4.1 Self-Cleaning Base

The G7 features an automatic self-cleaning function. After each cleaning cycle, the robot returns to its base, and collected dust and debris are automatically transferred from the robot's dustbin to the larger dust bag in the self-cleaning base. This minimizes manual emptying.

Image 4.1: The self-cleaning base automatically empties the robot's dustbin.

4.2 Hauts-poltsaren ordezkapena

The high-capacity (3L) dust bag in the self-cleaning base can hold debris for up to 60 days, depending on usage. Replace the dust bag when full to maintain optimal performance.

Image 4.2: Replacing the 3L dust bag in the self-cleaning base.

4.3 Regular Cleaning of Components

• Eskuila nagusia: Regularly remove hair and debris from the main brush using the provided cleaning tool.
• Alboko eskuilak: Check and clean side brushes for tangled hair or debris. Replace if worn.
• HEPA iragazkia: Tap the HEPA filter to remove dust. Do not wash. Replace every 3-6 months depending on usage.
• Sentsoreak: Wipe all sensors (cliff sensors, wall sensors) with a clean, dry cloth to ensure proper navigation.
• Fregona-oihalak: Wash mop cloths after each use.
• Ur depositua: Empty and rinse the water tank after mopping to prevent odors and blockages.

Image 4.3: Underside components requiring regular cleaning.

5. Arazoak

If you encounter issues with your Liectroux G7, refer to the following common solutions:

Arazo iraunkorretarako, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

6. Zehaztapenak

7. Bermea eta Laguntza

7.1 Produktuaren bermea

The Liectroux G7 Robot Vacuum Cleaner typically comes with a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options may be available for purchase.

• Berme estandarra: 12 months against manufacturing defects.
• Berme Luzatuaren Aukerak: 12-month or 24-month extended protection plans may be offered by retailers.

Mesedez, gorde zure erosketa-froga berme-erreklamazioetarako.

7.2 Bezeroarentzako laguntza

For technical assistance, warranty claims, or general inquiries, please contact Liectroux customer support. Refer to the contact information provided in your product packaging or on the official Liectroux webgunea.

Era berean, bisitatu dezakezu Liectroux Brand Store on Amazon baliabide gehigarriak eta produktuaren informazioa lortzeko.
