VEVOR 18-inch Bolt Cutter Instruction Manual

1. Produktua amaitu daview

The VEVOR 18-inch Bolt Cutter (Model L2362) is a heavy-duty hand tool designed for cutting various materials such as rods, bolts, wires, rivets, cables, and chains. It features a chrome molybdenum alloy steel blade for durability and an ergonomic bi-material handle with a soft rubber grip for comfortable operation.

Figure 1: VEVOR 18-inch Bolt Cutter, showcasing its overall design with orange handles and black rubber grips.

2. Segurtasun-argibideak

Always read and understand all safety warnings and instructions before using this tool. Failure to follow the warnings and instructions may result in serious injury.

• Erabili babes pertsonaleko ekipamendu (BPE) egokia, segurtasun-betaurrekoak, eskularruak eta oinetako sendoak barne.
• Ensure the material to be cut is securely held and will not spring back after cutting.
• Do not attempt to cut hardened steel or materials beyond the tool's specified cutting capacity. Refer to the Specifications section for cutting capacity.
• Keep hands and fingers clear of the cutting jaws during operation.
• Store the bolt cutter in a dry, secure place, out of reach of children.
• Inspect the tool for damage before each use. Do not use if the blades are chipped, cracked, or misaligned.

3. Konfigurazioa

The VEVOR Bolt Cutter comes pre-assembled and ready for use. No complex setup is required. Before first use, and periodically thereafter, inspect the tool for any signs of damage or loose components.

3.1. Hasierako Ikuskapena

1. Check the cutting jaws for any chips, cracks, or signs of wear.
2. Ensure the pivot points are clean and move freely.
3. Verify that the handles are securely attached and the rubber grips are intact.

3.2. Adjusting Jaw Size

The bolt cutter features an adjustable jaw size to enhance precision and security in cutting. This adjustment is made via a nut located near the pivot point of the jaws.

Figure 2: Close-up of the bolt cutter showing the adjustable nut for jaw clearance. The nut allows for fine-tuning the gap between the cutting blades.

• Locate the adjustable nut on the side of the cutting head.
• Use an appropriate wrench to turn the nut, which will slightly alter the clearance between the cutting blades.
• Adjust as needed for optimal cutting performance on different material thicknesses. Do not overtighten or loosen excessively.

4. Funtzionamendu-argibideak

Follow these steps for effective and safe operation of your VEVOR Bolt Cutter.

4.1. Preparing for Cutting

1. Identify Material: Ensure the material to be cut is within the tool's capacity (refer to Specifications).
2. Material segurua: If possible, secure the material to prevent movement during cutting.
3. Kokalekua: Open the bolt cutter jaws wide enough to encompass the material.

4.2. Cutting Procedure

1. Heldu sendo: Hold the handles firmly with both hands, ensuring a stable grip on the rubberized handles.
2. Position Jaws: Place the material as deep as possible into the jaws, close to the pivot point, for maximum leverage.

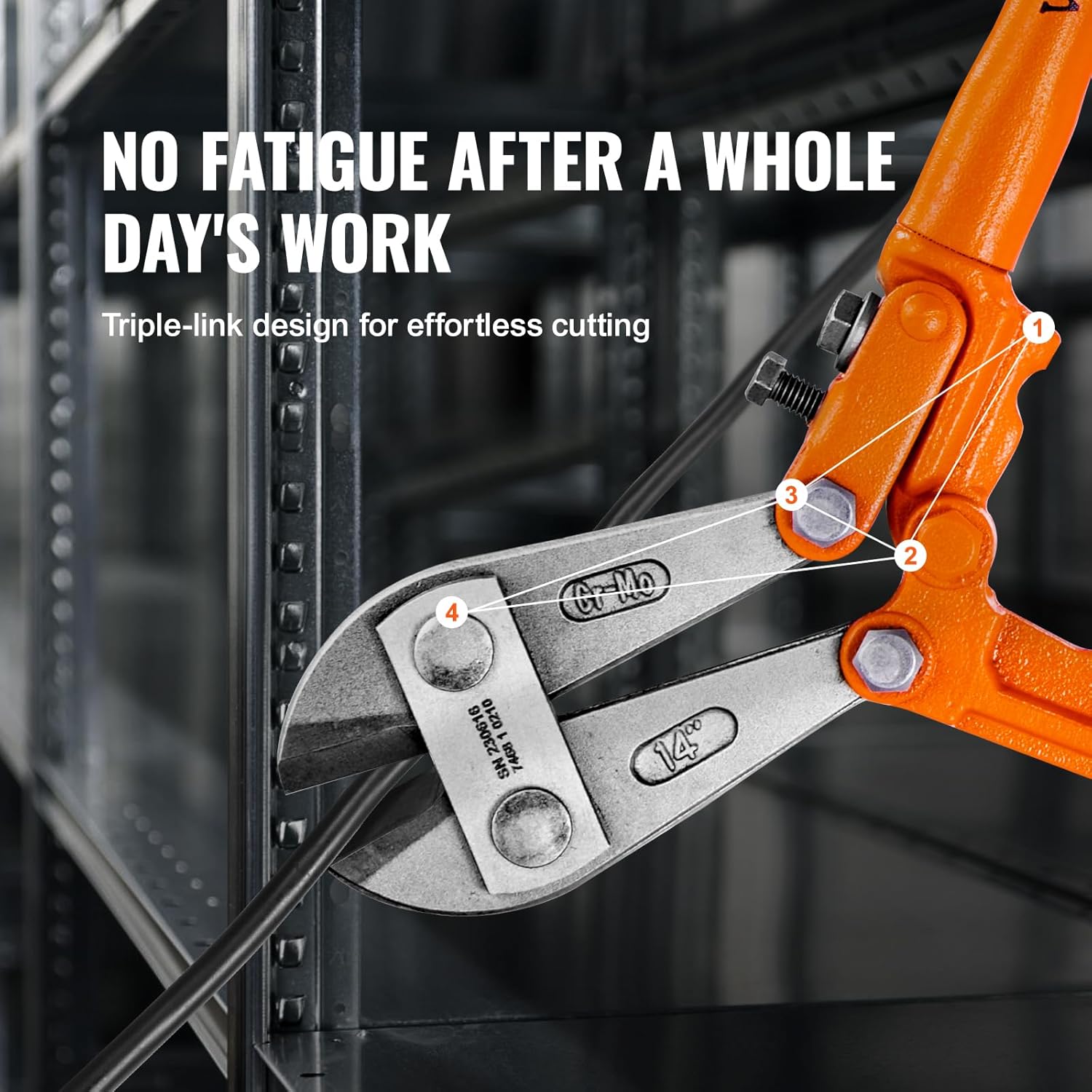

Figure 3: The bolt cutter positioned to cut a metal rod, demonstrating proper placement of the material deep within the jaws for optimal leverage.
3. Aplikatu indarra: Apply steady, even pressure to the handles, bringing them together until the material is cut. The three-link lever design assists in reducing the required force.
4. Oharra: Once the cut is complete, release the handles and remove the cut material.

5. Mantentzea

Proper maintenance ensures the longevity and optimal performance of your VEVOR Bolt Cutter.

5.1. Garbiketa

• After each use, wipe down the tool with a clean, dry cloth to remove dirt, debris, and moisture.
• For stubborn grime, use a mild detergent solution and dry thoroughly.

5.2. Lubrifikazioa

• Periodically apply a few drops of light machine oil to the pivot points and jaw mechanisms to ensure smooth operation and prevent rust.
• Operate the handles a few times to distribute the lubricant.

5.3. Biltegiratzea

• Store the bolt cutter in a dry environment to prevent corrosion.
• Keep the jaws closed when not in use to protect the cutting edges.

5.4. Blade Sharpening/Replacement

The chrome molybdenum alloy steel blades are designed for long-lasting sharpness. If the blades become dull or damaged over time, they may require professional sharpening or replacement. Consult VEVOR customer support for guidance on blade servicing.

6. Arazoak

This section addresses common issues you might encounter with your VEVOR Bolt Cutter.

Irtenbide hauek saiatu ondoren arazoa konpontzen ez bada, jarri harremanetan VEVOR bezeroarentzako arreta-zerbitzuarekin.

7. Zehaztapenak

Figure 4: Diagram illustrating the key dimensions and specifications of the VEVOR Bolt Cutter, including length, width, and cutting capacities.

8. Bermea eta Laguntza

VEVOR products are designed for durability and performance. For warranty information, product support, or to inquire about replacement parts, please contact VEVOR customer service directly.

You can typically find contact information on the official VEVOR webgunea edo erosketa-dokumentazioaren bidez.

Sareko baliabideak:

• Bisitatu VEVOR ofiziala website for FAQs and support articles: www.vevor.com
• For product-specific inquiries, refer to the product page on Amazon: Amazonen produktuen orria
