ECO-WORTHY 10FT 10AWG Solar Extension Cable Instruction Manual

1. Sarrera

The ECO-WORTHY 10FT 10AWG Solar Extension Cable is designed for extending the wiring of solar panels and related devices in various solar power systems. This cable features a tinned copper core for enhanced durability and conductivity, compatible quick connectors, and IP67 waterproofing for reliable performance in diverse environmental conditions.

Ezaugarri nagusiak:

• Tinned Copper Core: Premium 10AWG oxygen-free copper wire with tin-plated surface prevents oxidation (3X corrosion resistance vs bare copper), ensuring stable 30A/1000V DC power transfer even in 90% humidity environments.
• Bateragarritasun Unibertsala: Interoperable with most solar connectors. IP67 waterproof prevents arc faults in rainy/snowy conditions (-40°F to 185°F operational range).
• Faster Solar Array Setup: Pre-attached red/black wires for instantly distinguishing between positive and negative poles, enabling plug-and-play installation.
• High Performance Cables: UV-resistant HDPE jacket, 2000+ bend cycles and 98% dustproof efficiency.
• Precision-Length Engineering: 10FT exact-cut cables engineered for 25+ year rooftop/direct burial deployments.

2. Konfigurazioa eta instalazioa

This section provides instructions for connecting the ECO-WORTHY 10FT 10AWG Solar Extension Cable to your solar system components. The cables are designed for plug-and-play installation, simplifying the setup process.

2.1 Preparing the Cable Ends (If not pre-attached)

If your cable ends are not pre-attached with connectors, follow these steps:

1. Identify Pre-cut Notch: Locate the pre-cut notch on the cable insulation. Gently peel back the outer insulation using your fingers.
2. Twist Wire Strands: Once the insulation is removed, slightly twist the exposed wire strands to prevent them from spreading out during crimping.
3. Crimp Metal Contacts:
   • Select the appropriate crimp slot (e.g., 10 AWG) on your crimping tool.
   • Place the metal contact (socket for female connector, pin for male connector) into the correct slot and gently squeeze the crimper just enough to hold it in place. Do not fully crimp yet.
   • Insert the stripped wire end into the metal contact.
   • Squeeze the crimper firmly to secure the wire. The tool will automatically release when the crimp is complete.
   • Give the wire a quick pull to ensure the connection is tight and secure.
4. Assemble Connector Housing:
   • Remove the cap from the plastic housing of the connector.
   • Slide the cap onto the cable first, followed by the rubber sealing ring. Ensure the rubber ring covers the cable insulation completely for a waterproof seal.
   • Push the crimped metal terminal into the plastic housing until you hear a click, indicating it is locked in place.
   • Screw the cap onto the housing. Use the provided spanners to tighten the seal. One end of the spanner fits over the nut, and the other locks into the connector to assist in turning.

2.2 Connecting to Solar Panels and Controller

The ECO-WORTHY solar extension cables are designed for easy connection to most solar panels and charge controllers.

1. Connect to Solar Panels: Connect the male and female ends of the extension cable to the corresponding connectors on your solar panels. Ensure a secure, audible click for proper connection.
2. Connect to Charge Controller: Insert the bare wire ends of the extension cable into the appropriate terminals on your solar charge controller. Ensure positive (+) and negative (-) connections are correctly matched. Tighten the terminal screws to secure the wires.

Image: Essential Components of Solar Systems. This diagram illustrates how solar panels, a charge controller, and batteries are interconnected in a typical solar power system, highlighting the role of extension cables.

3. Funtzionamendua

Once properly installed, the ECO-WORTHY 10FT 10AWG Solar Extension Cable facilitates the transfer of DC power from your solar panels to your charge controller and subsequently to your battery bank or inverter. No specific operational steps are required for the cable itself beyond ensuring secure connections.

• Ensure all connections are tight and free from debris to maintain optimal power flow and prevent energy loss.
• Verify that the polarity (positive and negative) is correctly matched throughout your solar system to avoid damage to components.
• The cable is designed for continuous outdoor use, providing reliable performance under various weather conditions.

Image: Cable Extension for Flexible Use. This image shows the solar extension cable connected to a solar panel, demonstrating its use in extending reach for flexible system placement.

4. Mantentzea

The ECO-WORTHY 10FT 10AWG Solar Extension Cable is built for durability and requires minimal maintenance. Regular checks can help ensure its longevity and optimal performance.

• Ikus-ikuskapena: Periodically inspect the cable for any signs of physical damage, such as cuts, abrasions, or cracks in the insulation. Check connectors for corrosion or loose connections.
• Garbitasuna: Keep the cable and connectors free from dirt, dust, and debris. While the cable is 98% dustproof, a clean surface helps maintain optimal performance and prevents potential issues.
• Osotasun iragazgaitza: The IP67 waterproof rating ensures protection against water ingress. However, ensure that all connections are properly tightened and sealed, especially after any adjustments or disconnections.
• Environmental Resilience: The UV-resistant HDPE jacket protects against sun exposure, and the cable is designed to withstand temperatures from -40°F to 185°F. No special environmental protection is typically needed for the cable itself.

Image: IP67 Waterproof Connector. This image highlights the IP67 waterproof feature of the connector, demonstrating its ability to withstand wet conditions.

Image: Premium Materials, Multiple Protections. This image details the cable's construction, including tinned copper, PPO, and XLPE, which provide protection against acid, oxidation, and high temperatures.

5. Zehaztapenak

Image: Electrical Parameters. This image provides a visual summary of the cable's electrical specifications, including rated voltage, current, and operating temperature.

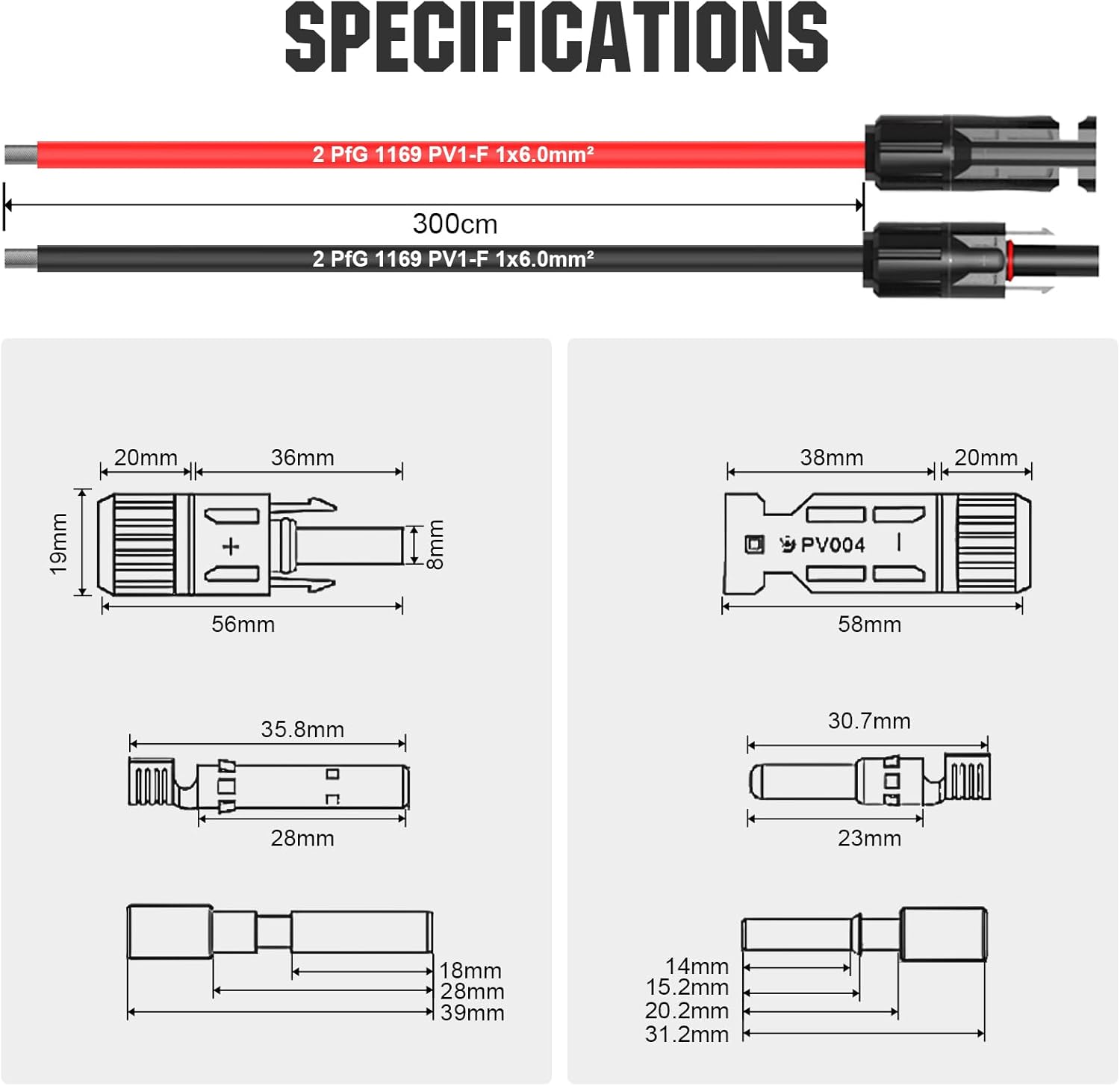

Image: Connector Specifications. This image displays detailed dimensions and technical drawings of the MC4 connectors used with the cable.

6. Arazoak

If you encounter issues with your ECO-WORTHY Solar Extension Cable, consider the following troubleshooting steps:

• Potentzia irteerarik ez:
  • Check all connections for tightness and proper seating. Loose connections can interrupt power flow.
  • Verify correct polarity (+ to + and - to -) between the solar panel, extension cable, and charge controller. Incorrect polarity can prevent power transfer or damage equipment.
  • Inspect the cable for any visible damage (cuts, kinks, severe bends) that might compromise conductivity.
• Reduced Power Output:
  • Ensure connectors are clean and free from dirt or corrosion. Clean contacts with a suitable electrical contact cleaner if necessary.
  • Confirm that the cable gauge (10AWG) is appropriate for your system's current and length to minimize voltage tanta.
• Uraren sarrera:
  • If water is found inside connectors, immediately disconnect power. Disassemble, dry thoroughly, and reassemble ensuring the rubber sealing ring and cap are correctly positioned and tightened.

For persistent issues or complex problems, please contact ECO-WORTHY customer support.

7. Bermearen informazioa

ECO-WORTHY products are designed for reliability and durability. For specific warranty terms and conditions applicable to your 10FT 10AWG Solar Extension Cable, please refer to the official ECO-WORTHY website or contact customer support directly. Typically, warranty covers manufacturing defects and material failures under normal use.

8. Bezeroarentzako arreta

For any questions, technical assistance, or support regarding your ECO-WORTHY 10FT 10AWG Solar Extension Cable, please use the following contact information:

• Webgunea: www.eko-worthy.com/
• Facebook: www.facebook.com/ecoworthy.store
• Posta elektronikoa: customer.service@eco-worthy.com

ECO-WORTHY offers 24/7 seamless support and aims for over 95% customer satisfaction. With local warehouses and 18 years of experience in solar energy, they are committed to providing excellent service.
