YITAHOME MAYIHwgtmy 16x32 FT

YITAHOME 16x32FT-ko Festa-denda sendoaren argibideen eskuliburua

Model: MAYIHwgtmy | Size: 16x32 FT

1. Sarrera

This manual provides essential instructions for the safe assembly, operation, and maintenance of your YITAHOME 16x32FT Heavy Duty Party Tent. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

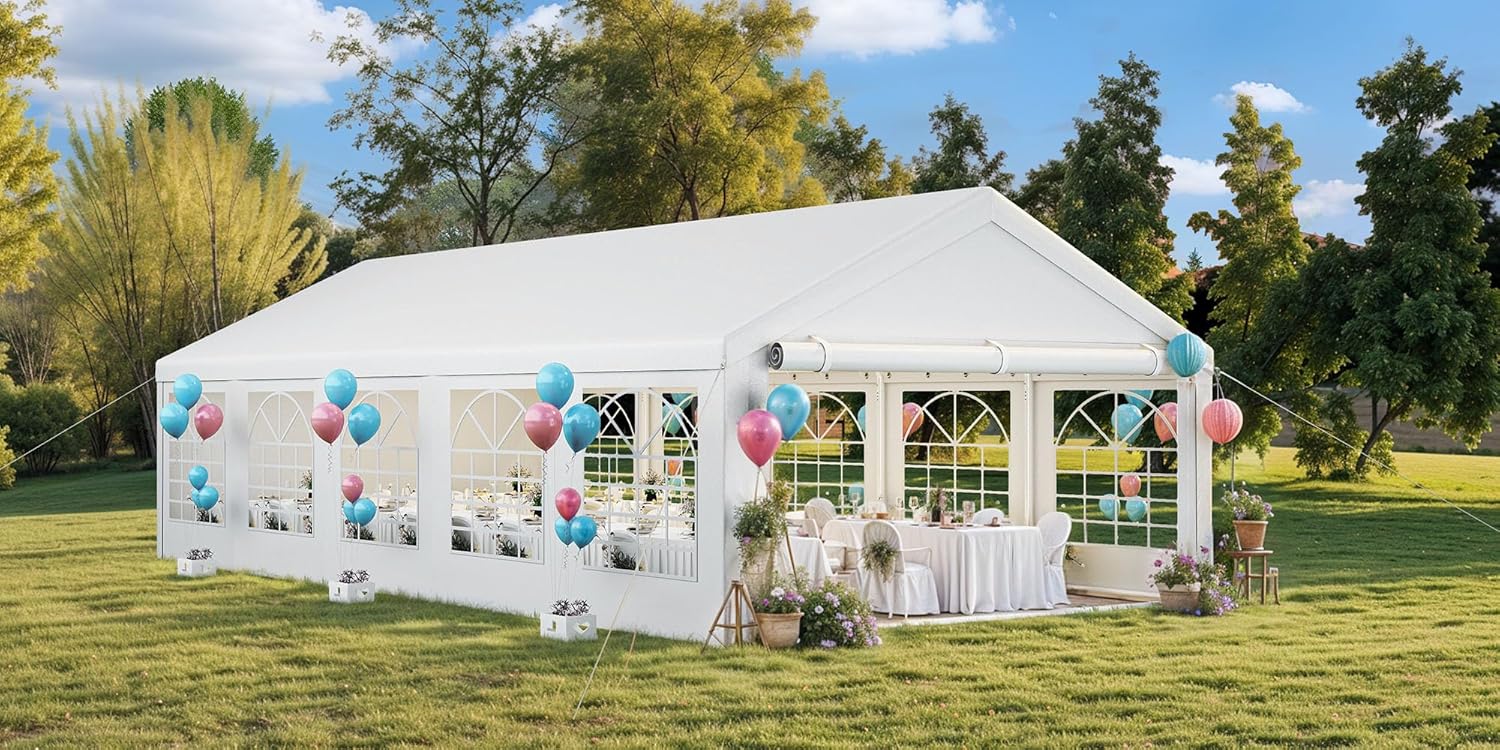

YITAHOME 16x32FT Party Tent set up in a grassy outdoor area with tables and balloons

Image 1.1: The YITAHOME 16x32FT Party Tent, ideal for various outdoor events.

2. Segurtasun-abisuak

  • Haizearen baldintzak: Avoid using the tent in wind speeds exceeding 25 mph. High winds can cause structural damage and pose a safety risk.
  • Ainguraketa: Always secure the tent to the ground using the provided ground nails for grassy surfaces or expansion screws for cement surfaces. Proper anchoring is crucial for stability.
  • Muntaia: Professional installation is highly recommended. Ensure adequate personnel are available for safe assembly.
  • Suteen aurkako segurtasuna: Keep all heat sources and open flames away from the tent fabric. The material is not fireproof.
  • Snow/Ice: Do not allow heavy accumulation of snow or ice on the tent roof. This can cause the structure to collapse.

3. Paketearen edukia

Your YITAHOME Party Tent is shipped in 3 separate boxes. Verify all components are present before beginning assembly.

  • 1 x Top Cloth (140g PE)
  • 2 x Sidewalls with Windows (140g PE)
  • 2 x Kremailerazko Ateak
  • Columns and Connecting Parts (Galvanized Steel)
  • 3 x 600D Oxford Cloth Storage Bags
  • 8 x Large Ground Nails
  • 8 x Soka tiratzaileak
  • 24 x Lurreko iltze txikiak
Three black storage bags for the tent components

Image 3.1: Included storage bags for convenient transport and storage of tent components.

4. Muntatzeko jarraibideak

Follow these steps for proper assembly. It is recommended to have multiple people assist with the setup.

4.1 Frame Installation

  1. Lay out all steel poles and connectors on a flat, clear surface. Refer to the diagram for component identification.
  2. Assemble the roof frame first by connecting the horizontal and angled poles using the appropriate connectors. Ensure all connections are secure.
  3. Attach the vertical leg poles to the assembled roof frame.
  4. Secure the base of each leg pole with the provided footings and ground nails.

Video 4.1: Demonstration of frame installation for a similar party tent.

4.2 Top Cloth and Sidewall Installation

  1. Carefully drape the top cloth over the assembled roof frame. Ensure it is centered and evenly distributed.
  2. Secure the top cloth to the frame using the elastic ball straps, threading them through the grommets and around the poles.
  3. Attach the sidewalls and zipper doors to the frame using the hook-and-loop straps and elastic ball straps. The sidewalls are removable and can be adjusted based on weather or event needs.
Diagram showing detachable tent roof and options for complete dismantling, partial dismantling, and fully enclosed setup

Image 4.1: Illustration of detachable tent roof and various enclosure configurations.

Close-up of a hand securing a white hook-and-loop strap around a tent pole

Image 4.2: Hook-and-loop straps provide secure attachment for sidewalls.

4.3 Karpa ainguratzea

  1. Drive the large ground nails through the footings of the leg poles into the ground.
  2. Attach the pull ropes to the designated points on the tent and secure them to the small ground nails, driven into the ground at an angle away from the tent. Adjust tension as needed.

4.2 bideoa: Xehetasun gehiago view of tent anchoring and structural components.

5. Ezaugarriak eta diseinua

  • Esparru berritua: Features a heavy-duty white powder-coated galvanized steel structure, resistant to rust and corrosion. The 1.5-inch (38 mm) steel tube diameter and 1.66-inch (42 mm) metal connector diameter provide strong support.
  • Superb Fabric: The waterproof top is made from 140g PE cloth. The 140g high-quality PE removable sidewalls and zipper doors offer cross-ventilation and block 99% of harmful UV rays. 140-gram PVC windows enhance brightness.
  • Detachable Sidewalls: The sidewalls can be easily removed or rolled up, offering flexibility for various weather conditions and event styles.
  • Church Window Design: The PVC windows feature an elegant church window design, adding aesthetic appeal.
Comparison of tent appearance in sunny and rainy conditions, with close-ups of rope tie spike, elastic band, and spring pin connection

Image 5.1: The tent offers protection in various weather conditions, highlighting key attachment points.

Tent with detachable sidewalls partially removed, showing open structure

Image 5.2: Detachable sidewalls provide versatility for different event needs.

6. Erabilera-gidalerroak

This canopy party tent is designed as a multi-functional shelter for temporary outdoor gatherings. It is suitable for weddings, graduations, picnics, parties, BBQs, backyard events, and similar occasions.

  • Aireztapena: Utilize the removable sidewalls and zipper doors for cross-ventilation on warm days.
  • Edukiera: The 16x32 FT tent can accommodate approximately 8 round tables (5ft) or up to 80 standing people.
Barrualdea view of the 16x32FT party tent set up with multiple tables and chairs for an event

Image 6.1: Interior setup of the tent for an event, demonstrating spaciousness.

6.1. bideoa: Amaitu daview of the GARTOO Outdoor Party Tent, showcasing its use for events.

7. Zainketa eta Mantentzea

  • Garbiketa: Clean the tent fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material.
  • Lehortzea: Ziurtatu denda-oihalak guztiz lehor daudela desmuntatu eta gorde aurretik, lizunak eta onddoak saihesteko.
  • Biltegiratzea: Store all components in the provided Oxford cloth storage bags in a cool, dry place away from direct sunlight.
  • Markoaren ikuskapena: Periodically inspect the steel frame for any signs of rust or damage. Clean and treat any rust spots promptly to prolong the lifespan of the frame.

8. Arazoak

  • Karpa-ezegonkortasuna: Ensure all ground nails and pull ropes are properly installed and tightened. Re-check wind speed and consider additional anchoring if necessary.
  • Ur-ihesak: Verify that the top cloth is correctly positioned and taut. Check for any tears or punctures in the fabric and repair as needed.
  • Zailtasunak zutoinak muntatzeko: Ensure you are using the correct poles and connectors as per the assembly diagram. Some connections may require gentle force.

9. Zehaztapenak

  • Marka: YITAHOME
  • Modelo zenbakia: MAYIHwgtmy
  • Produktuaren neurriak: 384"L x 192"Z x 110"A (16x32 oin)
  • Materiala: Aleaziozko altzairua, polietilenoa (PE)
  • Markoaren materiala: Metala (altzairu galbanizatua)
  • Kolorea: Zuria
  • Argi ultramorearen aurkako babesa: UV erresistentea
  • Uraren erresistentzia maila: Iragazgaitza
  • Elementuaren pisua: 56.9 kilo
  • Beharrezkoa den muntaia: Bai
  • UPC: 840332334028
Diagram illustrating the dimensions of the 16x32FT tent and its capacity for tables and standing people

Image 9.1: Key dimensions and capacity information for the party tent.

10. Bermea eta Laguntza

For any questions, concerns, or support needs regarding your YITAHOME Party Tent, please refer to the contact information provided with your purchase documentation. Specific warranty details are typically included with the product packaging.

Informazio gehiago lortzeko edo beste produktu batzuk arakatzeko, bisitatu YITAHOME denda.
