Goplus 9.3 Gallon Solar Heated Outdoor Shower Instruction Manual

1. Sarrera

Thank you for choosing the Goplus 9.3 Gallon Solar Heated Outdoor Shower. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new outdoor shower. Please read these instructions thoroughly before assembly and use, and retain them for future reference.

This freestanding outdoor shower utilizes solar energy to heat water, offering a convenient and eco-friendly showering solution for your poolside, backyard, or beach area. It features a 360° swivel shower head, a handheld shower, and a foot shower for versatile use.

1. irudia: Goplus 9.3 Gallon Solar Heated Outdoor Shower.

2. Segurtasun informazioa

Funtzionamendu segurua bermatzeko eta lesioak edo kalteak saihesteko, jarraitu segurtasun neurri hauek:

• Hot Water Warning: The solar shower can heat water to temperatures up to 140°F (60°C). Always test the water temperature before showering, especially for children and individuals with sensitive skin, to prevent scalding. Use the hot and cold adjustment faucet to achieve a comfortable temperature.
• Instalazio egonkorra: The shower must be securely anchored to a solid, level surface such as concrete or a reinforced wooden deck to prevent tipping. Failure to do so can result in serious injury.
• Uraren presioa: Ensure your water supply pressure does not exceed 3.5 bar (50 PSI). Higher pressures can damage the unit.
• Drainatzea: Install the shower in an area with adequate drainage to prevent water accumulation and slippery surfaces.
• Haurrak eta maskotak: Keep children and pets supervised around the shower, especially when it contains hot water.
• Neguan egitea: In freezing climates, the shower must be completely drained and disassembled or protected from frost damage during winter months.
• Material Integrity: Regularly inspect the shower for any signs of damage, cracks, or leaks. Do not use if damaged.

3. Paketearen edukia

Please verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact Goplus customer service.

• Solar Heated Outdoor Shower Column (2 sections)
• 360° Swivel Shower Head
• Handheld Shower with Hose
• Oin-dutxako txorrota
• Hot/Cold Water Mixer Faucet
• Base Plaka
• Anchoring Screws (4 pcs)
• Water Inlet Connector (G1/2" male quick connector and female quick connector for standard garden hose)
• Erabiltzailearen eskuliburua

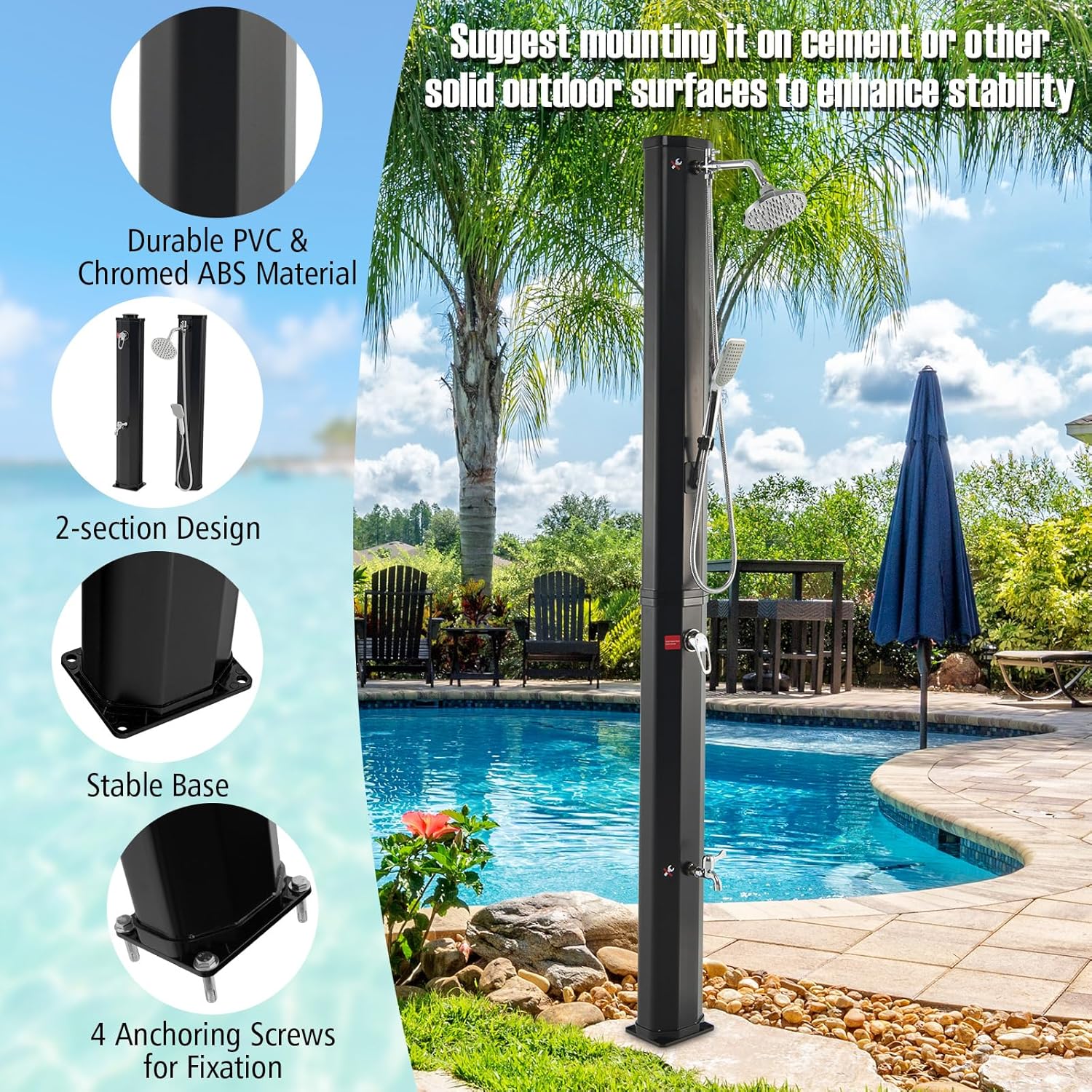

2. irudia: Key components and construction features of the Goplus Solar Heated Outdoor Shower.

4. Konfigurazioa eta instalazioa

Proper installation is crucial for the stability and functionality of your solar shower. It is recommended to have two people for assembly.

4.1 Gunearen hautaketa

• Choose a location that receives direct sunlight for several hours a day to maximize water heating.
• Ensure the surface is solid, level, and capable of supporting the shower when full of water (approximately 9.3 gallons or 77 pounds). Concrete or a reinforced deck is ideal.
• Verify adequate drainage to prevent water pooling.

4.2 Muntaketa urratsak

1. Assemble Shower Column: Connect the two sections of the shower column. Ensure they are securely fastened according to the manufacturer's instructions.
2. Oinarrizko plaka erantsi: Secure the base plate to the bottom of the assembled shower column.
3. Mount Shower Head: Attach the 360° swivel shower head to the top of the column. Ensure all connections are tight to prevent leaks.
4. Install Handheld Shower and Faucets: Connect the handheld shower and its hose, the foot shower faucet, and the hot/cold mixer faucet to their respective ports on the shower column. Use plumber's tape on all threaded connections to ensure a watertight seal.
5. Lurrean finkatuta: Position the assembled shower on your chosen solid surface. Use the four anchoring screws to firmly secure the base plate to the ground. A 12mm drill bit is required for concrete installation.
6. Konektatu ur-hornidura:
   • For a G1/2" water hose (not included), use the male quick connector.
   • For a standard garden hose (not included), use the female quick connector.
   Connect your garden hose to the water inlet connector at the base of the shower. Ensure this connection is also tight and leak-free.

3. irudia: Water inlet connection options for the Goplus Solar Heated Outdoor Shower.

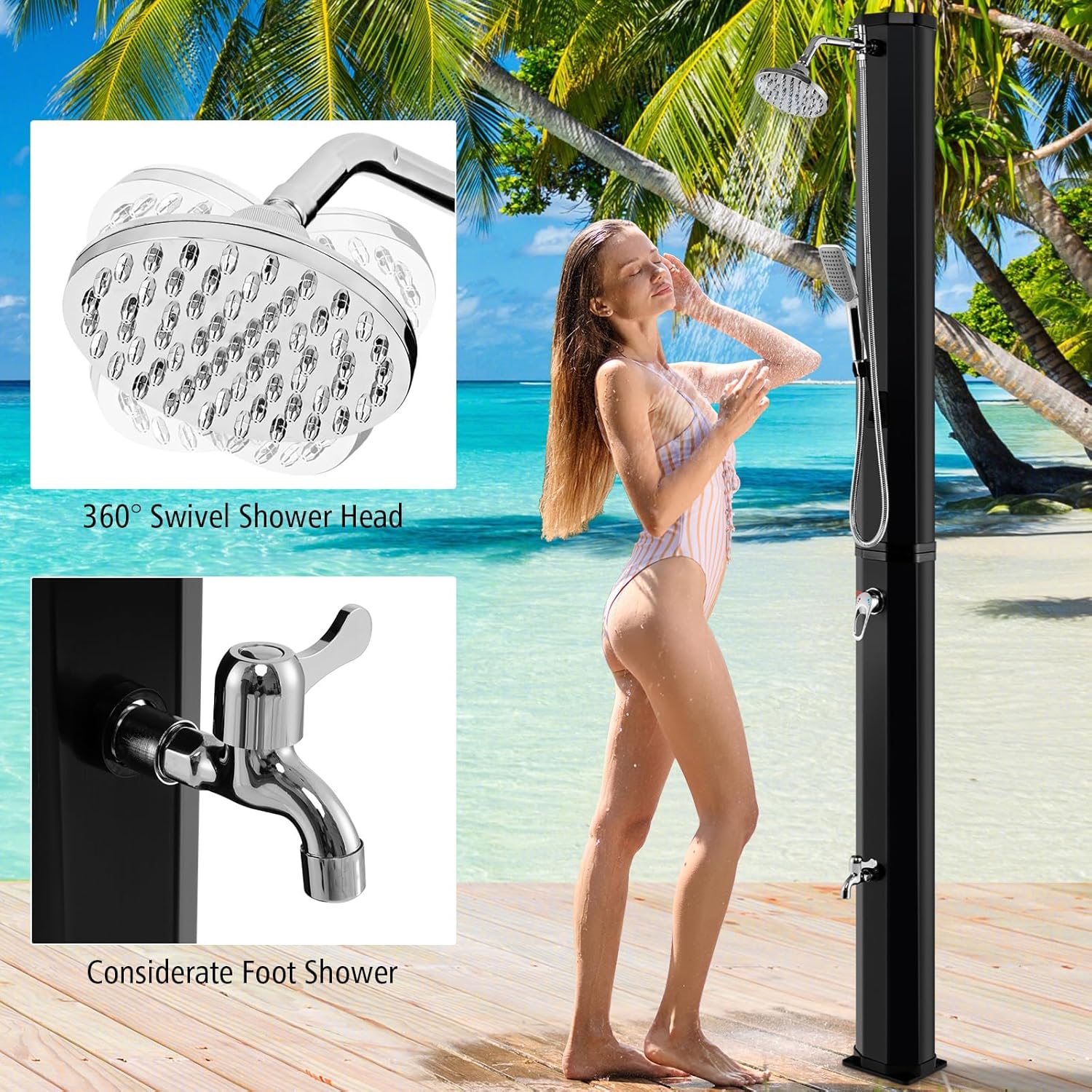

4. irudia: The 360° swivel shower head and foot shower feature.

5. Funtzionamendu-argibideak

5.1 Filling the Shower

Once connected to a water source, turn on the main water supply. The shower column will fill with water. This process may take a few minutes for the 9.3-gallon capacity.

5.2 Heating Water

The black shower column acts as a solar collector. Place the shower in direct sunlight. The water inside the column will gradually heat up. The heating time depends on sunlight intensity and ambient temperature. On a sunny day, water can reach up to 140°F (60°C).

5.3 Adjusting Water Temperature

The shower is equipped with a hot and cold adjustment faucet. Turn the handle to mix hot water from the solar tank with cold water from your supply to achieve your desired showering temperature. Always test the water temperature before stepping under the shower.

5. irudia: Hot and cold water temperature adjustment.

5.4 Using the Shower Heads

• Main Shower Head: The top shower head swivels 360° for adjustable coverage.
• Eskuko dutxa: Use the handheld shower for targeted rinsing.
• Foot Shower: The lower faucet is designed for washing feet or bathing small pets.

6. Mantentzea

6.1 Garbiketa

Clean the exterior of the shower regularly with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the PVC or chromed ABS finish.

6.2 Winterization (for Freezing Climates)

To prevent damage from freezing water, the solar shower must be completely drained and prepared for winter storage:

1. Turn off the main water supply to the shower.
2. Open all faucets (main shower, handheld, foot shower) to drain the water from the system.
3. Deskonektatu ura sartzeko mahuka.
4. If possible, disassemble the shower into its two sections and store it indoors in a dry, frost-free location. If disassembly is not feasible, ensure all water is thoroughly drained and consider covering the unit with a protective, waterproof cover.

Failure to properly winterize the shower will void the warranty and can lead to irreparable damage.

7. Arazoak

8. Zehaztapenak

• Eredua: NP10569
• Materiala: Durable PVC & Chromed ABS
• Dimentsio orokorrak: 7 cm (L) x 5.5 cm (Z) x 85.5 cm (A)
• Shower Head Diameter: 6"
• Ur-edukiera: 9.3 litro
• Uraren gehienezko tenperatura: 140 °F (60 °C)
• Uraren Gehieneko Presioa: 3.5 bar (50 PSI)
• Pisu garbia: 20 kilo
• Required Drill Bit for Installation: 12 mm (Diameter)

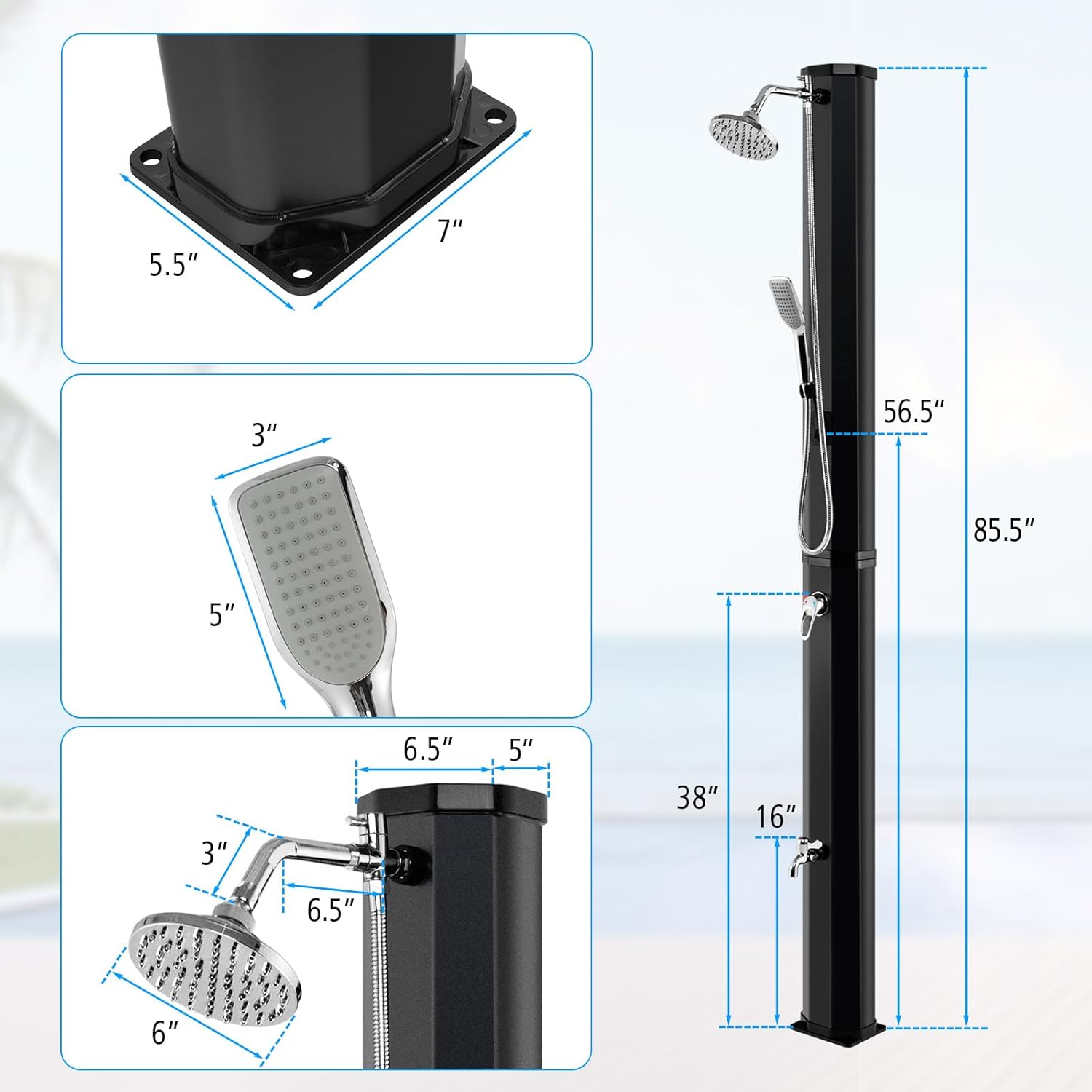

6. irudia: Product dimensions of the Goplus Solar Heated Outdoor Shower.

9. Bermea eta bezeroarentzako laguntza

For warranty information, replacement parts, or technical assistance, please contact Goplus customer support. Refer to your purchase documentation or the Goplus official webharremanetarako datuak lortzeko gunea.

Please have your model number (NP10569) and purchase date available when contacting support.
