XtremepowerUS Mini Dirt Bike User Manual

1. Sarrera eta Overview

Thank you for choosing the XtremepowerUS 40cc Mini Dirt Bike. This gas-powered pocket off-road motorcycle is designed for stability and speed, offering an exciting ride without compromising safety or control. It features large knobby tires, excellent grip, and a superior suspension system, making it suitable for various terrains. This manual provides essential information for the safe assembly, operation, and maintenance of your new dirt bike.

2. Segurtasun informazioa

OHARRA: Operating this vehicle can be hazardous. Always prioritize safety. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).

• Gomendatutako adina: This mini dirt bike is recommended for users aged 13 and above.
• Babes-tresna: Always wear a helmet, eye protection, gloves, and appropriate riding gear (long sleeves, long pants, sturdy shoes) when operating the dirt bike.
• Gainbegiratzea: Younger riders should always be supervised by an adult.
• Ingurune operatiboa: Operate only in safe, open areas away from public roads, traffic, and obstacles. Avoid riding on steep inclines or uneven surfaces that could cause loss of control.
• Pisu muga: Ez gainditu erabiltzailearen gehienezko pisu-ahalmena den 165 lb-koa.
• Ibilaldi aurreko egiaztapena: Before each ride, inspect the tires, brakes, chain, and all fasteners to ensure they are in good working condition.
• Erregaiaren Manipulazioa: Handle fuel with extreme care. Refuel in a well-ventilated area, away from open flames or sparks.

3. Paketearen edukia

Paketea irekitzean, ziurtatu osagai hauek guztiak daudela:

• XtremepowerUS 40cc Pocket Dirt Bike
• Erabiltzailearen eskuliburua (dokumentu hau)
• Necessary assembly tools (if applicable, not specified but common)

4. Produktuaren ezaugarriak

The XtremepowerUS Mini Dirt Bike is engineered with several key features for performance and durability:

• Powerful 4-Stroke Engine: Equipped with a 40cc/1.4hp 4-stroke air-cooled engine, this mini bike offers reliable power for off-road adventures. It surpasses many other mini bikes on the market, providing ample muscle for trails.
• Automatic Chain Drive Transmission: Features a fully automatic chain drive transmission system for smooth and easy operation.
• Off-Road Tires: Large knobby, low-pressure tires (4.10-6") provide excellent grip and a soft, smooth ride, ensuring stability even on rugged terrain.
• Atzeko disko-balazta: A robust rear disc brake system allows for reliable and quick stopping power, enhancing safety.
• Eraikuntza iraunkorra: Built with a rugged, proven clutch and a solid, sturdy metal frame, this heavy-duty machine is designed to withstand years of fun on the trail.
• EPA Approved: This dirt bike is EPA approved, indicating it meets environmental standards and is designed to not cause unreasonable adverse effects on user health under normal use, while also having low noise output.

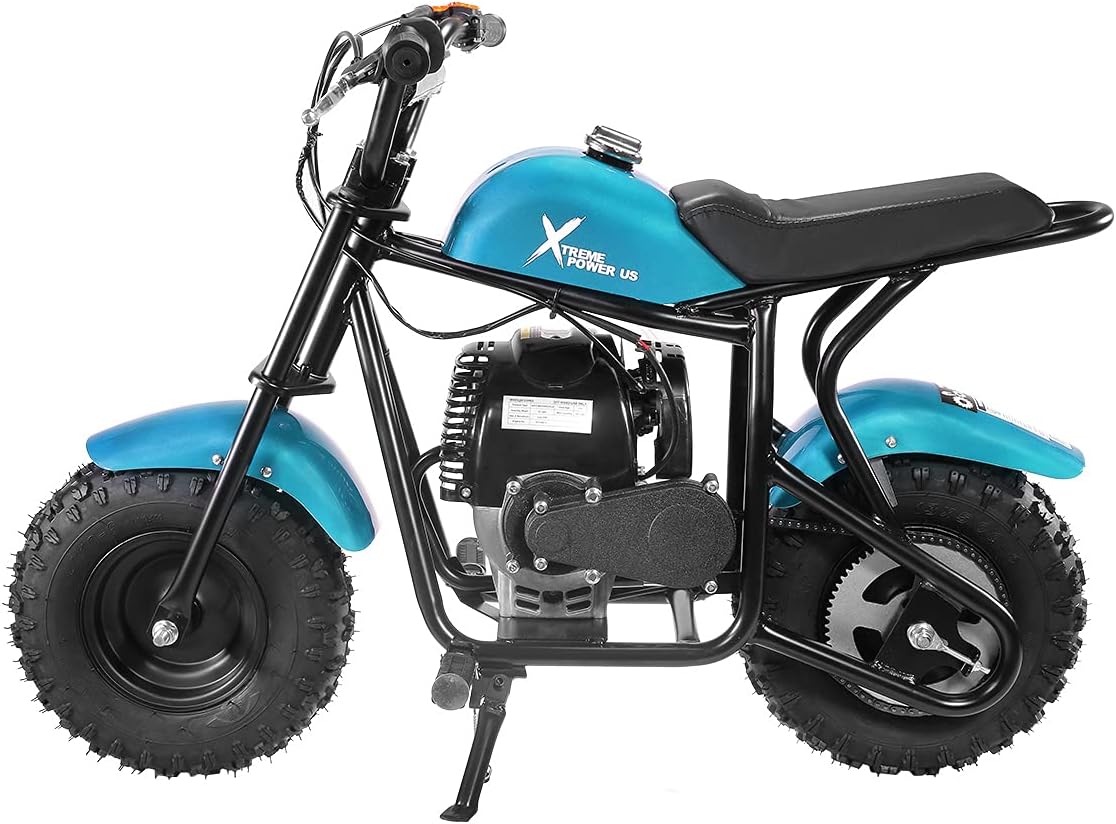

4.1 irudia: Aurrealde-ezkerrean view of the XtremepowerUS Mini Dirt Bike.

4.2 irudia: Atzeko eskuineko aldea view of the XtremepowerUS Mini Dirt Bike, highlighting the exhaust and rear wheel.

4.3. irudia: Xehetasuna view of the rear wheel and the red disc brake caliper, crucial for reliable stopping.

5. Zehaztapenak

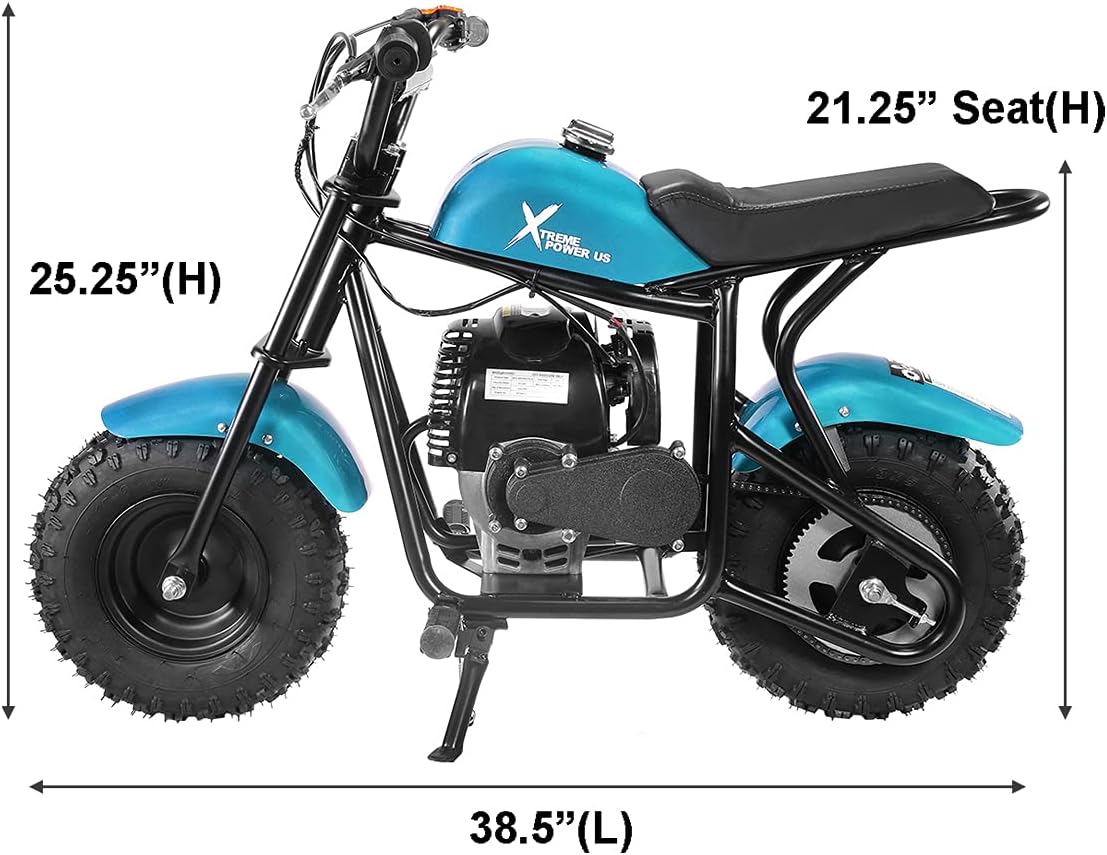

Figure 5.1: Key dimensions of the XtremepowerUS Mini Dirt Bike.

5.2. irudia: Xehetasuna view of the seat dimensions.

6. Konfigurazioa eta Muntaketa

Your XtremepowerUS Mini Dirt Bike requires minor assembly before its first use. Please follow these general steps:

1. Despaketatzea: Kontu handiz kendu osagai guztiak ontzitik.
2. Eskulekuaren instalazioa: Attach the handlebars securely to the bike's frame. Ensure all bolts are tightened to the manufacturer's specifications.
3. Katearen doikuntza: Check the chain tension and adjust if necessary to ensure proper alignment and prevent slippage.
4. Fluidoen mailak:
   • Erregaia: Fill the fuel tank with unleaded petrol (#91 recommended). Do not overfill.
   • Motor-olioa: Verify the engine oil level and add oil if needed, according to the engine's specifications. Refer to the engine manual for specific oil type and capacity.
5. Pneumatikoen presioa: Inflate tires to the recommended pressure. Check for any leaks.
6. Balazta-egiaztapena: Test the rear disc brake to ensure it engages properly and provides adequate stopping power.

7. Funtzionamendu-argibideak

Follow these steps for safe and effective operation of your mini dirt bike:

1. Motorra martxan jartzea:
   • Ziurtatu erregai-balbula irekita dagoela.
   • If cold, apply choke.
   • Tira abiarazle-soka gogor eta leunki motorra martxan jarri arte.
   • Once started, gradually release the choke.
2. Zaldiz:
   • Sit comfortably on the seat with both feet on the footpegs.
   • Gently twist the throttle to accelerate. The automatic transmission will manage gear changes.
   • Maintain a firm grip on the handlebars and keep your eyes on the path ahead.
   • The bike can reach speeds of up to 18 mph and revs up to 6500 RPM. Adjust your speed according to terrain and skill level.
3. Balaztaketa:
   • To slow down or stop, gradually apply the rear disc brake lever located on the handlebar.
   • Apply brakes smoothly to avoid skidding or losing control.
4. Motorra gelditzea:
   • Bring the bike to a complete stop.
   • Turn off the engine using the kill switch or by closing the fuel valve.

8. Mantentzea

Regular maintenance is crucial for the longevity and safe operation of your mini dirt bike:

• Motorra: Regularly check and maintain engine oil levels. Refer to the engine manual for oil change intervals and specific oil requirements. Keep the air filter clean.
• Erregai-sistema: Use fresh, clean unleaded petrol (#91 recommended). Drain the fuel tank if storing the bike for extended periods.
• Pneumatikoak: Egiaztatu pneumatikoen presioa ibilaldi bakoitzaren aurretik. Egiaztatu pneumatikoak higadura, zulaketak edo kalteak dauden.
• Balaztak: Periodically inspect the rear disc brake system for wear on pads and proper function. Adjust as needed.
• Katea: Keep the drive chain clean, lubricated, and properly tensioned.
• Loturak: Regularly check all nuts, bolts, and fasteners for tightness. Tighten any loose components.
• Garbiketa: Clean the bike after each use, especially after riding in muddy or dusty conditions. Avoid using high-pressure washers directly on electrical components or engine parts.

9. Arazoak

Hona hemen arazo ohikoenetako batzuk eta haien irtenbide posibleak:

• Motorra ez da martxan jartzen:
  • Check fuel level and ensure fuel valve is open.
  • Verify spark plug is clean and properly connected.
  • Ensure choke is applied if starting cold.
• Potentzia galtzea/Errendimendu eskasa:
  • Check air filter for clogs and clean if necessary.
  • Inspect fuel lines for blockages or kinks.
  • Ensure proper engine oil level.
• Balaztak ez dira eraginkorrak:
  • Inspect brake pads for wear and replace if needed.
  • Balazta-kablearen tentsioa egiaztatu eta doitu.

For issues not covered here or persistent problems, please contact customer support.

10. Bermea eta Laguntza

The XtremepowerUS Mini Dirt Bike comes with a 90 eguneko bermea erosketa-datatik aurrera, fabrikazio-akatsak estaliz. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.

For any questions, technical assistance, or warranty inquiries, please contact XtremepowerUS Customer Support. Visit the official XtremepowerUS store on Amazon for more information and contact details:
