Nexgrill Daytona 3-Burner Propane Gas Griddle User Manual

Produktua amaituview

The Nexgrill Daytona 3-Burner Propane Gas Griddle is designed for versatile outdoor cooking, offering a large 630 square inch hot-rolled steel cooking surface and 45,000 BTUs of total cooking power. It features side tables for convenience, an electronic ignition system, and a heavy-duty lid for protection. The griddle is built for durability and easy maintenance, making it suitable for various meals from breakfast to dinner.

Figure 1: Nexgrill Daytona 3-Burner Propane Gas Griddle with side tables and lid.

Ezaugarri nagusiak:

• 630 sq. in. Hot Rolled Steel Cooking Surface: Ematen du ample space and even heat distribution for diverse meals.
• 45,000 BTU bero-irteera: Powerful burners ensure quick searing and efficient cooking.
• Heavy-Duty Lid: Offers optimal heat retention and protection against elements.
• Pizte Elektronikoa: For quick and reliable startup.
• Side Tables & Accessory Hooks: Convenient for food prep and tool storage.
• Fast Vac Grease Management System: Simplifies cleanup by collecting excess oil and drippings.
• Eraikuntza iraunkorra: Made with treated metal to resist rust and ensure longevity.

Konfigurazioa eta Muntaketa

Before first use, ensure all components are present and undamaged. Assembly typically takes 15-20 minutes with the included equipment.

Osagaien kontrol-zerrenda:

• Griddle Base Frame
• Hot Rolled Steel Griddle Top
• 3 erregailu
• Control Panel with Knobs
• Side Tables (2)
• Osagarrien kakoak (6)
• Grease Management System Components (Grease Drain, Removable Grease Trap)
• Propanoaren mahuka eta erregulatzailea
• Hardware for Assembly

Muntatzeko urratsak:

1. Deskonprimitu osagai guztiak eta egiaztatu kontrol-zerrendarekin.
2. Assemble the main griddle base frame according to the included diagrams. Ensure all connections are secure.
3. Attach the side tables to the main frame using the provided hardware.
4. Install the burners into their designated slots beneath the griddle top.
5. Place the hot-rolled steel griddle top onto the assembled base.
6. Connect the propane hose and regulator to the griddle's gas inlet and your propane tank. Ensure a tight, leak-free connection.
7. Install the grease management system components.
8. Attach the accessory hooks to the side tables.

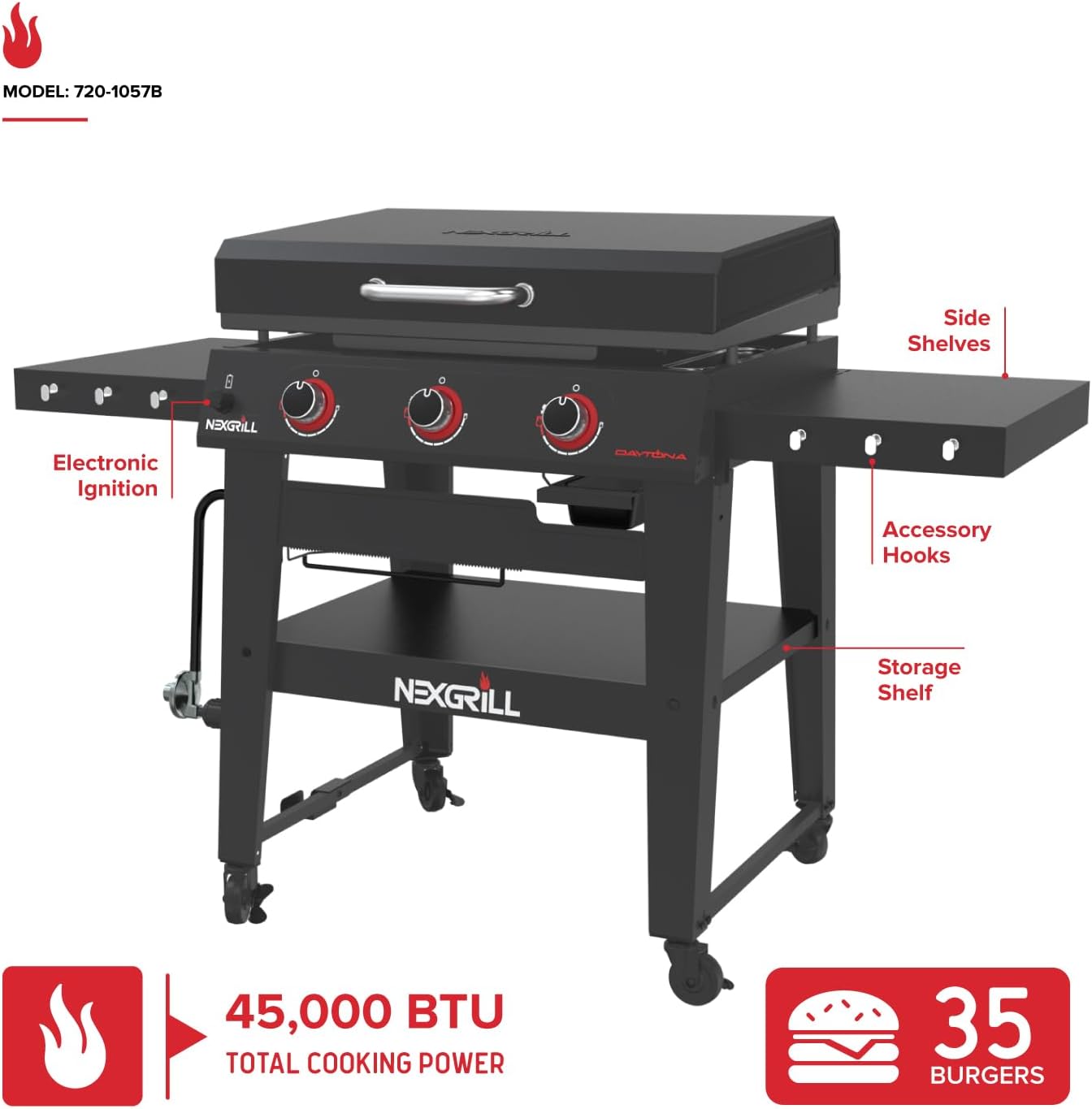

Figure 2: Labeled components of the Nexgrill Daytona Griddle, including side shelves, electronic ignition, accessory hooks, and storage shelf.

Funtzionamendu-argibideak

First Use & Seasoning:

Before cooking, the hot-rolled steel griddle surface requires seasoning to create a natural non-stick layer and improve rust resistance. This process involves heating the griddle and applying a thin layer of cooking oil multiple times.

1. Ensure the griddle is clean and dry.
2. Turn on all burners to medium-high heat. Allow the griddle to heat for 10-15 minutes until it begins to smoke and change color.
3. Using a paper towel and tongs, apply a thin, even layer of high smoke point cooking oil (e.g., flaxseed, grapeseed, or vegetable oil) over the entire cooking surface.
4. Allow the oil to burn off completely, which will produce smoke. Once smoking stops, repeat the oil application process 3-5 times until the griddle surface is dark and glossy.
5. The griddle surface will not look as clean as new after seasoning; this is normal and indicates a properly seasoned surface.

Plantxa piztea:

1. Ziurtatu propano depositua konektatuta dagoela eta gas balbula irekita dagoela.
2. Turn one burner control knob to the "HIGH" position.
3. Eduki sakatuta pizteko botoia elektronikoa erregailua piztu arte.
4. Once the first burner is lit, turn on the remaining burners to your desired heat setting.
5. Allow the griddle to preheat for 1-2 minutes before cooking.

3. irudia: View of the stainless steel burners beneath the griddle surface, indicating the 5-year warranty.

Plantxan sukaldatzea:

The large cooking surface allows for cooking various foods simultaneously. Adjust burner controls to create different heat zones for optimal results.

Figure 4: The 630 sq. in. cooking area accommodating multiple food items like meat, vegetables, and rice.

Figure 5: A versatile cooking surface showcasing different food types prepared simultaneously.

Zainketa eta Mantentzea

Plantea garbitzea:

Regular cleaning is essential for maintaining performance and longevity. The Fast Vac Grease Management System simplifies this process.

1. Allow the griddle to cool slightly after cooking, but while still warm.
2. Use a griddle scraper to push food residue and excess grease towards the side grease drain.
3. Empty and clean the removable grease trap after each use.
4. Wipe the griddle surface with a paper towel or cloth. For stubborn residue, a small amount of water can be used while the griddle is still warm to steam clean.
5. Reapply a thin layer of cooking oil to the griddle surface after cleaning to maintain seasoning and prevent rust.
6. Kanpoko gainazalak garbitu adamp oihala eta detergente leuna behar izanez gero.

Figure 6: Illustration of the effective grease management system with a scraper and removable grease trap.

Biltegiratzea:

When not in use, ensure the heavy-duty lid is in place to protect the cooking surface from rain, dirt, and debris. Store the griddle in a dry, protected area if possible, especially during extended periods of non-use.

Arazoak konpontzea

Produktuaren zehaztapenak

Figure 7: Detailed product dimensions and weight of the Nexgrill Daytona Griddle.

Bermea eta Laguntza

The Nexgrill Daytona 3-Burner Propane Gas Griddle comes with a 5-year warranty on main burners, epe luzerako fidagarritasuna eta errendimendua bermatuz.

For customer support, technical assistance, or warranty claims, please visit the official Nexgrill website or contact their customer service department. Refer to the product packaging or Nexgrill's official channels for the most current contact information.

Era berean, bisitatu dezakezu Nexgrill Store on Amazon produktuari buruzko informazio gehigarria eta laguntza-baliabideak lortzeko.
