AMERLIFE FT126A68C Floating Fireplace TV Stand Instruction Manual

1. Sarrera

Eskerrik asko erosketagatik.asing the AMERLIFE Floating Fireplace TV Stand. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new entertainment center. Please read these instructions thoroughly before beginning assembly or operation and retain for future reference.

Image: The AMERLIFE Floating Fireplace TV Stand, black with a white central fireplace, installed beneath a wall-mounted television in a modern living room setting.

2. Segurtasun informazio garrantzitsua

To reduce the risk of fire, electric shock, or injury, please observe the following:

• Do not attempt to move or assemble the product without assistance.
• Ensure the wall mounting is secure and can support the weight of the product.
• Keep children and flammable materials away from the fireplace.
• Do not exceed the maximum load capacity of 200 LBS.
• Be cautious of sharp edges and small parts during assembly.
• Ensure all electrical connections are properly grounded and meet local codes.
• Do not cover the heater vent of the electric fireplace.

3. Paketearen edukia

Your AMERLIFE Floating Fireplace TV Stand is shipped in two packages (Box A and Box B), which may arrive at different times. Please verify all components are present before beginning assembly.

Image: Packaging diagram showing two boxes, Box A and Box B, with a note that they may arrive separately.

Dakarten osagaiak:

• Floating TV Stand components (panels, shelves, doors)
• 40" Electric Fireplace unit
• Assembly hardware (screws, dowels, hinges, wall mounting brackets)
• Remote control for fireplace and LED lights
• Argibideen eskuliburu zehatza

4. Zehaztapenak

Image: Detailed dimensions of the AMERLIFE Floating Fireplace TV Stand, including width, depth, and height for both the stand and the integrated 40-inch fireplace. Also shows maximum TV size of 90 inches and a countertop capacity of 220 LBS.

5. Muntatzeko jarraibideak

Assembly is required. All parts are labeled for easy identification. Follow the detailed instructions and diagrams provided in the separate assembly booklet. It is recommended to have two people for assembly and installation.

Batzar Nagusiaren urratsak:

1. Deskonprimitu osagai guztiak eta egiaztatu piezen zerrendarekin.
2. Assemble the main cabinet structure using the provided hardware.
3. Install the adjustable shelves in the side compartments.
4. Integrate the 40-inch electric fireplace unit into the central opening.
5. Lotu armairuko ateak emandako bisagrak erabiliz.
6. Connect the LED lights (if not pre-installed) and route wiring as instructed.

Note: The LED lights are typically found in the box with the electric fireplace.

Image: The AMERLIFE Floating Fireplace TV Stand with its storage compartments open, revealing adjustable shelves and integrated LED lighting. The central fireplace displays blue flames.

6. Instalazioa

This TV stand is designed for wall mounting. Proper installation is crucial for safety and stability.

Horma motaren bateragarritasuna:

• Egokia: Concrete walls, Brick walls.
• Ez da egokia: Wooden walls, Hollow walls (e.g., drywall without stud reinforcement).

Image: A visual guide indicating that the floating TV stand is suitable for mounting on concrete and brick walls, but not recommended for wooden or hollow walls without additional reinforcement.

Muntatzeko prozedura:

1. Use the provided template to mark drilling locations on the wall.
2. Drill pilot holes and install the wall mounting brackets securely. Ensure these are anchored into solid wall material (concrete, brick) or reinforced studs.
3. With assistance, lift the assembled TV stand and carefully align it with the wall brackets.
4. Secure the TV stand to the brackets as per the assembly instructions.
5. Optimorako viewing and comfort, position the cabinet around 17 to 20 inches high from the floor.

Important: If mounting to drywall, additional reinforcement (e.g., wood lumber secured to studs) may be necessary to ensure adequate support for the unit's weight and any items placed on it.

7. Funtzionamendu-argibideak

Your floating TV stand features an integrated electric fireplace and LED lighting. Both can be controlled via the intelligent touchscreen panel or the included remote control.

Image: The control panel and remote for the 40-inch electric fireplace, illustrating options for power, flame color, heat, timer, ember bed, and brightness adjustment. Multiple flame color exampbehean agertzen dira.

7.1 Electric Fireplace Operation:

• Piztu/Itzali: Press the power button on the touchscreen or remote.
• Sugarraren kolorea: Cycle through various flame colors (e.g., red, blue, purple, green, orange) using the flame color button.
• Bero ezarpenak: Adjust the thermostat to your desired temperature. The fireplace offers adjustable temperature settings and 5 levels of dimmers for flame intensity.
• Tenporizadorea: Set an on/off timer for automatic operation.
• Distira: Adjust the brightness of the flame effect.
• Txingar ohea: Select from various ember bed colors.

7.2 LED Lights Operation:

• The integrated LED lights in the side compartments can be controlled independently.
• Use the remote control or dedicated buttons (if available) to change colors and turn them on/off.

8. Mantentzea

• Garbiketa: Wipe surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the high-gloss finish.
• Tximinia: Ensure the fireplace vents are clear of obstructions. Periodically check the power cord for damage.
• Orokorra: Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa daudela ziurtatzeko.

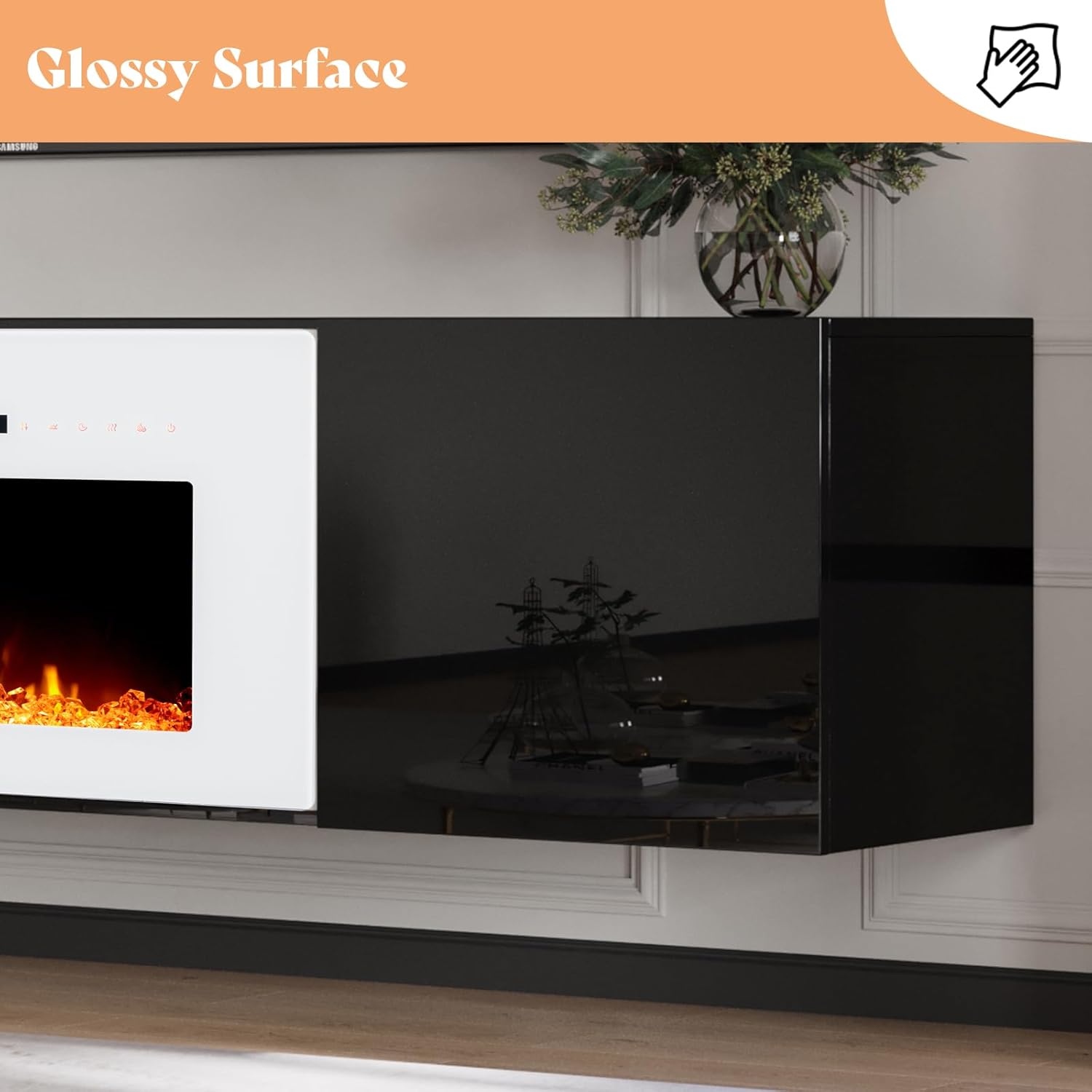

Irudia: Gertutik view of the high-gloss surface of the AMERLIFE Floating Fireplace TV Stand, emphasizing its sleek, easy-to-clean finish.

9. Arazoak

10. Bermea eta Laguntza

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official AMERLIFE webgunea. Gorde erosketa-agiria berme-erreklamazioetarako.
