VASAGLE Electric Height-Adjustable Standing Desk

1. Produktua amaitu daview

The VASAGLE Electric Height-Adjustable Standing Desk is designed to provide a versatile and ergonomic workspace. It features a robust electric motor for smooth height adjustments, memory presets for convenience, and integrated storage and power solutions to keep your area organized and functional.

1.1 Irudia: Gainetikview of the VASAGLE Electric Height-Adjustable Standing Desk.

Ezaugarri nagusiak:

• Adjustable Height & Memory Function: Seamlessly switch between sitting and standing positions (72-120 cm) with three programmable memory presets.
• Integrated Storage & Charging: Features a height-adjustable central monitor shelf, two fabric drawers for small items, perforated panels for cable management, two power outlets, and two USB charging ports.
• Kalitate handiko motorra: Ensures smooth, quiet operation (<50 dB) with an anti-collision mechanism for safety.
• Osagarri erosoak: Includes a side hook for headphones or bags and adjustable LED lighting to enhance your workspace ambiance.
• Egitura egonkorra: Built with a double support bar and steel legs, providing excellent stability and supporting up to 80 kg.

2. Konfigurazioa eta Muntaketa

The VASAGLE Electric Height-Adjustable Standing Desk is designed for easy assembly. Follow the numbered parts and clear instructions provided in the packaging for a quick setup.

Muntatzeko aholkuak:

• Identify all parts and hardware using the included list before starting.
• Muntatu gainazal leun eta garbi batean marradurak saihesteko.
• Ez estutu gehiegi torlojuak hasierako muntaketan; estutu guztiz egitura egonkor dagoenean.
• Ensure all electrical connections are secure before plugging into a power source.

Figure 2.1: Desk dimensions and maximum static load capacity (80 kg).

Adjustable Feet and Casters:

The desk comes with both adjustable feet and casters, allowing you to choose between stationary stability or mobility. Install the desired option during assembly.

Figure 2.2: Choose between adjustable feet for stability or casters for mobility.

3. Funtzionamendu-argibideak

Height Adjustment and Memory Presets:

Use the control panel to adjust the desk height. The desk can be set between 72 cm (sitting) and 120 cm (standing). The control panel allows you to save up to three preferred height settings for quick transitions.

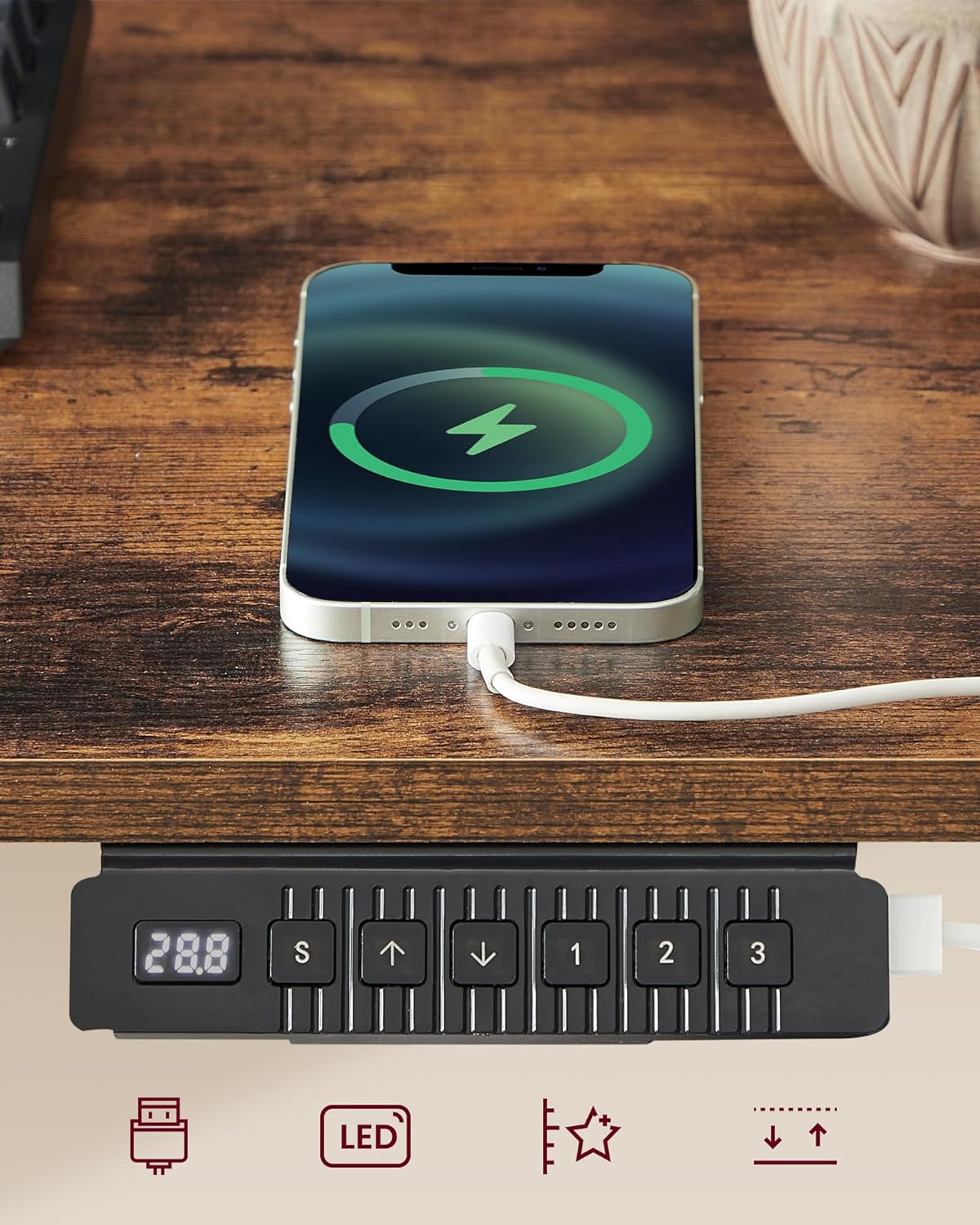

Figure 3.1: Control panel for height adjustment and memory functions.

• Sakatu Up or Behera arrows to manually adjust the height.
• To save a height: Adjust the desk to the desired height, then press the S button followed by one of the numbered memory buttons (1, 2, edo 3).
• Gordetako altuera bat berreskuratzeko: sakatu dagokion zenbakidun memoria-botoia.

Figure 3.2: The desk allows for comfortable sitting and standing postures.

Integrated Power and USB Ports:

The desk includes a built-in power strip with two AC outlets and two USB ports for convenient charging of your devices. These can be mounted on either the left or right side of the desk.

Figure 3.3: Integrated power strip for charging devices.

Monitor Shelf and Storage Drawers:

The central monitor shelf is height-adjustable, allowing you to customize your screen's position. Two fabric drawers provide discreet storage for office supplies and small items.

Figure 3.4: Monitor shelf can be adjusted for optimal viewing or to accommodate a monitor arm.

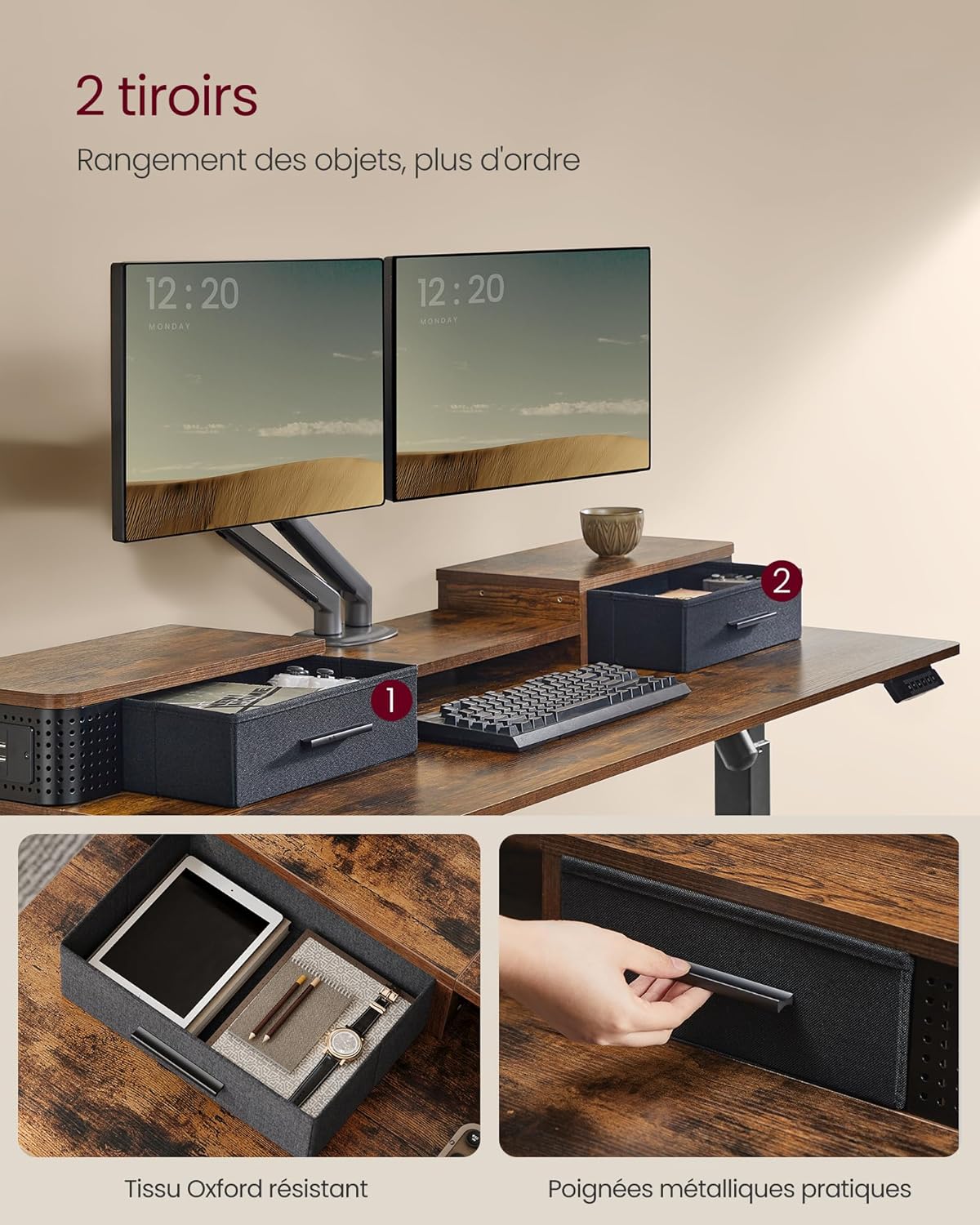

Figure 3.5: Fabric drawers for organized storage.

LED argiztapena:

The included LED light strip can be installed to provide ambient lighting for your workspace. It offers 7 adjustable colors to create different atmospheres.

Figure 3.6: Adjustable LED lighting with 7 color options.

4. Mantentzea eta Zainketa

To ensure the longevity and optimal performance of your VASAGLE Electric Height-Adjustable Standing Desk, follow these maintenance guidelines:

• Garbiketa: Garbitu mahaigaina leun batekin, damp oihal. Saihestu akabera kaltetu dezaketen produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Motor zainketa: The electric motor is designed for durability. Avoid overloading the desk beyond its maximum weight capacity (80 kg).
• Kableen kudeaketa: Regularly check and organize cables to prevent tangling or damage, especially around moving parts.
• Ikuskapena: Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa eta finkatuta daudela ziurtatzeko.

5. Arazoak

Zure mahaiarekin arazorik baduzu, jarraitu arazoak konpontzeko ohiko urrats hauek:

• Mahaia ez da mugitzen:
  • Egiaztatu elikatze-kablea ondo konektatuta dagoen mahaian eta hormako entxufean.
  • Ziurtatu mahaia gora edo behera mugitzea eragozten duen oztoporik ez dagoela.
• Mugimendu irregularra:
  • Verify that the desk is on a level surface.
  • Ensure the weight on the desk is evenly distributed and does not exceed the maximum capacity.
• Motorraren zarata:
  • A low noise level (<50 dB) is normal during operation. If the noise is excessive or unusual, contact customer support.
• Memoria aurrezarpenak ez funtzionatzen:
  • Berriro programatu memoria aurrezarpenak 3 ataleko argibideei jarraituz.

If the problem persists after attempting these steps, please contact VASAGLE customer support for further assistance.

6. Zehaztapenak

7. Bermea eta Laguntza

VASAGLE products are manufactured with high-quality materials and undergo strict quality control. For specific warranty details regarding your Electric Height-Adjustable Standing Desk (Model LSD184X01), please refer to the warranty card included in your product packaging or visit the official VASAGLE webgunea.

Bezeroarentzako laguntza:

If you have any questions, require technical assistance, or need to report a defect, please contact VASAGLE customer support. Have your model number (LSD184X01) and purchase information ready when contacting support.

• Lineako laguntza: Visit the official VASAGLE webMaiz egiten diren galderen, arazoak konpontzeko giden eta harremanetarako formularioen gunea.
• Posta elektronikoko laguntza: Bezeroarentzako arreta-zerbitzuko helbide elektronikoa ikusteko, kontsultatu produktuaren dokumentazioa.

We are committed to providing excellent service and support for your VASAGLE product.
