DeerValley DV-1U0132 Undermount Bathroom Sink Instruction Manual

Sarrera

This manual provides detailed instructions for the installation, operation, maintenance, and care of your DeerValley DV-1U0132 Undermount Bathroom Sink. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of the product.

Produktuaren Ezaugarriak

• Zeramikazko material bikaina: Constructed from ceramic, this undermount sink offers durability, scratch resistance, and stain resistance.
• Beheko instalazioa: Designed for a simple and secure undermount installation, providing a seamless look.
• Hidden Overflow Hole: Features a hidden overflow hole to prevent water from overflowing the basin.
• Erraza garbitzen den gainazala: The smooth, non-porous surface facilitates effortless cleaning and maintenance.
• Neurriak: External Dimensions: 27.56" L x 15.87" W x 7.48" H. Internal Dimensions: 25" L x 13.11" W x 5.31" H.

This graphic highlights the sink's durable, scratch-resistant, and stain-resistant ceramic material, its non-porous surface for hygiene, seamless integration, and ease of installation.

Zehaztapenak

This diagram provides detailed external and internal dimensions of the sink, including length, width, and height, crucial for installation planning.

Instalazio Gida

The DeerValley DV-1U0132 sink is designed for undermount installation. Professional installation is recommended to ensure proper sealing and support.

Instalatu aurretik:

1. Inspect the sink for any damage prior to installation.
2. Ensure you have all necessary tools and materials, including a compatible pop-up drain with an overflow hole (not included).
3. Verify countertop cutout dimensions match the sink specifications.

Instalazio Urratsak (Orokorrak):

1. Prepare the countertop opening according to the sink's template.
2. Apply a continuous bead of silicone sealant around the rim of the sink.
3. Carefully position the sink under the countertop opening.
4. Secure the sink to the countertop using appropriate mounting clips (not included) and hardware.
5. Install the drain assembly into the sink's drain opening, ensuring a watertight seal.
6. Connect the plumbing according to local codes.

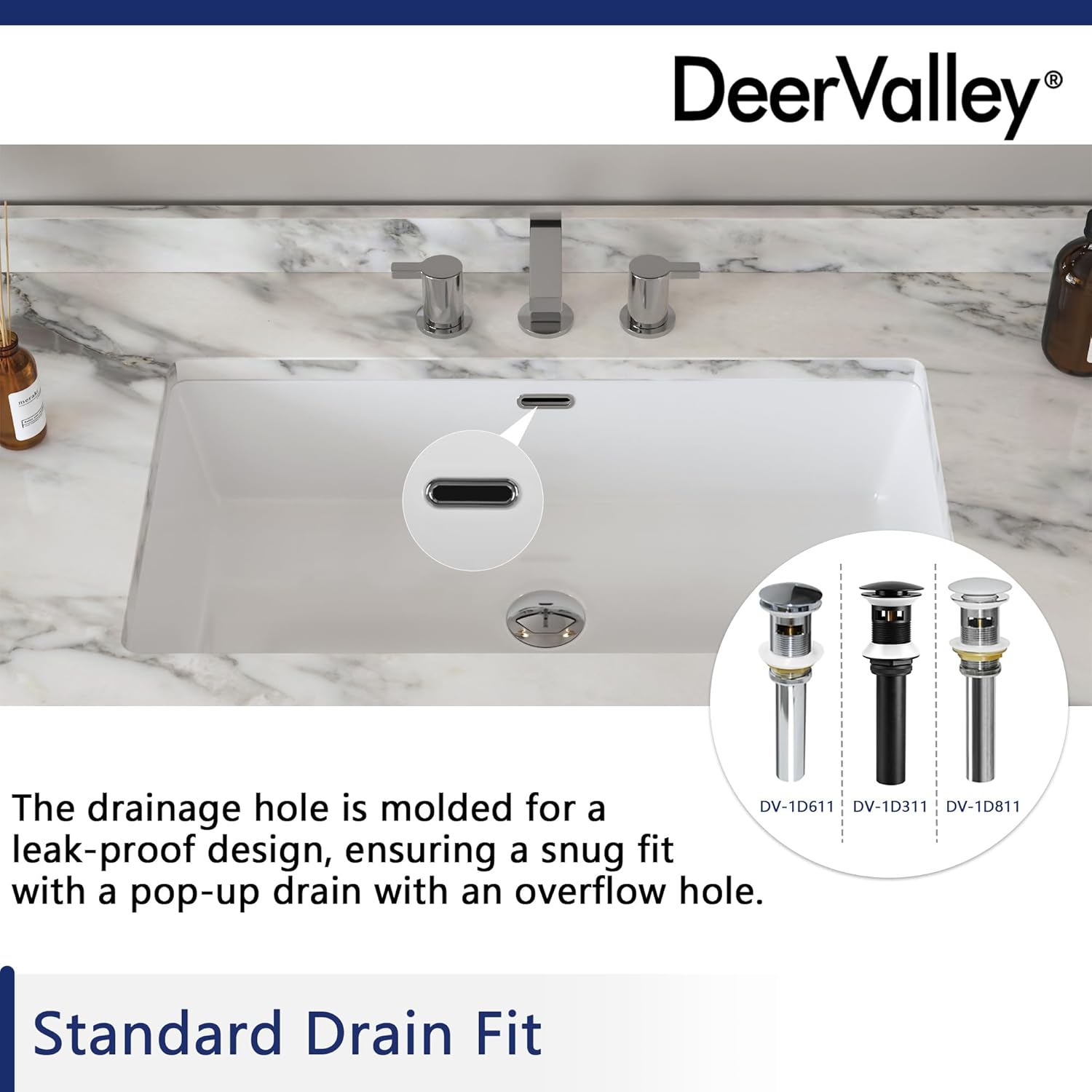

The image illustrates the standard drain opening, molded for a leak-proof fit with a pop-up drain that includes an overflow hole.

Funtzionamendua

The DeerValley DV-1U0132 sink functions as a standard bathroom wash basin. The integrated overflow hole is a key operational feature.

Gaintze-babesa:

The hidden overflow hole is a small opening located at the back of the sink basin. Its purpose is to allow excess water to drain out, preventing the basin from overfilling and potentially causing water damage to the surrounding area. This feature operates automatically when water levels rise above the main drain opening.

This image details the hidden overflow hole, a safety feature designed to prevent water from overflowing the basin.

Mantentzea eta zaintzea

Proper care will help maintain the appearance and extend the life of your ceramic sink.

Eguneko garbiketa:

• Garbitu konketa iragarkiarekinamp oihala eta xaboi leuna erabili ondoren.
• Ur garbiarekin ondo garbitu eta zapi leun batekin lehortu ur-orbanak saihesteko.

Saihestu:

• Abrasive cleaners, scouring pads, or harsh chemicals (e.g., bleach, ammonia-based cleaners) as these can damage the ceramic finish.
• Leaving acidic substances (e.g., lemon juice, vinegar) on the surface for extended periods.

This graphic highlights the rounded and polished corners for safety and the large diameter drain for excellent drainage, reducing clogging.

Arazoak konpontzea

Below are common issues and potential solutions for your sink.

Drainatze arazoak:

• Drainatze motela: Check the pop-up drain for debris or hair accumulation. Clean as necessary. Ensure the drain stopper is fully open.
• Leaking Around Drain: Verify that the drain assembly is properly sealed and tightened. Re-apply plumber's putty or silicone sealant if needed.

Falta diren osagaiak:

• Missing Mounting Clips or Pop-Up Drain: The sink typically does not include mounting clips or a pop-up drain assembly. These items must be purchased separately to complete the installation.

Bermea eta Laguntza

The DeerValley DV-1U0132 Undermount Bathroom Sink is covered by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service.

To Claim Warranty:

Please retain your proof of purchase. For warranty claims or technical support, contact DeerValley customer service through their official webproduktua erosi zen gunea edo dendaria.
