BAOFENG M-5R Handheld Two-Way Radio

1. Sarrera

Thank you for choosing the BAOFENG M-5R Handheld Two-Way Radio. This device is an upgraded version of the popular UV-5R, offering enhanced features such as Copy Frequency, AirBand reception, and an extended battery life. Designed for reliable communication, the M-5R is suitable for various applications, from outdoor adventures to professional use. Please read this manual thoroughly to understand the proper operation and maintenance of your radio.

Figure 1.1: BAOFENG M-5R Handheld Two-Way Radio with its extended antenna and key features highlighted.

Figure 1.2: The BAOFENG M-5R is versatile for use in diverse environments such as construction sites, camping trips, security operations, and airports.

2. Segurtasun informazioa

• Ez erabili irratia lehergai diren atmosferatan (adibidez, gas sukoiak, hauts-partikulak, hauts metalikoak).
• Do not disassemble or modify the radio. Repairs should only be performed by qualified technicians.
• Use only BAOFENG approved batteries and chargers to prevent damage and ensure safety.
• Avoid exposing the radio to extreme temperatures, direct sunlight, or excessive moisture.
• Keep the radio and its accessories out of reach of children.

3. Paketearen edukia

Mesedez, egiaztatu paketearen edukia kutxa irekitzean. Elementuren bat falta bada edo hondatuta badago, jarri harremanetan zure saltzailearekin.

• BAOFENG M-5R Handheld Two-Way Radio
• 3800mAh Li-ioi Bateria
• Antenna (Standard 'rubber ducky')
• Longer 771 Antenna (approx. 16 inches)
• Desktop Charger with AC Adapter
• Gerriko Klipa
• Eskuko uhala
• Aurikularra
• Erabiltzailearen eskuliburua

4. Produktua amaitu daview

The BAOFENG M-5R features a robust design with an intuitive keypad and display. Key components include:

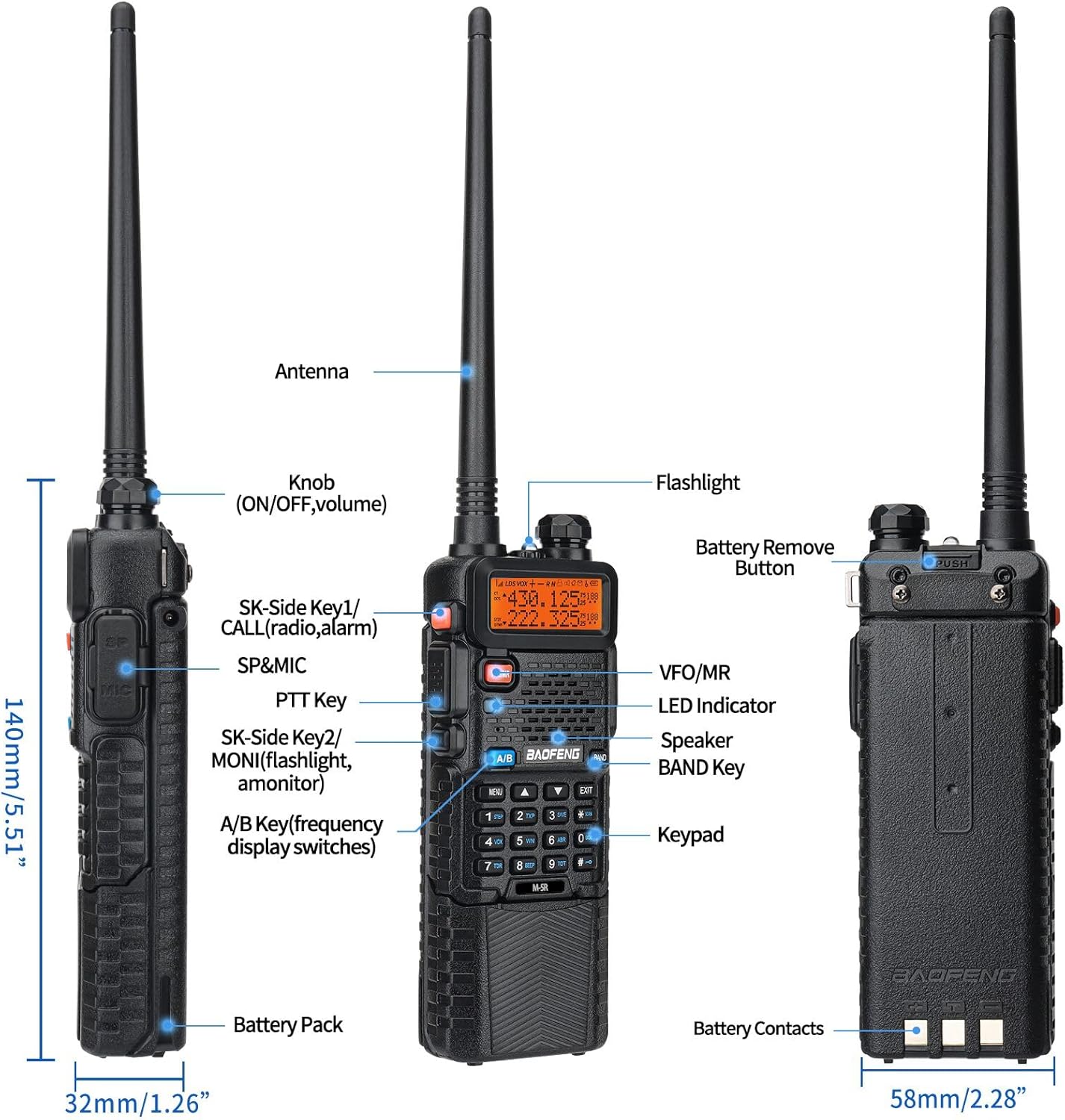

Figure 4.1: Labeled components of the BAOFENG M-5R radio, showing the antenna, control knob, side keys, PTT button, keypad, display, speaker, and battery pack.

Figure 4.2: The two included antennas, illustrating their lengths and features for long-distance communication and signal strength.

4.3 Irudia: Gainetikview of the BAOFENG M-5R's key features, including Copy Frequency, Multi-Band operation, and a high-capacity 3800mAh battery.

5. Konfigurazioa

5.1 Bateriaren instalazioa eta kargatzea

The M-5R comes with a high-capacity 3800mAh battery, a significant upgrade from previous models. This battery also supports USB charging (cable not included).

1. Lerrokatu bateria-paketea irratiaren atzealdeko ildoekin.
2. Irristatu bateria gorantz, bere lekuan klik egin arte.
3. To charge, place the radio with the battery installed into the desktop charger. Ensure the charging contacts align. The charger indicator will show charging status.
4. Alternatively, connect a USB charging cable (not supplied) to the USB jack on the battery pack for direct charging.

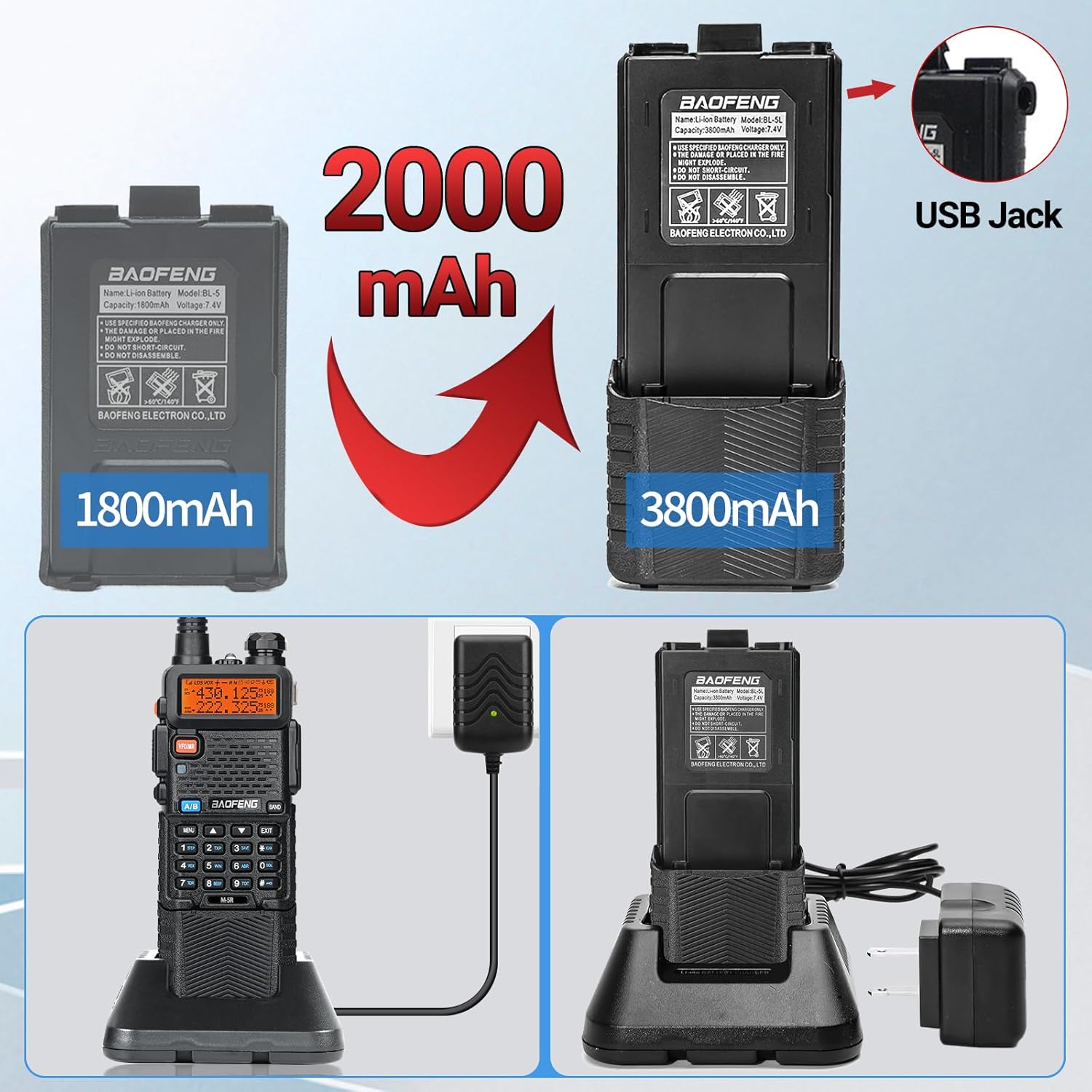

Figure 5.1: The upgraded 3800mAh battery with USB charging capability and the radio on its charging dock.

5.2 Antenaren lotura

Screw the desired antenna (either the standard or the longer 771 antenna) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

5.3 Programazio Gida

The BAOFENG M-5R can be programmed using CHIRP software. This video provides a step-by-step guide on how to connect your radio to a computer and use the software for programming.

6. Funtzionamendu-argibideak

6.1 Piztea/Itzaltzea eta Bolumena

Rotate the top knob clockwise to turn the radio ON and increase volume. Rotate counter-clockwise to decrease volume and turn OFF.

6.2 Channel Selection (VFO/MR Mode)

• Sakatu VFO/MR button to switch between Frequency Mode (VFO) and Channel Mode (MR).
• In VFO mode, enter frequencies directly using the keypad.
• In MR mode, use the UP/DOWN arrow keys or the keypad to select a stored channel.

6.3 Transmititu eta jaso

• Transmititzeko, sakatu eta eutsi botoiari PTT (Push To-Talk) button on the left side of the radio and speak into the microphone. Release to receive.
• Ensure the antenna is properly attached before transmitting to prevent damage.

6.4 Copy Frequency Function

The M-5R features a wireless frequency copy function, allowing you to quickly capture and save frequencies from another radio.

1. Turn on the device and long press the BANDA button. (Tip: Press the '#' key to switch between UHF and VHF).
2. If the transmitter continues to transmit and the unit receives an effective frequency (the strongest and stable signal), the received frequency will be displayed.
3. Sakatu MENUA key to save the searched frequency and CTCSS or DCS to a channel.

Figure 6.1: Activating the Copy Frequency function by pressing and holding the BAND button.

Figure 6.2: Detailed steps for utilizing the Copy Frequency feature.

6.5 Multi-Band and AirBand Reception

The M-5R supports a wide range of frequencies, including FM broadcast radio (68-108MHz), AM AirBand (108-136MHz), and various VHF/UHF bands (136-174MHz, 220-260MHz, 350-390MHz, 400-520MHz).

Figure 6.3: The M-5R's multi-band capabilities, including AM AirBand reception, suitable for aviation enthusiasts.

Figure 6.4: The M-5R's capability for AM Band Receiving, useful for monitoring aviation communications.

6.6 VOX Funtzioa

The Voice Operated Exchange (VOX) function allows for hands-free operation. When activated, the radio will automatically transmit when it detects your voice.

Figure 6.5: The VOX function enables hands-free communication.

6.7 Linterna

The M-5R includes a built-in LED flashlight for convenience in low-light conditions. Refer to the labeled parts diagram (Figure 4.1) for its location.

Figure 6.6: The integrated flashlight provides illumination when needed.

7. Mantentzea

• Clean the radio surface with a soft, damp oihal. Ez erabili produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Ensure the battery contacts are clean and free of debris.
• Store the radio in a cool, dry place when not in use, especially for extended periods.
• For optimal battery life, fully charge the battery before first use and avoid over-discharging.

8. Arazoak

9. Zehaztapenak

Figure 9.1: Feature comparison between the M-5R and UV-5R models.

10. Bermea eta Laguntza

Your BAOFENG M-5R radio is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your original retailer or visit the official BAOFENG webharremanetarako informazioa lortzeko gunea.
