1. Sarrera
Thank you for choosing the Garvee 6000 BTU Window Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Segurtasun informazioa
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is for indoor use only. Do not operate the air conditioner with a damaged power cord or plug. Ensure the unit is properly grounded. Do not block air inlets or outlets. Disconnect power before cleaning or servicing.
3. Paketearen edukia
Egiaztatu behean zerrendatutako elementu guztiak zure paketean daudela:
- Garvee 6000 BTU Window Air Conditioner Unit
- Urruneko Kontrola
- Goiko apar-zigilatzailea
- Foam Sealer (Side Panels)
- Muntatzeko blokea
- Burbuila Maila

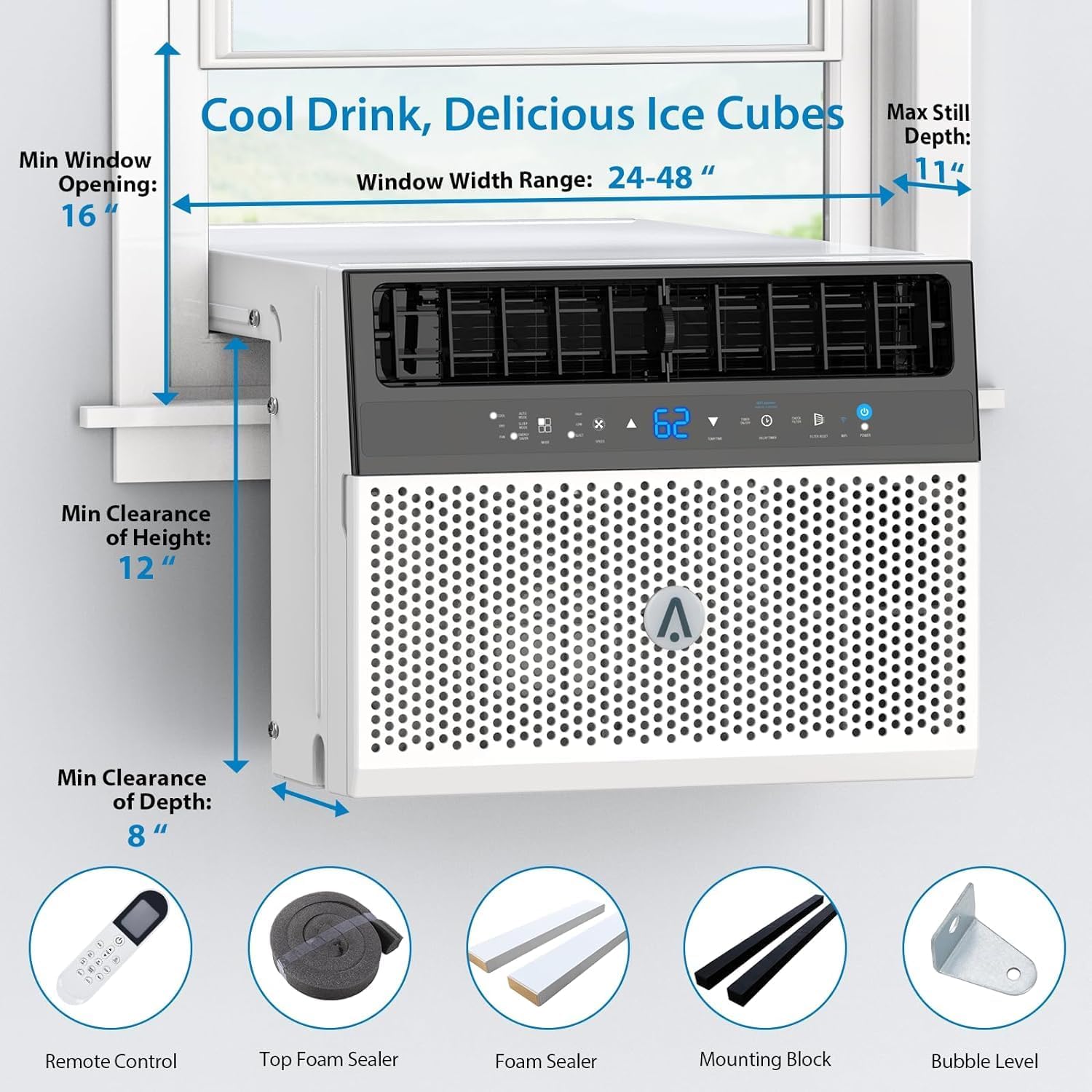

Irudiaren deskribapena: This image displays the Garvee window air conditioner unit alongside its included accessories: a remote control, top foam sealer, foam sealer side panels, a mounting block, and a bubble level. It also illustrates the minimum window opening requirements for installation, including a minimum window opening of 16 inches, a window width range of 24-48 inches, a maximum still depth of 11 inches, a minimum clearance height of 12 inches, and a minimum clearance depth of 8 inches.
4. Konfigurazioa eta instalazioa
This Garvee window air conditioner is designed for easy installation in compatible windows. No external window bracket is typically required for standard installations.
4.1 Leihoaren eskakizunak
- Leihoaren zabalera tartea: 24 eta 48 hazbete bitartekoa
- Minimum Window Opening Height: 16 hazbetekoa
- Minimum Clearance Height: 12 hazbetekoa
- Minimum Clearance Depth: 8 hazbetekoa
- Maximum Still Depth: 11 hazbetekoa
4.2 Instalazio urratsak (gida orokorra)
- Prepare the window by cleaning the sill and frame.
- Attach the foam sealers to the top and sides of the unit as instructed to ensure a tight seal and prevent air leakage.
- Carefully place the air conditioner into the window opening, ensuring it is centered and level. Use the included bubble level for accuracy.
- Extend the side panels to fill the window opening completely and secure them.
- Install the mounting block or support brackets as necessary to firmly secure the unit in place.
- Ensure the unit is tilted slightly outwards to allow for proper condensation drainage.
- Plug the unit into a dedicated 115V/60Hz grounded electrical outlet.

Irudiaren deskribapena: A woman is shown smiling while interacting with her smartphone, with a Garvee window air conditioner unit visibly installed in a window behind her. The image highlights the concept of 'Safe Installation' and indicates that 'No window bracket needed', suggesting a streamlined installation process.

Irudiaren deskribapena: This image shows a woman reaching up to open a window directly above a Garvee window air conditioner unit. The text overlay states 'Freedom to open windows for fresh air', indicating that the design of the air conditioner allows for the window to be opened even when the unit is installed, providing flexibility for ventilation.
5. Funtzionamendu-argibideak
Your Garvee air conditioner offers multiple modes and convenient control options for optimal comfort.
5.1 Kontrol-panela eta urrutiko agintea
The unit features an intuitive control panel with a digital display and indicator lights. For convenience, a remote control is included, allowing you to adjust settings from a distance.

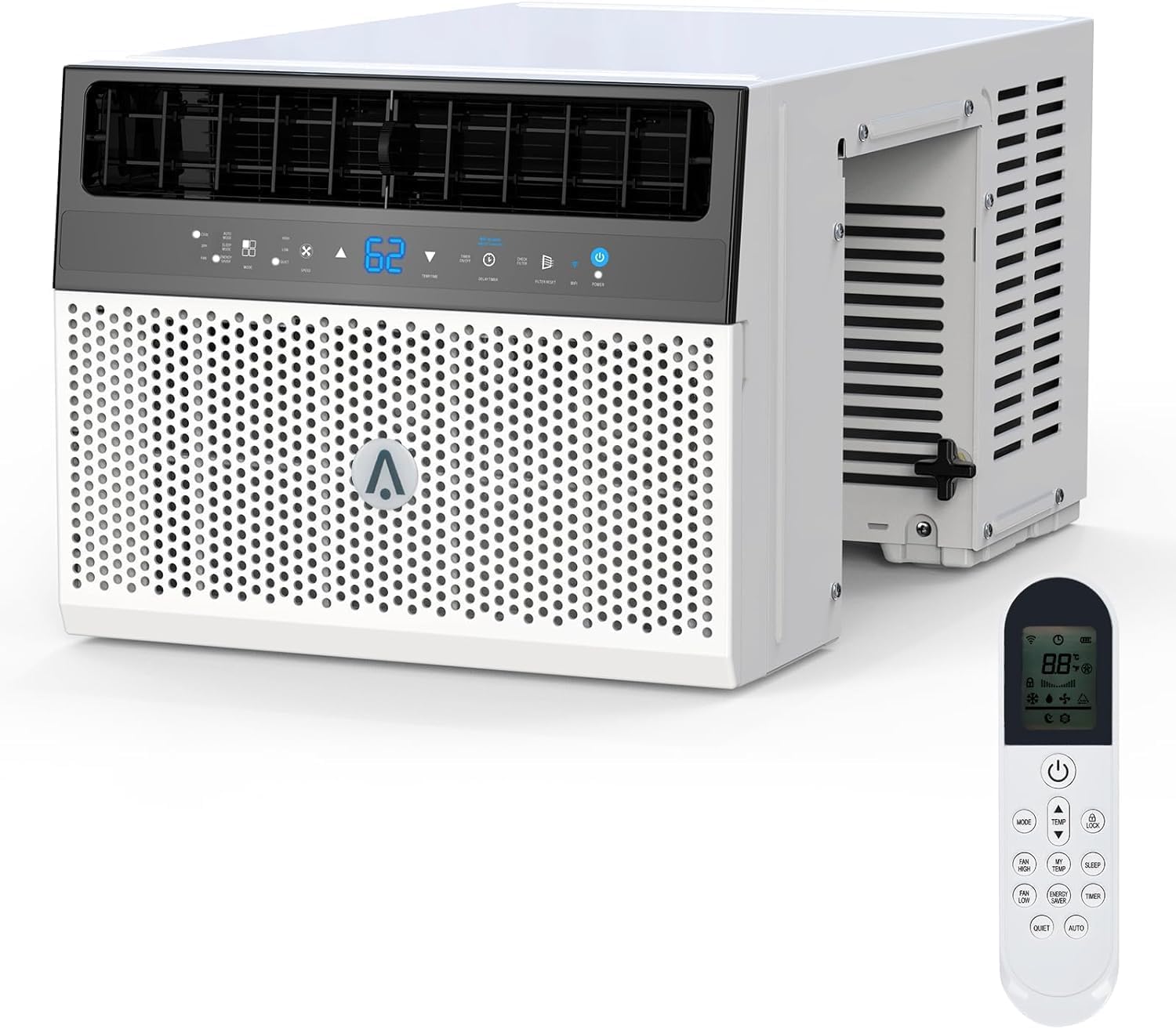

Irudiaren deskribapena: A Garvee 6000 BTU window air conditioner unit is shown from a front-side angle, displaying its control panel and air vents. A white remote control with various function buttons is positioned next to the unit.
5.2 Funtzionamendu moduak
The Garvee air conditioner offers three primary operating modes:
- Hozte modua: Provides powerful cooling, capable of reaching temperatures down to 62°F.
- Modu lehorra (deshumidifikazioa): Aireko gehiegizko hezetasuna kentzen du, eguneko 35 pinta arteko edukierarekin.
- Fan modua: Circulates air without cooling, offering Low, Medium, and High fan speed settings.

Irudiaren deskribapena: This image illustrates the '3 in 1 Air Conditioner' functionality of the Garvee unit. It shows the air conditioner installed in a window, with three icons representing its modes: a snowflake for 'Cooling' (down to 62°F), a water droplet for 'Dry' (35 Pints/Day), and a fan for 'Fan' (Low/Medium/High). A woman and child are seated on a sofa in the foreground, suggesting a comfortable indoor environment.
5.3 Funtzionamendu isila
The unit is designed for quiet operation, maintaining a noise level of approximately 45 decibels, ensuring minimal disturbance, especially during sleep.

Irudiaren deskribapena: The image depicts a Garvee window air conditioner installed in a bedroom window, with cool air flowing into the room where a person is sleeping peacefully. A graphic overlay illustrates 'Quiet Operation' with a sound wave fluctuating between 30dB and 50dB, indicating a low noise level of around 40dB, suggesting the unit runs quietly.
5.4 Aplikazio adimendunen kontrola
For enhanced convenience, the air conditioner can be controlled remotely via a smart application, allowing you to manage settings from virtually anywhere.

Irudiaren deskribapena: A woman is seated on a sofa, using a laptop, while simultaneously controlling a Garvee window air conditioner via a smartphone app. The image highlights 'SMART APP CONTROL' and mentions 'Control it from virtually anywhere'. An Amazon Alexa device is also visible, with text indicating 'turn on the air conditioner Amazon Alexa', suggesting voice control capabilities.
6. Mantentzea
Mantentze-lan erregularrak zure aire girotuaren errendimendu optimoa eta iraupen luzea bermatzen ditu.
6.1 Garbigarria den iragazkia garbitzea
The Garvee air conditioner is equipped with a washable filter. It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality. To clean:
- Itzali unitatea eta deskonektatu korronte-hartunetik.
- Locate and remove the air filter from the front panel.
- Garbitu iragazkia ur epel eta xaboitsuarekin. Ondo garbitu.
- Allow the filter to air dry completely before reinstalling. Do not use heat to dry.
6.2 Garbiketa orokorra
Garbitu unitatearen kanpoaldea leun batekin, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the electrical components.
7. Arazoak
Bezeroarentzako arreta-zerbitzuarekin harremanetan jarri aurretik, mesedez, kontsultatu arazo eta irtenbide ohikoenak:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Unitatea ez da pizten | No power; circuit breaker tripped; power cord not fully plugged in | Check power connection; reset circuit breaker; ensure plug is secure |
| Hozte nahikoa | Dirty air filter; blocked air vents; room too large; doors/windows open | Clean air filter; clear obstructions; ensure room size is within capacity; close doors/windows |
| Gehiegizko zarata | Loose installation; foreign object inside unit | Re-secure unit in window; inspect for and remove any foreign objects (after unplugging) |
| Ur-ihesak | Unit not tilted correctly; drain plug blocked | Ensure unit is slightly tilted outwards; check and clear drain plug |
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Garvee |
| Modelo zenbakia | NCA-06C/X1E |
| Hozte Potentzia | 6000 BTU |
| Estaldura Eremua | Gehienez 269 oin karratu |
| liburukiatage | 115V/60Hz |
| Wattage | 570W |
| Zarata Maila | 45 dezibelio |
| Elementuaren pisua | 73.9 kilo |
| Produktuaren neurriak (L x W x H) | 17 x 15 x 29 hazbete |
| Eraginkortasuna | Moderately Efficient, 4 Star BEE Rating, 13.7 SEER |
| Deshumidifikazio Ahalmena | 35 Pinta/Egun |
| Instalazio mota | Leihoa |
| Ezaugarri bereziak | Fast Cooling, Remote Control, Washable Filter, Quiet Operation, Smart App Control |
| Kolorea | Zuria |
9. Bermea eta Laguntza
For warranty information and customer support, please refer to the warranty card included with your product or contact Garvee customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
