VEVOR Evaporative Cooler User Manual

1. Sarrera

Thank you for choosing the VEVOR Evaporative Cooler. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new evaporative cooler. Please read this manual thoroughly before using the product and retain it for future reference.

The VEVOR Evaporative Cooler (Model: JH-310J) is designed to provide efficient cooling and humidification for indoor and outdoor spaces up to 550 sq. ft. It features adjustable airflow, oscillation, and convenient water refilling options.

2. Produktuaren ezaugarriak

• 3-in-1 Multi-function Cooler: Functions as an air cooler, humidifier, and fan to maintain comfortable indoor and outdoor environments.
• Oscillation & Adjustable Airflow: Covers areas up to 550 sq. ft. with 1400 CFM adjustable airflow. Features manual vertical louver adjustment and automatic horizontal oscillation (0° to 72°).
• Hobetutako hoztea: Includes 2 ice packs and 1-sided rigid high-density cooling pads (1.18'' / 35 mm thickness) to increase evaporative surface area for more effective cooling.
• Erabiltzaileentzako funtzionamendua: Equipped with durable mechanical buttons that resist blurring over time.
• Convenient Water Refilling: Large 5-gallon (19 L) tank with options for top-fill and continuous fill via a garden hose connection (0.98'' / 25 mm adapter). Features water shortagbabesa
• Eramangarritasuna: Designed with wheels and side handles for easy movement without water spillage.

Image: Diagram illustrating the portable evaporative cooler's airflow, covering up to 550 sq. ft. with 72-degree oscillation.

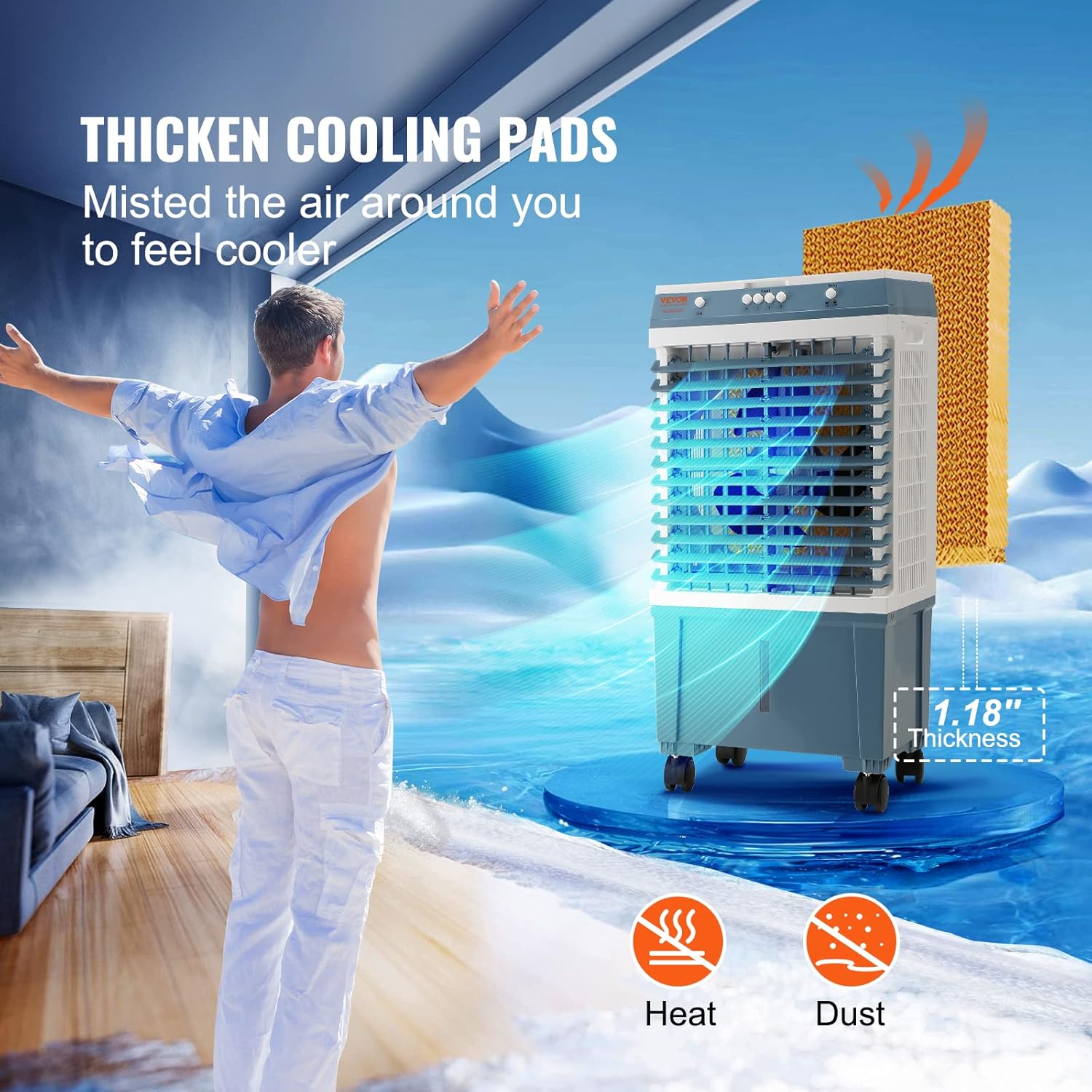

Irudia: Gertuko planoa view of the evaporative cooler's thick cooling pads, highlighting their 1.18-inch thickness for efficient misting and air cooling.

3. Paketearen edukia

Mesedez, egiaztatu paketearen edukia kutxa irekitzean, elementu guztiak bertan daudela eta kalterik gabe daudela ziurtatzeko:

• 1 x VEVOR Evaporative Cooler (Model: JH-310J)
• 2 x Izotz-poltsak
• 1 x Brass Adapter (0.98'' / 25 mm)
• 1 x Cooling Pad (pre-installed or separate)
• 1 x Erabiltzailearen eskuliburua (dokumentu hau)

4. Konfigurazioa

4.1 Desontziratzea eta kokatzea

1. Carefully remove the evaporative cooler and all accessories from the packaging.
2. Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow.
3. For indoor use, it is recommended to open a door or window to allow for proper air circulation and prevent excessive humidity buildup.

4.2 Adding Water and Ice Packs

1. Open the top cover of the evaporative cooler.
2. Fill the water tank with clean water. Do not exceed the maximum fill line indicated on the unit. The tank capacity is 5 gallons (19 L).
3. For enhanced cooling, place the provided ice packs (pre-frozen) into the designated compartments within the water tank.
4. Alternatively, for continuous operation, connect a garden hose to the 0.98-inch (25 mm) adapter port at the back of the unit. Ensure the connection is secure to prevent leaks. The unit features water shortagbabesa

Image: A hand pouring water into the top of the evaporative cooler, demonstrating the easy top-fill method without needing to bend down.

Image: Diagram showing how to connect a garden hose to the evaporative cooler for continuous water refilling, highlighting the 0.98-inch diameter adapter.

5. Funtzionamendu-argibideak

5.1 Piztu/Itzaltzea

• Plug the power cord (8 ft / 2.4 m) into a standard 120V / 60Hz electrical outlet.
• Press the Power button on the control panel to turn the unit ON or OFF.

5.2 Haizagailuaren abiadura doitzea

• The unit offers 3 adjustable fan speeds. Press the Speed button repeatedly to cycle through Low, Medium, and High settings.

5.3 Activating Cooling/Humidification

• Press the Cool/Humidify button to activate the evaporative cooling function. The water pump will start, and water will flow over the cooling pads.
• To use as a fan only, ensure the Cool/Humidify function is turned off.

5.4 Oscillation Control

• Press the Oscillation button to activate the automatic horizontal swing (0° to 72°). Press again to stop oscillation.
• The vertical angle of the louvers can be adjusted manually to direct airflow up or down (up to 84°).

Image: The VEVOR Evaporative Cooler actively blowing cool air, with ice packs and brass adapter shown alongside the unit.

6. Mantentzea

Mantentze-lan erregularrak zure lurrungailu-hozkailuaren errendimendu optimoa eta iraupena bermatzen ditu.

6.1 Ur depositua garbitzea

• Deskonektatu unitatea korronte-hartunetik garbitu aurretik.
• Xukatu deposituan geratzen den ura.
• Clean the water tank regularly (e.g., weekly) with a mild detergent and water to prevent mold, mildew, and mineral buildup. Rinse thoroughly.

6.2 Cleaning/Replacing Cooling Pads

• The cooling pads should be inspected periodically for mineral deposits or debris.
• If heavily soiled, the pads may need to be removed and rinsed under running water. Allow them to dry completely before reinserting.
• Replacement of cooling pads may be necessary over time depending on water quality and usage. Refer to VEVOR customer support for replacement parts.

6.3 Kanpoko garbiketa

• Garbitu unitatearen kanpoaldea leun batekin, damp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.

6.4 Biltegiratzea

• Before storing, ensure the water tank is completely drained and dry.
• Garbitu unitatea ondo.
• Store the evaporative cooler in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Arazoak

If you encounter issues with your VEVOR Evaporative Cooler, please refer to the following common problems and solutions:

Konponbide hauek saiatu ondoren arazoa konpontzen ez bada, jarri harremanetan VEVOR bezeroarentzako arreta-zerbitzuarekin laguntza jasotzeko.

8. Zehaztapenak

Image: Detailed diagram showing the dimensions (length, width, height) and key specifications of the VEVOR Evaporative Cooler.

9. Bermea eta Laguntza

VEVOR produktuek berme estandarra dute. Bermearen baldintza zehatzak ikusteko, kontsultatu zure produktuarekin batera datorren berme-txartela edo bisitatu VEVOR webgune ofiziala. webgunea.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact VEVOR customer service. Contact information can typically be found on the VEVOR webgunean edo produktuaren ontzian.

Fabrikatzailea: ZABALTZA

Jatorrizko herrialdea: Txina
