1. Sarrera

Thank you for choosing the Karl home White 4 Drawer Dresser, Model KHDR4009. This instruction manual provides essential information for the safe assembly, proper use, and maintenance of your new dresser. Please read this manual thoroughly before beginning assembly and retain it for future reference.

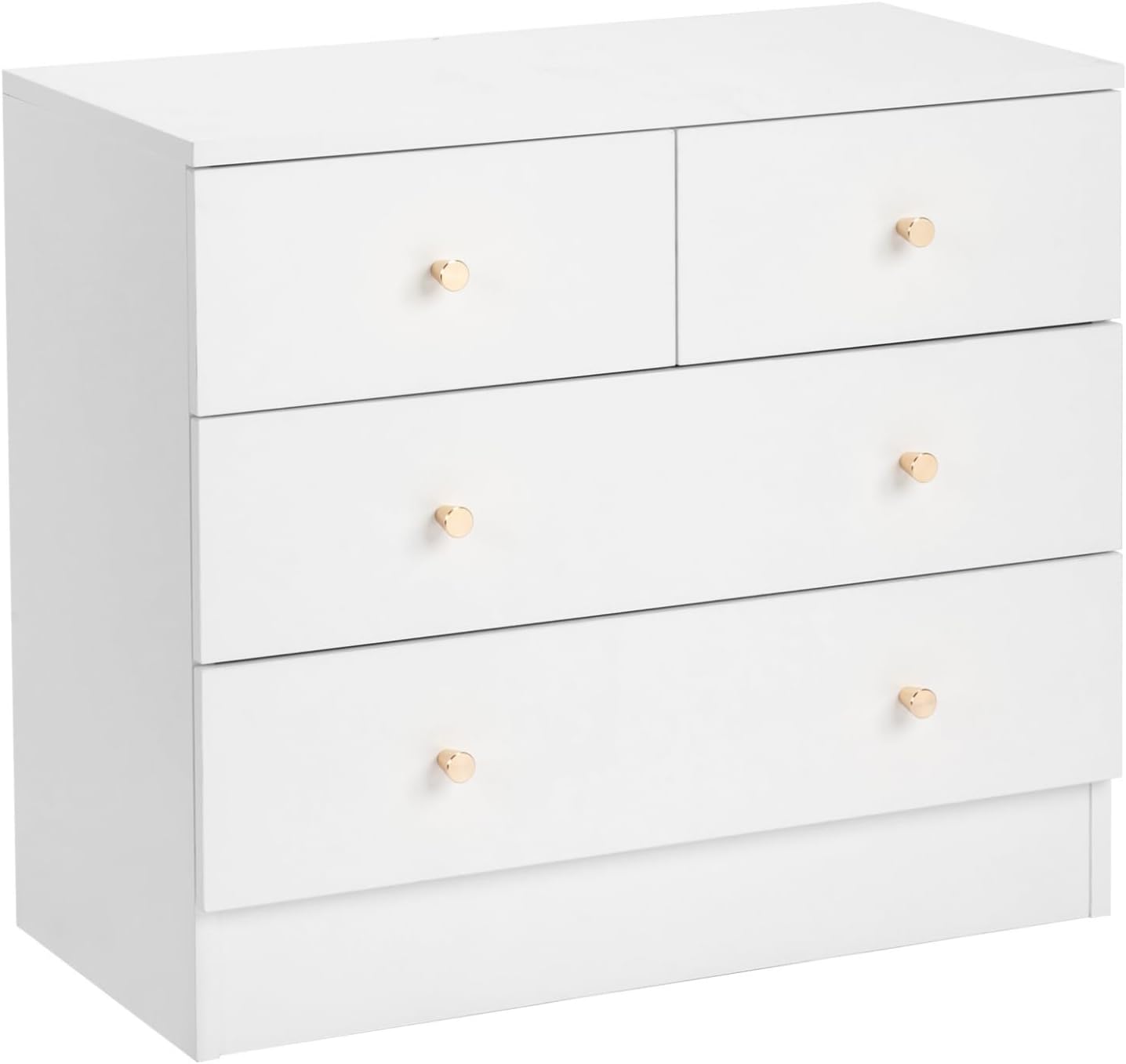

1.1. irudia: Aurrealdea view of the Karl home White 4 Drawer Dresser.

2. Segurtasun informazioa

WARNING: Furniture tipping hazard. Serious or fatal crushing injuries can occur from furniture tipping over.

• Always assemble the dresser according to the provided instructions.
• Ensure the anti-tipping device is properly installed and functional to prevent tipping. This device must be securely anchored to a wall stud.
• Do not overload the dresser drawers beyond their weight recommendations.
• Inoiz ez utzi haurrak tiraderetan, ateetan edo apaletan zintzilikatzen edo igotzen.
• Jarri elementurik astunenak tiradera baxuenetan.
• Ez ireki tiradera bat baino gehiago aldi berean.

Image 2.1: Detail of the anti-tipping device and drawer components.

3. Paketearen edukia

Muntatu aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela. Piezarik falta edo kaltetuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• Komoda-panelak (goia, behea, alboak, atzealdea)
• Tiraderen aurrealdeak, alboak eta behealdeak
• Drawer Slides (Metal Rails)
• Rose Gold Handles
• Muntaketa-hardwarea (torlojuak, takoak, kam-blokeoak, etab.)
• Iraulketaren aurkako gailu-kit
• Argibide eskuliburua

4. Muntatzeko jarraibideak

Assembly typically requires 1-2 people and takes approximately 60-90 minutes. All parts are labeled for easy identification. Follow the detailed step-by-step manual included in the package.

Beharrezko tresnak (ez daude barne):

• Phillips buru bihurkina
• Mailua (aukerakoa, takoak egiteko)
• Drill (for wall anchor installation of anti-tipping device)

Batzar Nagusiaren urratsak:

1. Deskonprimitu eta identifikatu: Carefully unpack all components and lay them out. Identify each part using the labels and the parts list in your manual.
2. Muntatu marko nagusia: Konektatu alboko panelak goiko eta beheko paneletara emandako hardwarea erabiliz. Ziurtatu konexio guztiak ondo daudela.
3. Instalatu tiradera-irristailuak: Attach the drawer slides to the inner sides of the dresser frame according to the manual's diagrams.
4. Tiraderak muntatu: Construct each drawer by attaching the sides, front, and back to the drawer bottom. Install the remaining drawer slide components onto the assembled drawers.
5. Lotu heldulekuak: Secure the rose gold handles to the front of each drawer.
6. Txertatu tiraderak: Kontu handiz sartu muntatutako tiraderak komoda-markoan, ondo funtzionatzen dutela ziurtatuz.
7. Iraultzearen aurkako gailua instalatu: Securely attach the anti-tipping device to the back of the dresser and anchor it to a wall stud using appropriate hardware. This step is crucial for safety.

5. Erabilera

The Karl home 4 Drawer Dresser is designed for versatile storage in various rooms. Its dimensions are 12.99"D x 25.98"W x 22.64"H.

Image 5.1: Product dimensions and internal drawer measurements.

Biltegiratze Edukiera:

• Two Small Drawers: Ideal for organizing smaller items such as underwear, socks, accessories, or baby toys. Each small drawer measures approximately 11.02"L x 10.03"D x 3.54"H.
• Two Large Drawers: Suitable for storing clothing, blankets, books, or other larger personal items. Each large drawer measures approximately 22.83"L x 10.03"D x 3.54"H.

5.2 irudia: Adibideaample of small item storage in the top drawers.

Kokapen polifazetikoa:

This dresser can function as a storage cabinet in the living room, a drawer chest for a nursery, a nightstand in the bedroom, or an organizer for an entryway or hallway.

Image 5.3: Illustrates various items that can be stored in the dresser.

6. Mantentzea

To ensure the longevity and appearance of your Karl home dresser, follow these simple maintenance guidelines:

• Garbiketa: Wipe the surface with a dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the matte spray-painted finish.
• Isurketak: Garbitu berehala isuritako edozein oihal leun eta lehor batekin orbanak edo urak kalteak saihesteko.
• Hardwarea: Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, berriro estutu.
• Tiradera diapositibak: If drawers do not slide smoothly, ensure the tracks are clean and free of debris. A small amount of silicone lubricant can be applied if needed.

7. Arazoak

If you encounter any issues with your dresser, refer to the following common troubleshooting tips:

• Tiraderak ez dira behar bezala ixten: Check if the drawer slides are correctly aligned and installed. Ensure no items are obstructing the drawer's path. Verify that all assembly hardware for the drawer and frame is tightened.
• Komoda ezegonkorra sentitzen da: Confirm that the anti-tipping device is securely installed and anchored to a wall stud. Ensure the dresser is placed on a level surface. Check all frame connections for tightness.
• Falta diren piezak: If you discover missing parts during assembly, do not proceed. Contact Karl home customer support immediately for assistance.
• Kaltetutako piezak: If any parts are damaged upon arrival, do not attempt to assemble. Contact Karl home customer support for replacement parts.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information, replacement parts, or any other support inquiries, please contact Karl home customer service directly. Refer to the contact information provided with your purchase or visit the official Karl home webgunea.

We are committed to providing quality products and support to our customers.
