1. Sarrera
Thank you for choosing the Nexgrill Deluxe 6-Burner Propane Gas Grill. This manual provides essential information for the safe assembly, operation, and maintenance of your new grill. Please read all instructions carefully before use to ensure a safe and enjoyable grilling experience.
Figure 1.1: Nexgrill Deluxe 6-Burner Propane Gas Grill (Model 720-0896X)
2. Segurtasun informazio garrantzitsua
OHARRA: Kanpoan erabiltzeko soilik. Ez gorde edo erabili gasolina edo bestelako lurrun eta likido sukoiak tresna honen edo beste edozeinen inguruan.
Always ensure proper ventilation when operating the grill. Keep children and pets away from the grill during operation. Never leave a lit grill unattended. Always check for gas leaks before each use. Refer to local codes for proper installation and connection.
3. Konfigurazioa eta Muntaketa
Assembly of the Nexgrill Deluxe 6-Burner Propane Gas Grill is required. Please follow the step-by-step instructions provided in the separate assembly guide included with your purchase. Ensure all components are present and undamaged before beginning assembly.
- Deskonprimitu osagai guztiak eta egiaztatu piezen zerrendarekin.
- Assemble the main grill body and cabinet structure.
- Attach side shelves and the searing side burner.
- Install the main burners, cooking grids, and warming rack.
- Connect the propane tank securely.
3.1. irudia: Produktuaren neurriak muntaketa-plangintzarako.
4. Funtzionamendu-argibideak
4.1. Pizte Sistema
The grill features a one-button electric ignition for dependable lighting. To ignite a main burner:
- Ziurtatu propano depositua konektatuta dagoela eta gas hornidura irekita dagoela.
- Push and turn the desired burner control knob to the HIGH position.
- Sakatu berehala pizteko botoia elektronikoaren botoia erregailua piztu arte.
- Once lit, release the ignition button and adjust the flame to the desired cooking temperature.
4.2. Main Burners and Cooking Area
Your grill is equipped with 6 main burners, each providing 10,000 BTUs, for a total output of 60,000 BTUs. The expansive cooking surface offers 806 square inches of total cooking space, ideal for large gatherings.
Figure 4.1: Total cooking area of 806 square inches.

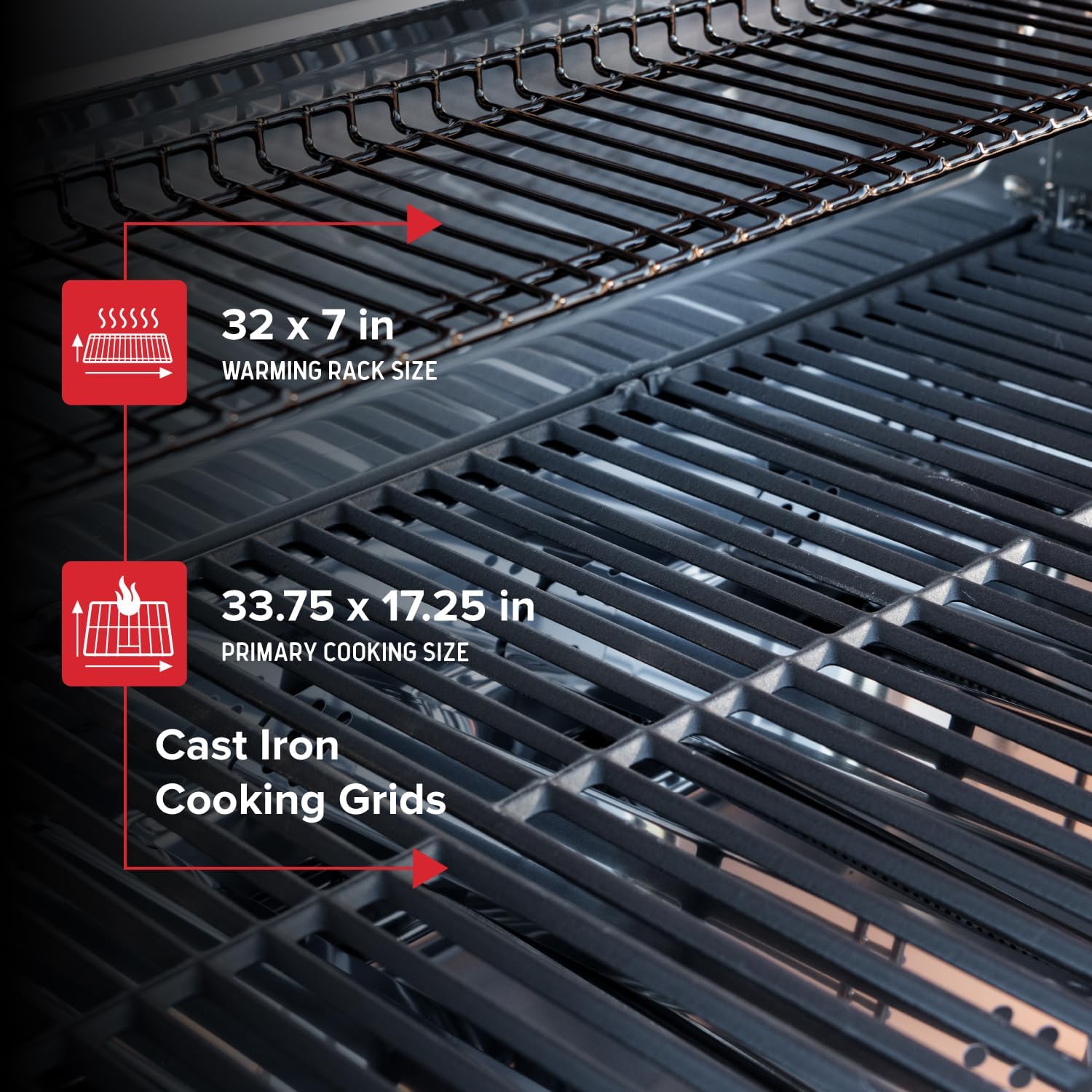

Figure 4.2: Porcelain-coated cast iron cooking grids and warming rack dimensions.
4.3. Ceramic Searing Side Burner
The powerful 15,000 BTU ceramic side burner is designed for achieving a perfect sear on meats, locking in juices and enhancing flavor. To use the searing burner:
- Ireki alboko erregailuaren tapa.
- Push and turn the side burner control knob to the HIGH position.
- Eduki sakatuta pizteko botoia elektronikoa erregailua piztu arte.
- Place your pan or food directly over the ceramic element for high-heat searing.
Figure 4.3: Close-up of the 15,000 BTU ceramic searing side burner.
4.4. Erroskari Kit
An included rotisserie kit allows for even cooking of large meats like chicken, turkey, and roasts. Follow the specific instructions provided with the rotisserie kit for assembly and operation. Ensure the rotisserie motor is securely mounted and the food is balanced for smooth rotation.
4.5. Tenperaturaren jarraipena
The lid-mounted thermometer allows for easy monitoring of the internal grill temperature, ensuring precise cooking control.
4.4 Irudia: Gainetikview of grill features including electronic ignition and searing side burner.
5. Mantentzea eta Zainketa
Garbiketa eta mantentze-lan erregularrak zure parrillaren bizitza luzatuko du eta errendimendu optimoa bermatuko du.
- Sukaldaritza Sareak: The porcelain-coated cast iron cooking grids are non-stick and easy to clean. Clean after each use with a grill brush while the grids are still warm.
- Koipe erretilua: The removable grease tray should be cleaned regularly to prevent grease fires.
- Kanpoaldea: The stainless steel frame is rust-resistant and easy to clean. Wipe down with a damp oihala eta detergente leuna. Saihestu garbitzaile urratzaileak.
- Erregailuak: Periodically inspect burner ports for blockages and clean as necessary.
Figure 5.1: Stainless steel burners, designed for durability and easy maintenance.
6. Arazoak
Zure parrillarekin arazoak badituzu, jarraitu arazoak konpontzeko aholku ohikoenak:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Erregailua ez pizten | No gas flow, clogged burner port, faulty igniter | Check propane tank, clear burner ports, check igniter battery/connection. |
| Berokuntza irregularra | Clogged burner ports, improper flame adjustment | Clean burner ports, adjust flame settings. |
| Gas usaina | Gas-ihesak | Immediately turn off gas, check all connections, apply soapy water to connections to detect bubbles. If leak persists, do not use and contact qualified service. |
7. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Nexgrill |
| Ereduaren izena | 720-0896X |
| Produktuaren neurriak (L x W x H) | 22.29" L x 59.85" W x 46.45" H |
| Elementuaren pisua | 118.61 kilo |
| Erregai Mota | Gas (Propane, also compatible with Natural Gas conversion kit, sold separately) |
| Erregailu nagusien kopurua | 6 |
| Main Burner Output | 60,000 BTUs (6 x 10,000 BTUs) |
| Alboko erregailu kopurua | 1 (Ceramic Searing Burner) |
| Side Burner Output | 15,000 BTU |
| Total Cooking Surface Area | 806 Square Inches (approx. 582 sq in primary + 224 sq in warming rack) |
| Cooking Grids Material | Portzelanaz estalitako Burdinurtua |
| Markoaren materiala | Altzairu herdoilgaitza |
| Ezaugarri bereziak | Removable Grease Tray, Heavy Duty, Warming Rack, Rotisserie Kit Included, One Button Electric Ignition, LED-lit control dials, Organized Double Door Cabinet, 4 Smooth-rolling Casters |
| Muntaia Beharrezkoa | Bai |
8. Bermea eta Laguntza
This Nexgrill product comes with a 1 urteko fabrikatzailearen bermea. For specific warranty details and claims, please refer to the warranty card included with your product or contact Nexgrill customer support.
For further assistance, troubleshooting, or to order replacement parts, please visit the official Nexgrill website or contact their customer support team. You can also find more information on the Nexgrill Store on Amazon.
For customer support inquiries, please refer to the contact information provided in your product packaging or on the manufacturer's webgunea.
