PRO+AQUA Whole House Water Softener Bundle User Manual

1. Sarrera

This user manual provides essential information for the installation, operation, and maintenance of your PRO+AQUA Whole House 10 GPM Salt-Free Water Softener Bundle. This system is designed to enhance your home's water quality by providing comprehensive filtration and softening without the use of salt.

The bundle includes the Single Stage Carbon Infused Filtration System (PRO-SCI) and the Salt-Free Water Softener/Conditioner (PRO-S-SF). These 2 systems work together to deliver odor-free, crystal clear, soft, and safe water throughout your entire home. It effectively reduces water hardness and removes up to 99% of chlorine, VOCs, cloudiness, sediment, dirt, sand, silt, and other harmful chemicals.

2. Produktua amaitu daview

The PRO+AQUA Whole House Water Softener Bundle is engineered to provide superior water quality for households with 1-3 bathrooms, offering a high flow rate of 10 GPM. This system ensures that your entire home benefits from softened, filtered water.

Ezaugarri nagusiak:

• Suitable for 1-3 Bathrooms: Ideal for small to medium households, providing high-quality filtered water with a high flow rate of 10 GPM.
• Exceptional Filtration: Bakarra-stage filter system acts as the primary defense, eliminating 99% of chlorine, VOCs, cloudiness, sediment, dirt, turbidity, and other harmful chemicals, while also protecting your water filtration equipment and appliances.
• Kostu-eraginkorra: Bakarra-stage filter is easy to change, and the eco-friendly salt-free softener requires no salt, backwashing, or electricity, leading to cost savings and simplified maintenance.
• DIY instalazioa: Designed for user convenience, this bundle includes all necessary parts for a straightforward installation.
• % 100eko gogobetetasuna bermatuta: Engineered with commercial-grade parts for durability and performance, backed by a 30-day return policy and free lifetime tech support.

Image 2.1: The PRO+AQUA Whole House Water Softener and Filter System. This image displays the complete system, including the tall salt-free conditioner tank and the smaller pre-treatment filter housing with a pressure gauge.

3. Osagaiak barne

Your PRO+AQUA Whole House Water Softener Bundle comes with the following components:

• Salt-Free Conditioner System (PRO-S-SF)
• Bakar-Stage Carbon Infused Filtration System (PRO-SCI)
• Two 18" Stainless Steel Flex Lines with 1" Ports
• 90°ko ukondoak
• Bypass Balbula
• 1" Nipples
• Bolts + Washers
• 1-1" QC Adapters
• 1-3/4" QC Adapters
• QC Removal Tools
• Etxebizitza-giltza
• Carbon Infused Filter Cartridge
• Housing with Pressure Release and Pressure Gauge

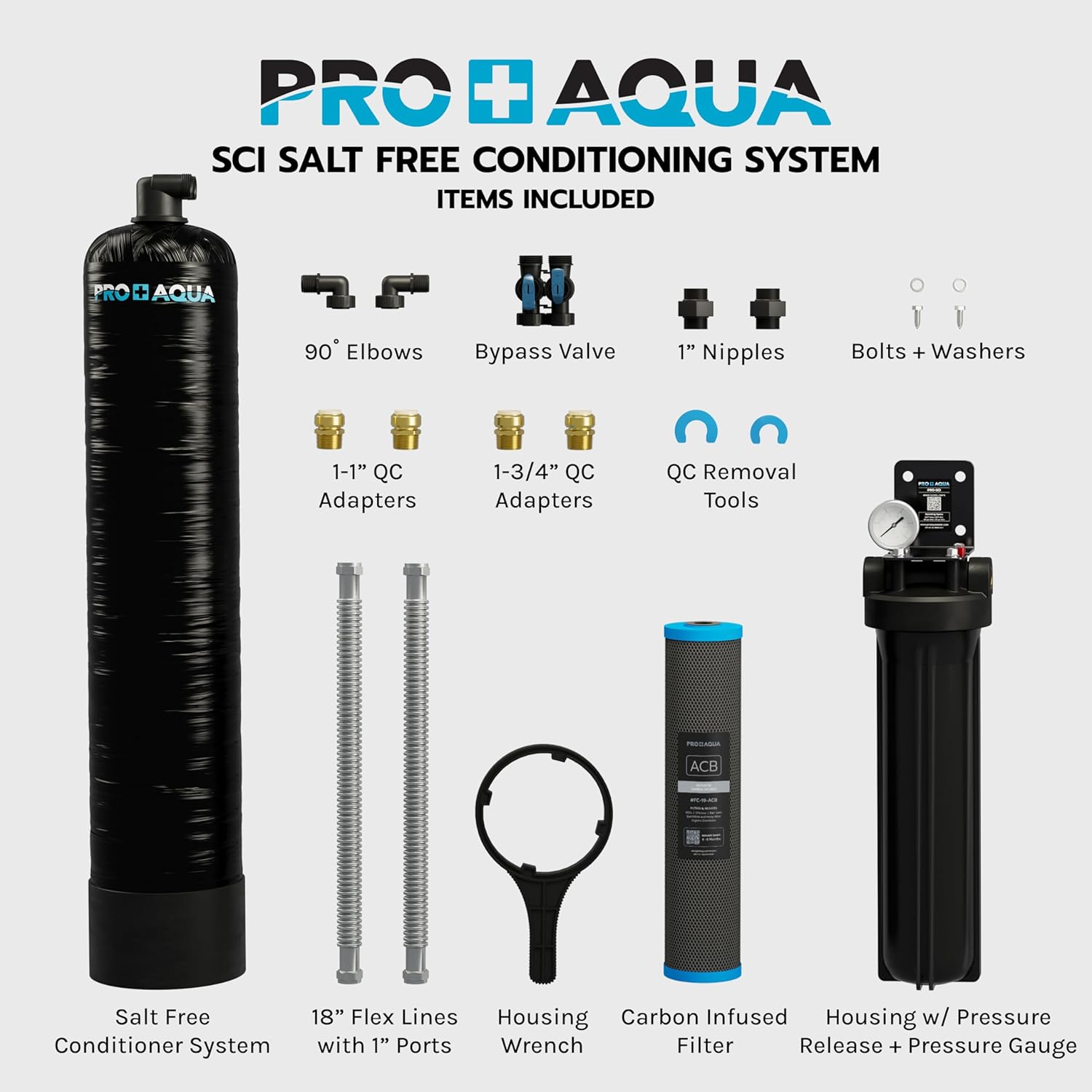

Image 3.1: All components included in the PRO+AQUA SCI Salt Free Conditioning System bundle. This visual guide shows the main conditioner tank, filter housing, various fittings, flex lines, and tools for installation.

4. Filtration Technology

The PRO+AQUA system utilizes advanced filtration technology to ensure comprehensive water purification and conditioning.

3 Stages of Filtration:

1. Zinc-Infused Sediment Layer: Hasierako stage targets larger particles, sediment, and rust, while the zinc infusion helps inhibit bacterial growth.
2. Carbon-Infused Purification: Hau stage effectively removes chlorine, volatile organic compounds (VOCs), odors, and improves taste.
3. SF Scale Control Media: Azken stage conditions the water to prevent scale buildup without removing beneficial minerals, providing the benefits of soft water without salt.

Image 4.1: Diagram illustrating the three stages of filtration within the PRO+AQUA SCI Salt-Free Conditioning System. It shows layers for zinc-infused sediment, carbon-infused purification, and SF scale control media, along with a list of contaminants removed.

Salt-Free Conditioning Benefits:

Unlike traditional salt-based softeners, the PRO+AQUA system offers several advantages:

• Uses Salt-Free & Chemical-Free Technology
• No Backwashing Required
• No Drain Line Needed
• Designed for DIY Installation & is a Compact System
• Maintenance Free (aside from filter changes)

Image 4.2: A comparison chart highlighting the benefits of the PRO+AQUA Salt-Free Water Softener versus generic salt-based water softeners. It shows advantages like no salt, no backwashing, and DIY installation for the PRO+AQUA system.

5. Konfigurazioa eta instalazioa

The PRO+AQUA Whole House Water Softener Bundle is designed for straightforward DIY installation. All necessary parts, including two 18" stainless steel flex lines, push-in (Quick Connect) options, and both 1" and 3/4" male and female fittings, are included to facilitate a hassle-free setup.

For detailed, step-by-step installation instructions, please refer to the comprehensive installation guide provided with your product packaging. It is crucial to follow all local plumbing codes and safety guidelines during installation.

Image 5.1: Diagram showing the product dimensions of the PRO+AQUA SCI Salt-Free Conditioning System (PRO-SCI-SF10). It indicates the height of the main tank (54.45 inches) and the overall width and depth of the combined system.

6. Funtzionamendua

Once properly installed, the PRO+AQUA Whole House Water Softener Bundle operates automatically to filter and condition your home's water supply. The system requires no electricity or complex programming for its daily function.

Water flows through the pre-treatment filter, where sediment and chlorine are removed, before entering the salt-free conditioner for scale prevention. The pressure gauge on the filter housing allows for monitoring of water pressure and can indicate when the filter cartridge may need replacement due to pressure drop.

7. Mantentzea

The PRO+AQUA Salt-Free Water Softener Bundle is designed for low maintenance. The primary maintenance task involves replacing the carbon-infused filter cartridge in the single-stage pre-treatment system.

• Iragazkiaren ordezkoa: The frequency of filter replacement depends on your water quality and household usage. A noticeable drop in water pressure or a return of odors/tastes indicates it's time to change the filter. Refer to the filter cartridge's specifications for estimated lifespan.
• Gatzik gabeko baldintzatzailea: The salt-free conditioner component requires no salt refills, backwashing, or electricity, making it virtually maintenance-free.

Always turn off the main water supply and relieve pressure before performing any maintenance on the system.

8. Arazoak

Should you encounter any issues with your PRO+AQUA water treatment system, consider the following general troubleshooting steps:

• Reduced Water Flow/Pressure: Check the pre-treatment filter. A clogged filter is the most common cause of reduced flow. Replace the filter cartridge if necessary.
• Unusual Odors/Taste: This typically indicates that the carbon filter cartridge needs to be replaced.
• Water Hardness Issues: Ensure the system is correctly installed and that the bypass valve is in the operational position. While the system conditions water to prevent scale, it does not remove hardness minerals like a traditional softener.
• Isurketak: Inspect all connections for proper sealing. Ensure all fittings are tightened securely.

If problems persist after checking these points, please contact PRO+AQUA customer support for assistance.

9. Zehaztapenak

10. Bermea eta Laguntza

PRO+AQUA stands behind the quality of its products. This system is engineered with commercial-grade parts to ensure durability and performance, designed to outlast other leading systems on the market.

• Asebetetze-bermea: Enjoy a no-hassle 30-day return policy.
• Bermea: The product comes with an outstanding warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
• Laguntza teknikoa: Free lifetime technical support is available for all PRO+AQUA customers. For assistance, please visit the PRO+AQUA webgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzuarekin.
