Binardat 1 to 2 Gigabit Network Splitter User Manual

Sarrera

This manual provides essential instructions for the proper setup, operation, and maintenance of your Binardat 1 to 2 Gigabit Network Splitter. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Produktua amaituview

The Binardat 1 to 2 Gigabit Network Splitter is a compact, unmanaged 3-port Ethernet switch designed to expand your network connectivity. It features one input port and two output ports, allowing two devices to share a single Gigabit network connection simultaneously without requiring manual switching.

Ezaugarri nagusiak:

• 3 x 1 Gigabit Ports: Includes one input and two output Gigabit Ethernet ports, supporting 10/100/1000Mbps auto-negotiation and auto MDI-MDIX.
• C motako elikatze-iturria: Utilizes a DC5V Type-C power input with a maximum power consumption of 1.5W. A USB power cable is included for connection to a USB port or power adapter.
• Simultaneous Online Operation: Both output ports can be online concurrently, sharing the input port's Gigabit rate.
• Plug & Play: Requires no configuration for immediate use.
• Diseinu trinkoa: Mini size (approximately 5.1 x 5.6 x 1.8 cm) with a fanless design for silent operation.
• Bateragarritasun zabala: Compatible with Cat 5/5e/6/7/8 Ethernet cables.

Paketearen edukia:

• Binardat 1 to 2 Gigabit Network Splitter (White)
• USB C motako korronte kablea

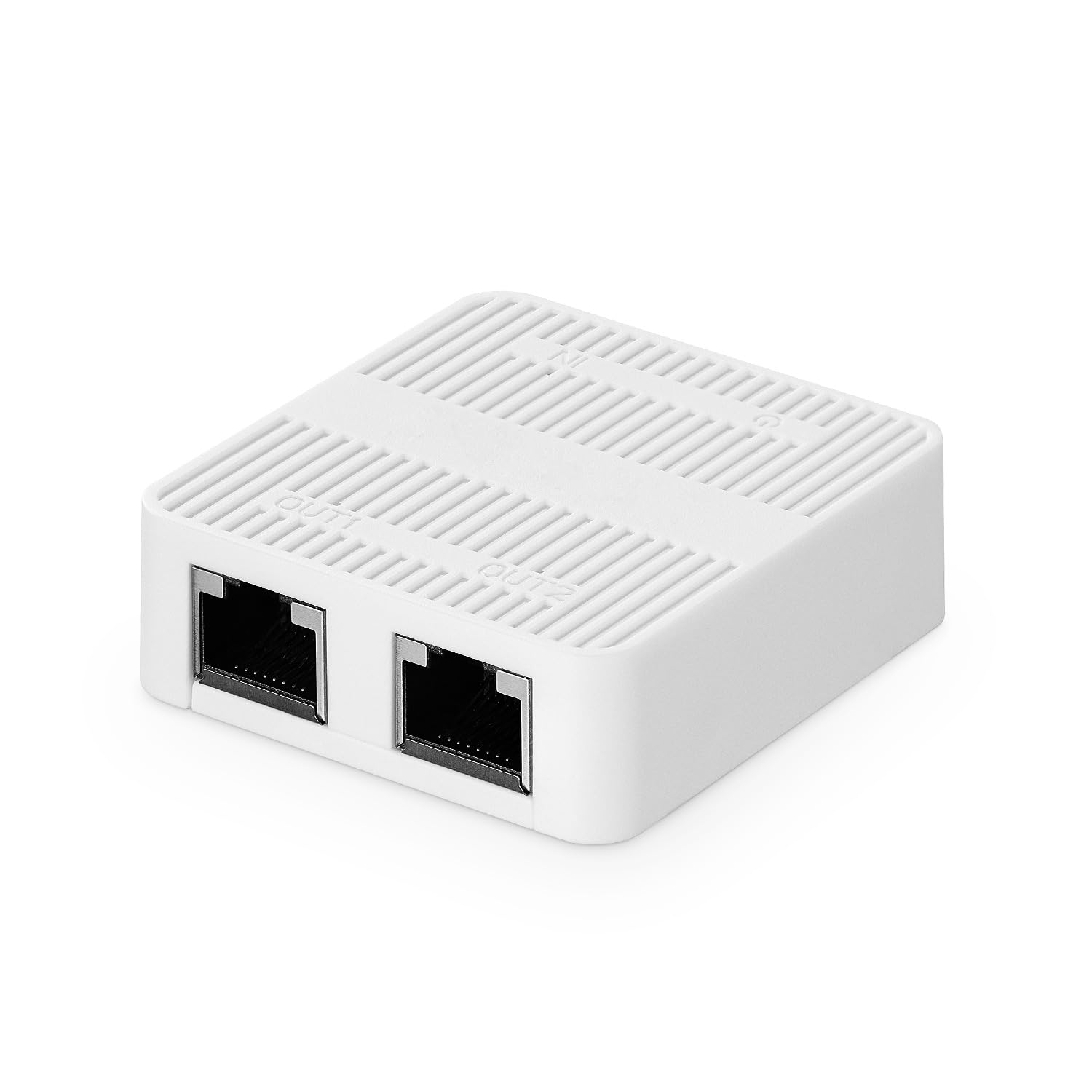

Image: The Binardat 1 to 2 Gigabit Network Splitter in white.

Irudia: Xehetasun handikoa views of the splitter's ports and Type-C power input.

Konfigurazio Argibideak

The Binardat Gigabit Network Splitter is designed for simple plug-and-play operation. Follow these steps to set up your device:

1. Potentzia-konexioa: Connect the included USB Type-C power cable to the Type-C port on the splitter. Connect the other end of the USB cable to a 5V USB power source, such as a computer's USB port or a USB power adapter (not included).
2. Input Network Connection: Connect an Ethernet cable from your uplink network source (e.g., router, modem, existing network outlet) to the IN port on the splitter.
3. Output Device Connection: Connect Ethernet cables from the IRTEERA1 eta IRTEERA2 ports on the splitter to your desired network devices (e.g., desktop computer, laptop, smart TV, game console).
4. Egiaztapena: Observe the LED indicators on the splitter. These indicators provide clear visibility of the device's operational status and port activity.

No additional software installation or configuration is required.

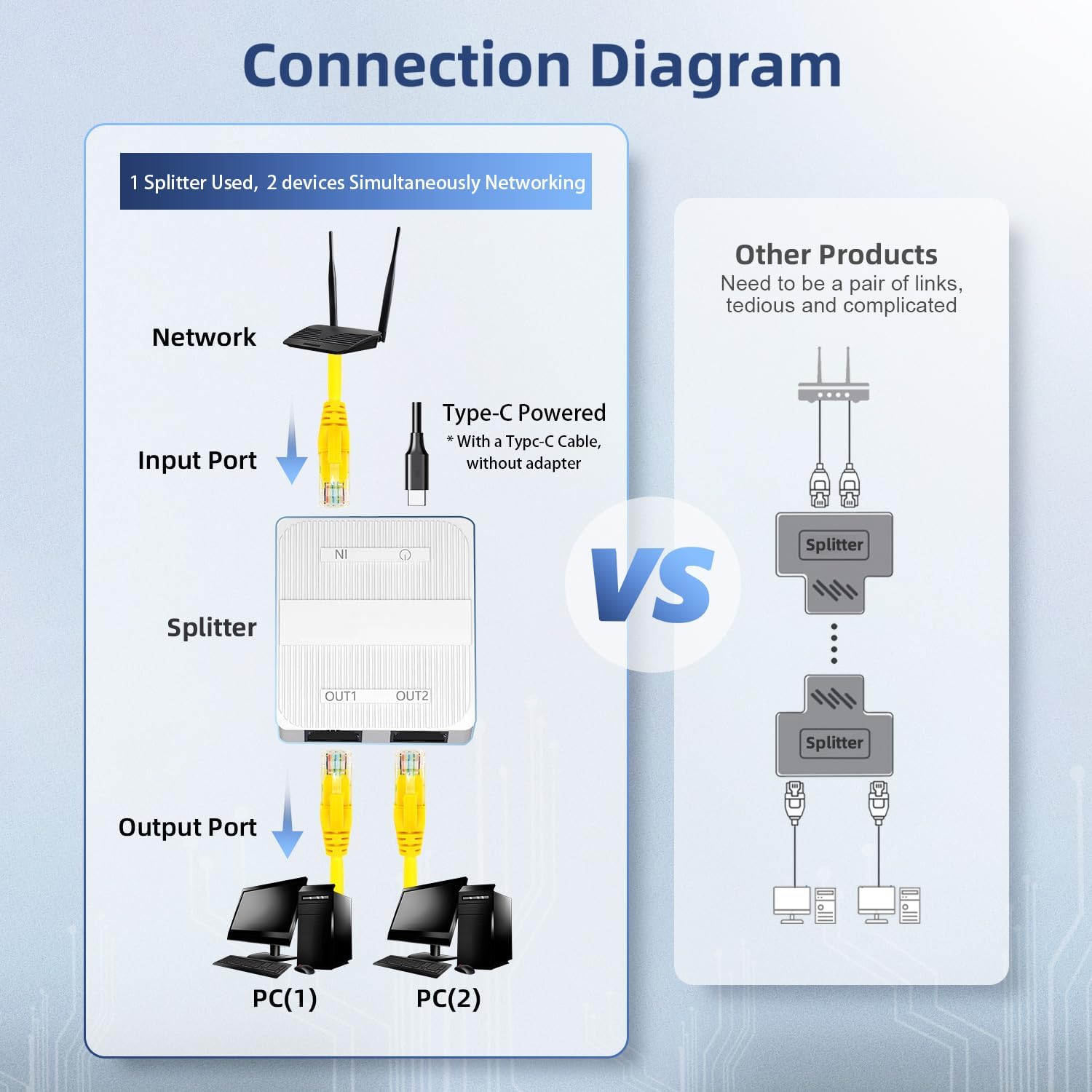

Image: Diagram illustrating the connection of the splitter to a network and two devices.

Irudia: Adibample setup with the splitter connecting two devices to a network.

Funtzionamendu-argibideak

Once connected as described in the Setup section, the Binardat Gigabit Network Splitter operates automatically.

• Funtzionamendu automatikoa: The splitter functions as an unmanaged switch, automatically detecting and forwarding network traffic between the input and output ports.
• Aldibereko sarbidea: Both connected devices on the OUT1 and OUT2 ports will have simultaneous access to the network. The Gigabit bandwidth from the input port will be shared between the two active output devices.
• LED adierazleak: The built-in LED indicators provide visual feedback on the status of the device and each port. A lit LED typically indicates a live connection, and blinking LEDs indicate data activity.

Image: The splitter highlighting its Gigabit speed capability.

Mantentzea

To ensure the longevity and reliable performance of your Binardat Gigabit Network Splitter, follow these simple maintenance guidelines:

• Garbiketa: Erabili zapi leun eta lehor bat gailuaren kanpoaldea garbitzeko. Saihestu garbitzaile likidoak, aerosolak edo disolbatzaileak erabiltzea.
• Ingurumena: Operate the device in a dry, well-ventilated area. Avoid exposure to extreme temperatures, direct sunlight, moisture, or dust.
• Kableen kudeaketa: Ensure all connected Ethernet and power cables are not kinked, pinched, or under excessive tension.
• Elikatze-iturria: Use only the provided USB Type-C power cable and a compatible 5V USB power source.

Arazoak konpontzea

If you encounter issues with your Binardat Gigabit Network Splitter, refer to the following troubleshooting steps:

• Energiarik ez / LEDak itzalita:
  • Ensure the USB Type-C power cable is securely connected to both the splitter and the power source.
  • Verify that the USB power source (e.g., computer USB port, USB power adapter) is functional and providing 5V power. Try a different USB port or adapter.
• Sareko konexiorik ez:
  • Check all Ethernet cable connections. Ensure they are securely plugged into the IN, OUT1, and OUT2 ports, as well as into your router/modem and end devices.
  • Confirm that the Ethernet cables are functional. Try testing them directly between your router and a device, bypassing the splitter.
  • Verify that your uplink network source (router/modem) is operational and providing an internet connection.
  • Ensure the LED indicators on the splitter are lit for active connections.
• Sarearen abiadura motela:
  • While the splitter supports Gigabit speeds, the total bandwidth is shared between the two output ports. Heavy usage on both devices simultaneously may result in reduced speed for each.
  • Ensure you are using Cat5e or higher rated Ethernet cables for Gigabit performance.
  • Check the speed settings on your connected devices and router.
• Etengabeko konexioa:
  • Egiaztatu kable guztiak kalterik duten.
  • Ensure the splitter is placed in a stable location, away from sources of electromagnetic interference.
  • Restart your router/modem, the splitter, and the connected devices.

If problems persist after following these steps, please contact Binardat customer support.

Zehaztapenak

Image: Physical dimensions of the network splitter.

Image: The compact size of the splitter demonstrated by being held in a hand.

Bermearen informazioa

The Binardat 1 to 2 Gigabit Network Splitter comes with a 1 urteko berme mugatua from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or external factors.

Mesedez, gorde zure erosketa-froga berme-erreklamazioetarako.

Bezeroarentzako Arreta

For technical assistance, warranty claims, or any questions regarding your Binardat Gigabit Network Splitter, please contact Binardat customer support.

You can find more information and contact details by visiting the official Binardat store on Amazon: Binardat denda

Please have your model number (NSP-1T2GW) and proof of purchase ready when contacting support.
