Himimi Retractable Garden Hose Reel User Manual

Sarrera

Thank you for choosing the Himimi Retractable Garden Hose Reel. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new hose reel. Please read it thoroughly before first use and retain it for future reference.

This automatic retractable hose reel is designed for convenient watering tasks in your garden, patio, or other outdoor areas. It features a durable hose, a versatile 10-pattern sprayer nozzle, and a 180° swivel bracket for flexible use.

Image: The Himimi Retractable Garden Hose Reel, featuring a black casing with a blue central reel, a blue hose, and a blue and black sprayer nozzle. The unit is designed for wall mounting.

Segurtasun Informazioa

Beti jarraitu segurtasun neurri hauek lesio edo kalte arriskua murrizteko:

• Do not allow children to operate the hose reel without adult supervision.
• Ensure the hose reel is securely mounted to a sturdy surface before use.
• Do not pull the hose out beyond the red stopper.
• When retracting the hose, always guide it manually to prevent rapid recoil and potential injury or damage to the unit.
• Do not use the hose reel with hot water or chemicals.
• Drain the hose reel completely before freezing temperatures to prevent damage.
• Wear appropriate protective gear, such as gloves and eye protection, when handling the hose or nozzle.

Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela:

• Himimi Retractable Garden Hose Reel (1/2'' x 131FT hose pre-installed)
• 10-Function Sprayer Nozzle
• Horma-muntatzeko euskarria
• Muntatzeko hardwarea (torlojuak, hormako aingurak)
• Lead-in Hose (6.6FT)
• Erabiltzailearen eskuliburua

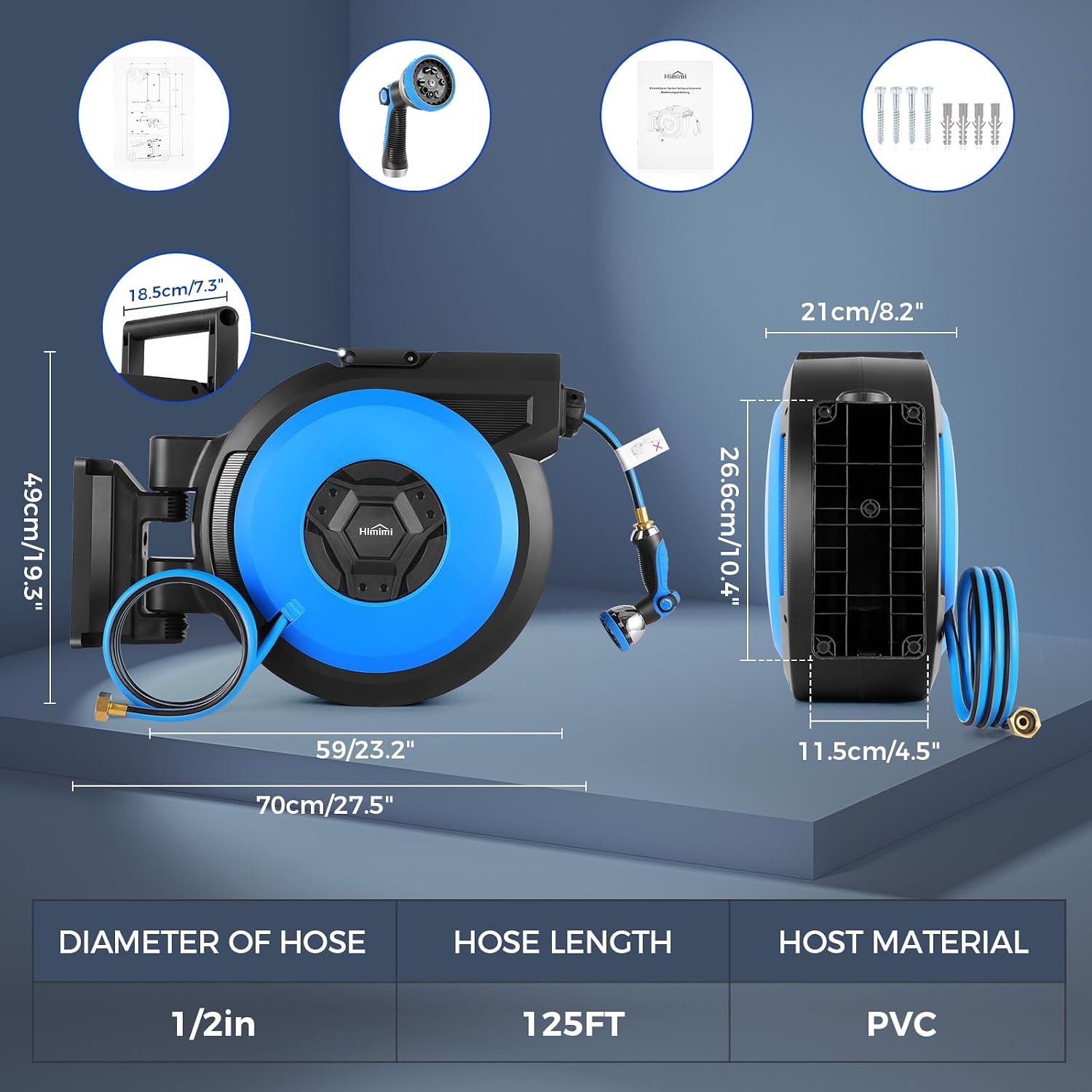

Image: Diagram showing the dimensions of the hose reel and a visual representation of the included components: the hose reel unit, the 10-function nozzle, the lead-in hose, mounting hardware, and the user manual.

Konfigurazioa eta Instalazioa

Follow these steps to properly install your Himimi Retractable Garden Hose Reel:

1. Aukeratu kokapena: Select a sturdy wall or wooden post capable of supporting the weight of the hose reel when full of water. Ensure there is enough clearance for the 180° swivel function.
2. Muntatu euskarria:
   • Position the wall mount bracket at the desired height. Use a level to ensure it is straight.
   • Mark the drilling points through the holes on the bracket.
   • Drill pilot holes using an appropriate drill bit for your wall material.
   • Insert wall anchors (if necessary for your wall type).
   • Securely fasten the bracket to the wall using the provided screws.


   Irudia: Gertutik view of the robust swivel bracket, highlighting its construction and attachment points.

3. Attach the Hose Reel: Slide the hose reel unit onto the mounted bracket. Ensure it clicks securely into place. The unit should be able to swivel freely.
4. Connect the Lead-in Hose: Connect the shorter 6.6FT lead-in hose to your water tap and to the inlet connection on the side of the hose reel. Ensure all connections are tight to prevent leaks.

   Irudia: Xehetasun handikoa view of the brass hose connectors, emphasizing their leak-free design and durability.
5. Lotu pita: Screw the 10-function sprayer nozzle onto the end of the main hose.

Funtzionamendua

Using your Himimi Retractable Garden Hose Reel is simple and efficient:

Extending the Hose:

Gently pull the hose to the desired length. You will hear a clicking sound as the hose locks into place. The hose can be locked at any length, providing flexibility for various tasks.

Image: A woman demonstrating the "Lock At Any Length" feature, pulling the hose to a specific point and showing the adjustable lock mechanism.

Retracting the Hose:

To retract the hose, give it a short, sharp tug. This will disengage the locking mechanism. Slowly guide the hose back into the reel. Do not release the hose abruptly, as it can retract quickly and cause damage or injury.

Image: A diagram illustrating the clever auto-guide retract mechanism, showing how the hose latches and automatically retracts with proper guidance.

Using the 10-Function Nozzle:

The included nozzle offers 10 different spray patterns to suit various watering needs. Rotate the nozzle head to select your desired pattern (e.g., Shower, Center, Flat, Soaker, Mist, Jet, Triangle, Rinse, 1/2Vert, Cone). The nozzle also features an upgraded water pressure adjustment and a lock to maintain continuous flow without holding the trigger.

Image: A visual guide to the 10 different spray patterns available on the included nozzle, demonstrating each pattern's appearance.

180°-ko biraketa funtzioa:

The hose reel can swivel 180 degrees on its wall mount bracket, allowing you to reach different areas of your garden without kinking the hose.

Image: A diagram illustrating the 180-degree swivel capability of the hose reel on its wall mount, showing its range of motion.

Mantentzea

Proper maintenance will extend the life of your Himimi Retractable Garden Hose Reel:

• Neguan egitea: Before the first frost, disconnect the hose reel from the water supply. Drain all water from the hose and the reel. Store the unit indoors in a dry, protected area to prevent freezing damage. The reel can be easily lifted off its bracket for storage.
• Garbiketa: Periodically clean the exterior of the hose reel with a damp oihal. Saihestu produktu kimiko gogorrak edo garbitzaile urratzaileak erabiltzea.
• Hodien ikuskapena: Regularly inspect the hose for any signs of wear, kinks, or damage. Replace the hose if significant damage is found.
• Toberaren zainketa: If the nozzle becomes clogged, disconnect it and flush with water. Ensure all spray holes are clear.
• Konexioaren egiaztapenak: Periodically check all hose connections for tightness to prevent leaks.

Image: A diagram illustrating the hose's temperature range tolerance (-5°C to 45°C) and its multi-layer construction, including woven internal and hybrid external layers for durability and flexibility.

Arazoak konpontzea

If you encounter issues with your hose reel, refer to the following common problems and solutions:

Zehaztapenak

Bermea eta Laguntza

Himimi is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your hose reel, please contact our customer service team.

Please refer to your purchase documentation or the Himimi official webwebgunean berme-baldintza eta harremanetarako datu eguneratuenak ikusteko.

When contacting support, please have your model number (ZYW016-38) and purchase date available.
