Garvee 6x10 FT Greenhouse Instruction Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your Garvee 6x10 FT Greenhouse. Please read this manual thoroughly before beginning assembly or use to ensure proper function and longevity of your greenhouse. This greenhouse is designed for outdoor use, providing a protected environment for plants.

1.1 irudia: Kanpoalde osoa view of the Garvee 6x10 FT Greenhouse.

2. Segurtasun informazioa

Mesedez, jarraitu segurtasun neurri hauek muntaketa eta erabilera bitartean:

• Handle materials with care to avoid injury from sharp edges. Protective gloves are recommended during assembly.
• Ensure proper anchoring during installation to prevent damage or injury in windy conditions. The greenhouse must be securely fastened to the ground.
• Mantendu haurrak eta maskotak muntaketa gunetik urrun.
• Ez igo negutegiaren egiturara.
• Muntaketaren ondoren eta aldian-aldian erabili bitartean, egiaztatu konexio guztiak estuak eta seguruak direla.

3. Paketearen edukia

The Garvee 6x10 FT Greenhouse arrives in two separate packages. Please verify all components are present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

Image 3.1: The greenhouse components are shipped in two distinct packages.

Espero diren osagaien artean daude:

• Aluminum frame profiles (various lengths and shapes)
• Polikarbonatozko panelak
• Hardware kit (screws, nuts, bolts, rivets)
• Door assembly components
• Roof vent assembly components
• Integrated gutter system components
• Argibide eskuliburua

4. Konfigurazioa eta instalazioa

The Garvee greenhouse features a quick installation structure with a rivet system and sliding panel assembly. Follow the included detailed assembly instructions step-by-step.

4.1. Gunearen prestaketa

• Choose a level, well-drained site with adequate sunlight exposure.
• Clear the area of debris, rocks, and vegetation.
• Ensure sufficient space around the greenhouse for assembly and access.

4.2. Markoen Muntaketa

Assemble the aluminum frame according to the provided diagrams. The frame is designed for durability and rust resistance.

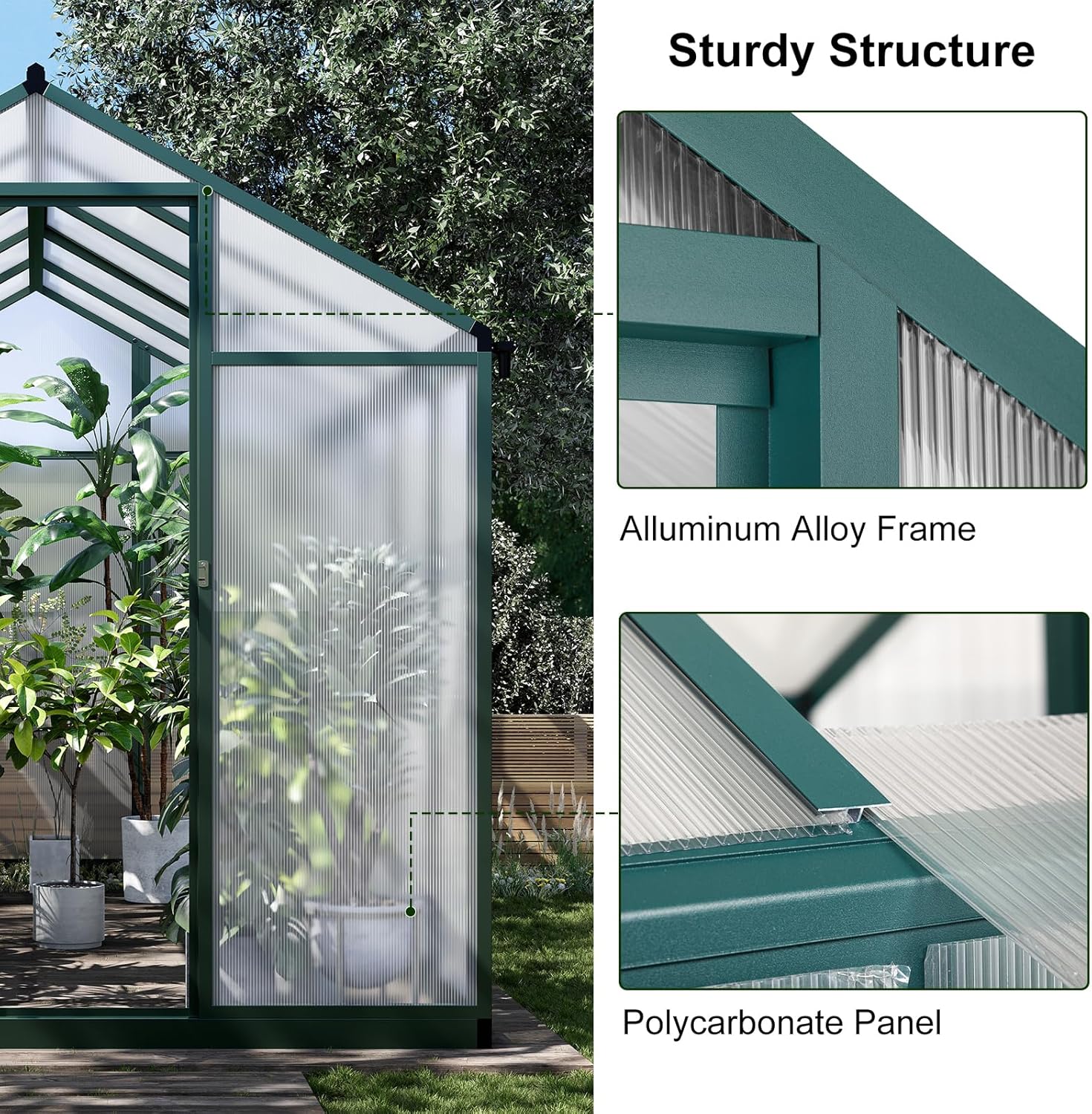

Image 4.1: Detail of the sturdy aluminum alloy frame and polycarbonate panel connection.

4.3. Panelen Instalazioa

Slide the polycarbonate panels into the designated frame channels. These panels offer 99.99% UV protection and insulation.

4.4. Atearen eta aireztapenaren instalazioa

Install the door and roof vent assemblies. The door includes a security lock for controlled access.

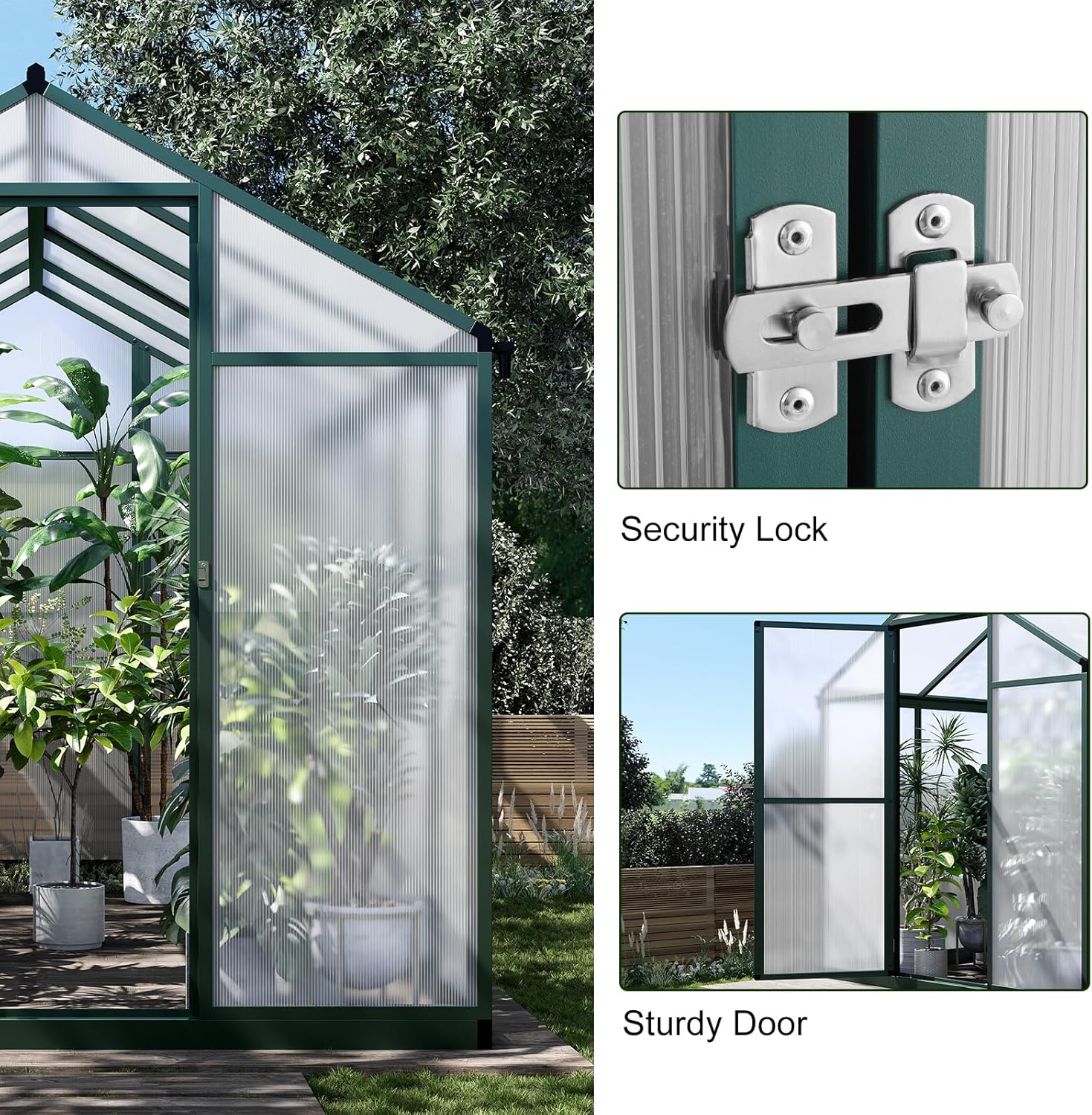

Image 4.2: Detail of the sturdy door and integrated security lock.

4.5. Ainguratzea

Securely anchor the greenhouse to the ground using appropriate methods for your soil type to prevent movement in high winds.

5. Funtzionamendu-argibideak

5.1. Aireztapena

The hinged roof vent allows for air circulation, which is crucial for regulating temperature and humidity inside the greenhouse. Open the vent to release excess heat and humidity, and close it to retain warmth.

Image 5.1: Detail of the rooftop vent for air circulation and the integrated gutter system.

5.2. Uraren kudeaketa

The integrated gutter system effectively drains and collects rainwater. This water can be collected and reused for irrigation, promoting water conservation.

6. Mantentzea

• Garbiketa: Periodically clean the polycarbonate panels with mild soap and water to ensure maximum light transmission. Avoid abrasive cleaners.
• Markoaren ikuskapena: Regularly inspect the aluminum frame for any signs of damage or corrosion. Tighten any loose bolts or rivets.
• Vent and Door Check: Ensure the roof vent and door operate smoothly and latch securely. Lubricate hinges if necessary.
• Kanalizazio garbiketa: Clear the integrated gutters of leaves and debris to ensure efficient water drainage.

7. Arazoak

• Falta diren piezak: If you find any parts missing upon delivery, refer to the package contents section and contact Garvee customer support with your purchase details.
• Egiturazko ezegonkortasuna: Ensure the greenhouse is properly anchored to the ground. Re-check all frame connections and tighten any loose hardware.
• Aireztapen eskasa: Verify the roof vent is opening and closing correctly. Clear any obstructions that might be blocking airflow.
• Ur-ihesak: Inspect polycarbonate panel seals and frame connections for gaps. Apply silicone sealant if necessary to prevent leaks.

8. Zehaztapenak

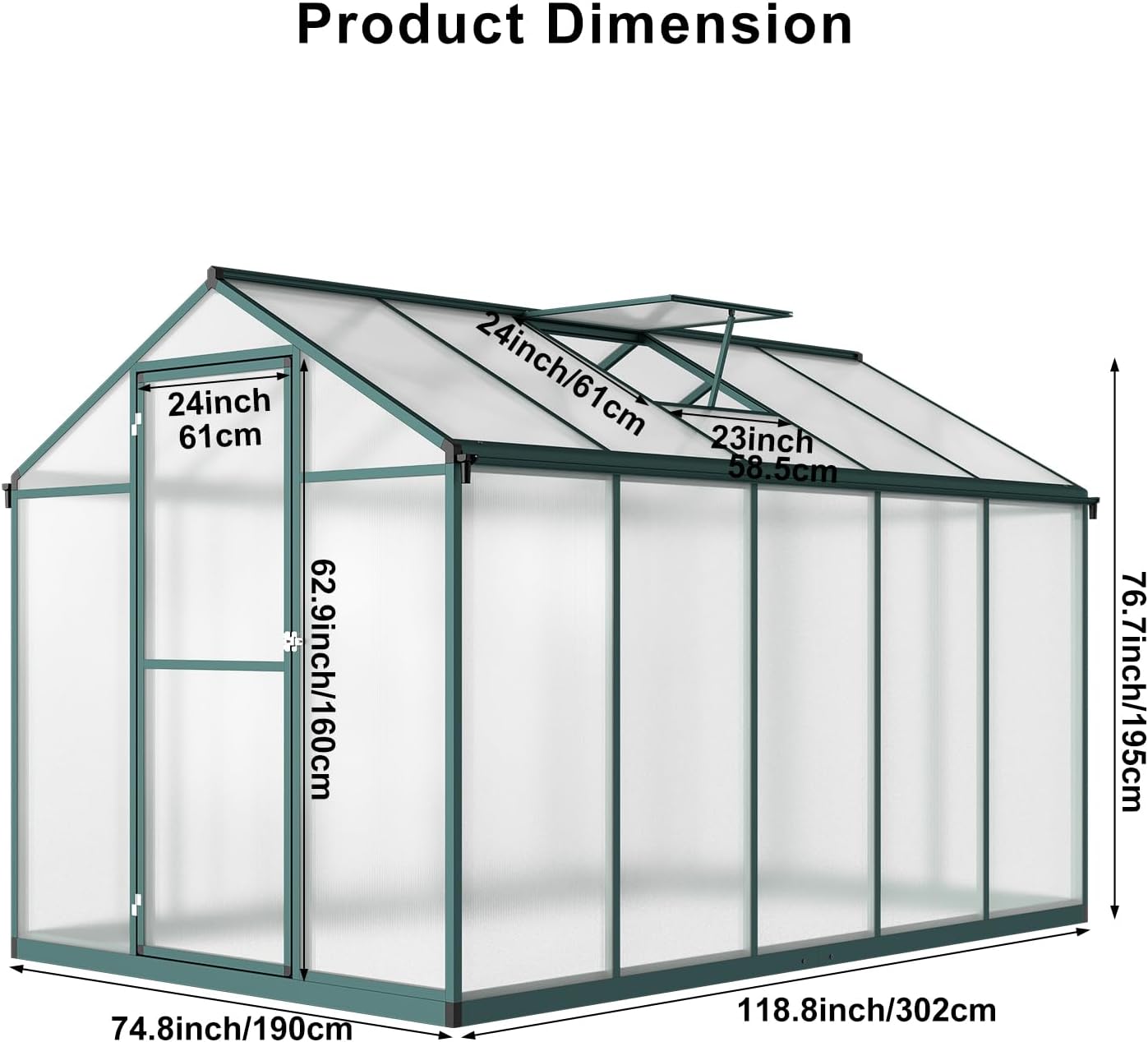

Image 8.1: Detailed product dimensions for the Garvee 6x10 FT Greenhouse.

9. Bermea eta Laguntza

For warranty information or customer support, please refer to your purchase documentation or contact Garvee directly through their official channels. Ensure you have your product model number and purchase date available when contacting support.
