1. Sarrera
This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your KACIO LS2-13S Mini Vertical Two-Cylinder Reciprocating Steam Engine Model. This precision-engineered model is designed for enthusiasts and educational purposes, suitable for integration into 80-120CM steam model ships or as a standalone display piece. Please read this manual thoroughly before use.
Figure 1: KACIO LS2-13S Steam Engine Model, front view.
2. Segurtasun informazioa
WARNING: This product is a functional steam engine model and operates under pressure and heat. Improper use can result in serious injury or damage. Always exercise extreme caution.
- Helduen gainbegiratzea beharrezkoa da: This model is not a toy. Operation should always be performed under direct adult supervision, especially for users under 14 years of age.
- Beroaren arriskua: The engine and associated components will become very hot during operation. Avoid direct contact with hot surfaces to prevent burns. Allow the engine to cool completely before handling or performing maintenance.
- Pressure Hazard: Ensure all connections to the steam source are secure and leak-free. Never exceed the recommended operating pressure. Use a pressure relief valve with your steam source.
- Zati mugigarriak: Keep hands, hair, loose clothing, and other objects clear of moving parts during operation to prevent entanglement and injury.
- Lubrifikazioa: Use only appropriate steam engine oil for lubrication. Do not use flammable lubricants near heat sources.
- Aireztapena: Operate the engine in a well-ventilated area to dissipate steam and any combustion byproducts if using a boiler.
- Galdararen bateragarritasuna: This model does not include a boiler. Ensure any external boiler used is compatible and safely operated according to its own instructions.
3. Paketearen edukia
Carefully unpack the box and verify that all items listed below are present and undamaged. If any items are missing or damaged, please contact your retailer.
- 1 x KACIO LS2-13S Steam Engine Model
- 1 x Lubricating Oil Cup
- 1 x Ihes-hodia
- 1 x Argibide eskuliburua (dokumentu hau)
2 Irudia: Gainetikview of the KACIO LS2-13S Steam Engine Model and its components.
4. Konfigurazioa
Before operating the engine, proper setup is crucial for safety and performance.
4.1 Mounting the Engine
The engine features a stable base (44mm wide, 76mm long, 6mm thick sleepers) designed for tabletop display or integration into a model ship. Ensure the mounting surface is level and secure. Use appropriate fasteners if permanently mounting the engine to prevent movement during operation.
4.2 Connecting the Steam Source
This model requires an external steam source (boiler not included). The inlet interface thread is M6-0.5 (1/4-40). Connect your steam supply line to this inlet. Ensure the connection is tight and sealed to prevent steam leaks. A pressure gauge and a pressure relief valve on your boiler system are highly recommended.
4.3 Installing the Exhaust Pipe
Attach the provided exhaust pipe to the engine's exhaust port. The exhaust pipe directs spent steam away from the engine, which is important for clear operation and safety.
4.4 Lubrifikazioa
Proper lubrication is vital for the longevity and smooth operation of the engine. The model includes a lubricating oil cup and a filling port on the side of the piston connecting rod.
- Fill the lubricating oil cup with high-quality steam engine oil.
- Apply a few drops of steam engine oil to the piston connecting rod filling port and all visible moving joints and bearings.
- Ensure all friction surfaces receive adequate lubrication before each operation.
3. irudia: hurbileko planoa views showing lubrication points, cylinder heads, and the flywheel.
5. Funtzionamendu-argibideak
Follow these steps for safe and effective operation of your steam engine model.
- Eragiketa aurreko egiaztapena:
- Egiaztatu konexio guztiak seguruak eta ihesik gabekoak direla.
- Ensure adequate lubrication has been applied.
- Confirm the engine is mounted stably.
- Ensure the operating area is well-ventilated and clear of obstructions.
- Steam Supply:
- Gradually open the steam valve from your external boiler.
- Monitor the pressure. The recommended operating pressure is 0.2Mpa-0.6Mpa (maximum 0.8Mpa).
- Motorra martxan jartzea:
- Once steam pressure is applied, the engine may start automatically. If not, gently rotate the flywheel by hand to initiate movement.
- Observe the engine's operation for any unusual noises or excessive vibrations.
- Aurrera/Atzera biraketa:
The KACIO LS2-13S supports forward and reverse rotation. This is typically controlled by a reversing lever or valve on the engine itself or via the steam supply system. Consult the specific mechanism on your model for directional control.

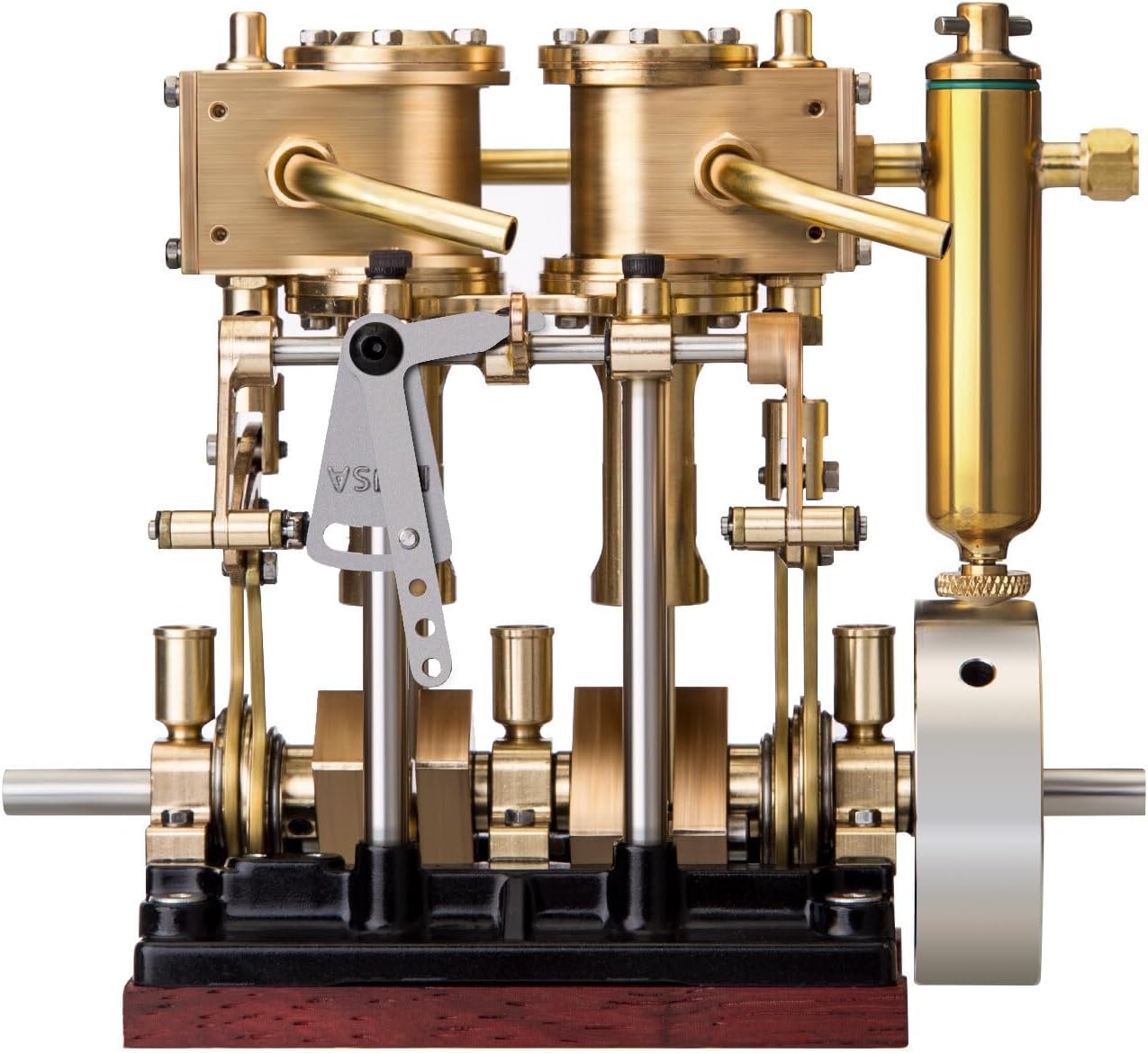

4. irudia: Xehetasuna view of the valve gear and reversing linkage.
- Motorra gelditzea:
- Gradually close the steam valve from your external boiler.
- Allow the engine to come to a complete stop naturally.
- Once stopped, allow the engine to cool down completely before handling.
6. Mantentzea
Regular maintenance ensures the longevity and optimal performance of your steam engine model.
6.1 Lubrifikazioa
Re-lubricate all moving parts and the oil cup before each operating session. Use only high-quality steam engine oil. The beryllium copper spindle bearings are designed for stable operation, but proper lubrication is still essential.
6.2 Garbiketa
- After each use, especially after the engine has cooled, wipe down the exterior surfaces with a soft, dry cloth to remove any oil residue or condensation.
- Periodically inspect the engine for any buildup of dirt or debris, especially around moving parts. Clean gently with a soft brush or compressed air.
- Do not use harsh chemicals or abrasive cleaners, as these can damage the copper and electrophoresis-treated surfaces.
6.3 Ikuskapena
- Regularly check all screws and fasteners for tightness. Vibrations during operation can sometimes loosen components.
- Inspect steam lines and connections for any signs of wear, cracks, or leaks. Replace damaged components immediately.
- Check the 0.08mm red copper sheet seals on the cylinder head for integrity. While resistant to high temperature and corrosion, they should be inspected for any signs of degradation.
7. Arazoak
This section addresses common issues you might encounter with your steam engine model.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Engine does not start or runs sluggishly. |
|
|
| Excessive steam leakage. |
|
|
| Engine runs roughly or with unusual noise. |
|
|
8. Zehaztapenak
Technical details for the KACIO LS2-13S Mini Vertical Two-Cylinder Reciprocating Steam Engine Model:
- Eredua: LS2-13S
- Materiala: Kobrea
- Oinarrizko neurriak: 44mm (width) x 76mm (length) x 95mm (height) + 6mm (sleeper thickness)
- Zilindroaren zuloa: 14.0 mm
- Trazua: 12.0 mm
- Buruaren diametroa: 5.0 mm
- Spindle Center Ground Height: 17.0 mm
- Eragiketa-presioa: 0.05Mpa - 0.8Mpa
- Gomendatutako aire-presioa: 0.2Mpa - 0.6Mpa
- Inlet Interface Thread: M6-0.5 (1/4-40)
- Produktuaren neurriak (L x W x H): 7.6 x 4.8 x 10.1 cm (gutxi gorabehera 2.99 x 1.89 x 3.98 hazbete)
- Produktuaren pisua: 660 g (gutxi gorabehera 1.46 lb)
- Gomendatutako adina: 14+
5. irudia: Aurrealdea view of the KACIO LS2-13S engine, highlighting its compact design.
9. Bermea eta Laguntza
As this product is listed under a "Generic" brand, specific warranty information may vary. Please retain your proof of purchase.
- Bermea: For any warranty claims or issues, please contact the retailer or seller from whom you purchased the product. They will be able to provide information regarding their specific return and warranty policies.
- Laguntza teknikoa: For technical assistance or questions regarding the operation and maintenance of your KACIO LS2-13S steam engine model, please refer to this manual. If further assistance is required, contact your retailer or the manufacturer directly if contact information is provided on the packaging.
