Sarrera
This manual provides detailed instructions for the setup, operation, and maintenance of your Wireless Door Stop Alarm with Vibration Sensor. Please read this manual thoroughly before using the device to ensure proper function and safety.
Segurtasun Informazioa
Always follow basic safety precautions when using electrical devices. Keep the device away from water and extreme temperatures. Do not attempt to disassemble or repair the device yourself. Use only the specified battery type.
Paketearen edukia
- 1 x Wireless Door Stop Alarm
- 3 x LR44 Batteries (pre-installed or included)
- 1 x Magnetic Strip (for certain models/uses, if applicable)
Produktua amaituview
The Wireless Door Stop Alarm is designed to provide enhanced security for your home, hotel room, or apartment. It features a vibration sensor that triggers a loud 125 dB alarm upon detecting unauthorized entry or movement of the door.
1. irudia: Aurrealdea view of the Wireless Door Stop Alarm.
Figure 2: Dimensions of the Wireless Door Stop Alarm (approximately 3.8in x 2.8in x 1.7in).
Konfigurazioa
Bateriaren instalazioa
- Kokatu bateriaren konpartimendua gailuaren azpialdean.
- Ireki konpartimenduaren estalkia.
- Sartu 3 LR44 pila, polaritate zuzena (+/-) ziurtatuz.
- Itxi bateriaren konpartimenduaren estalkia ondo.
The batteries are designed to last 6 to 12 months. An intuitive low battery indicator will notify you when replacement is needed.
Kokatzea eta Instalazioa
The alarm can be installed in any location with an opening, such as doors or windows. For optimal performance as a door stop alarm:
- Place the door stop alarm on the floor directly behind the door you wish to secure.
- Ensure the wedge shape is firmly positioned under the door, preventing it from opening.
- The device is designed to work effectively with a gap between the door and the ground of 5mm to 15mm.

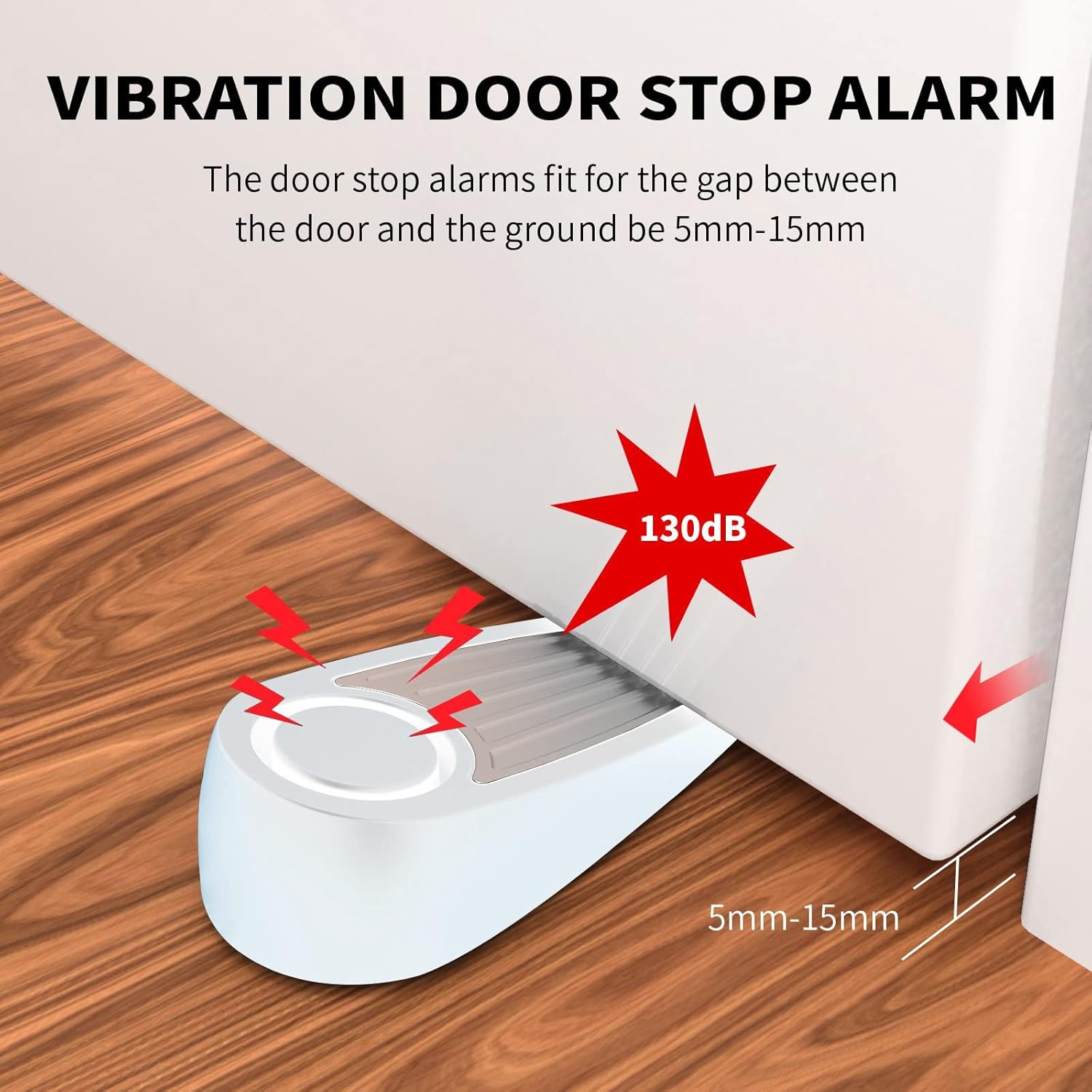

Figure 3: Proper placement of the door stop alarm under a door, showing the effective gap range.
For use as a window or simple entry alarm, the device can be affixed using the provided adhesive (if applicable) or placed in a position where movement will trigger the vibration sensor.
Funtzionamendu-argibideak
Alarma aktibatzea
- Aurkitu gailuaren alboan dagoen ON/OFF etengailua.
- Slide the switch to the "ON" position to activate the vibration sensor.
- Once activated, any significant vibration or pressure on the device (e.g., from a door being pushed open) will trigger the 125 dB alarm.
Figure 4: The door stop alarm preventing unauthorized entry and triggering its alarm.
Deactivating the Alarm
To turn off the alarm, simply slide the ON/OFF switch to the "OFF" position.
Erabilera polifazetikoa
This alarm is suitable for various environments:
- Etxeko Segurtasuna: Place behind main entry doors, bedroom doors, or windows.
- Hotel Security: Ideal for travel, providing an extra layer of security in hotel rooms.
- Apartment Security: Secure apartment doors and other entry points.
5. irudia: Adibamples of where the door stop alarm can be effectively used, including home, hotel, and apartment settings.
Personal Alarm Function (if applicable)
The device can also function as a personal alarm. If you are in trouble, you can press the alarm button (if present) to emit a loud sound up to 130dB to scare off an attacker and call for help.
Figure 6: Demonstrating the use of the device as a personal alarm by pressing the top surface.
Mantentzea
Bateria ordezkatzea
When the low battery indicator activates, replace all three LR44 batteries following the installation steps described in the "Setup" section.
Garbiketa
Garbitu gailua zapi leun eta lehor batekin. Ez erabili garbitzaile urratzailerik eta ez sartu gailua uretan.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Alarmak ez du jotzen. | Gailua itzalita dago. Bateria baxuak. Bibrazio nahikorik ez. | Ensure switch is ON. Ordeztu bateriak. Adjust placement to ensure firm contact with door/surface. |
| Alarm sounds intermittently. | Loose batteries. Device not stable. | Check battery compartment. Ensure device is placed on a flat, stable surface. |
| Low alarm volume. | Bateria baxuak. | Ordeztu bateriak. |
Zehaztapenak
- Produktuaren izena: Lapurreten aurkako alarma
- Kolorea: Zuria
- Materiala: ABS
- Soinu maila: 125 dB (up to 130 dB for personal alarm function)
- Produktuaren tamaina: Gutxi gorabehera 7.5 x 4 cm (2.95 x 1.57 hazbete)
- Produktuaren pisua: 28 g (0.99 ontza)
- Bateria mota: 3 x LR44 (barne)
- Bateriaren iraupena: 6-12 months (typical)
- Effective Door Gap: 5 mm - 15 mm
- Modelo zenbakia: #ght4g240406CBA230304161WH
Bermea eta Laguntza
For warranty information and customer support, please refer to the product packaging or contact the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
