Dayton 5X485 SCR DC Speed Control User Manual

1. Sarrera

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Dayton 5X485 SCR DC Speed Control. This device is designed to regulate the speed of compatible DC motors within industrial applications. Please read this manual thoroughly before attempting to install or operate the unit.

2. Segurtasun informazioa

WARNING: Electrical shock hazard. Always disconnect AC supply power before working on the control, motor, or connections. Ensure the control enclosure is properly grounded to prevent electrical hazards.

Observe all local and national electrical codes during installation. Only qualified personnel should perform installation and maintenance procedures. Do not operate the control if it appears damaged or if any wiring is exposed.

3. Produktua amaitu daview

The Dayton 5X485 SCR DC Speed Control is a robust unit designed for precise motor speed regulation. It features a durable enclosure and clearly labeled controls.

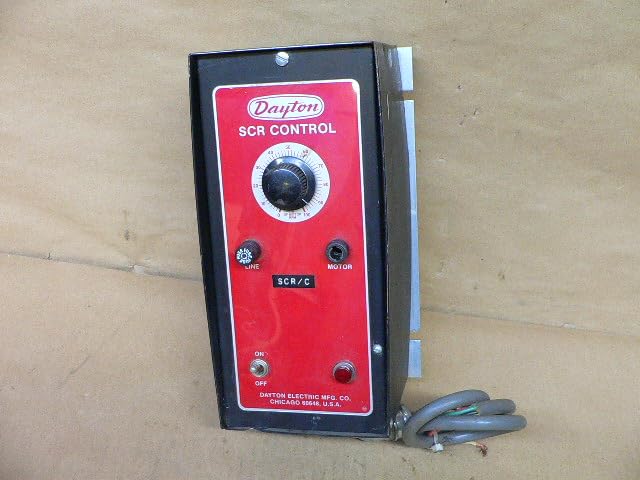

Figure 3.1: Front panel of the Dayton 5X485 SCR DC Speed Control. The panel features a large central knob for speed adjustment, an ON/OFF toggle switch, and clearly marked terminals for 'LINE' and 'MOTOR' connections. A red indicator light is also visible.

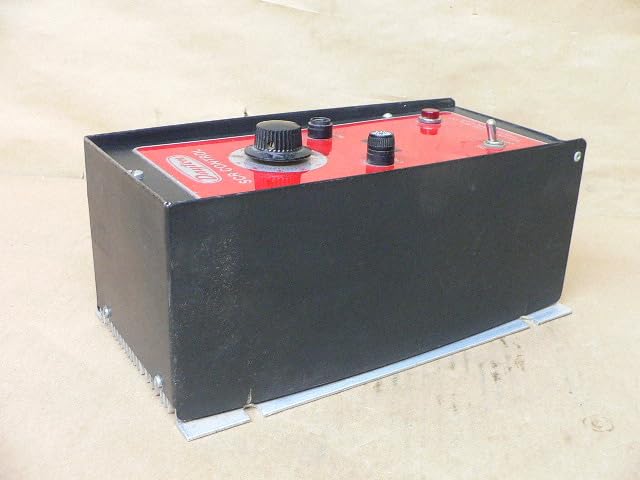

3.2. irudia: Aldea view of the Dayton 5X485 SCR DC Speed Control. This image highlights the overall dimensions and the metal mounting flanges on the sides of the black enclosure, indicating its design for secure installation.

3.3. irudia: Xehetasuna view of the product nameplate. This label provides critical electrical specifications such as model number (5X485A), HP range (1/4-3/4), input voltage (115V), frequency (60/50 Hz), AC line current (10A max), phase (1 PH), and DC motor voltage (90V armature). It also includes important fusing information and a safety warning regarding grounding and power disconnection.

4. Konfigurazioa eta instalazioa

Proper installation is crucial for the safe and efficient operation of your Dayton 5X485 SCR DC Speed Control.

4.1 Muntaketa

1. Select a suitable mounting location that is dry, well-ventilated, and free from excessive vibration, dust, or corrosive elements.
2. Ensure adequate clearance around the unit for ventilation and access to controls and wiring.
3. Securely mount the control using appropriate fasteners through the provided mounting holes on the enclosure.

4.2 Kableatua

Before making any electrical connections, ensure that the main power supply is disconnected and locked out.

1. Lurreratzea: Connect the control enclosure to a reliable earth ground. This is a critical safety step.
2. AC lineako sarrera: Connect the 115V AC power supply to the terminals marked 'LINE'. Ensure correct polarity if specified.
3. DC Motor Output: Connect the DC motor leads to the terminals marked 'MOTOR'. Observe motor polarity for desired direction of rotation. If the motor rotates in the wrong direction, reverse the motor leads.
4. Fusioa: The control is shipped with an 8 AMP fuse. If replacement is necessary, use only standard AGC MBO or (250V) fuses. Do not use MDL slow-blow fuses.
5. Argindarra berrezarri aurretik, egiaztatu berriro konexio guztiak ondo estututa daudela eta kableatu zuzenak daudela.

5. Funtzionamendu-argibideak

Once properly installed, operating the Dayton 5X485 SCR DC Speed Control is straightforward.

1. Piztu: Ensure the speed control knob is set to its minimum position (fully counter-clockwise). Flip the ON/OFF toggle switch to the 'ON' position. The indicator light should illuminate.
2. Abiadura doitzea: Slowly rotate the main control knob clockwise to increase the motor speed. Rotate counter-clockwise to decrease the motor speed.
3. Itzali: To stop the motor, either rotate the speed control knob to its minimum position or flip the ON/OFF toggle switch to the 'OFF' position.

Note: Avoid rapid changes in speed, especially with heavy loads, to prevent undue stress on the motor and control unit.

6. Mantentzea

The Dayton 5X485 SCR DC Speed Control is designed for reliable operation with minimal maintenance. However, periodic checks can extend its lifespan and ensure optimal performance.

• Garbiketa: Periodically clean the exterior of the control unit with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the unit is powered off before cleaning.
• Konexioak: Annually, or as needed, inspect all electrical connections for tightness. Loose connections can lead to overheating and poor performance.
• Aireztapena: Ensure that ventilation openings (if any) are clear of dust and debris to prevent overheating.
• Fusiblearen ordezkapena: If the unit fails to power on, check the fuse. Always replace with the correct type and rating (AGC MBO, 250V, 8 AMP).

Deskonektatu beti energia mantentze-lan edo ikuskapenik egin aurretik.

7. Arazoak

This section provides solutions to common issues you might encounter with your speed control.

If troubleshooting steps do not resolve the issue, contact a qualified technician for assistance.

8. Zehaztapenak

• Eredua: 5X485A
• HP sorta: 1/4 - 3/4 HP
• Sarrera boltage: 115 V AC
• Maiztasuna: 60/50 Hz
• AC Line Current (Max): 10A
• Fasea: 1 HCP
• DC Motor Voltage (Armature): 90V DC
• Motor Reference: 333193AF89T
• Fusible mota: AGC MBO or (250V) fuses (8 AMP)
• Produktuaren neurriak: 7.09 x 6.3 x 12.99 hazbete
• Produktuaren pisua: 6.39 kilo

9. Bermea eta Laguntza

Specific warranty information for the Generic Dayton 5X485 SCR DC Speed Control is not provided in this manual. Please refer to your purchase documentation or contact the seller/manufacturer directly for details regarding warranty coverage and technical support.

For technical assistance or inquiries, please reach out to the authorized distributor or service center.
