Sarrera
Thank you for choosing the Haier 205 L Direct Cool Single Door Refrigerator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and keep it for future reference.

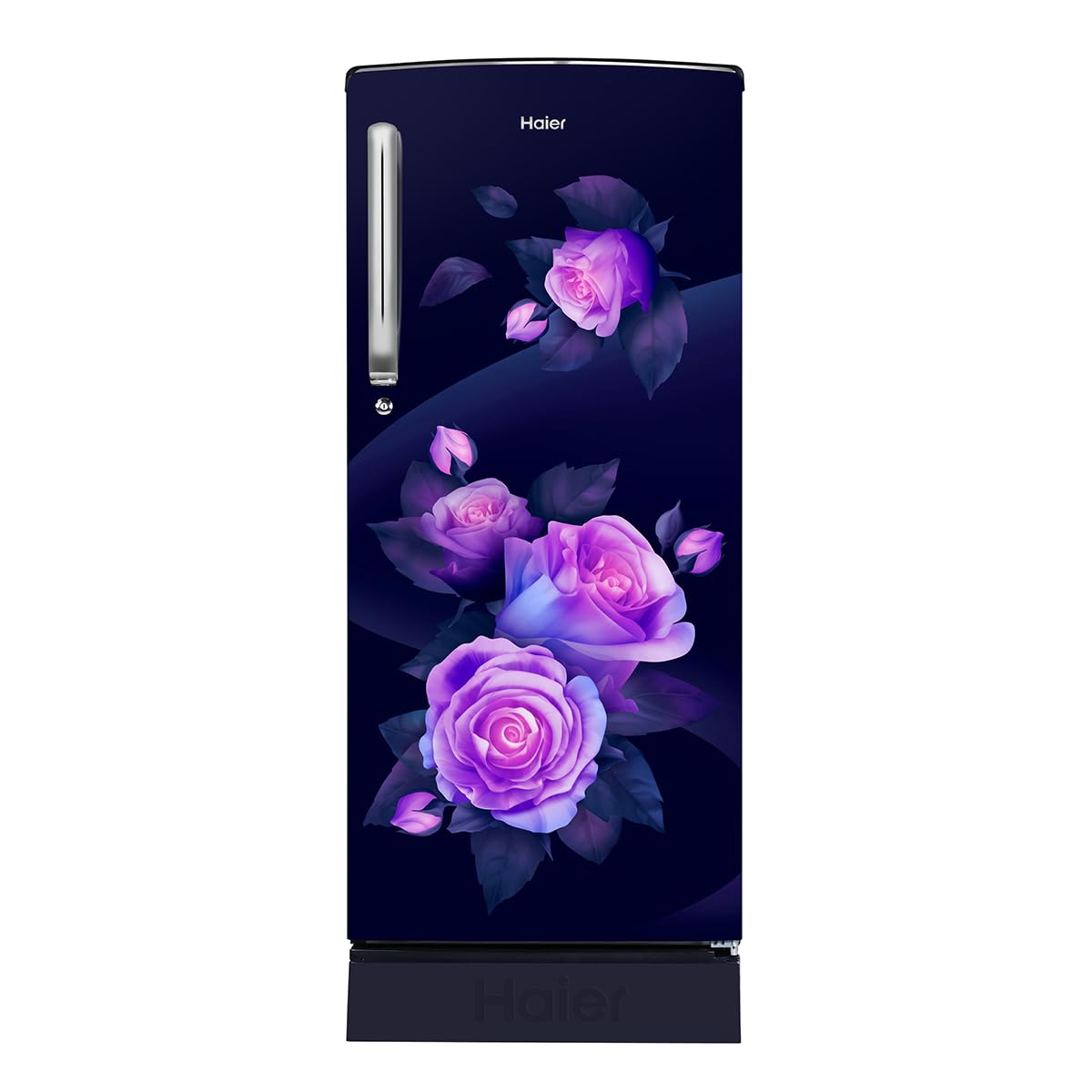

Irudia: Aurrealdea view of the Haier 205 L Direct Cool Single Door Refrigerator, featuring a marine rose finish with floral design.
Konfigurazio Argibideak
1. Deskargatzea
- Kontu handiz kendu ontziratzeko material guztiak, aparra eta zinta itsasgarria barne.
- Inspect the refrigerator for any damage during transit. Report any damage to your dealer immediately.
- Remove any internal accessories and clean them before first use.
2. Kokapen
- Place the refrigerator on a firm, level surface to ensure stability and prevent vibrations.
- Ensure adequate ventilation. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides of the refrigerator to allow for proper air circulation.
- Avoid placing the refrigerator in direct sunlight or near heat sources such as stoves, heaters, or radiators, as this can increase energy consumption.
- Etxetresna elektrikoak barrualdean erabiltzeko diseinatuta dago.
3. Energia-konexioa
- Ziurtatu elikadura hornidura boltage matches the rating indicated on the refrigerator's nameplate (230 Volts).
- Plug the refrigerator into an independent, grounded electrical outlet. Do not use extension cords or multiple socket adapters.
- Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
4. Hasierako Eragiketa
- After plugging in, allow the refrigerator to operate for 2-3 hours empty to reach its stable operating temperature before loading food.
Funtzionamendu-argibideak
1. Tenperatura Kontrola
- The refrigerator is equipped with a temperature control dial, usually located inside the fresh food compartment.
- Adjust the dial to your desired cooling level. A higher number typically indicates colder temperatures.
- For optimal food preservation, a medium setting is generally recommended. Adjust as needed based on ambient temperature and food load.
2. Elikagaiak gordetzeko jarraibideak
- Elikagai freskoen konpartimendua: Store fruits, vegetables, dairy products, and cooked foods. Utilize the large vegetable box for fresh produce.
- Freezer Compartment (14 Ltr): Use for freezing fresh food and long-term storage of frozen items.
- Beira gogortutako apalak: These shelves can bear heavy loads up to 120 kg, allowing convenient storage of large curry pots and heavy vessels.
- Ensure food items are properly covered or sealed to prevent odor transfer and maintain freshness.
- Avoid placing hot food directly into the refrigerator; allow it to cool down first.
3. Diamond Edge Freezing Technology (DEFT)
Your refrigerator features Diamond Edge Freezing Technology, which helps ensure firm ice formation and provides better cooling retention within the freezer compartment. This technology contributes to efficient cooling performance.
4. Stabilizer Free Operation
The heavy-duty compressor in this refrigerator is designed for stabilizer-free operation within a voltage range of 135-290 volts, protecting the appliance from voltaggorabeherak.
Mantentzea
1. Barnealdea garbitzea
- Deskonektatu beti hozkailua garbitu aurretik.
- Clean the interior regularly with a soft cloth dampdetergente leun eta ur epelaren disoluzio batekin garbitu.
- Ondo lehortu zapi garbi eta leun batekin.
- The anti-bacterial gasket should also be cleaned regularly to prevent mold and mildew growth.
- Ez erabili garbitzaile urratzailerik, produktu kimiko gogorrik edo objektu zorrotzik, gainazalak kaltetu ditzaketelako.
2. Kanpoaldea garbitzea
- Garbitu kanpoko gainazalak leun batekin, damp zapi. Orban egoskorretarako, erabili detergente leun bat.
- Ensure the rear condenser coils are free of dust and debris for efficient operation. Use a soft brush or vacuum cleaner to gently clean them.
3. Desizozketa
While the refrigerator features an automatic defrost system type, regular cleaning and maintenance, including occasional removal of ice buildup if observed, will ensure optimal performance. For detailed defrosting instructions, refer to the comprehensive manual or contact customer support.
Arazoak konpontzea
Zerbitzuarekin harremanetan jarri aurretik, egiaztatu honako arazo eta irtenbide ohikoenak:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Hozkailuak ez du funtzionatzen | No power supply; Plug not inserted properly; Fuse blown or circuit breaker tripped. | Check power connection; Ensure plug is firmly inserted; Check household fuse/circuit breaker. |
| Hozte nahikoa | Temperature setting too high; Door not closed properly; Excessive food load; Poor ventilation. | Adjust temperature control to a colder setting; Ensure door is fully closed; Reduce food load; Check for adequate clearance around the unit. |
| Ezohiko zaratak | Refrigerator not level; Objects touching the back or sides; Compressor noise (normal). | Adjust leveling feet; Move objects away from the unit; Compressor noise is normal during operation. |
| Ura lurrean/barruan | Drain hole blocked; Door left open. | Clear the drain hole; Ensure door is closed properly. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | HRD-2263PMR-N |
| Edukiera | 205 litro |
| Izozkailu Edukiera | 14 litro |
| Elikagai freskoen edukiera | 171 litro |
| Produktuaren neurriak (L x W x H) | 61D x 68Z x 175A zentimetro |
| Elementuaren pisua | 39 kilogramo |
| liburukiatage | 230 Volt |
| Urteko Energia Kontsumoa | 1650 Watt |
| BEE Izarren Balorazioa | 3 izar |
| Desizozteko sistema mota | Automatikoa |
| Apala Mota | Toughened Glass (up to 120 kg capacity) |
| Ezaugarri bereziak | Stabilizer Free Operation, Large Vegetable Box, Energy Efficient, More Chiller Space, Anti-bacterial Gasket, External Handle, Connect Home Inverter, Clean Back, Door Lock |
| Dakarten osagaiak | Pocket Clips |
Bermearen informazioa
This Haier refrigerator comes with a 10 urteko bermea. Please retain your purchase receipt as proof of purchase for warranty claims. The warranty covers manufacturing defects and specific components as per Haier's warranty policy. For detailed terms and conditions, please refer to the warranty card provided with your appliance or visit the official Haier webgunea.
Bezeroarentzako Arreta
If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require technical assistance, please contact Haier customer service.
- Fabrikatzailea: Haier
- Fabrikatzailearen harremanetarako informazioa: Refer to your product documentation or the official Haier webwebgunea, harremanetarako datu eguneratuenak lortzeko.
- Lineako laguntza: Visit the official Haier website for FAQs, service requests, and additional resources.
