Segurtasun informazio garrantzitsua

Read all instructions before using this appliance. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.

• Always plug the unit into a grounded 230V/25AMP outlet. Do not use extension cords or adapter plugs.
• Ez erabili unitatea korronte-kablea edo entxufea hondatuta duela.
• Ensure the unit is securely installed in a window opening according to the installation instructions.
• Ez blokeatu airearen sarrerak edo irteerak.
• Deskonektatu unitatea garbitu edo mantentze-lanak egin aurretik.
• This unit is not intended as a primary heat source. Heat mode will not operate when the outdoor temperature is below 41°F (5°C) and will display 'LO'.

Produktua amaituview

The Keystone 24,000 BTU 230V Window Mounted Inverter Air Conditioner provides efficient cooling and dehumidification for large rooms up to 1500 square feet. Featuring Inverter technology, it optimizes motor speed for precise temperature control and is 23% more energy-efficient than standard window units. Enjoy quiet operation and convenient features like a remote control, Energy Saver mode, Sleep mode, and a 24-hour programmable timer.

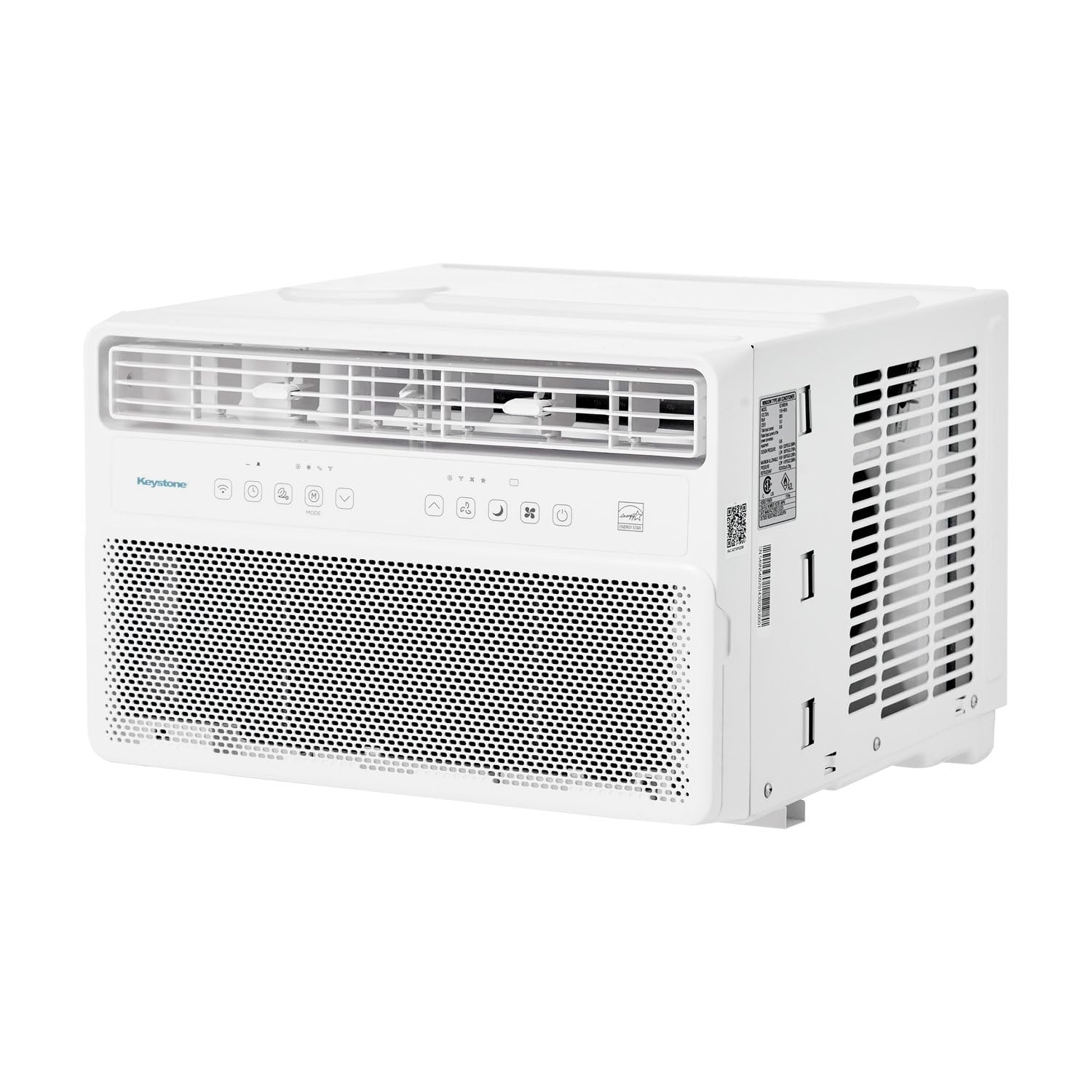

Figure 1: Keystone 24,000 BTU Window Mounted Inverter Air Conditioner, front view.

Figure 2: The unit offers 3-in-1 technology for powerful cooling, dehumidification, and adjustable air flow.

Ezaugarri nagusiak:

• Hozte-potentzia: 24,000 BTUs for rooms up to 1500 sq. ft. with 3 fan speeds.
• Deshumidifikazioa: Removes up to 3.51 pints per hour.
• Inbertsore teknologia: Controls motor speed for precise temperature and 23% higher energy efficiency.
• FlashCool Function: Engages maximum cooling and highest fan speed for rapid cooling.
• Iragazki garbigarria: Easy to remove and clean, with a convenient Check Filter alert.
• Erosotasun Ezaugarriak: Eco mode, Sleep mode, and a programmable 24-hour timer.
• Funtzionamendu isila: Inverter technology ensures a quieter unit.

Paketearen edukia

Egiaztatu elementu guztiak paketean daudela:

• Keystone 24,000 BTU Window Mounted Inverter Air Conditioner Unit
• Leihoaren Instalazio Kit
• Urruneko Kontrola
• Urruneko Kontrolerako bateriak
• Erabiltzailearen eskuliburua (dokumentu hau)
• Bermearen informazioa

Konfigurazioa eta instalazioa

Instalazio egokia ezinbestekoa da errendimendu eta segurtasun optimoa lortzeko. Jarraitu urrats hauek arretaz.

Leiho baldintzak:

• Window Opening Minimum Width: 25.39 hazbete
• Window Opening Maximum Width: 40.5 hazbete
• Window Opening Minimum Height: 18.5 hazbete
• Window Opening Maximum Height: 28 hazbete

Figure 3: Unit dimensions (23.62"D x 25.39"W x 17.91"H) and weight (100.97 lbs).

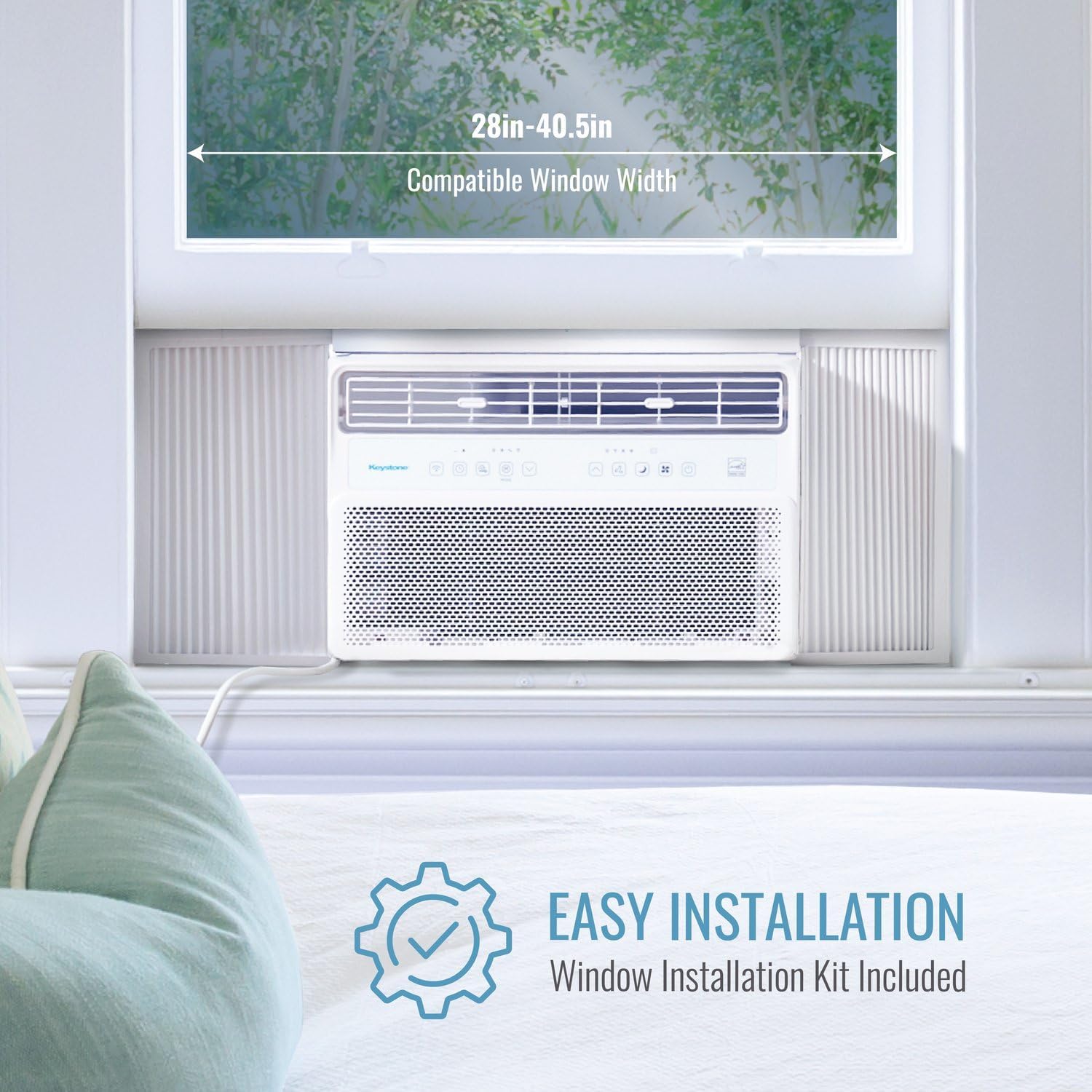

Figure 4: The unit comes with an easy installation window kit for compatible window widths.

Baldintza elektrikoak:

• liburukiatage: 230 Volt
• Entxufe mota: LCDI 6-20P Plug (Standard 230-Volt/25AMP)
• Kablearen luzera: 6.5 FT. LCDI

Figure 5: The unit requires a 230V/25AMP outlet with an LCDI 6-20P plug.

Instalazio urratsak:

1. Prepare the window opening by ensuring it meets the specified dimensions.
2. Attach the window installation kit panels to the sides of the air conditioner unit.
3. Carefully lift and place the air conditioner unit into the window opening. Ensure it is level or slightly tilted outwards for proper drainage.
4. Extend the side panels to fill the window gap and secure them with screws as instructed in the detailed installation guide (refer to the included manual for specific screw placement).
5. Lower the window sash to rest against the top of the unit.
6. Secure the unit to the window frame using the provided brackets and screws to prevent accidental dislodging.
7. Plug the unit into a dedicated 230V/25AMP lurreko irteera.

Video: Keystone 24000 Window AC Overview

Bideo honek ikuspegi orokorra eskaintzen duview of the Keystone 24000 BTU Window AC unit, including its design and features relevant to setup.

Funtzionamendu-argibideak

Aire girotua modu optimoan erabiltzeko, ohitu zaitez kontrol-panela eta urrutiko agintea erabiltzen.

Kontrol-panela:

The unit features a sleek control panel with touch buttons and a digital display that shows the current temperature and settings when plugged in.

Figure 6: The control panel offers various settings for energy efficiency and quiet operation.

Eragiketa moduak:

• Cool modua: Provides powerful cooling to reach your desired temperature.
• Deshezetatzeko modua: Gelako hezetasuna murrizten du hozte nabarmenik egin gabe.
• Fan modua: Circulates air without cooling or heating. Choose from 3 fan speeds.
• Modu ekologikoa: Saves energy by cycling the compressor on and off to maintain the set temperature.
• Lo egiteko modua: Gradually increases the set temperature over time to save energy and provide comfortable sleeping conditions.
• FlashCool Function: Activates maximum cooling and the highest fan speed for rapid temperature reduction. Press the dedicated button on the remote or control panel.

Aire-fluxua doitzea:

The unit features adjustable directional flow vents. Manually adjust the louvers to direct the cool air where it's needed most.

24 orduko programazio-tenporizadorea:

Set the unit to turn on or off automatically at specific times within a 24-hour period to suit your schedule and save energy.

Video: Looking at Functions

This video demonstrates the various functions and controls of the Keystone Inverter Air Conditioner.

Mantentzea

Mantentze-lan erregularrak zure aire girotuaren funtzionamendu eraginkorra bermatzen du eta bizitza luzatzen du.

Garbigarria den iragazkia garbitzea:

The unit is equipped with a washable mesh filter. A 'Check Filter' alert will notify you when it's time to clean the filter.

1. Deskonektatu aire girotua entxufetik.
2. Ireki unitatearen aurrealdeko panela.
3. Carefully remove the mesh filter.
4. Garbitu iragazkia ur epel eta xaboitsuarekin. Ondo garbitu.
5. Utzi iragazkia airean guztiz lehortzen unitatean berriro sartu aurretik.
6. Close the front panel and plug the unit back in.

Figure 7: The washable filter can be easily removed and cleaned under running water.

Garbiketa orokorra:

• Garbitu unitatearen kanpoaldea leun batekin, damp oihal. Ez erabili produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Ziurtatu aire-sarrerako eta -irteerako aireztapenak hautsik eta hondakinik gabe daudela.

Arazoak konpontzea

Aire girotuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei.

Zehaztapenak

Bermea eta laguntza

Bermearen informazioa:

This Keystone air conditioner comes with a 1 urteko berme mugatua. Please refer to the included warranty documentation for full terms and conditions, including coverage details and how to make a claim.

Bezeroarentzako laguntza:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Keystone customer support. Contact information can typically be found on the product packaging, the official Keystone website, or the warranty card included with your purchase.
