HITBOX ARC200D MINI 100V 140A Arc Welder Instruction Manual

1. Sarrera

Eskerrik asko erosketagatik.asing the HITBOX ARC200D MINI Arc Welder. This manual provides essential information for the safe and efficient operation of your new welding machine. Please read it thoroughly before use and keep it for future reference.

2. Segurtasun-argibideak

Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or damage to the equipment.

• Norberaren Babeserako Ekipamendua (PPE): Always wear appropriate PPE, including a welding helmet, welding gloves, protective clothing, and safety shoes.
• Aireztapena: Soldadura-keak arnastea saihesteko, ziurtatu lan-eremuan aireztapen egokia dagoela.
• Sute-arriskuak: Mantendu material sukoiak soldadura-eremutik urrun. Su-itzalgailu bat eskura izan.
• Segurtasun elektrikoa: Ensure the machine is properly grounded. Do not operate in wet conditions. Regularly inspect cables for damage.
• Gainberotzearen babesa: The machine is equipped with overheat protection. If it overheats, it will automatically shut down. Allow it to cool before resuming operation.
• VRD Function: Voltage Reduction Device (VRD) reduces the open-circuit voltage for increased safety, especially in hazardous environments.

Image: A welder wearing protective gear operating the machine. Always use appropriate safety equipment.

3. Paketearen edukia

The HITBOX ARC200D MINI package includes the following items:

• 1 x ARC200D MINI Arc Welding Machine
• 1 x 1.8M Welding Holder Cable
• 1 x 1.2M Earth Cable
• 1 x Wire Brush
• 5 x Welding Rods
• 1 x Carrying Belt
• 1 x Japanese Instruction Manual

Image: The ARC200D MINI welding machine displayed with its complete set of accessories, including cables, welding rods, brush, and carrying belt.

4. Produktuaren ezaugarriak

The HITBOX ARC200D MINI is designed for versatility and ease of use, offering:

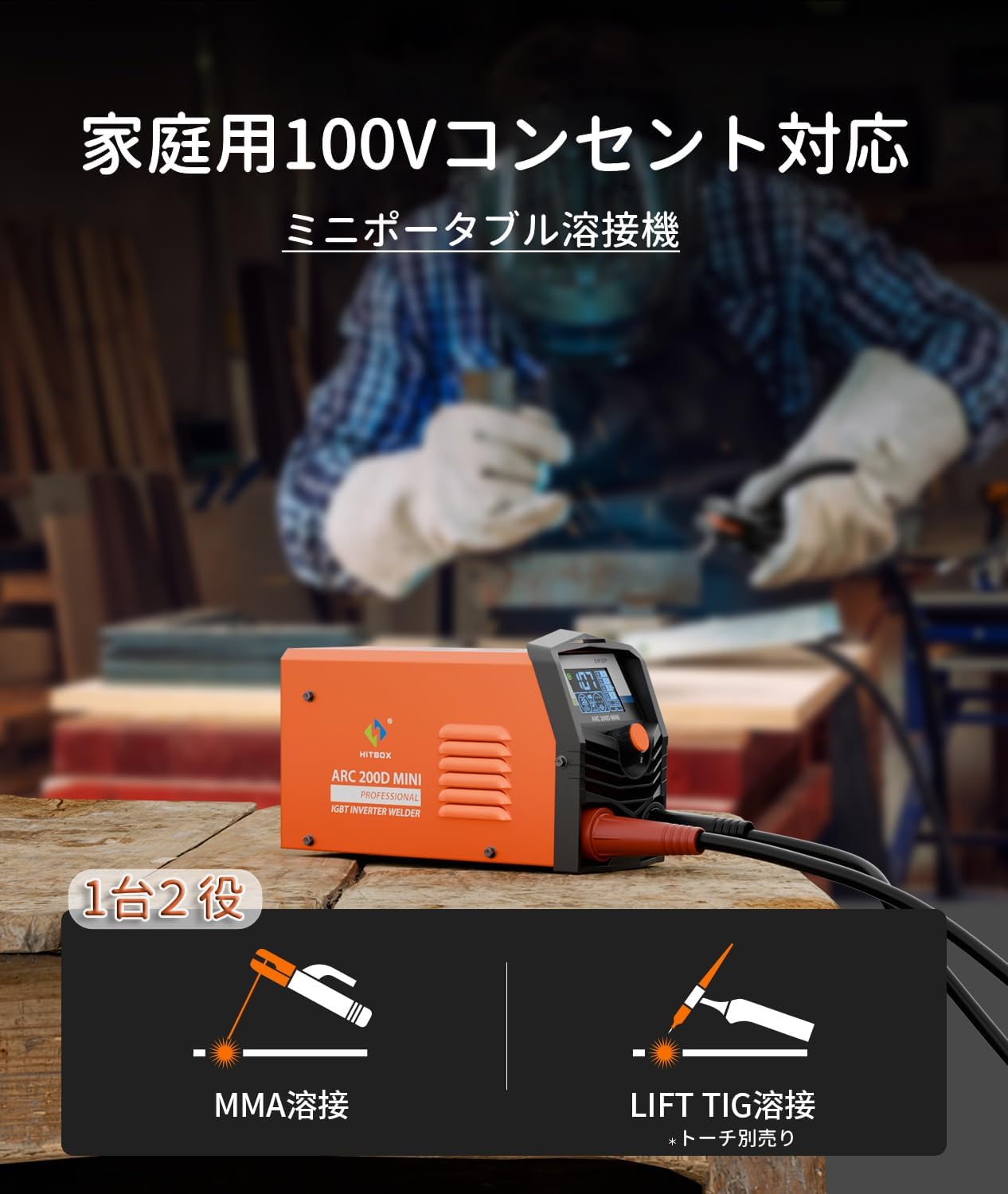

• Dual Welding Modes: Supports both MMA/ARC (Stick) welding and LIFT TIG welding (TIG torch sold separately).
• 100V Household Compatibility: Operates on standard household 100V outlets, making it convenient for home DIY projects.
• Trinkoa eta arina: With dimensions of 20x8.5x10.5cm and a weight of 2.1kg, it is highly portable and easy to carry with the included belt.
• Korronte erregulagarria: Offers a welding current range up to 140A, suitable for various material thicknesses (0.8mm-5mm).
• LCD pantaila: A clear liquid crystal display shows selected mode and current settings for intuitive operation.
• Segurtasun aurreratua: Features VRD, overcurrent, overheat, and overvoltage protection for user safety and machine longevity.

Image: The HITBOX ARC200D MINI welding machine, highlighting its compact design and user-friendly interface.

Image: Visual representation of the compact size (20x8.5x10.5cm) and light weight (2.1kg) of the ARC200D MINI, with a carrying belt shown.

Image: Diagram illustrating the safety features including VRD, overcurrent, overheat, and overvoltage protection, along with the 45% duty cycle.

Image: Close-up of the LCD display showing current, mode selection (MMA/ARC, LIFT TIG), and welding rod size settings.

5. Konfigurazioa

Before operating the welding machine, ensure proper setup:

1. Potentzia-konexioa: Connect the power cable to a suitable 100V household outlet.
2. Beheko Clamp Konexioa: Connect the earth cable to the designated terminal on the welding machine and securely attach the ground clamp piezara.
3. Welding Holder Connection: Connect the welding holder cable to the appropriate terminal on the machine.
4. Welding Rod Insertion: Insert the welding rod into the welding holder. Ensure it is securely fastened.
5. Modu aukeraketa: Use the control knob to select either MMA/ARC or LIFT TIG mode.
6. Uneko doikuntza: Adjust the welding current according to the material thickness and welding rod specifications.

6. Funtzionamendu-argibideak

6.1. MMA/ARC Welding (Stick Welding)

1. Ensure the machine is set to MMA/ARC mode.
2. Select the appropriate welding current based on the welding rod diameter and material thickness.
3. Strike the welding rod against the workpiece to initiate the arc.
4. Maintain a consistent arc length and travel speed while moving the rod along the joint.
5. After welding, use the wire brush to remove any slag from the weld bead.

6.2. LIFT TIG Welding

Note: A WP-17V TIG torch is required and sold separately for LIFT TIG welding.

1. Connect the TIG torch to the appropriate terminals on the welding machine.
2. Ensure the machine is set to LIFT TIG mode.
3. Gently touch the tungsten electrode to the workpiece to initiate the arc.
4. Altxatu sopletea apur bat arkua ezartzeko eta soldadura hasteko.
5. Feed filler rod manually into the weld puddle as needed.

Irudia: Adibamples of clean and stable weld beads achieved with the HITBOX ARC200D MINI, demonstrating low spatter and good arc stability.

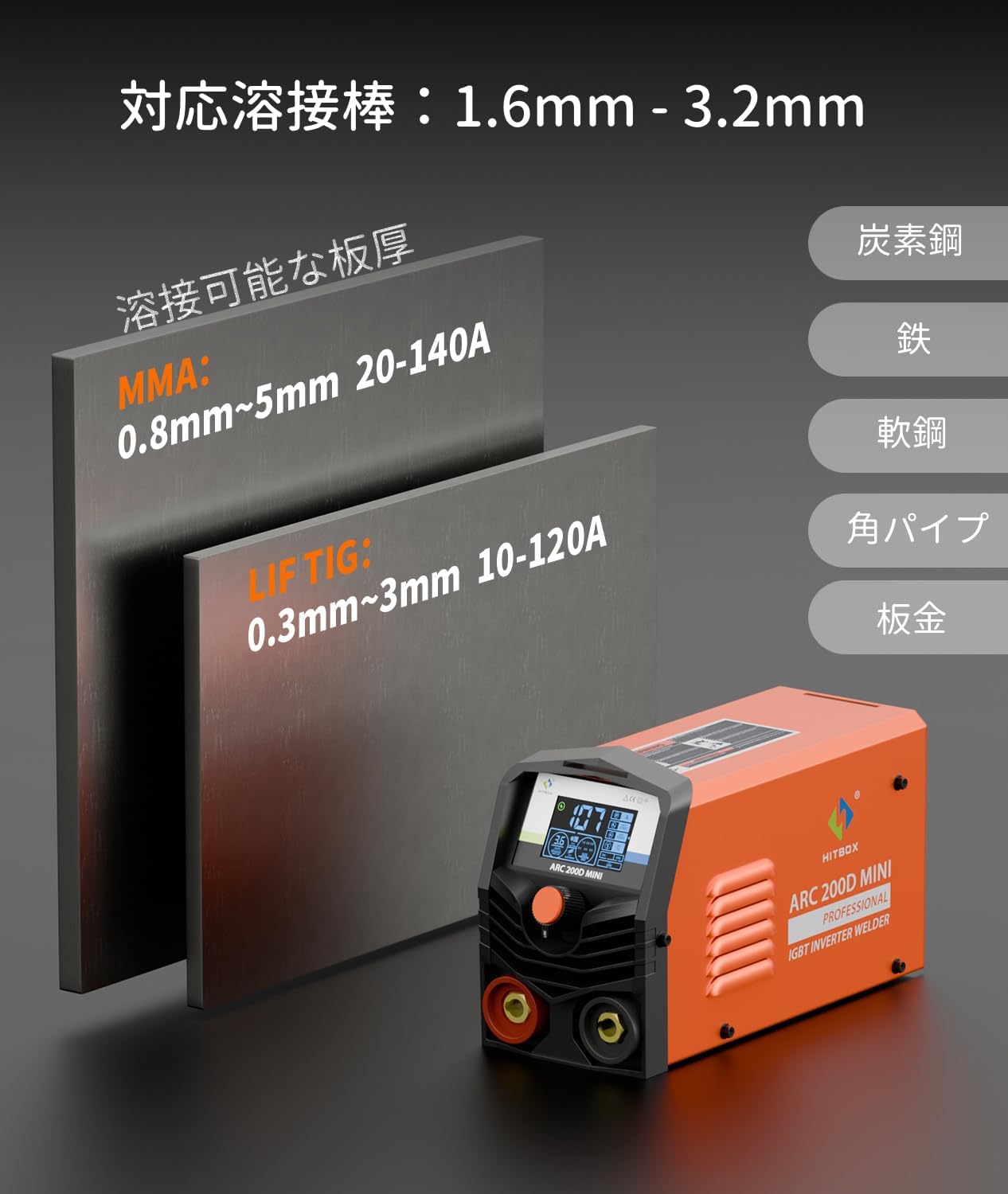

Image: A guide showing compatible welding rod sizes (1.6mm, 2.0mm, 2.5mm) and applicable plate thicknesses (0.8mm-5mm for MMA, 0.3mm-3mm for LIFT TIG) for various materials like carbon steel, iron, and mild steel.

7. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your welding machine:

• Garbiketa: Periodically clean the machine's exterior and ventilation openings to prevent dust buildup. Use a dry, soft cloth.
• Kableen ikuskapena: Regularly check all cables (power, welding holder, earth) for cuts, fraying, or damage. Replace damaged cables immediately.
• Biltegiratzea: Gorde makina hautsik gabeko ingurune lehor batean erabiltzen ez duzunean.
• Welding Rods: Store welding rods in a dry place to prevent moisture absorption, which can affect weld quality.

8. Arazoak

If you encounter issues with your HITBOX ARC200D MINI, refer to the following common troubleshooting tips:

• Potentziarik gabe: Check the power cable connection, wall outlet, and ensure the power switch is ON. Verify the circuit breaker has not tripped.
• Arkurik ez: Ziurtatu lurra clamp is securely attached to the workpiece and the welding holder is properly connected. Check the welding rod for proper insertion and contact.
• Weak Arc/Poor Weld: Verify the welding current setting is appropriate for the material and rod size. Ensure the welding rod is dry and not expired. Check for proper voltage hornidura.
• Overheat Indicator (OC) On: The machine has overheated. Turn off the machine, allow it to cool down for several minutes, and ensure ventilation is not obstructed.
• Welding Rod Sticking: This can occur if the current is too low, the arc length is too short, or the rod is not properly conditioned. Increase current, adjust technique, or replace the rod.

If the problem persists after attempting these solutions, please contact HITBOX customer support.

9. Zehaztapenak

10. Bermea eta Laguntza

The HITBOX ARC200D MINI comes with a 2 urteko kalitate-bermea erosketa-datatik aurrera.

For any questions, concerns, or technical support, please contact HITBOX customer service through your purchase platform. Refer to your purchase details for specific contact methods.
