ELUTENG E10E68 4-Port PCI Express USB 3.2 Gen1 Expansion Card User Manual

1. Sarrera

This manual provides detailed instructions for the installation, operation, and maintenance of your ELUTENG 4-Port PCI Express USB 3.2 Gen1 Expansion Card. This card is designed to add four high-speed USB ports (two USB-A and two USB-C) to your desktop computer, enhancing connectivity for various peripherals. Please read this manual carefully before installation and use to ensure proper function and safety.

Image 1.1: ELUTENG 4-Port PCI Express USB 3.2 Gen1 Expansion Card

2. Segurtasun informazioa

• Always power off your computer and disconnect it from the power source before opening the case or installing any internal components.
• Discharge any static electricity from your body by touching a grounded metal object (e.g., the computer chassis) before handling the expansion card.
• Handle the card by its edges to avoid touching the components or gold connectors.
• Ensure the card is correctly seated in the PCIe slot to prevent damage.
• Do not attempt to modify the card or use it for purposes other than its intended design.

3. Paketearen edukia

Mesedez, egiaztatu elementu guztiak zure paketean daudela:

• ELUTENG 4-Port PCI Express USB 3.2 Gen1 Expansion Card
• Muntatzeko Torlojuak
• Pro baxuafile bracket (for small form factor cases)
• Driver CD (for older Windows versions)

4. Konfigurazioa eta instalazioa

Follow these steps to install the ELUTENG USB Expansion Card into your desktop PC:

1. Prestatu zure ordenagailua: Itzali ordenagailua erabat eta deskonektatu elikatze-kablea. Ireki ordenagailuaren karkasa.
2. Bilatu PCIe zirrikitu erabilgarri bat: Identify an available PCI Express slot (X1, X4, X8, or X16) on your motherboard. Remove the metal bracket cover from the corresponding slot on the back of your computer case.

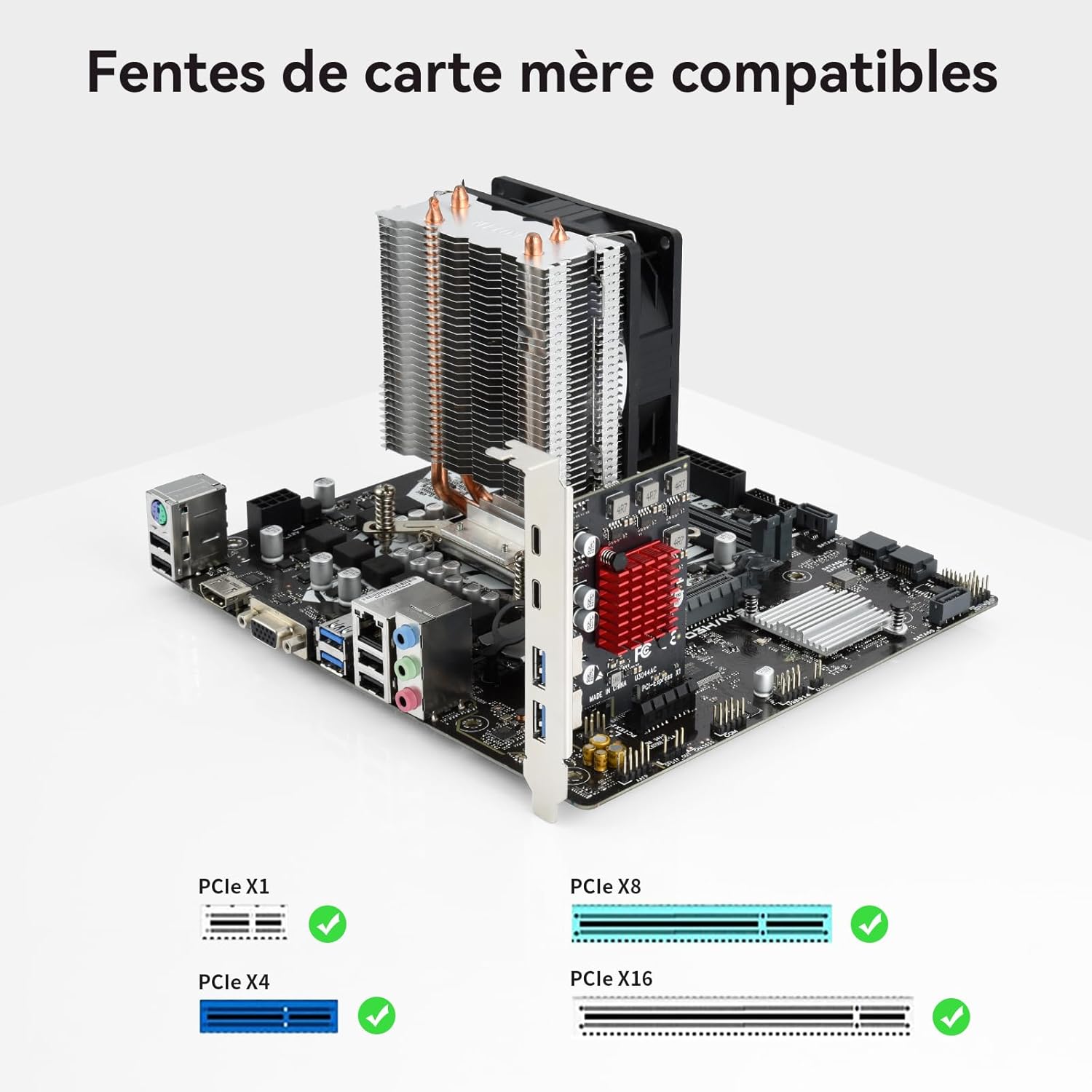

Image 4.1: Compatible PCIe Slots (X1, X4, X8, X16)

3. Install the Expansion Card: Carefully align the expansion card with the chosen PCIe slot and press it down firmly until it is securely seated. Ensure the metal bracket of the card aligns with the opening in the case.
4. Ziurtatu txartela: Use a screw to secure the card's metal bracket to the computer case.
5. Itxi kasua: Replace the computer case cover and reconnect the power cord.


Image 4.2: Installation Steps

6. Gidariaren instalazioa:
   • Windows 11/10/8: The card is typically plug-and-play. Drivers should install automatically upon system startup.
   • Windows 7/XP/Vista: You may need to install drivers manually from the provided CD or download them from the ELUTENG official webgunea.

5. Funtzionamendu-argibideak

Once installed and drivers are recognized, your ELUTENG expansion card is ready for use. It provides two USB-A ports and two USB-C ports.

• Gailuak konektatzea: Simply plug your USB 3.2 Gen1 (or older compatible) devices into the available USB-A or USB-C ports.
• Datuak transferitzeko abiadura: The card supports data transfer speeds of up to 5Gbps (USB 3.2 Gen1 theoretical value). Actual transfer speeds may vary depending on the connected device, cable quality, and system performance.
• Elikatze-iturria: The card draws power directly from the PCIe slot and does not require an external power adapter. Each port operates independently for stable power delivery.

Image 5.1: USB-A and USB-C Ports with 5Gbps Speed

6. Mantentzea

The ELUTENG expansion card is designed for durability and requires minimal maintenance. To ensure optimal performance and longevity:

• Keep Your PC Clean: Regularly clean the interior of your computer case to prevent dust buildup, which can hinder heat dissipation and affect component performance.
• Ziurtatu aire fluxu egokia: Make sure your computer case has adequate ventilation to prevent overheating of internal components, including the expansion card. The card features an aluminum alloy heatsink for efficient heat dissipation.

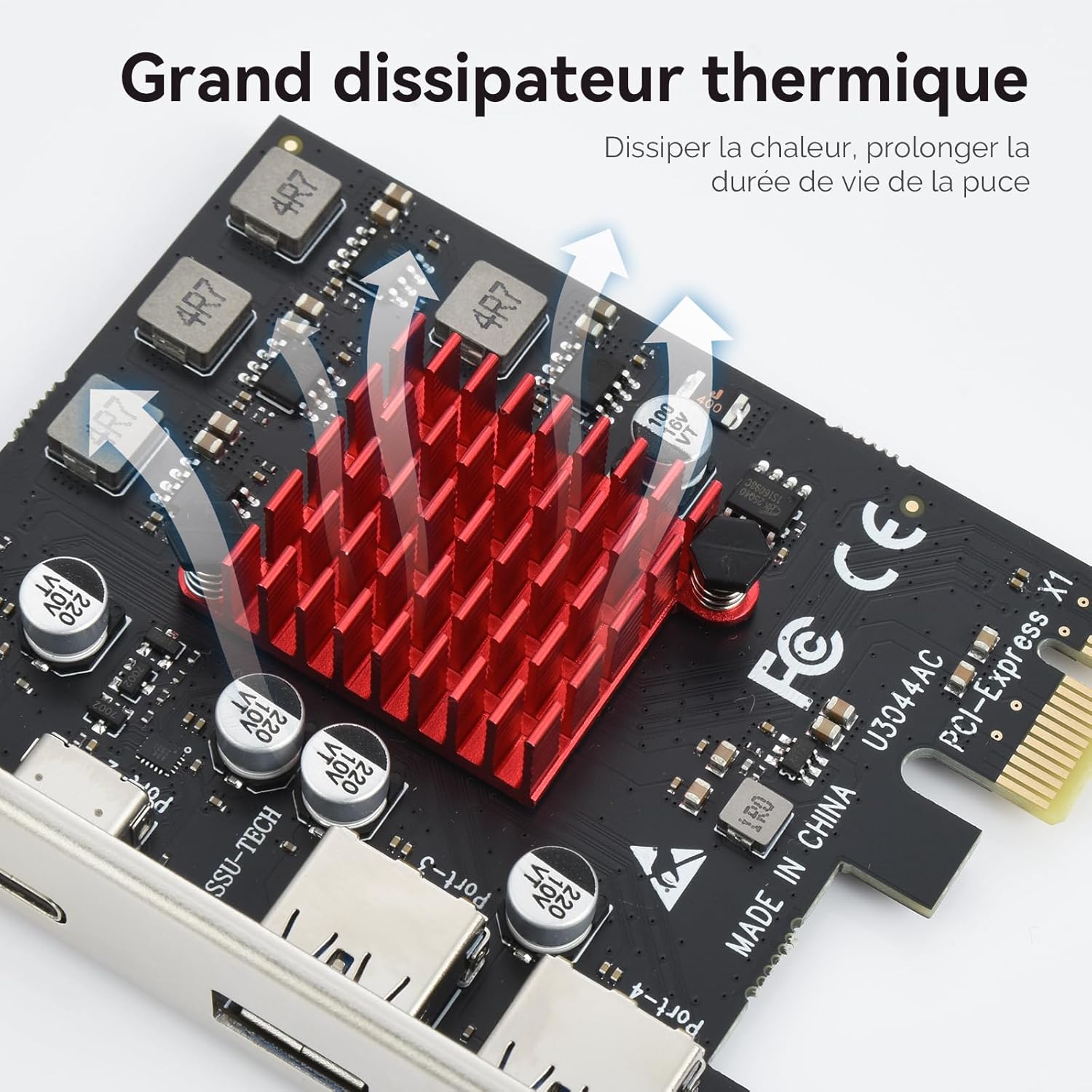

Image 6.1: Efficient Heat Dissipation with Aluminum Heatsink

• Saihestu kalte fisikoak: Do not subject the card to physical shock or excessive force.

7. Arazoak

If you encounter issues with your ELUTENG expansion card, refer to the following troubleshooting tips:

• Txartela ez da detektatu:
  • Ensure the card is fully and securely seated in the PCIe slot.
  • Try installing the card in a different PCIe slot if available.
  • Verify that your motherboard's BIOS/UEFI settings are configured to enable PCIe slots.
• Devices Not Recognized or No Power:
  • Check if the connected USB device requires external power.
  • Ensure the card is receiving sufficient power from the PCIe slot. While no external power is needed, a faulty PCIe slot could cause issues.
  • Test with different USB devices and cables to rule out device-specific problems.
• Datuen transferentzia abiadura motela:
  • Ensure you are using USB 3.2 Gen1 compatible devices and cables. Older USB 2.0 devices will operate at their native slower speeds.
  • Verify that the drivers are correctly installed, especially for Windows 7/XP/Vista.
• Driver Installation Issues (Windows 7/XP/Vista):
  • Use the provided driver CD or download the latest drivers from the ELUTENG support webgunea.
  • Desgaitu antibirus softwarea aldi baterako kontrolatzailea instalatzean oztopatzen badu.
• Incompatibility with macOS: Please note that this expansion card is not compatible with macOS systems, as stated in the product specifications.

8. Zehaztapenak

Image 8.1: Operating System Compatibility (Note: macOS is not supported despite image showing it)

9. Bermea eta Laguntza

ELUTENG products are designed for reliability and performance. For specific warranty details, please refer to the warranty information provided with your purchase or visit the official ELUTENG webgunea.

If you require technical assistance or have questions not covered in this manual, please contact ELUTENG customer support through the retailer where you purchased the product or via the official ELUTENG support channels.
