Madesa Compact Garage and Utility Room Storage Set User Manual

Sarrera

This manual provides essential information for the assembly, operation, and maintenance of your Madesa Compact Garage and Utility Room Storage Set. Please read these instructions carefully before assembly and use to ensure safe and efficient operation.

The Madesa Compact Garage and Utility Room Storage Set is designed to provide organized storage and a functional workspace in garage and utility room environments. It features a base cabinet with multiple storage compartments, including four doors and three drawers, and a durable tabletop surface.

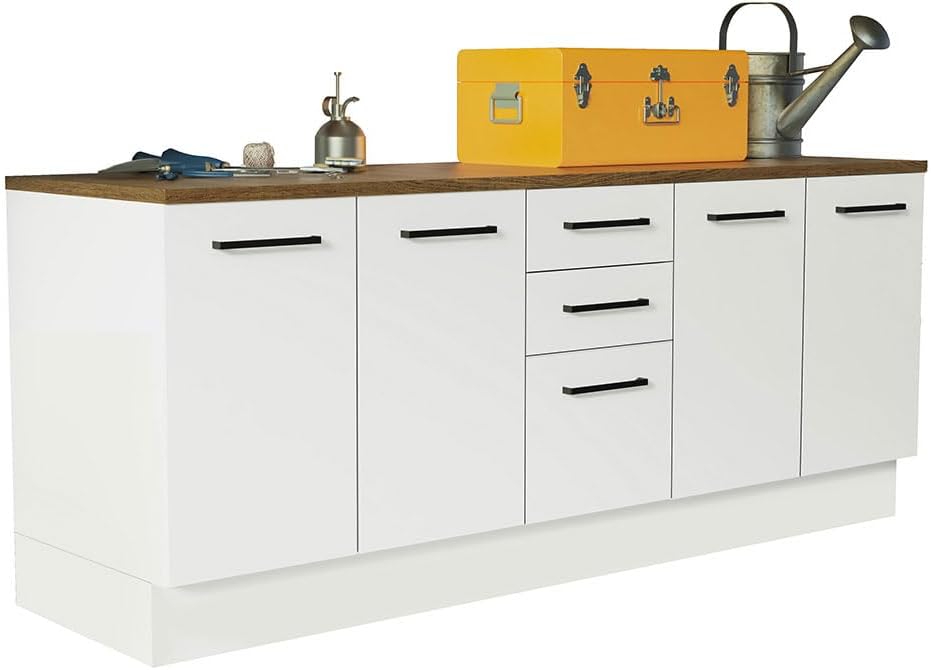

Image: The Madesa Compact Garage and Utility Room Storage Set, showcasing its white finish, wooden countertop, four cabinet doors, and three central drawers. Various tools and items are placed on the countertop.

Segurtasun Informazioa

Segurtasun-argibide garrantzitsuak:

• Do not overload shelves or the tabletop. Exceeding weight limits can cause structural failure and injury.
• Securely mount the cabinet to the wall to prevent tipping. This is critical for stability, especially in households with children or pets.
• Use appropriate safety gear, such as gloves and eye protection, when assembling or moving the cabinet.
• Mantendu pieza txikiak eta hardwarea haurren eskura urrun itotzea saihesteko.
• Ensure all connections are tight before use. Periodically check and retighten hardware as needed.
• Jarri unitatea gainazal maila batean egonkortasuna bermatzeko.

Paketearen edukia

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Madesa customer support.

• Armairuko panelak (alboak, goikoa, behekoa, atzealdea)
• 4 Armairu Ate
• 3 Drawers (including 1 tall drawer)
• 2 Internal Shelves
• Adjustable Feet and Removable Toe Kick
• Hardware kit (screws, dowels, hinges, drawer slides, handles)
• Illustrated Assembly Instructions (refer to physical manual for QR code to video instructions)

Konfigurazioa eta Muntaketa

Assembly is required for this product. Please follow the included user-friendly illustrated instructions and use the provided hardware. Video instructions are also available via QR Code (refer to the physical manual for the QR code).

Beharrezko tresnak (ez daude barne):

• Phillips buruko bihurkina
• Mailua
• Neurtzeko zinta
• Maila
• Zulagailua (horman muntatzeko)

Muntaketa Urratsak (Orokorra)view):

1. Piezak desontziratu eta identifikatu: Carefully unpack all components and lay them out. Compare with the parts list in your physical manual.
2. Muntatu armairuaren egitura: Connect the side panels, bottom, and top panels using the provided hardware.
3. Atzeko panela instalatu: Lotu atzeko panela muntatutako markoari.
4. Instalatu apalategiak: Insert the internal shelves into the designated positions.
5. Tiraderak muntatu: Construct the drawer boxes and install the telescopic slides.
6. Tiraderak instalatu: Slide the assembled drawers into the cabinet frame.
7. Ateak erantsi: Mount the cabinet doors using the soft-close hinges. Adjust for proper alignment.
8. Instalatu heldulekuak: Attach the metallic handles to the doors and drawers.
9. Attach Adjustable Feet/Toe Kick: Install the adjustable feet for leveling. The removable toe kick can be used to conceal the feet if preferred.
10. Horman muntatzea (gomendatua): For enhanced stability and safety, securely mount the cabinet to a wall using appropriate anchors and screws (not always included, depending on wall type).

Irudia: Barnekoa view of the cabinet, illustrating the open doors revealing shelves and the open drawers. The adjustable feet are also visible beneath the cabinet structure.

Image: Detail showing the adjustable feet and the option to use a removable toe kick. The feet allow for precise leveling of the unit, and the toe kick provides a clean, finished appearance.

Funtzionamendu-argibideak

The Madesa Compact Garage and Utility Room Storage Set is designed for straightforward use.

• Ateak: The cabinet features 4 doors equipped with soft-close hinges for quiet and smooth operation. Gently push the doors to close them.
• Tiraderak: The 3 drawers utilize telescopic slides, allowing them to open completely for full access to contents. Pull the metallic handles to open and push to close.
• Biltegiratzea: Utilize the internal shelves and drawers to organize tools, supplies, and other items. Distribute weight evenly across shelves and within drawers.
• Laneko eremua: The durable tabletop provides a stable surface for various tasks and projects.

Irudia: Gertutik view of one of the cabinet's drawers, fully extended, showcasing the telescopic slides that enable smooth and complete opening for easy access to contents.

Mantentzea eta zaintzea

Proper care will extend the life and appearance of your storage set.

• Garbiketa: Garbitu gainazalak leun batekin, damp oihal. Saihestu garbitzaile urratzaileak edo akabera kaltetu dezaketen produktu kimiko gogorrak.
• Isurketak: Garbitu isuriak berehala, egurra zikindu edo kaltetu ez dadin.
• Hardwarea: Periodically check all screws, hinges, and drawer slides to ensure they are tight. Retighten as necessary.
• Pisuaren banaketa: Avoid concentrating heavy items in one area. Distribute weight evenly to prevent warping or structural stress.
• Ingurumena: Store the cabinet in a dry environment. Avoid prolonged exposure to direct sunlight or extreme temperature changes.

Arazoak konpontzea

Hona hemen ohiko arazo batzuk eta haien konponbideak:

Zehaztapenak

Detailed specifications for the Madesa Compact Garage and Utility Room Storage Set:

• Modelo zenbakia: MDGA020004J5
• Marka: Madesa
• Kolorea: Zuria
• Produktuaren neurriak (guztira): 23.62"S x 78.74"Z x 33.07"A (60cm S x 200cm Z x 84cm A)
• Mahai gaineko pisu-ahalmena: 66 lb (30 kg)
• Pisuaren edukiera apal bakoitzeko: 11 lb (5 kg)
• Weight Capacity per Drawer: 11 lb (5 kg)
• Materiala: High-Quality Particle Board (Engineered Wood)
• Akabera mota: Zuria
• Ate kopurua: 4
• Tiradera kopurua: 3
• Apalategi kopurua: 2 (barnekoa)
• Ezaugarri bereziak: Soft close hinges, telescopic drawer slides, adjustable feet, removable toe kick
• Muntatze mota: Floor Mount (wall mounting recommended for stability)
• Beharrezkoa den muntaia: Bai
• Jatorrizko herrialdea: Brasil

Image: Dimensional diagram of the storage cabinet, indicating a width of 78.74 inches (200cm), height of 33.07 inches (84cm), and depth of 23.62 inches (60cm). Weight capacities for shelves, tabletop, and drawers are also listed.

Bermearen informazioa

Madesa products are manufactured with high-quality materials and craftsmanship. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Madesa webgunea. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.

Bezeroarentzako Arreta

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Madesa customer support. Contact information can typically be found on the packaging, in the included documentation, or on the official Madesa webgunea.

Baliabide eta produktuen informazio gehiago lortzeko, bisita dezakezu Madesa Store on Amazon.
