Shintenchi 45 Inch Outdoor Propane Fire Pit Table User Manual

1. Sarrera eta Segurtasun Informazioa

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Shintenchi 45 Inch Outdoor Propane Fire Pit Table. Please read all instructions carefully before use and retain this manual for future reference.

1.1 Segurtasun-abisu garrantzitsuak

Kanpoan erabiltzeko soilik: Never use this appliance indoors or in an enclosed area.
Erregaietarako sakea: Maintain a minimum of 24 inches (61 cm) clearance from combustible materials to the sides and rear of the appliance.
Erregai mota: Use only Liquefied Petroleum Gas (LPG).
Aireztapena: Ziurtatu aireztapen egokia funtzionatzerakoan.
Haurrak eta maskotak: Keep children and pets away from the fire pit during operation and while it is cooling down.
Azalera beroak: The fire pit and surrounding surfaces will be hot during and after use. Do not touch hot surfaces.
Ez utzi inoiz zaindu gabe: Do not leave the fire pit unattended while in operation.
Gas-ihesak: Check for gas leaks before each use. Refer to the troubleshooting section for leak detection.
CSA Ziurtagiria: This product is CSA certified, ensuring it meets safety and quality standards.

2. Produktua amaitu daview eta Osagaiak

The Shintenchi 45 Inch Outdoor Propane Fire Pit Table is designed to provide warmth and ambiance to your outdoor living space. It features a durable construction and a versatile design that allows it to function as both a fire pit and a table.

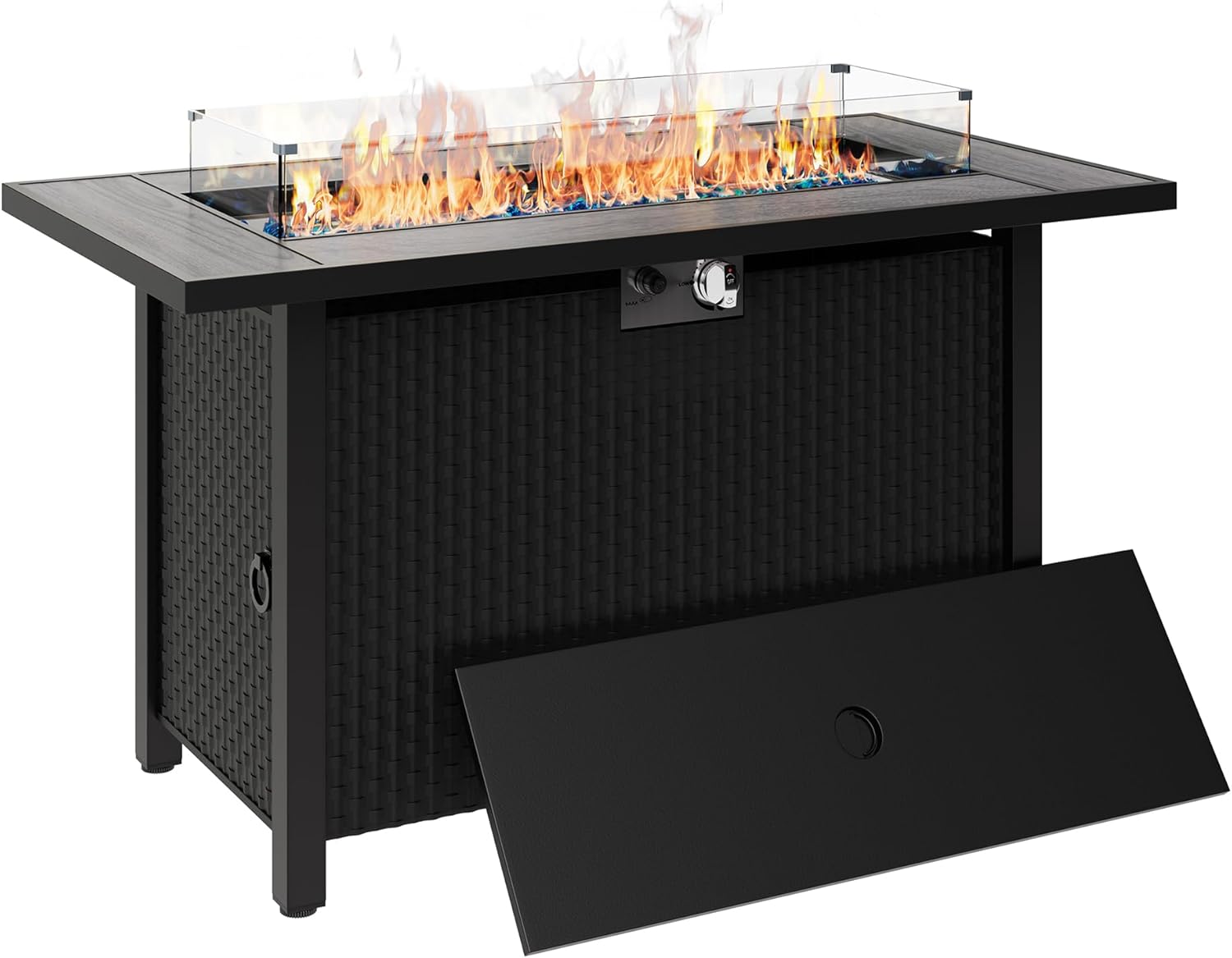

2.1. irudia: Orokorrean view of the Shintenchi 45 Inch Outdoor Propane Fire Pit Table.

2.1 Ezaugarri nagusiak

2-en-1 diseinua: Functions as a fire pit table or a dining/coffee table with the included lid.
50,000 BTU bero-irteera: Provides substantial warmth for outdoor comfort.
Beirazko Haizea: Enhances safety and flame stability.
Eraikuntza iraunkorra: Built with solid steel and an all-weather tabletop.
Pizte Elektronikoa: For easy and quick lighting.
Su erregulagarria: Control knob allows adjustment from low to high flame.
Propano deposituaren biltegiratzea: Integrated compartment for a standard 20lb propane tank (not included).
Osagarriak barne: Crystal clear glass stones, glass wind guard, lid, and waterproof cover.

Three methods of using the Shintenchi fire pit table: with glass wind guard, without lid, and as a dining table with lid.

Figure 2.2: The fire pit table can be used with the glass wind guard for ambiance, without the lid as a fire pit, or with the lid as a functional table.

3. Konfiguratzeko argibideak

Follow these steps to properly set up your fire pit table.

3.1 Desontziratzea eta ikuskatzea

Kontu handiz kendu osagai guztiak ontzitik.
Inspect all parts for any damage. Do not assemble if any parts are damaged. Contact customer support for replacements.
Ziurtatu zerrendatutako osagai guztiak daudela.

3.2 Muntaketa

Assembly typically involves attaching the legs, placing the burner assembly, and adding the decorative glass stones. Refer to the detailed assembly diagram provided in your product packaging for specific steps.

3.3 Propane Tank Connection

Open the access door on the side of the fire pit table.
Place a standard 20lb propane tank (not included) into the designated compartment.
Connect the regulator hose from the fire pit to the propane tank valve. Hand-tighten securely.
Ensure the tank is upright and secured using the tank fixing device.
Itxi sarbide-atea.

Image showing the propane tank compartment with a 20lb propane tank and the control panel for the fire pit.

Figure 3.1: Propane tank connection and control panel location.

3.4 Glass Wind Guard Installation

The glass wind guard consists of several glass panels and metal brackets. Assemble the panels using the provided brackets and place the assembled wind guard around the burner area. This helps to protect the flames from wind and adds a layer of safety.

Close-up of the fire pit table showing the metal protective cover with a ring pull and the glass windscreen in place.

Figure 3.2: The glass windscreen helps maintain flame stability.

4. Funtzionamendu-argibideak

Follow these steps to safely light and operate your fire pit table.

4.1 Su-zuloa piztea

Ziurtatu propano deposituaren balbula guztiz irekita dagoela.
Locate the control panel on the side of the fire pit table.
Push and hold the electronic ignition button (labeled 'Electronic Ignition').
While holding the ignition button, turn the control knob counter-clockwise to the 'LOW' position.
The burner should ignite within a few seconds. If it does not, release the ignition button and control knob, wait 5 minutes, and repeat the process.
Once lit, continue to hold the ignition button for 10-15 seconds to ensure the flame is stable, then release.

4.2 Garra doitzea

To adjust the flame height, rotate the control knob between the 'LOW' and 'HIGH' settings. Turn clockwise to decrease the flame and counter-clockwise to increase it.

4.3 Turning Off the Fire Pit

Biratu kontrol-botoia erlojuaren orratzen noranzkoan 'OFF' posiziora.
Itxi propano deposituaren balbula.
Utzi su-hobia guztiz hozten estali edo gorde aurretik.

5. Mantentzea

Regular maintenance ensures the longevity and safe operation of your fire pit table.

5.1 Garbiketa

Beirazko Haizea: After use, soot may accumulate on the glass. Allow the glass to cool completely, then wipe with a soft cloth and glass cleaner.
Burner and Pan: Periodically inspect the burner and gas orifices for debris or blockages. Clean with a soft brush if necessary.
Kanpoko gainazalak: Wipe down the tabletop and base with a damp oihal eta xaboi leun bat. Saihestu garbitzaile urratzaileak.

5.2 Biltegiratzea

When not in use, especially during inclement weather or extended periods, cover the fire pit table with the provided waterproof cover to protect it from the elements.

6. Arazoak

If you encounter issues with your fire pit, refer to the following common problems and solutions.

Arazoa	Kausa posiblea	Irtenbidea
Erregailuak ez du pizten	Gas-fluxurik ez Ignition electrode dirty or damaged Low battery in igniter	Check propane tank valve is open and tank has fuel. Clean or adjust ignition electrode. Replace AAA battery in the electronic ignition module.
Low flame or inconsistent flame	Gasaren presio baxua Partially closed tank valve Erregailuaren ataketan blokeatzea	Ziurtatu deposituaren balbula guztiz irekita dagoela. Check for kinks in the gas hose. Garbitu erregailuaren atakak.
Gas usaina detektatu da	Gas-ihesak Konexio solteak	Immediately turn off gas supply at the tank. Perform a leak test using soapy water on all connections. Tighten any loose connections. If odor persists, do not use and contact a qualified service technician.

7. Zehaztapenak

Detailed specifications for your Shintenchi 45 Inch Outdoor Propane Fire Pit Table.

Image detailing the 50,000 BTU output, glass stones, stainless steel burner, all-weather tabletop, and CSA certification.

7.1. irudia: Ezaugarri eta zehaztapen nagusiak.

Modelo zenbakia: STC-R9016S
Neurriak (L x W x H): 22" x 45" x 24"
Materiala: Ceramic, Metal (Powder Coated Finish)
Bero irteera: 50,000 BTU
Erregai mota: Petrolio-gas likidotua (GPL)
Elementuaren pisua: 9.07 kilogramo
Forma: Laukizuzena
Kolorea: Grisa
Ziurtagiria: CSA Ziurtagiria

8. Bermea eta Laguntza

For warranty information or technical support, please refer to the documentation included with your purchase or contact Shintenchi customer service directly. Keep your purchase receipt for warranty claims.

Harremanetarako informazioa: Mesedez, ikusi fabrikatzailearena website or original packaging for the most current contact details.

Shintenchi STC-R9016S
