eletechsup 8-Channel Logic Level Converter and Isolation Board User Manual

1. Produktua amaitu daview

The eletechsup 8-Channel Logic Level Converter and Isolation Board is designed to facilitate signal level conversion and provide photoelectric isolation for industrial control systems. This module supports NPN to NPN or PNP to PNP signal conversion and can handle various voltage levels between 3V and 24V. It serves as a reliable isolation module for MCU and PLC input/output ports, enhancing system stability and protection.

Ezaugarri nagusiak hauek dira:

• 8 independent channels for signal conversion.
• Photoelectric isolation for enhanced safety and noise reduction.
• Supports NPN to NPN and PNP to PNP signal types.
• Wide input and output voltage compatibility (3-8V and 9-24V versions).
• Suitable for various applications including 3.3V, 5V, 12V, and 24V systems.

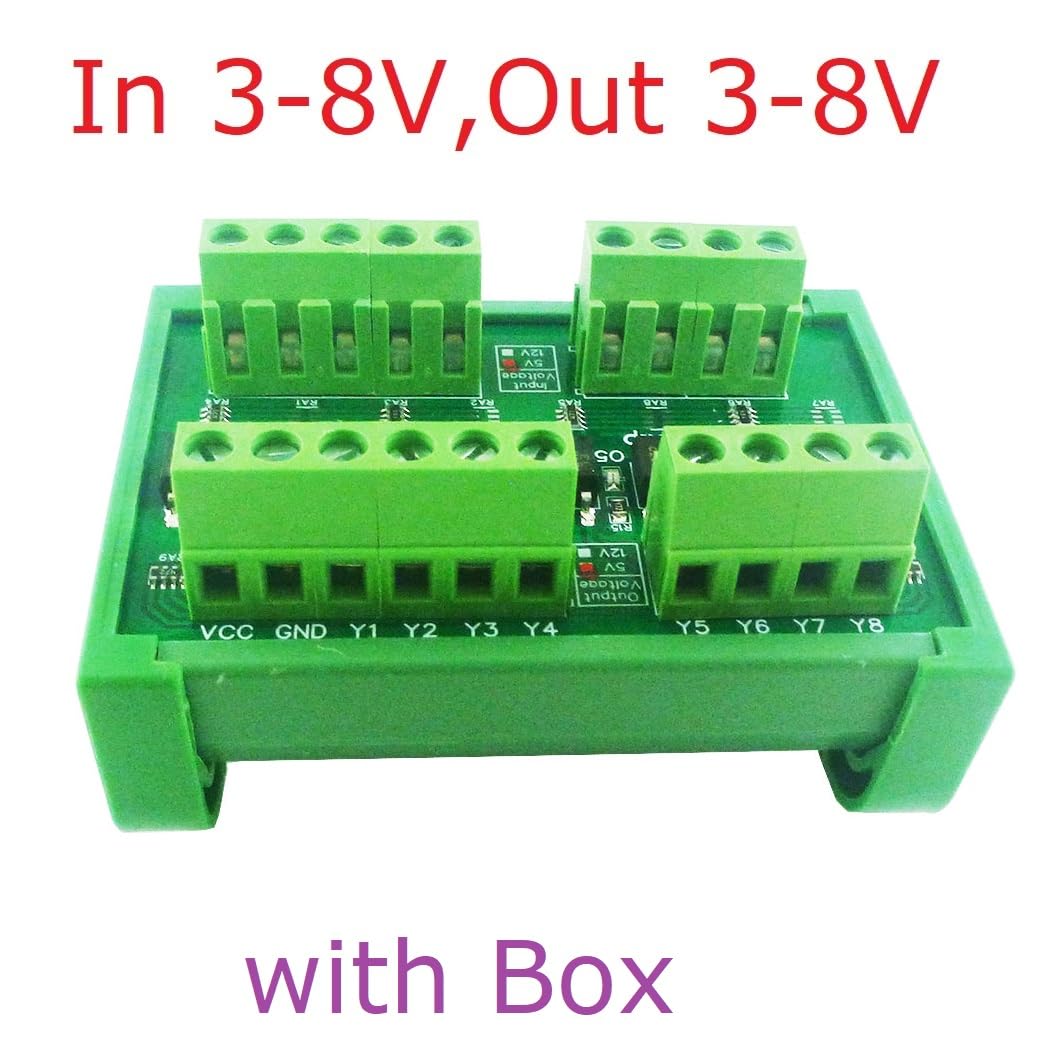

Figure 1: The eletechsup 8-Channel Logic Level Converter Board, enclosed in its protective housing.

2. Konfigurazioa eta instalazioa

Proper installation is crucial for the correct operation of the logic level converter board. Ensure all connections are secure and correspond to the specified voltage mailak.

2.1 Osagaien identifikazioa

2. irudia: Goikoa view of the converter board, illustrating the input and output terminal blocks.

The board features screw terminals for both input and output connections. The specific voltage versions (e.g., In 3-8V, Out 3-8V) are indicated on the product label and packaging.

2.2 Kableatzeko jarraibideak

Refer to the wiring diagram below for connecting the module to your system. Ensure that the input signal source and the controlled device are connected to the appropriate terminals.

Figure 3: Detailed wiring diagram for NPN to NPN signal conversion, showing connections to a controlled device (MCU/PLC).

• Input Signal (X1-X8): Connect your NPN or PNP input signals to these terminals. The diagram shows active low inputs for NPN.
• Ohikoa (COM): Connect the common ground for the input signals.
• Output Signal (01-08): Connect these outputs to the input pins of your controlled device (e.g., MCU, PLC, FPGA).
• Irteera boltage (VCC, GND): Provide the required power supply for the output side of the isolation board. This voltage should match the logic level expected by your controlled device.

Garrantzitsua: Verify the input and output voltage versions of your specific board to ensure compatibility with your system. Incorrect voltage application can damage the module or connected devices.

3. Funtzionamendu-argibideak

The logic level converter board operates by converting and isolating digital signals between different voltage domains. Once correctly wired and powered, it will automatically perform the level conversion.

3.1 Seinaleen bihurketa

This module is designed for NPN to NPN or PNP to PNP signal conversion. It maintains the signal type while adjusting the voltage level and providing isolation.

4. irudia: Adibample level conversions for the In 3-8V, Out 3-8V version.

The board supports various level conversions depending on the specific version purchased:

• In 3-8V, Out 3-8V Version: Suitable for 3.3V to 3.3V, 3.3V to 5V, 5V to 3.3V, 5V to 5V conversions.
• In 3-8V, Out 9-24V Version: Suitable for 3.3V to 12V, 3.3V to 24V, 5V to 12V, 5V to 24V conversions.
• In 9-24V, Out 3-8V Version: Suitable for 12V to 3.3V, 12V to 5V, 24V to 3.3V, 24V to 5V conversions.
• In 9-24V, Out 9-24V Version: Suitable for 12V to 12V, 12V to 24V, 24V to 12V, 24V to 24V conversions.

Ensure the selected board version matches your application's input and output voltage eskakizunak.

4. Zehaztapenak

The following table details the technical specifications of the eletechsup 8-Channel Logic Level Converter and Isolation Board:

5. Mantentzea

The eletechsup logic level converter board is designed for reliable operation with minimal maintenance. To ensure its longevity and performance:

• Mantendu garbi: Periodically inspect the board for dust or debris. Use a soft, dry brush or compressed air to clean if necessary. Avoid using liquids or solvents.
• Ingurumen-baldintzak: Operate the board within the specified working temperature range (-40 to 110 degrees Celsius) and avoid environments with excessive humidity or corrosive gases.
• Konexio seguruak: Ensure all screw terminal connections remain tight to prevent intermittent signal loss or damage.
• Babes fisikoa: If the board is supplied with a protective box, keep it enclosed to shield it from physical damage and environmental factors.

6. Arazoak

If you encounter issues with the logic level converter board, consider the following troubleshooting steps:

• Irteera seinalerik ez:
  • Verify that the input signal is present and within the specified voltage range for your board version.
  • Check the power supply to the output side (VCC/GND) to ensure it is correctly connected and providing the expected voltage.
  • Confirm that the wiring matches the diagram (Figure 3) and that all connections are secure.
• Irteerako bolumen okerratage:
  • Ensure you have the correct board version for your desired input and output voltage bihurketa.
  • Neurtu irteera bolumenatage at the VCC/GND terminals to confirm it is stable and correct.
• Etengabeko funtzionamendua:
  • Check for loose wiring connections at the screw terminals.
  • Ensure the operating environment is within the specified temperature limits.
  • Verify that the signal frequency does not exceed 10KHz.
• No Isolation:
  • If you suspect a loss of isolation, immediately disconnect power and consult with a qualified technician. This could indicate internal damage.

Urrats hauek arazoa konpontzen ez badute, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin laguntza gehiago jasotzeko.

7. Bermea eta Laguntza

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact eletechsup customer service through the retailer where the product was acquired. Please have your product model and purchase details ready when contacting support.
