HOSTACK 43.3 inch 5 Drawer Dresser User Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, maintenance, and safety of your HOSTACK 43.3 inch 5 Drawer Dresser. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product. Keep this manual for future reference.

2. Segurtasun informazioa

OHARRA: Altzariak iraultzeko arriskua

Serious or fatal crushing injuries can occur from furniture tip-overs. To help prevent tip-over:

• Instalatu beti produktuarekin batera datorren iraultze-euskarria.
• Inoiz ez utzi haurrak tiraderetan, ateetan edo apaletan zintzilikatzen edo igotzen.
• Ez ireki inoiz tiradera bat baino gehiago aldi berean.
• Jarri elementurik astunenak tiradera baxuenetan.

This dresser meets the criteria outlined in safety standard (ASTM 2057–2023) for Clothing Storage Units to protect children from tip-over-related injury. Anti-tipping accessories are included in the package.

2.1. irudia: Illustration of the anti-tipping device installation for enhanced stability and safety.

3. Paketearen edukia

Before beginning assembly, ensure all parts and hardware are present. Refer to the included parts list in your package. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

Osagai tipikoen artean hauek daude:

• Alboko panelak (ezkerrekoa eta eskuinekoa)
• Goiko panela
• Beheko panela
• Itzuli Panel
• Tiraderen aurrealdeak (x5)
• Drawer Side Panels (x10)
• Drawer Back Panels (x5)
• Drawer Bottom Panels (x5)
• Tiradera-irristailuak (x10 bikote)
• Hardware Pack (screws, dowels, cam locks, anti-tipping kit)

4. Muntatzeko jarraibideak

Assembly typically requires two adults. A power drill with adjustable torque settings can expedite the process, but manual screwdrivers are sufficient. Do not overtighten screws.

1. Eremua prestatu: Muntaketa egiteko, garbitu gune zabal, garbi eta laua. Jarri manta edo kartoi bat altzariak eta zorua babesteko.
2. Atalak identifikatzea: Unpack all components and identify them using the provided parts list. Group similar hardware items.
3. Muntatu marko nagusia:
   • Attach cam locks and dowels to the side panels as indicated in the diagram.
   • Connect the top and bottom panels to the side panels using the cam locks and screws. Ensure all connections are secure.
   • Slide the back panel into the designated grooves or attach it with small nails/screws provided.
4. Instalatu tiradera-irristailuak: Attach the outer drawer slides to the inside of the dresser frame using the specified screws. Ensure they are level and correctly oriented.
5. Assemble Drawers (Repeat 5 times):
   • Attach the drawer side and back panels to the drawer front using dowels and cam locks.
   • Slide the drawer bottom panel into the grooves.
   • Secure the inner drawer slides to the sides of the assembled drawer box. Ensure the plastic latches are correctly oriented for left and right sides.
6. Txertatu tiraderak: Carefully align the drawer slides on the drawers with the slides on the dresser frame and push the drawers in until they click into place.
7. Iraultzearen aurkako gailua instalatu: Following the instructions provided with the anti-tipping kit, secure the dresser to a wall stud using the strap and anchors. This step is critical for safety.

4.1. irudia: The fully assembled HOSTACK 5-drawer dresser.

5. Funtzionamendu-argibideak

Your HOSTACK 5-drawer dresser is designed for smooth and efficient storage.

• Tiraderaren funtzionamendua: Drawers are equipped with ball-bearing slides for smooth opening and closing. Pull the cut-out handle gently to open and push firmly to close.
• Pisu-gaitasuna: Each drawer can hold up to 25 lbs (11.3 kg). The tabletop can support up to 150 lbs (68 kg). Do not exceed these limits to prevent damage or instability.
• Biltegiratzea: Utilize the five deep drawers for organizing clothes, accessories, linens, or other household items.

5.1. irudia: An open drawer demonstrating the internal storage capacity.

6. Mantentzea

Arreta egokiak zure komodaren bizitza eta itxura luzatuko ditu.

• Garbiketa: Garbitu gainazala zapi lehor eta leun batekin. Orban egoskorretarako, garbitu apur batamp Oihal bat eta ondoren oihal lehor bat erabil daitezke. Saihestu produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Isurketak: Immediately wipe up any spills to prevent staining or damage to the finish.
• Eguzkiaren argia: Saihestu eguzki-argiaren eraginpean denbora luzez, kolorea galtzea saihesteko.
• Hezetasuna: Mantendu hezetasun maila egonkor bat gelan egurra deformatu edo pitzatzea saihesteko.
• Hardwarearen egiaztapena: Aldian-aldian egiaztatu torloju eta lotura guztiak ondo estutu direla ziurtatzeko. Beharrezkoa bada, berriro estutu.

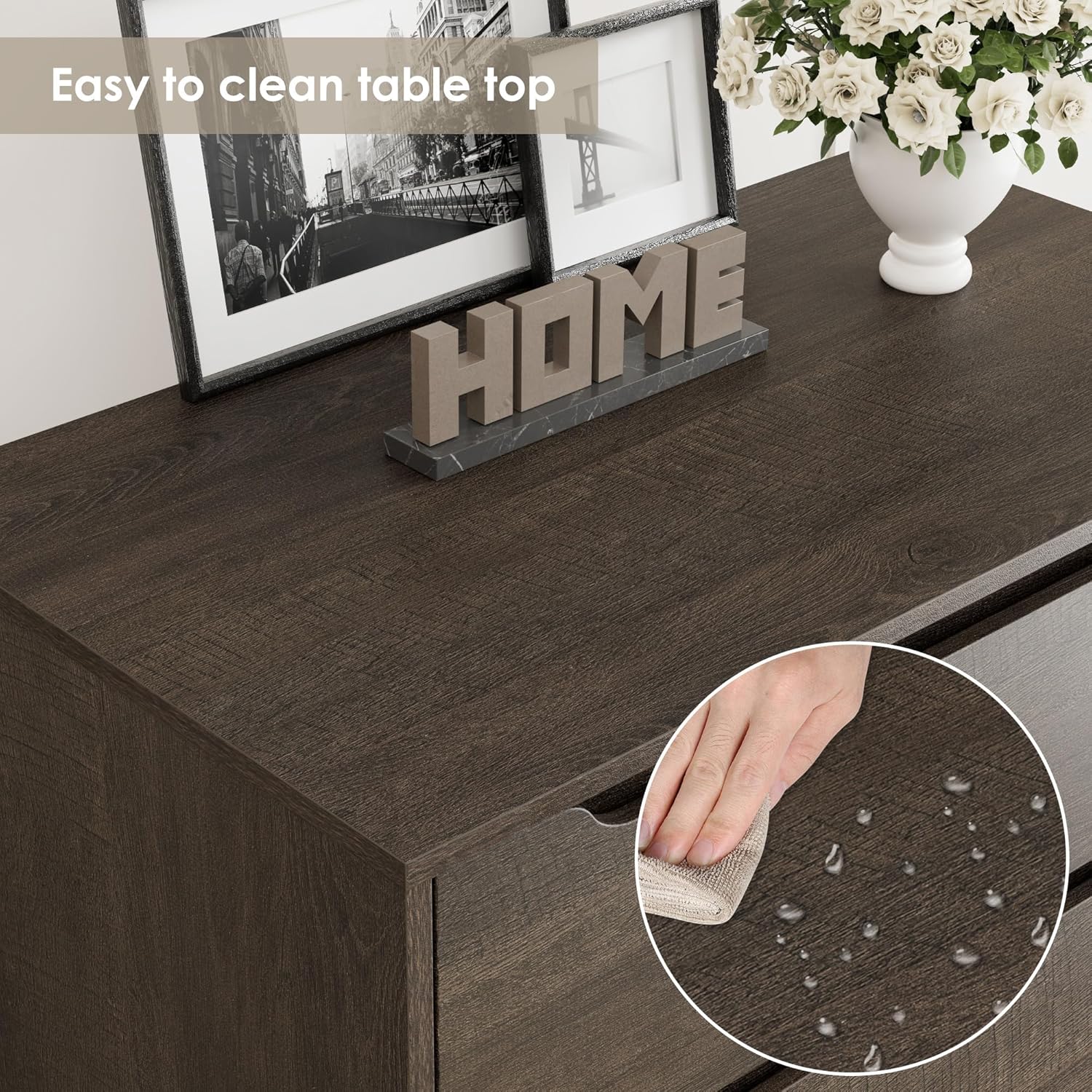

6.1. irudia: The dresser's tabletop is designed for easy cleaning, as shown by wiping away liquid.

7. Arazoak

Arazoren bat izanez gero, jo ezazu honako ohiko irtenbide hauetara:

• Tiraderak ez dira ondo ixten:
  • Egiaztatu tiraderaren irristagailuak behar bezala lerrokatuta daudela eta oztoporik gabe daudela.
  • Ensure all screws on the drawer slides and frame are tightened.
  • Ziurtatu tiradera ez dagoela gehiegi kargatuta.
• Dresser wobbles:
  • Ziurtatu komoda gainazal mailakatu batean jarrita dagoela.
  • Egiaztatu muntaketa-torloju guztiak eta estutu solteak daudenak.
  • Ziurtatu iraultzearen aurkako gailua ondo instalatuta dagoela.
• Falta diren piezak edo kaltetutako osagaiak:
  • Do not attempt to assemble with missing or damaged parts.
  • Contact HOSTACK customer support immediately for replacement parts.

8. Zehaztapenak

8.1. irudia: Detailed dimensions and weight capacities for the dresser and its drawers.

8.2. irudia: The HOSTACK 5-drawer dresser integrated into a living space.

9. Bezeroarentzako arreta

For any questions, missing parts, or assistance with assembly, please contact HOSTACK customer support. Our team is available to help you.

Harremanetarako informazioa: Refer to the contact details provided with your purchase or visit the official HOSTACK webgunea.
