Sarrera
This manual provides detailed instructions for the safe and effective use of your CINCOM Handheld Controller, model CM-030A. Please read this manual thoroughly before operating the device and retain it for future reference.
Produktua amaituview
The CINCOM Handheld Controller CM-030A is designed to provide intuitive control over your compatible CINCOM massager. It features clearly labeled buttons for power, intensity, mode, and heat functions.
1. irudia: CINCOM Handheld Controller CM-030A with its control buttons and connection port. The image highlights the Power, Intensity, Mode, and Heat buttons, along with their respective functions and levels.
Controller Buttons and Functions:
- Pizteko botoia (⏻): Turns the device ON or OFF.
- Intensity Control Button (⚠): Adjusts massage intensity. Features 3 intensity levels (Min, Mid, Max).
- Modu botoia (M): Selects massage mode. Offers 3 modes (Sequence, Circulation, Whole).
- Heat Button (♨): Activates or adjusts heat function. Provides 2 heat levels (Min, Max).
Zehaztapenak

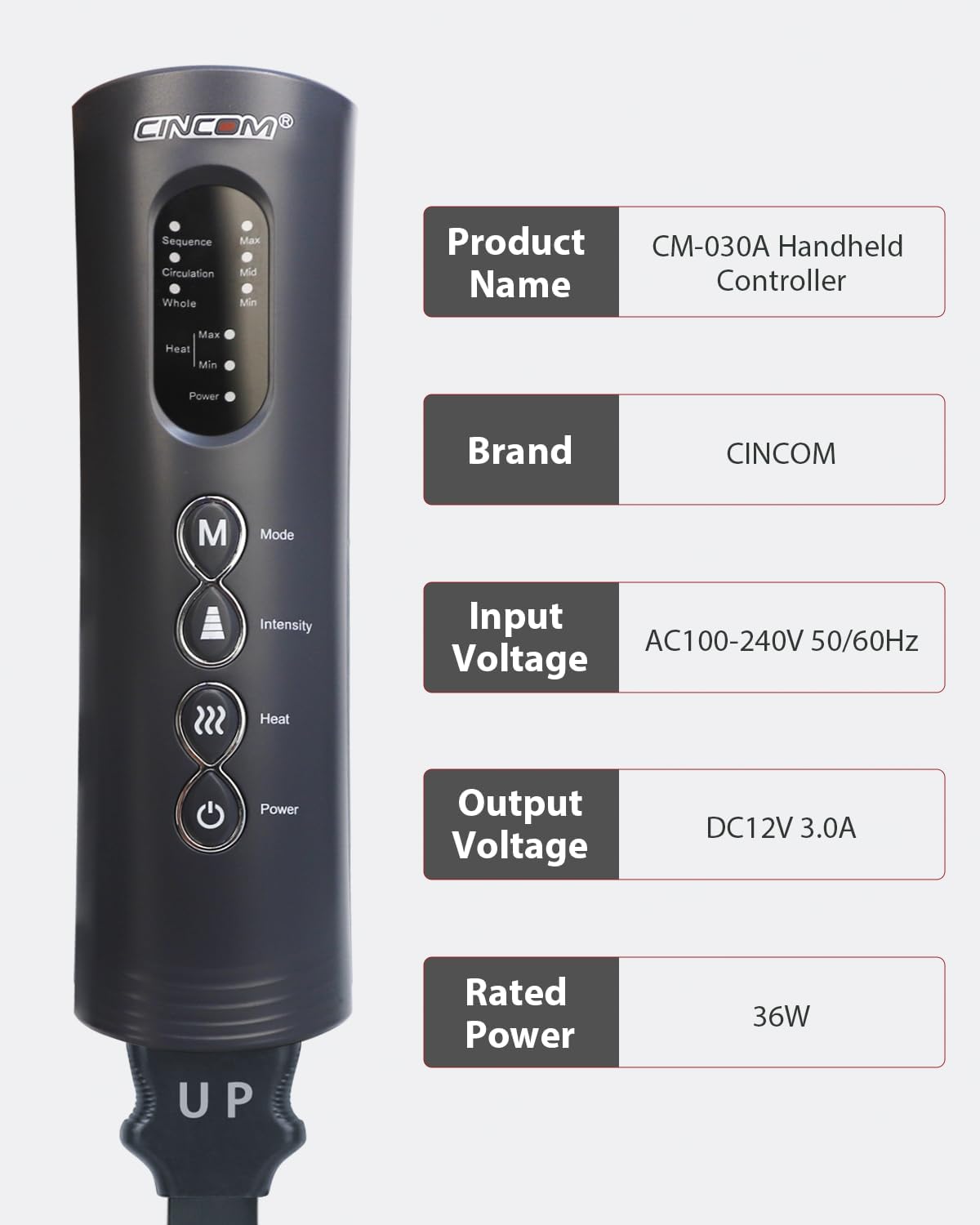

2. irudia: Technical specifications for the CINCOM Handheld Controller CM-030A, including power requirements.
| Zehaztapena | Xehetasuna |
|---|---|
| Produktuaren izena | CM-030A Handheld Controller |
| Marka | CINCOM |
| Sarrera boltage | AC100-240V 50/60Hz |
| Irteera boltage | DC12V 3.0A |
| Potentzia nominala | 36W |
| Produktuaren neurriak | 1.97 x 2.1 x 6.92 hazbete |
| Elementuaren pisua | 4.5 kilo |
| Gailu bateragarriak | Massager (specifically CM-030A series) |
Konfigurazio Argibideak
- Desegin: Carefully remove the controller from its packaging.
- Connect to Massager: Locate the connection port on your CINCOM massager (e.g., leg massager) and the corresponding cable from the handheld controller. Ensure the "UP" indicator on the controller's cable aligns with the massager's port for correct insertion. Push firmly until securely connected.
- Konektatu energia: Plug the power adapter into the controller's power input port, then plug the adapter into a standard AC100-240V 50/60Hz electrical outlet.
- Hasierako egiaztapena: Once connected, the power indicator light on the controller should illuminate, indicating it is ready for use.

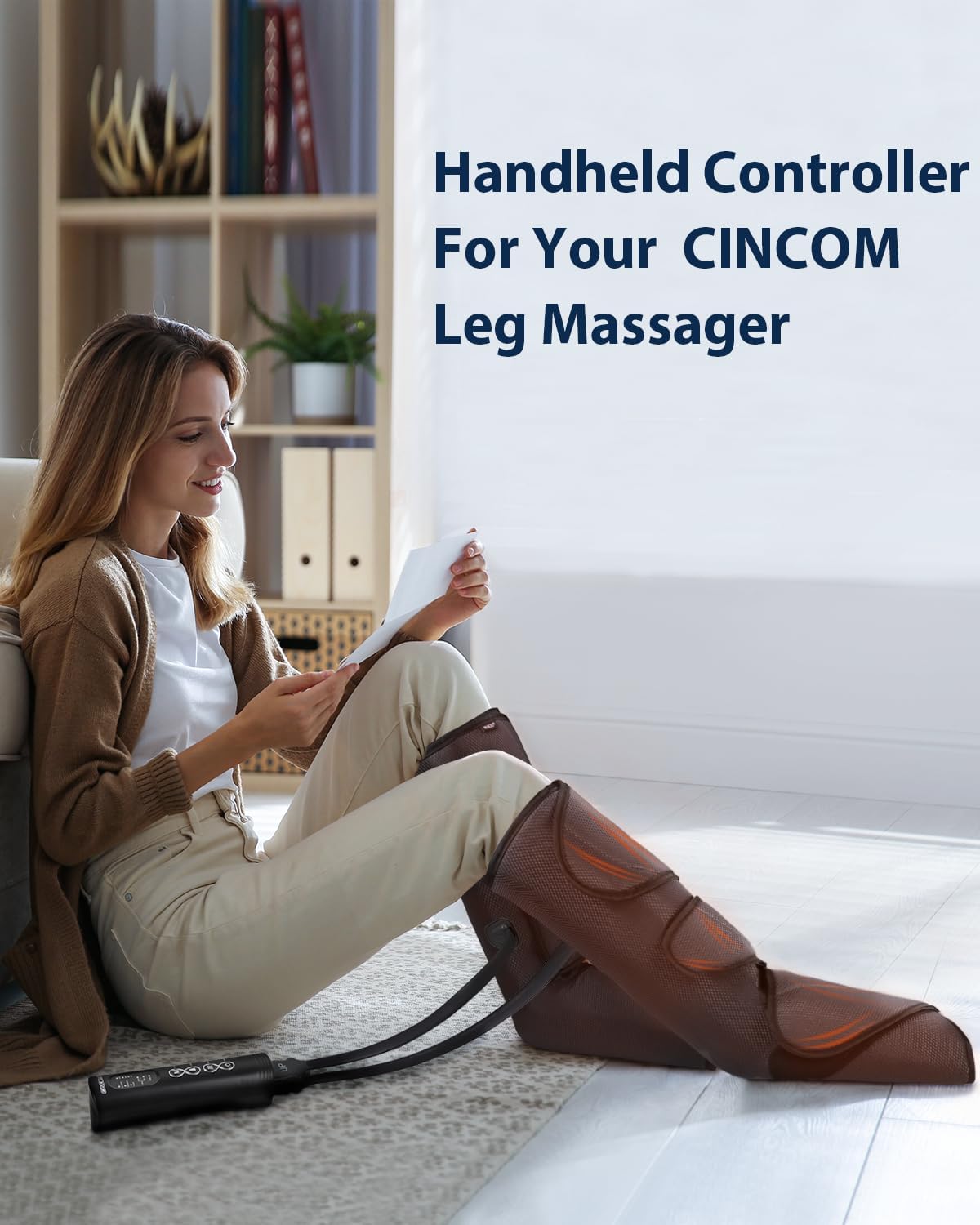

3. irudia: Example of the CINCOM Handheld Controller in use with a leg massager, demonstrating a typical setup.
Funtzionamendu-argibideak
- Piztu/Itzali: Sakatu ⏻ Pizteko botoia to turn the massager ON. The power indicator light will turn green. Press again to turn OFF.
- Doitu Intentsitatea: Sakatu ⚠ Intensity Control Button to cycle through the 3 intensity levels: Minimum (Min), Medium (Mid), and Maximum (Max). The corresponding indicator light will illuminate.
- Aukeratu modua: Sakatu M moduko botoia to switch between the 3 available massage modes: Sequence, Circulation, and Whole. The active mode's indicator light will be lit.
- Beroa aktibatu: Sakatu ♨ Bero Botoia to activate the heat function. Press again to cycle between 2 heat levels: Minimum (Min) and Maximum (Max). Press a third time to turn the heat OFF.
- Saioaren iraupena: The massager typically operates for a preset duration (e.g., 15-20 minutes) and will automatically shut off. You can restart it if desired.
Mantentzea eta zaintzea
- Garbiketa: Disconnect the power before cleaning. Wipe the controller surface with a soft, slightly damp oihal. Ez erabili garbitzaile urratzailerik eta ez murgildu kontrolagailua uretan.
- Biltegiratzea: Gorde kontrolagailua leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta. Saihestu objektu astunak kontrolagailuaren gainean jartzea.
- Manipulazioa: Handle the controller with care. Avoid dropping it or subjecting it to strong impacts.
- Kableen zainketa: Do not twist, bend excessively, or pull on the power cord or massager connection cable. Always grasp the plug when disconnecting.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Kontrolagailua ez da pizten. | Ez dago energia-iturririk; konexioa askatuta. | Ensure the power adapter is securely plugged into both the controller and a working electrical outlet. Check if the outlet is functional. |
| Massager does not respond to controller. | Controller not properly connected to massager. | Verify that the controller's cable is firmly and correctly inserted into the massager's port. Ensure the "UP" indicator is aligned. |
| Berotze funtzioa ez dabil. | Heat not activated or set to minimum. | Press the Heat Button multiple times to cycle through heat levels (Min, Max) and ensure it is not turned off. Allow a few minutes for heat to become noticeable. |
| Argi adierazleak itzalita daude. | Device is off or power issue. | Press the Power Button to turn on the device. Check power connections as described above. |
Bermea eta Laguntza
For warranty information or technical support, please refer to the documentation included with your original CINCOM massager or visit the official CINCOM website. You may also contact CINCOM customer service directly for assistance.
