Panasonic LAMDASH PRO 6-Blade Electric Shaver ES-L690U-K User Manual

1. Sarrera eta Overview

Eskerrik asko erosketagatik.asing the Panasonic LAMDASH PRO 6-Blade Electric Shaver ES-L690U-K. This advanced shaver is designed to provide a deep, close shave while prioritizing gentleness on your skin. It features innovative technologies such as the LAMDASH AI+ Navi, a new 6-blade system, a flexible 5D head, and a convenient fully automatic cleaning and charging system.

This manual will guide you through the proper setup, operation, maintenance, and troubleshooting of your new shaver to ensure optimal performance and longevity.

Figure 1.1: Panasonic LAMDASH PRO 6-Blade Electric Shaver ES-L690U-K with its accessories.

2. Konfigurazioa

2.1 Hasierako karga

Before first use, fully charge the shaver. You have two charging options:

1. Using the Fully Automatic Cleaning Charger: Place the shaver into the cleaning charger. The charger will automatically begin cleaning, drying, and charging the unit. Ensure the shaver is dry before placing it in the charger for cleaning and drying cycles.
2. Using USB Type-C: Connect the shaver directly to a USB power adapter (sold separately, Panasonic ES-RU1-01 recommended) using the provided USB Type-C cable. A full charge takes approximately 2 hours.

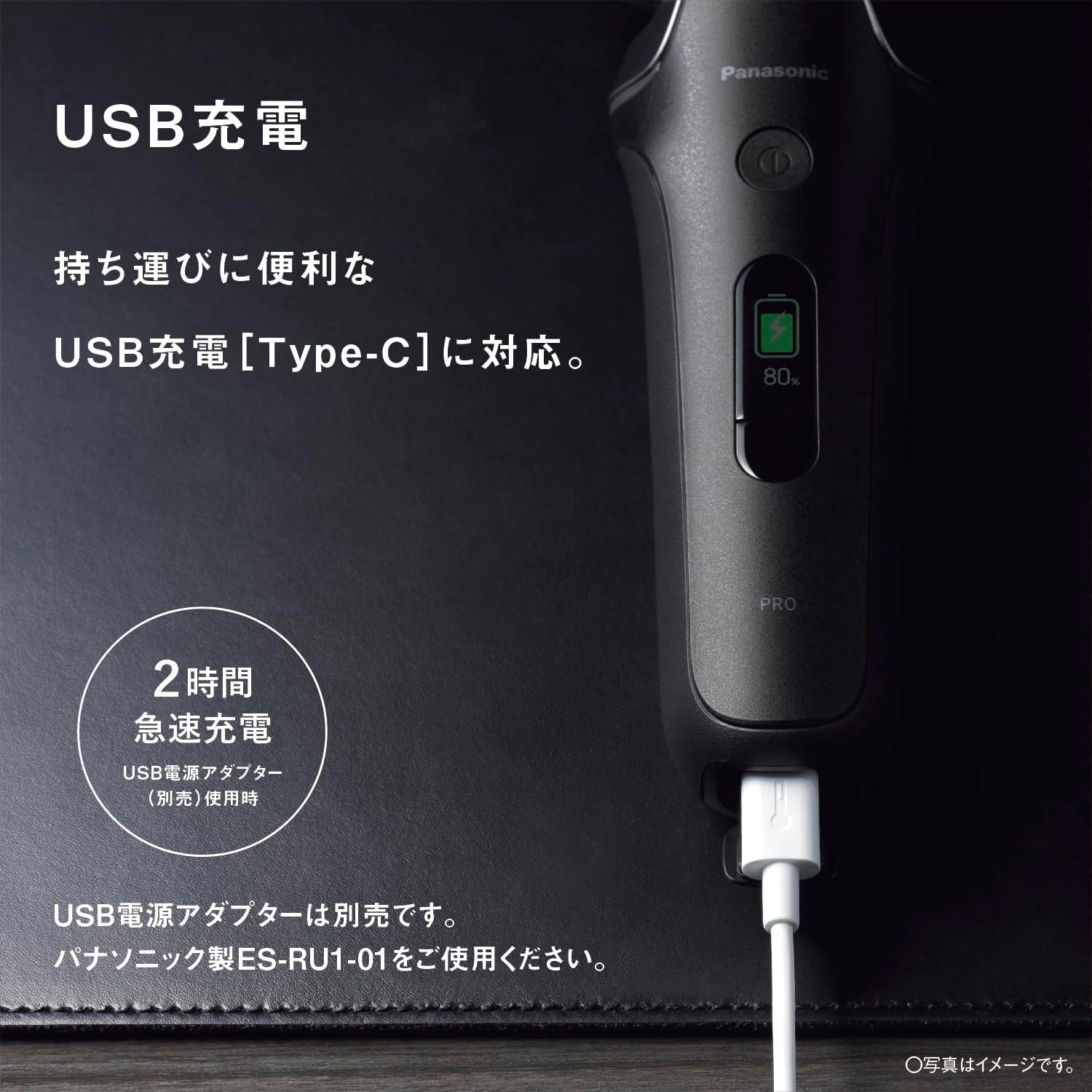

Figure 2.1: Charging the shaver via USB Type-C cable.

2.2 Lehen erabilerarako prestatzea

Once fully charged, remove the protective cap from the shaver head. It is recommended to perform a test shave on a small area of your skin to familiarize yourself with the shaver's feel and performance.

3. Funtzionamendu-argibideak

3.1 Bizarra mozteko teknikak

The ES-L690U-K can be used for both dry and wet shaving. For best results, hold the shaver at a right angle to your skin and move it slowly against the direction of hair growth. The flexible 5D head will adapt to the contours of your face, ensuring maximum contact and a smooth shave.

Figure 3.1: Proper shaving technique with the LAMDASH PRO shaver.

3.2 LAMDASH AI+ Navi and Navimonitor

The LAMDASH AI+ Navi automatically adjusts the shaver's power based on your stubble density. When stubble is thick, it activates BOOST mode for powerful cutting. When stubble is thin, it switches to SOFT mode for a gentler shave. This intelligent control is indicated by light on the shaver head.

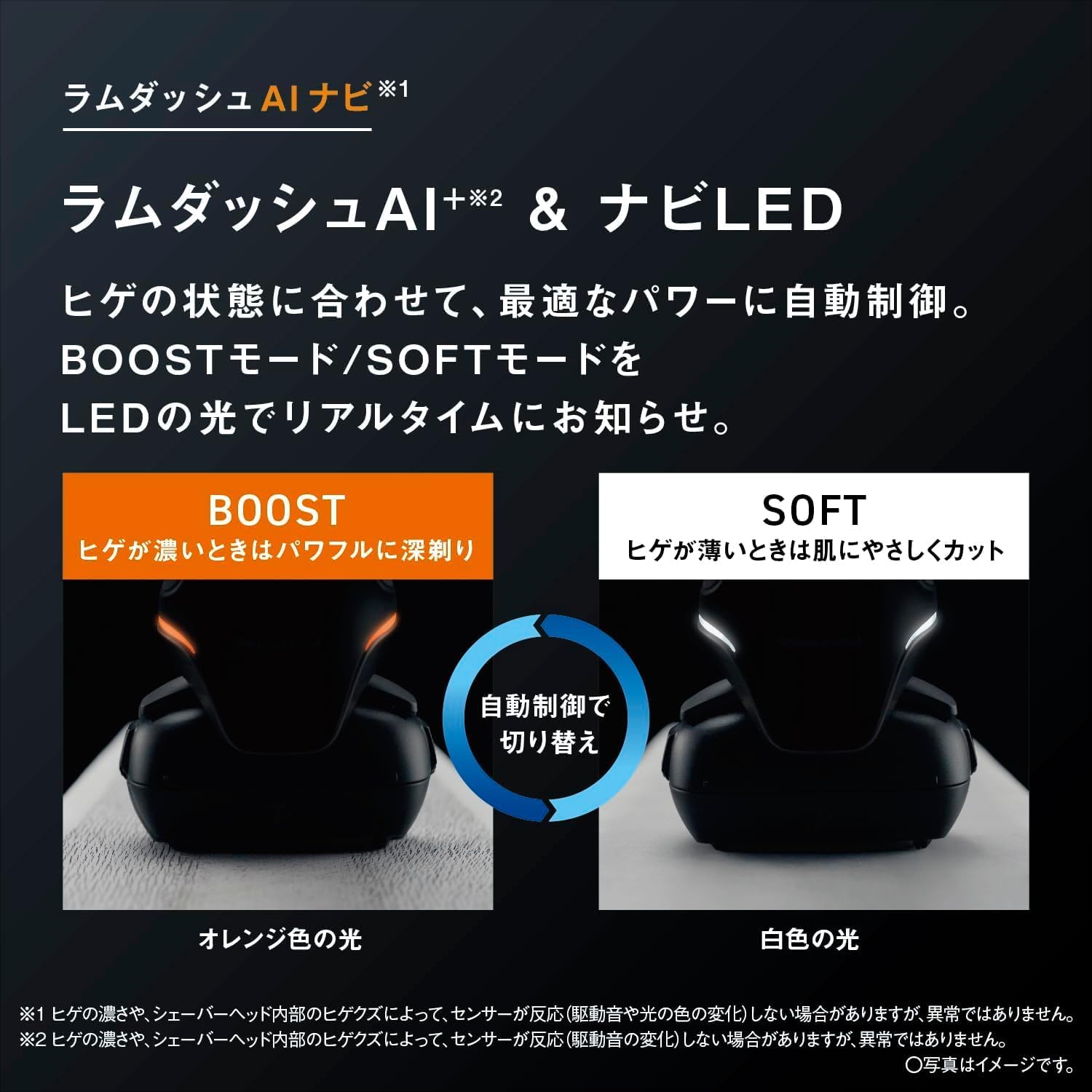

Figure 3.2: LAMDASH AI+ Navi indicating BOOST (orange) and SOFT (white) modes.

The Navimonitor display on the shaver body provides real-time feedback on the shaving power distribution, showing the percentage of time spent in BOOST and SOFT modes. This allows you to confirm the shaving results based on your stubble condition.

Figure 3.3: Navimonitor display showing shaving mode distribution.

3.3 5D Head Movement

The shaver's close-fitting 5D head moves in multiple directions (front, back, left, right, up, down) to perfectly follow the contours of your face, including complex areas like under the jawline. This ensures consistent skin contact and reduces pressure, leading to a comfortable and efficient shave.

Figure 3.4: The flexible 5D head adapts to facial contours.

4. Mantentzea

4.1 Automatic Cleaning Charger System

The fully automatic cleaning charger provides a convenient way to clean, dry, and charge your shaver daily. Simply place the shaver into the charger after use. The system uses a dedicated cleaning solution (Panasonic ES-4L) to remove stubble and debris, followed by a heated drying cycle, and then charges the shaver. This system achieves over 99% sterilization.

Figure 4.1: The fully automatic cleaning charger system.

4.2 Eskuzko garbiketa

For manual cleaning, rinse the shaver head under running water after each use. You can use the included cleaning brush to remove any stubborn stubble from the blades. Apply a small amount of dedicated oil (Shell Ongina Oil 32) to the blades periodically to maintain performance.

4.3 Palak ordezkatzea

The shaver features a new 6-blade system with ultra-thin deep shaving blades and jawline trimmers for enhanced cutting efficiency. While durable, blades will eventually wear out. Replace the outer foil and inner blades approximately every 1-2 years, or when you notice a decrease in shaving performance. Refer to the product packaging or Panasonic's official webordezko piezen bateragarrien gunea.

Figure 4.2: The 6-blade system with new ultra-thin deep shaving blades.

5. Arazoak

If you encounter any issues with your Panasonic LAMDASH PRO shaver, please refer to the following common problems and solutions:

• Bizarra ez da pizten: Ensure the shaver is fully charged. If using the automatic cleaning charger, confirm it is properly connected to power.
• Bizarra mozteko errendimendu murriztua: Garbitu ondo bizarra egiteko makinaren burua. Errendimendua hobetzen ez bada, palak kamutsak izan daitezke eta ordezkatu egin beharko dira.
• LAMDASH AI+ Navi not reacting (drive sound or light change): As noted in the product description, the sensor may not react in all cases depending on stubble density or debris inside the shaver head. This is not an abnormality. Ensure the shaver is clean.
• Bizarra mozteko makinak zarata ezohikoa egiten du: Clean the shaver thoroughly. If the noise persists, contact customer support.

For more detailed troubleshooting or issues not listed here, please refer to the full product manual or contact Panasonic customer support.

6. Zehaztapenak

Figure 6.1: High-speed linear motor for powerful shaving.

7. Bermea eta Laguntza

Your Panasonic LAMDASH PRO 6-Blade Electric Shaver ES-L690U-K comes with a 12-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or inquiries about replacement parts and accessories, please contact Panasonic customer service. Keep your proof of purchase for warranty validation.

For the most up-to-date support information and contact details, please visit the official Panasonic webzure eskualderako gunea.
