SEESII 4-in-1 Pole Saw & Pruning Shears Combo Kit User Manual

1. Produktua amaitu daview

The SEESII 4-in-1 Pole Saw & Pruning Shears Combo Kit offers a versatile solution for various pruning and trimming tasks. This battery-powered system combines a 6-inch mini chainsaw with an extendable pole and electric pruning shears, allowing for efficient and safe operation in diverse gardening and landscaping scenarios.

Ezaugarri nagusiak:

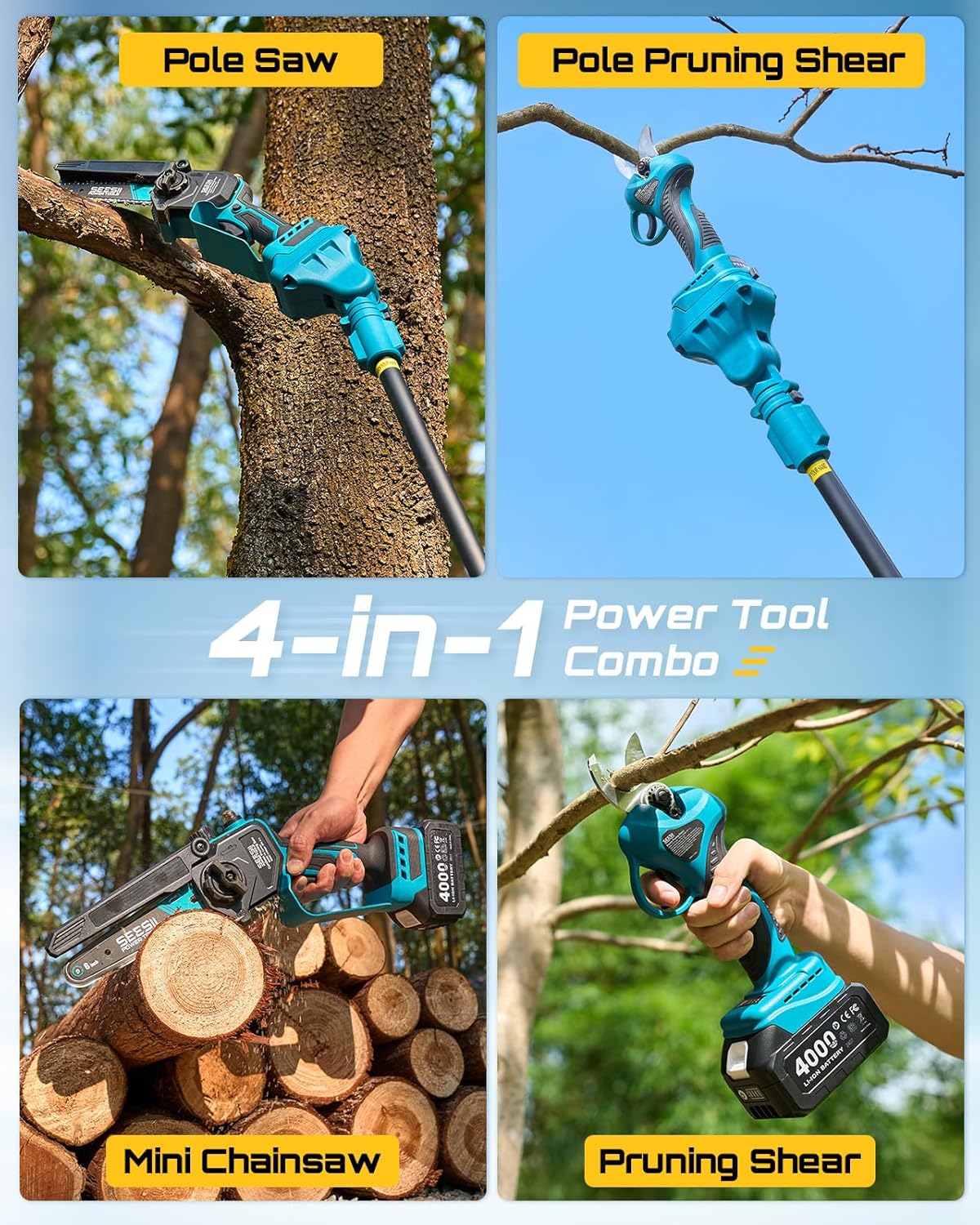

• Ultimate 4-in-1 Pruning Solution: Seamlessly transition between a 6-inch pole saw, precision electric pruning shears, handheld mini chainsaw, and handheld pruning shears.
• Iraupen luzeko potentzia: Equipped with high-capacity 21V 4000mAh batteries for extended operation and fast charging.
• Ibilbide hedatua: Adjustable pole extension allows safe trimming of branches up to 16 feet high from the ground.
• Motor eskuilarik gabeko indartsua: Features a 600W brushless motor for efficient cutting, reduced heat, and extended tool life.
• Professional-Grade Cutting: SK5 steel blades on pruning shears cut branches up to 1.2 inches thick.
• Katearen lubrifikazio automatikoa: Integrated oiler system ensures smooth chainsaw operation and prolongs chain life.

2. Segurtasun informazio garrantzitsua

Disclaimer: Please adhere to the following safety guidelines while using this product. The manufacturer is not liable for any personal injuries resulting from improper use of this product. Please ensure alertness during use, proper operation, and safe storage to minimize any potential risks.

• Erabili beti babes pertsonalerako ekipamendu egokia (PPE), segurtasun-betaurrekoak, eskularruak eta entzumen-babesak barne.
• Ziurtatu lan-eremua ingurukoengandik libre dagoela, batez ere haurrak eta animaliak.
• Inspect the tool for any damage or loose parts before each use.
• Keep hands and feet away from the cutting chain and blades.
• Ez erabili tresna baldintza hezeetan edo likido edo gas sukoien ondoan.
• Always use two hands when operating the pole saw for better control.
• Disconnect the battery before performing any maintenance, cleaning, or when changing accessories.
• Store the tool and batteries in a dry, secure place out of reach of children.

3. Dakarten osagaiak

Your SEESII 4-in-1 Combo Kit comes with the following items:

• SEESII 6-Inch Chainsaw
• Polo Teleskopikoa
• 2x 4000mAh Batteries
• Bateria kargagailua
• Inausketa zizaila
• Scissor Blade
• 6-Inch Chain & Protective Cover for Guide Plate
• Segurtasun Betaurrekoak
• Eskularruak
• Sorbalda-uhal
• Giltza
• Bihurkin
• Zorrozteko Harria
• Empty Oil Bottle
• Erabiltzailearen eskuliburua

Figure 1: All components included in the SEESII 4-in-1 Yard Tool Combo Kit.

4. Konfigurazioa

4.1 Bateria kargatzea

Before first use, fully charge both 21V 4000mAh batteries using the provided charger. The charger typically indicates charging status (e.g., red for charging, green for fully charged).

4.2 Mini Chainsaw Assembly & Chain Tension

The 6-inch mini chainsaw comes pre-assembled with a chain. Ensure the chain is properly tensioned. Use the provided wrench to adjust the chain tension knob if necessary. The chain should be snug but still able to move freely around the guide bar.

Figure 2: The tool-free design allows for easy chain adjustment by turning the knob on the side of the chainsaw.

4.3 Attaching to Extension Pole

To convert the mini chainsaw or pruning shears into a pole tool, align the tool head with the extension pole connector and secure it firmly. Ensure all locking mechanisms are engaged before use.

4.4 Adjusting Pole Length and Angle

The telescopic pole can be adjusted to various lengths for optimal reach. Use the quick-release latches to extend or retract the pole. The tool head can also be adjusted to different angles (0-180 degrees) by pressing the adjustment button, allowing for versatile cutting positions.

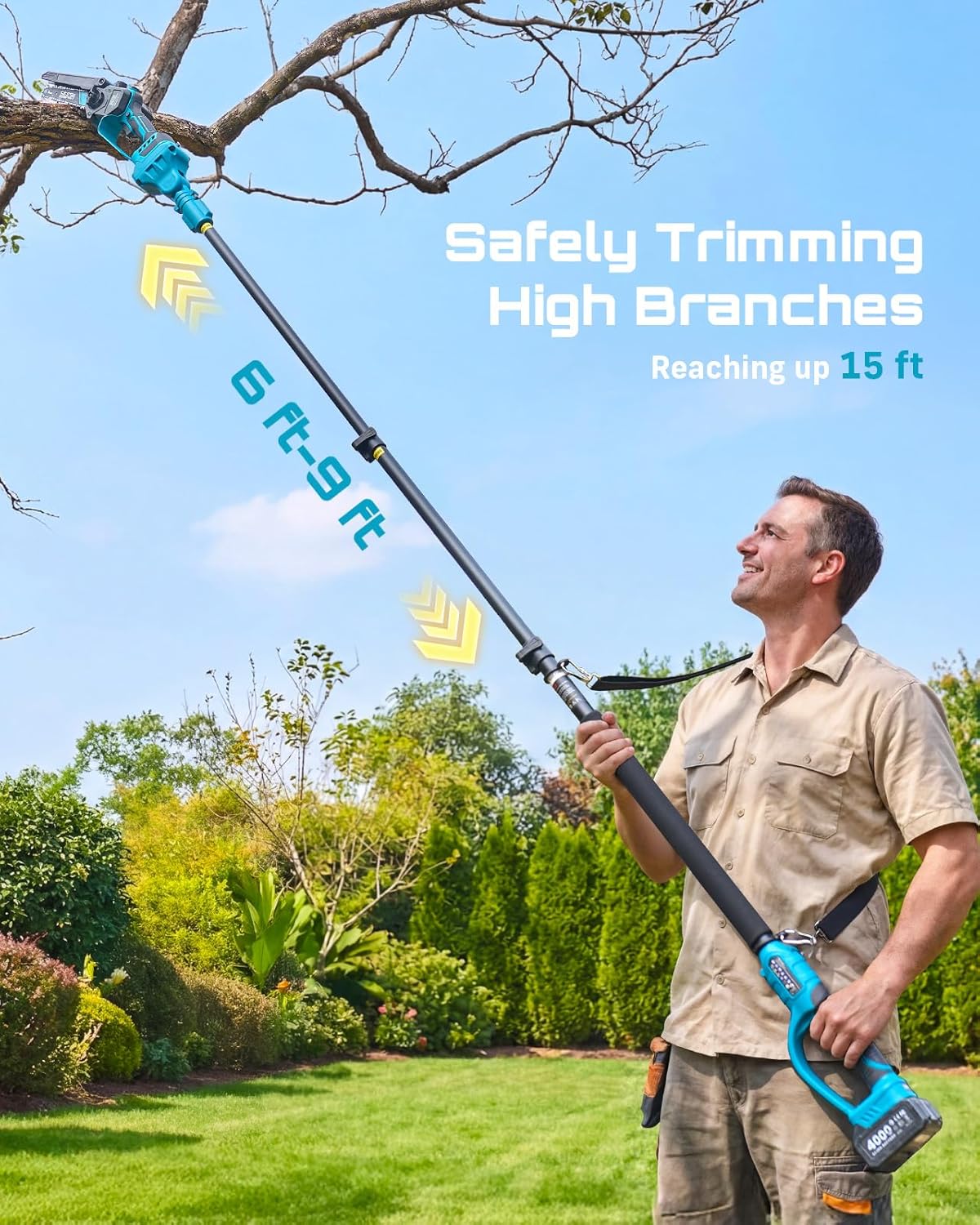

Figure 3: The adjustable extension pole allows for safe trimming of high branches, reaching up to 15-16 feet.

5. Funtzionamendu-argibideak

5.1 Funtzionamendu Orokorra

To operate the tool, first ensure a charged battery is inserted. Press the safety button (usually located near the trigger) and then squeeze the trigger to activate the cutting mechanism. Release the trigger to stop. Always maintain a firm grip and stable footing.

Figure 4: The safety button must be pressed before the trigger can be engaged to prevent accidental startup.

5.2 Cutting with Mini Chainsaw (Handheld)

For smaller branches and logs, attach the battery directly to the mini chainsaw. Hold the tool firmly with both hands. Position the chain against the branch and engage the trigger. Allow the saw to do the work; do not force it.

Figure 5: The handheld mini chainsaw is ideal for cutting smaller logs and branches with ease.

5.3 Cutting with Pole Saw

For high branches, attach the mini chainsaw to the telescopic pole. Adjust the pole length and cutting angle as needed. Use the shoulder strap for added support and balance. Position the saw against the branch, ensuring a clear path for falling debris, and engage the trigger.

5.4 Operating Electric Pruning Shears

Attach the battery to the pruning shears for handheld use, or connect them to the telescopic pole for extended reach. The shears feature adjustable cutting diameters (0.6, 0.8, 1.2 inches) to suit various branch thicknesses. Press the safety button and squeeze the trigger to make clean, precise cuts.

Figure 6: The electric pruning shears offer three adjustable cutting diameters for various tasks.

6. Mantentzea

6.1 Katearen lubrifikazioa

The 6-inch pole saw includes a precision oiler. Regularly fill the oil reservoir with appropriate chain lubricant (not included) to ensure smooth operation and extend chain life. Give the oiler a few pumps during use to lubricate the chain.

6.2 Katea zorroztea eta ordezkatzea

Keep the chainsaw chain sharp for optimal performance. Use the provided sharpening stone to maintain the chain's edge. If the chain becomes dull or damaged beyond sharpening, replace it with the extra chain provided or a compatible replacement.

6.3 Garbiketa eta biltegiratzea

After each use, clean the tool to remove sawdust, sap, and debris. Ensure the battery is removed before cleaning. Store the tool in its protective case in a dry, cool place, away from direct sunlight and moisture. Ensure the protective cover is on the chainsaw guide plate.

7. Arazoak

If you encounter issues with your SEESII 4-in-1 Pole Saw & Pruning Shears Combo Kit, please refer to the following common troubleshooting tips:

• Tresna ez da abiarazten: Ensure the battery is fully charged and properly inserted. Check that the safety button is pressed before engaging the trigger.
• Ebaketa-errendimendu eskasa: Inspect the chain/blades for sharpness and damage. Sharpen or replace as needed. Ensure the chainsaw chain is properly tensioned and lubricated.
• Gehiegizko berotzea: Avoid continuous heavy use. Allow the tool to cool down between tasks. Ensure proper chain lubrication for the chainsaw.
• Zarata edo bibrazio ezohikoa: Stop operation immediately. Check for loose parts, damaged components, or improper assembly. Refer to the user manual for detailed inspection steps.

For persistent issues, please contact SEESII customer support.

8. Zehaztapenak

9. Bermea eta bezeroarentzako laguntza

For any product inquiries, technical assistance, or warranty claims, please contact SEESII customer support directly.

Fabrikatzailearen harremanetarako informazioa: support@seesiius.com

Gorde erosketaren egiaztagiria bermearekin lotutako edozein zerbitzutarako.
