GROBELL Steam Cleaner User Manual

Sarrera

Thank you for choosing the GROBELL Steam Cleaner. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new steam cleaner. Designed for chemical-free cleaning, this versatile appliance utilizes high-temperature steam to tackle dirt, grime, and stains on a wide range of surfaces, from floors and tiles to upholstery and windows. Please read this manual thoroughly before first use and retain it for future reference.

Segurtasun informazio garrantzitsua

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance produces steam at temperatures between 230°F-260°F (110°C-126°C), which can cause severe burns. Exercise extreme caution.

• Ez zuzendu lurruna pertsonengana, animaliengana edo etxetresna elektrikoengana.
• Ensure the appliance is unplugged before filling or emptying the water tank, or performing any maintenance.
• Erabili iturriko ur garbia soilik. Ez gehitu detergenterik, lurrinik edo bestelako produktu kimikorik ur-deposituan, horrek gailua kaltetu eta bermea baliogabetu baitezake.
• To ensure the steam is dry enough, press the steam trigger to expel any condensed water left in the hose from the previous use before applying to surfaces.
• When using the steam cleaner on any fabric surface, car seats, car interiors, or wooden furniture, you must use the fiber cap to complete the task to prevent damage.
• Mantendu aparatua haurren eskura.
• Ez erabili aparatua kablea edo entxufea hondatuta badago.

Paketearen edukia

Verify that all items are present and in good condition upon unpacking. The GROBELL Steam Cleaner comes with a comprehensive 21-piece accessory kit to address various cleaning needs.

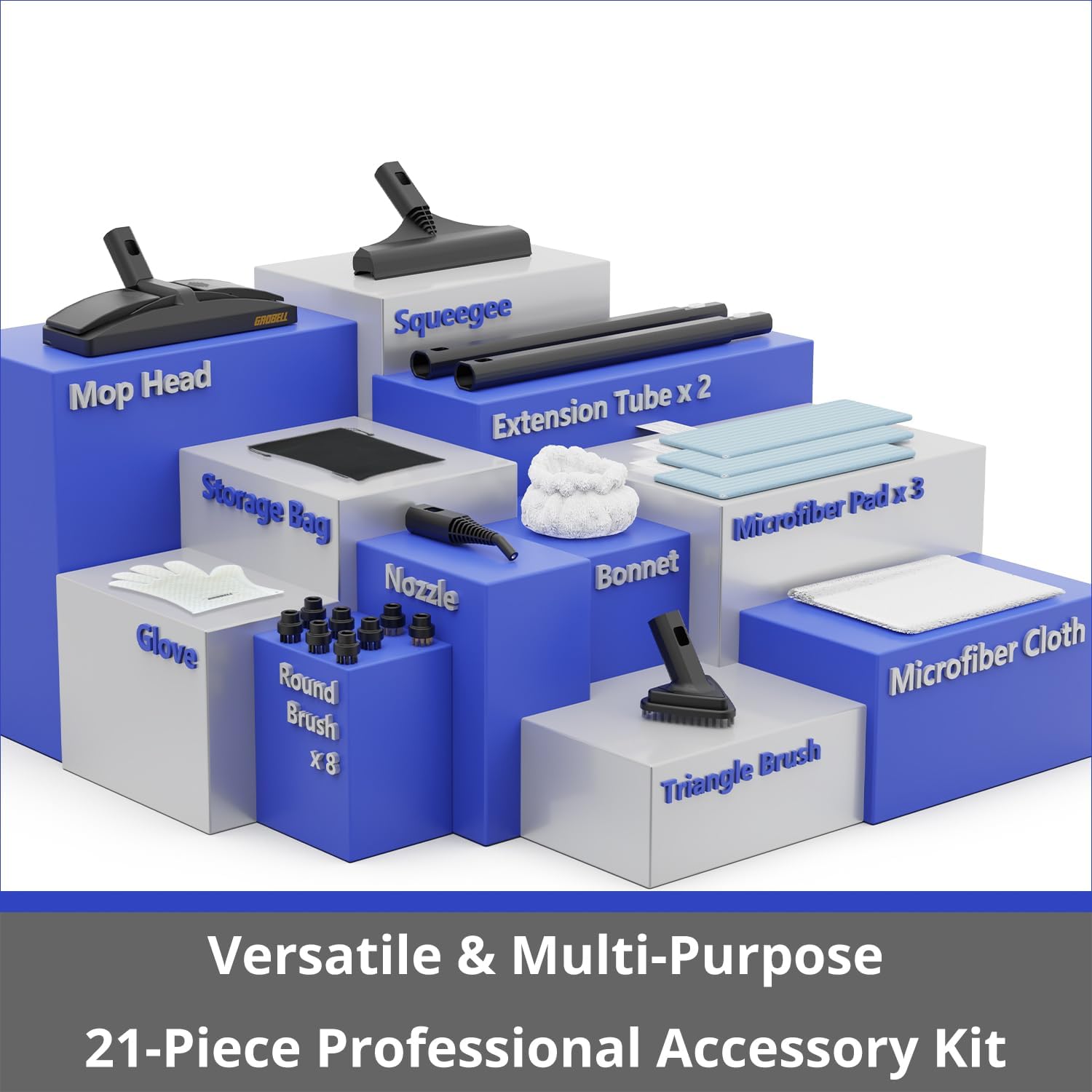

Image: The 21-piece professional accessory kit.

• GROBELL Steam Cleaner Main Unit
• Detachable Hose with Handle
• Mop burua
• Luzapen-hodiak (x2)
• Mikrofibrazko Zapiak (x3)
• Squeegee for windows and glass
• Triangular Brush (for wallpaper removal, etc.)
• Nylon & Brass Brushes (for floor tile, car, etc.)
• Tobera
• Boneta
• Mikrozuntzezko oihala
• Glove (to prevent scalding)
• Biltegiratzeko poltsa

Produktua amaituview

Familiarize yourself with the main components of your GROBELL Steam Cleaner.

Image: Main unit and accessories.

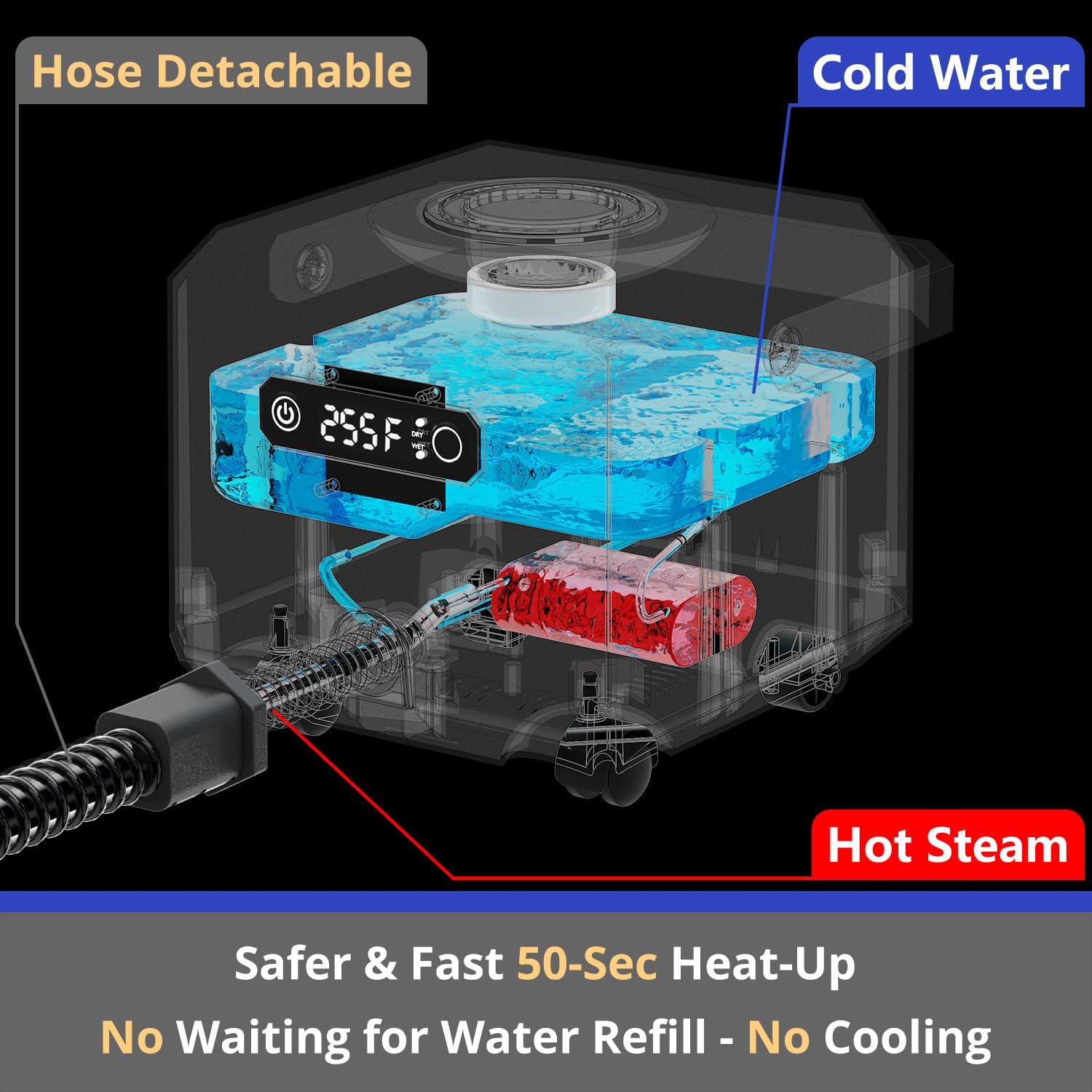

Image: Internal mechanism showing water flow and heating.

The main unit houses the water tank and heating element. The detachable hose connects to various cleaning attachments, allowing for flexible and targeted cleaning. The digital display on the main unit shows the current temperature.

Konfigurazioa

1. Desegin: Kontu handiz kendu osagai guztiak ontzitik.
2. Ur depositua bete: Open the water tank lid on the main unit. Fill the 0.6-gallon (2.2-liter) water tank with clean tap water. Do not overfill. Close the lid securely.
3. Lotu mahuka: Connect the detachable hose to the main unit by aligning the connectors and pushing firmly until it clicks into place.
4. Select and Attach Accessory: Choose the appropriate cleaning attachment (e.g., mop head, nozzle, brush) for your task. Attach it to the end of the hose or to the extension tubes if needed.
5. Konektatu: Entxufatu korronte-kablea lurreko hartune elektriko batean.

Funtzionamendu-argibideak

Hasteko

1. Piztu: Press the power button on the main unit. The unit will begin heating up.
2. Berotze-denbora: The steam cleaner will produce steam in approximately 50 seconds, reaching optimal temperatures of 230°F-260°F (110°C-126°C). The display will indicate when it's ready.
3. Expel Condensed Water: Before applying steam to your desired surface, point the attachment away from yourself and others, and press the steam trigger to release any condensed water that may have accumulated in the hose. This ensures dry steam for effective cleaning.

Lurrun garbigailua erabiliz

The GROBELL Steam Cleaner offers both dry and wet steam modes. You can add water at any time during operation without closing the water tank lid or waiting for the unit to cool down.

Image: Cleaning a wooden floor with the mop head.

Garbiketa orokorra:

• Hold the attachment close to the surface you wish to clean. The closer the attachment, the hotter and more effective the steam will be.
• Move the attachment slowly over the surface to allow the steam to penetrate and loosen dirt.
• Wipe away loosened dirt with a clean cloth or the microfiber pad.

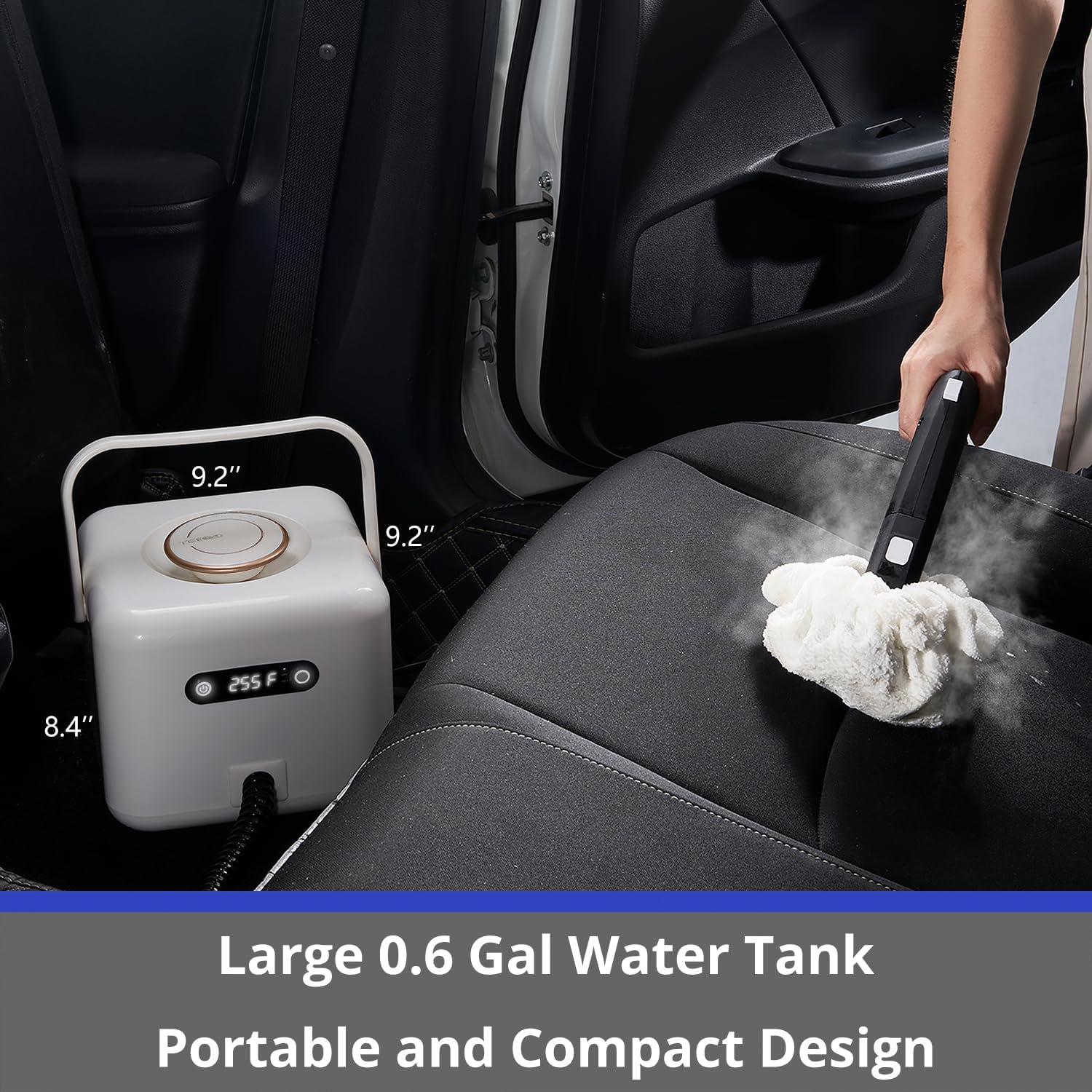

Image: Cleaning car upholstery.

Aplikazio espezifikoak:

• Floors (Laminate, Tile, Hardwood): Use the mop head with a microfiber pad. For stubborn spots, use a brush attachment.
• Upholstery & Fabrics (Sofa, Car Seats, Mattresses, Curtains): Always use the fiber cap over the nozzle or brush to protect delicate materials. Move quickly to avoid oversaturation.
• Grout & Tile: Use the nylon or brass brushes for effective cleaning of grout lines.
• Windows & Glass: Attach the squeegee tool. Steam the surface, then use the squeegee to wipe clean.
• Kitchen & Bathroom Surfaces (Ovens, Grills, Showers, Toilets): Use appropriate brushes or nozzles for targeted cleaning.
• Horma-papera kentzea: The triangular brush can be used to loosen wallpaper for easier removal.

Image: Versatile cleaning applications.

Image: Window cleaning with the squeegee attachment.

Image: Diagram showing effective steam range.

Mantentzea

Mantentze-lan erregularrak zure lurrun-garbigailuaren iraupena eta errendimendu optimoa bermatzen ditu.

Erabilera bakoitzaren ondoren:

• Deskonektatu eta hoztu: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning or storing.
• Ur depositua hutsik: Xukatu deposituan geratzen den ura.
• Garbitu osagarriak: Wash microfiber pads and cloths with mild detergent and water. Allow them to air dry completely. Clean brushes and other attachments by rinsing them under water.
• Garbiketa unitatea: Wipe the exterior of the main unit and hose with a damp oihal.

Biltegiratzea:

Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. The detachable hose makes storage easier.

Arazoak konpontzea

If you encounter issues with your GROBELL Steam Cleaner, refer to the following common problems and solutions:

Zehaztapenak

Bermea eta Laguntza

Bermearen informazioa:

This GROBELL Steam Cleaner is covered by a 1 urteko fabrikatzailearen bermea from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.

Bezeroarentzako laguntza:

Should you have any questions, require assistance, or need to claim warranty service, please contact our brand service team. Refer to the contact information provided on the product packaging or the official GROBELL webwebgunea laguntza-xehetasun eguneratuenak lortzeko.
