HOMCOM ES83A-068V81WT0731 Kitchen Pantry Cabinet User Manual

1. Sarrera

Eskerrik asko erosketagatik.asing the HOMCOM Kitchen Pantry Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Segurtasun Informazioa

WARNING: To prevent tipping, this furniture must be permanently fixed to the wall using the provided anti-tip device. Failure to do so can result in serious injury or death.

• Jarraitu beti muntaketa-argibideak zehatz-mehatz.
• Ziurtatu pieza guztiak daudela eta hondatuta daudela muntatu aurretik.
• Ez utzi haurrei armairuan igotzen edo harekin jolasten.
• Jarri armairua gainazal lau eta egonkor batean.
• Distribute weight evenly across shelves and drawers.

2. Osagaien eta piezen zerrenda

Before assembly, verify that all components listed below are included in your package. If any parts are missing or damaged, please contact customer service.

The HOMCOM Kitchen Pantry Cabinet consists of:

• Upper cabinet section with three glass doors and adjustable shelves.
• Open countertop area suitable for appliances like microwaves, with a cable management hole.
• Two central drawers for smaller items.
• Lower cabinet section with three solid doors and adjustable shelves.
• Anti-tip safety hardware.
• Assembly hardware (screws, dowels, hinges, handles).

2.1. irudia: Aurrealdea view of the assembled HOMCOM Kitchen Pantry Cabinet.

3. Konfigurazioa eta Muntaketa

Assembly is required for this product. It is recommended to have two people for assembly. Please follow the step-by-step instructions provided in the separate assembly manual included in your package. Ensure you have the necessary tools (e.g., screwdriver, hammer).

Muntaketa-urrats nagusiak:

1. Piezak desontziratu eta identifikatu: Jarri osagai guztiak gainazal garbi eta bigun batean marradurak saihesteko. Kontsultatu piezen zerrenda dena bertan dagoela ziurtatzeko.
2. Oinarrizko markoa muntatu: Construct the base of the cabinet first, ensuring all connections are secure.
3. Install Lower Cabinet Sections: Attach side panels, shelves, and the back panel for the lower section.
4. Tiraderak muntatu: Construct the two drawers and install their runners.
5. Mahai-gaina instalatu: Secure the open countertop section, ensuring the cable management hole is correctly oriented.
6. Install Upper Cabinet Sections: Attach side panels, shelves, and the back panel for the upper section.
7. Ateak eta bisagrak lotu: Install all six doors (three glass, three solid) using the provided hinges.
8. Txangak doitzea: Use the adjustable hinges to ensure doors are aligned and close properly. Refer to Figure 3.1 for hinge adjustment details.
9. Instalatu heldulekuak: Attach all door and drawer handles.
10. Iraulketaren aurkako gailu segurua: This is a critical safety step. Attach the anti-tip hardware to the top rear of the cabinet and secure it firmly to a wall stud or appropriate wall anchor. See Figure 3.2.

Figure 3.1: Diagram illustrating how to adjust cabinet hinges for proper door alignment (up/down, front/back, left/right).

Figure 3.2: Illustration of the anti-tip safety system installation, showing how to secure the cabinet to the wall.

4. Funtzionamendua eta Erabilera

This HOMCOM Kitchen Pantry Cabinet is designed to provide versatile storage for your kitchen or dining area.

Biltegiratze Edukiera:

• Upper Glass Cabinets: Ideal for displaying dishes, glassware, or storing dry goods.
• Mahai-gain irekia: Perfect for placing small appliances such as a microwave, coffee maker, or toaster. The integrated cable management hole helps keep cords tidy.
• Tiraderak: Suitable for storing cutlery, napkins, or other small kitchen essentials.
• Lower Solid Cabinets: Ematen du ample space for pots, pans, larger dishes, or pantry items.

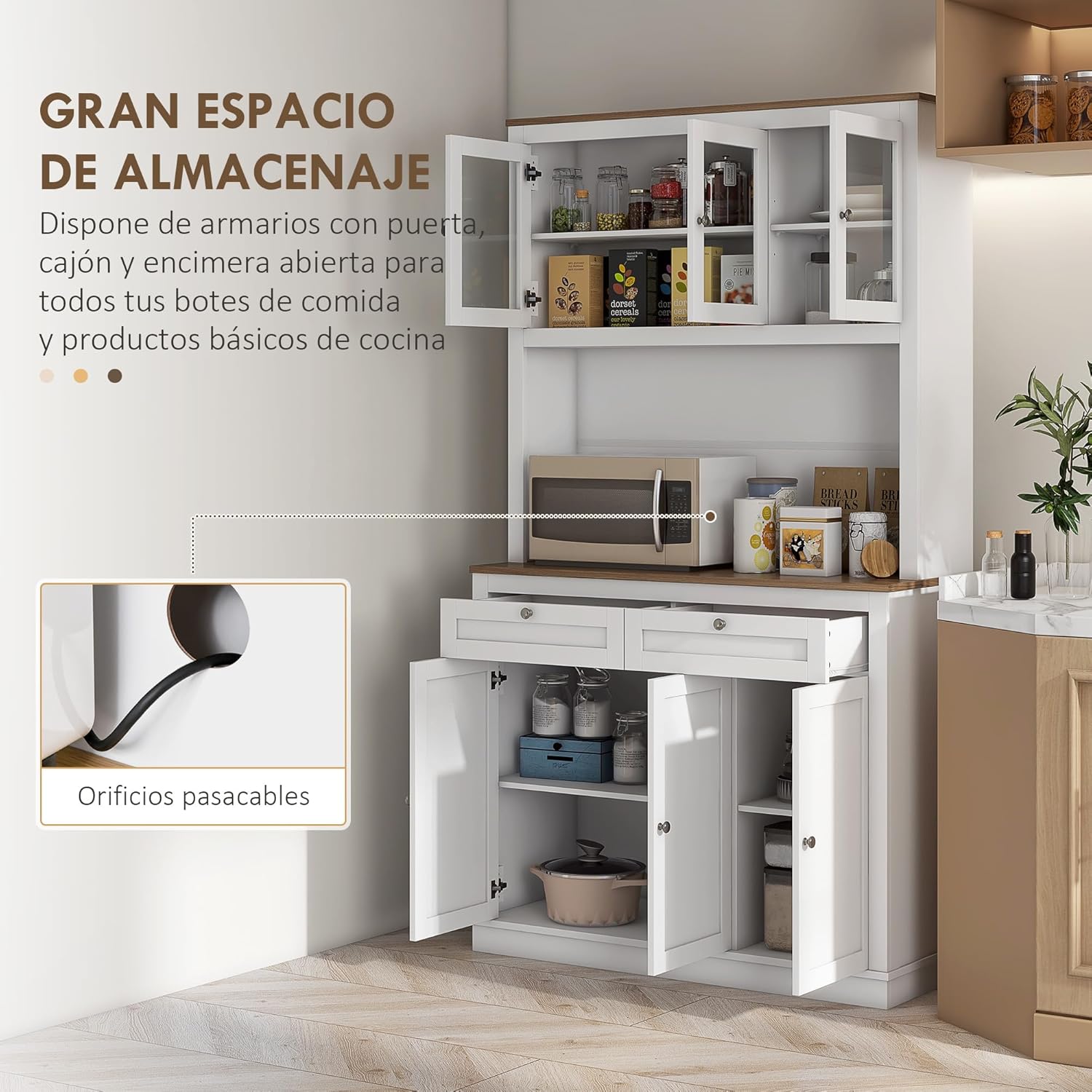

Figure 4.1: The cabinet's various storage compartments, including the open countertop with a cable management hole.

Apalategi erregulagarriak:

Both the upper and lower cabinet sections feature adjustable shelves. This allows you to customize the storage space to accommodate items of various heights, such as tall jars or pasta containers.

• To adjust a shelf, carefully remove it from its current position.
• Relocate the shelf supports to the desired height.
• Jarri apala berriro euskarrien gainean, maila berean eta ondo finkatuta dagoela ziurtatuz.

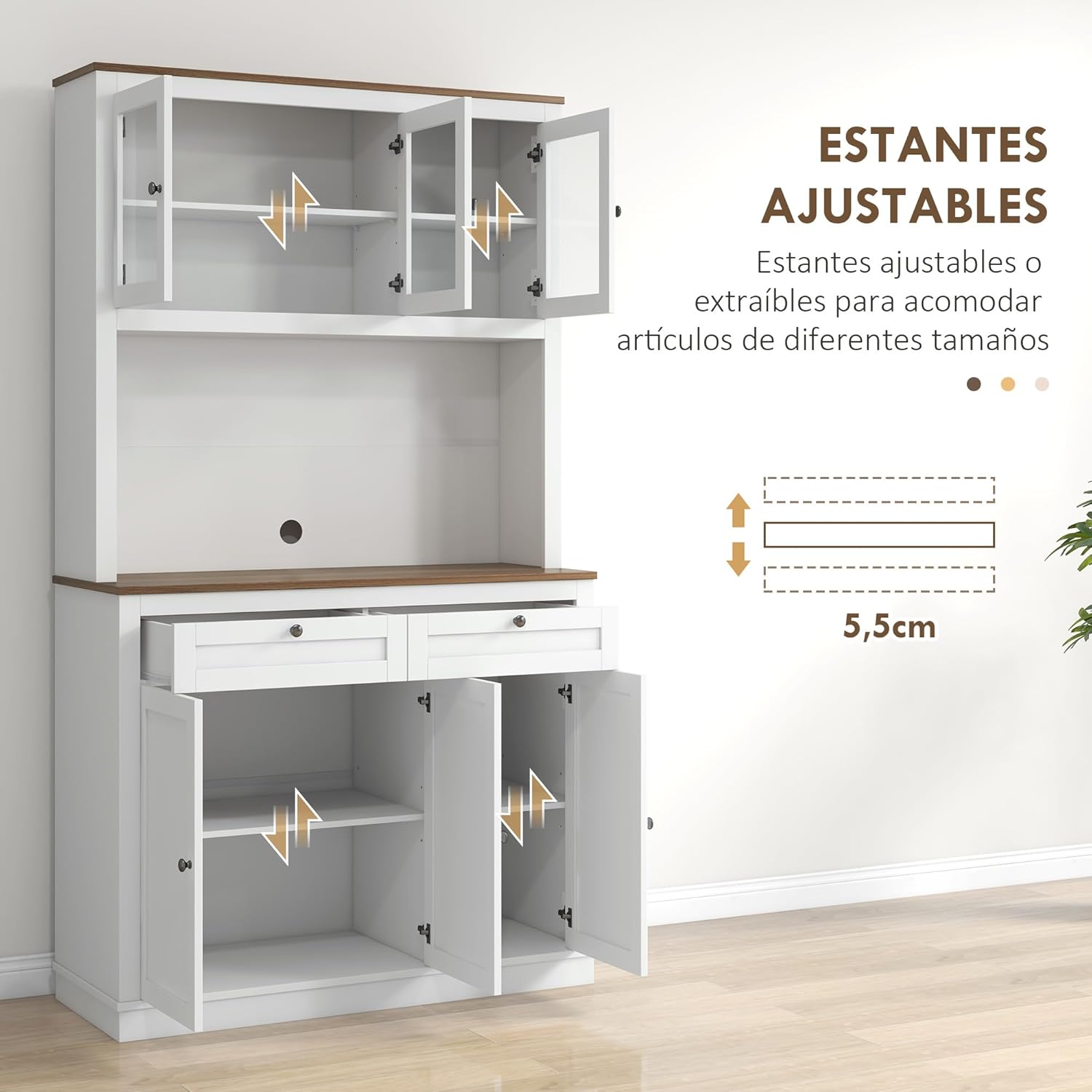

Figure 4.2: Illustration demonstrating the adjustable shelf feature, allowing for flexible storage configurations.

5. Mantentzea eta Zainketa

Proper care will extend the life and appearance of your HOMCOM Kitchen Pantry Cabinet.

• Garbiketa: Garbitu gainazalak leun batekin, damp oihal. Saihestu garbitzaile urratzaileak edo produktu kimiko gogorrak, hauek akabera kaltetu baitezakete.
• Isurketak: Garbitu isuriak berehala egurra zikindu edo kaltetu ez dadin.
• Hardwarea: Aldian-aldian egiaztatu torloju eta lotura guztiak ondo estutu direla ziurtatzeko. Beharrezkoa bada, berriro estutu.
• Eguzkiaren argia: Saihestu eguzki-argiaren eraginpean denbora luzez, kolorea galtzea edo aldatzea eragin baitezake.
• Hezetasuna: Mantendu armairua gehiegizko hezetasunetik edo hezetasunetik urrun.

6. Arazoak

Zure armairuarekin arazorik baduzu, jo ezazu honako arazo eta irtenbide ohikoenei:

7. Zehaztapenak

Detailed specifications for the HOMCOM Kitchen Pantry Cabinet:

• Marka: HOMCOM
• Modelo zenbakia: ES83A-068V81WT0731
• Kolorea: Zuria
• Dimentsio orokorrak (LxWxH): 100 cm x 40 cm x 180 cm (gutxi gorabehera 39.4 hazbete x 15.7 hazbete x 70.9 hazbete)
• Produktuaren pisua: 53 kg (gutxi gorabehera 116.8 lb)
• Maximum Supported Weight (Total): 137 kg (gutxi gorabehera 302 lb)
• Maximum Supported Weight (Countertop): 25 kg (gutxi gorabehera 55 lb)
• Maximum Supported Weight (Large Cabinet): 12 kg (gutxi gorabehera 26.5 lb)
• Maximum Supported Weight (Small Cabinet): 8 kg (gutxi gorabehera 17.6 lb)
• Maximum Supported Weight (Shelf): 4 kg (gutxi gorabehera 8.8 lb)
• Maximum Supported Weight (Drawer): 4 kg (gutxi gorabehera 8.8 lb)
• Ezaugarri bereziak: Adjustable shelves, easy to clean, anti-tip system.
• Muntatze mota: Solairuaren mendia
• Gela mota: Sukaldea
• Osagaiak barne: Drawers, Shelves, Doors

Figure 7.1: Detailed dimensions of the cabinet, including individual compartment measurements.

8. Bermea eta bezeroarentzako laguntza

For warranty information, please refer to the documentation provided with your purchase or contact the retailer directly. HOMCOM is committed to customer satisfaction.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact HOMCOM customer support through their official website or the retailer where you purchased the product. Please have your model number (ES83A-068V81WT0731) and purchase details ready.
