1. Sarrera
Thank you for choosing the Generic 2500W Handheld High-Temperature Pressurized Steam Cleaner. This powerful and versatile appliance is designed for deep cleaning various surfaces using high-temperature, high-pressure steam, effectively removing dirt, grease, and grime without the need for harsh chemicals. Please read this manual thoroughly before operation to ensure safe and efficient use of your steam cleaner.
Image 1.1: The 2500W Handheld High-Temperature Pressurized Steam Cleaner, showcasing the main unit, steam gun, and various brush heads.
2. Segurtasun-argibide garrantzitsuak
OHARRA: Argibide hauek ez jarraitzeak deskarga elektrikoak, suteak edo lesio larriak eragin ditzake.
- Always ensure the steam cleaner is unplugged from the power outlet before filling with water, cleaning, or performing any maintenance.
- Do not direct steam at people, pets, or electrical appliances. Steam is extremely hot and can cause severe burns.
- Use only clean tap water in the water tank. Do not add any cleaning solutions, detergents, or chemicals to the water tank, as this can damage the unit and void the warranty.
- Mantendu haurrak eta maskotak gailutik urrun funtzionatzen ari diren bitartean.
- Ez sartu lurrun-garbigailua uretan edo beste likidoren batean.
- Ensure the power cord is not damaged. Do not operate the appliance with a damaged cord or plug.
- The appliance features anti-dry protection and automatic temperature control reset for safety. However, always monitor the water level during use.
- Utzi unitatea guztiz hozten gorde aurretik.
3. Produktuaren osagaiak
Your steam cleaner comes with several components designed for various cleaning tasks:
- Unitate nagusia: Berogailu-elementua, ur-depositua eta kontrolak ditu.
- Steam Gun: Handheld nozzle for directing steam.
- Lurrun-mahuka: Connects the main unit to the steam gun, designed to be double-layered and anti-tangling for high-pressure use.
- Tobera: A long, angled nozzle for reaching tight spaces.
- Eskuila-buruak: Includes various brush heads (e.g., stiff brush, soft brush) for different surfaces and cleaning needs.
3.1. irudia: Amaituview of the steam cleaner and its included accessories, including the main unit, steam gun, hose, and multiple brush heads.

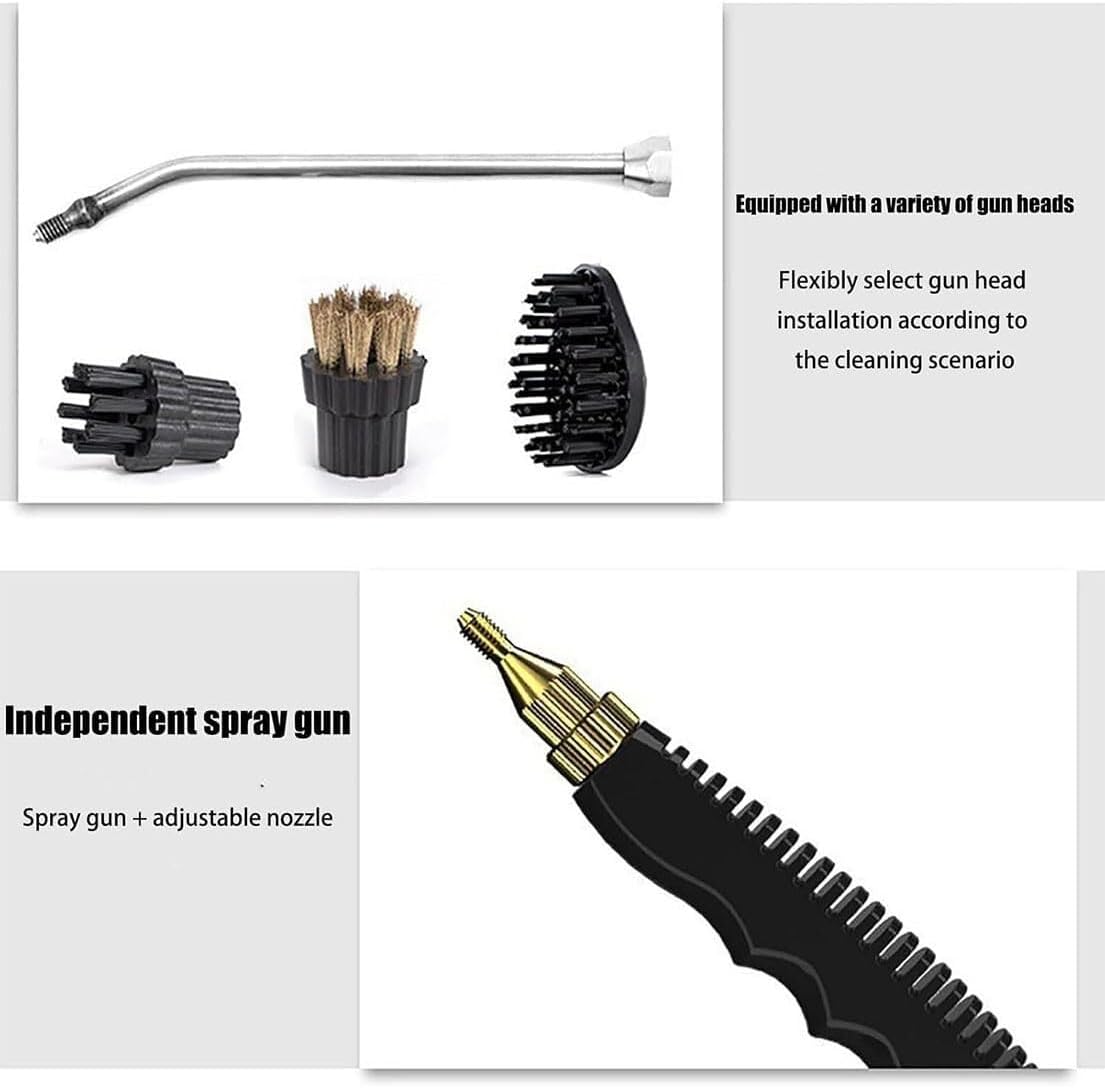

3.2 irudia: Xehetasun zehatza view of the interchangeable gun heads and the independent spray gun, highlighting the non-slip handle and double-layer steam hose.
4. Konfigurazioa
Follow these steps to set up your steam cleaner for first use:
- Desegin: Kontu handiz kendu osagai guztiak ontzitik.
- Lekua: Position the main unit on a stable, flat, and heat-resistant surface.
- Ur depositua bete: Ensure the unit is unplugged. Open the water tank cap and fill the tank with clean tap water. The large capacity glass water tank allows for sustainable operation. Do not overfill. The water tank capacity is 1L (33.82 OZ).
- Attach Hose and Gun: Securely connect the steam hose to the main unit and the steam gun. Ensure all connections are tight to prevent steam leaks.
- Aukeratu osagarria: Choose the appropriate nozzle or brush head for your cleaning task and attach it firmly to the steam gun.
Image 4.1: Demonstrates filling the large capacity glass water tank, which supports up to 1 hour of continuous operation.
5. Funtzionamendu-argibideak
Once set up, follow these steps to operate your steam cleaner:
- Piztu: Plug the power cord into a grounded electrical outlet. Turn on the main power switch. The indicator light will illuminate.
- Berogailua: The unit will begin to heat the water. The 2500W motor ensures quick heating, reaching high-temperature steam in a short time.
- Lurrun Sorkuntza: Once the desired temperature is reached (approximately 100°C), the unit is ready to produce steam.
- Garbiketa: Direct the steam gun towards the surface you wish to clean. Press the steam trigger on the gun to release steam. Move the nozzle slowly over the surface, allowing the high-pressure steam to penetrate and loosen dirt and grime.
- Garbiketa polifazetikoa: This steam cleaner is suitable for various surfaces including kitchen range hoods, air conditioners, sofas, carpets, floors, and bathrooms.
- Garbitu: After steaming, wipe the treated surface with a clean cloth to remove loosened dirt and moisture.
- Betetzea: If the water level becomes low, turn off and unplug the unit, allow it to cool slightly, and then refill the water tank.
- Itzali: When finished, turn off the main power switch and unplug the unit from the outlet.
Image 5.1: The steam cleaner in action, effectively cleaning a kitchen range hood with high-temperature steam.
Image 5.2: Before and after images demonstrating the effective cleaning power of the steam cleaner on a range hood and a stovetop.
6. Mantentzea eta Zainketa
Mantentze egokiak zure lurrun-garbigailuaren iraupena eta errendimendu optimoa bermatzen ditu:
- Ura hustutzea: After each use, allow the unit to cool completely. Carefully drain any remaining water from the tank.
- Garbiketa osagarriak: Clean the nozzles and brush heads after each use. Remove any debris or residue.
- Kanpoko garbiketa: Garbitu unitate nagusiaren kanpoaldea iragarkiarekinamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Kaltziogabetzea (beharrezkoa bada): If you notice reduced steam output or mineral buildup, descaling may be required. Consult the manufacturer for specific descaling instructions, as improper methods can damage the unit.
- Biltegiratzea: Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the hose is not kinked during storage.
7. Arazoak
Lurrun-garbigailuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ez dago lurrun irteerarik | Unit not plugged in; Power switch off; No water in tank; Unit not heated sufficiently; Blocked nozzle. | Check power connection; Turn on power switch; Fill water tank; Allow unit to heat up; Clean or unblock nozzle. |
| Lurrun-presio baxua | Low water level; Mineral buildup; Nozzle partially blocked. | Refill water tank; Perform descaling (if applicable); Clean nozzle. |
| Konexioetatik ura isurtzen | Connections not tight; Damaged O-rings. | Ensure all hose and accessory connections are securely tightened; Inspect O-rings for damage and replace if necessary. |
| Unitatea ez da pizten | No power; Faulty power cord/plug. | Check power outlet; Inspect power cord for damage. Do not use if damaged. |
Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
8. Zehaztapen Teknikoak
| Ezaugarri | Zehaztapena |
|---|---|
| Ereduaren izena | HDLXAEPEA-WHITE |
| Potentzia nominala | 2500W |
| Lurrun-presioa | 3 TABERNA |
| Ur deposituaren edukiera | 1L (33.82 OZ) |
| Steam Hose Length | 2.2 m |
| Etxebizitza Materiala | Plastic (Flame retardant, heat-insulating, non-conductive) |
| Kolorea | Zuria |
| Produktuaren neurriak (L x W x H) | 19 cm x 15 cm x 13 cm (7.48 x 5.91 x 5.51 hazbete) |
| Elementuaren pisua | 1602 gramo (3.53 libra) |

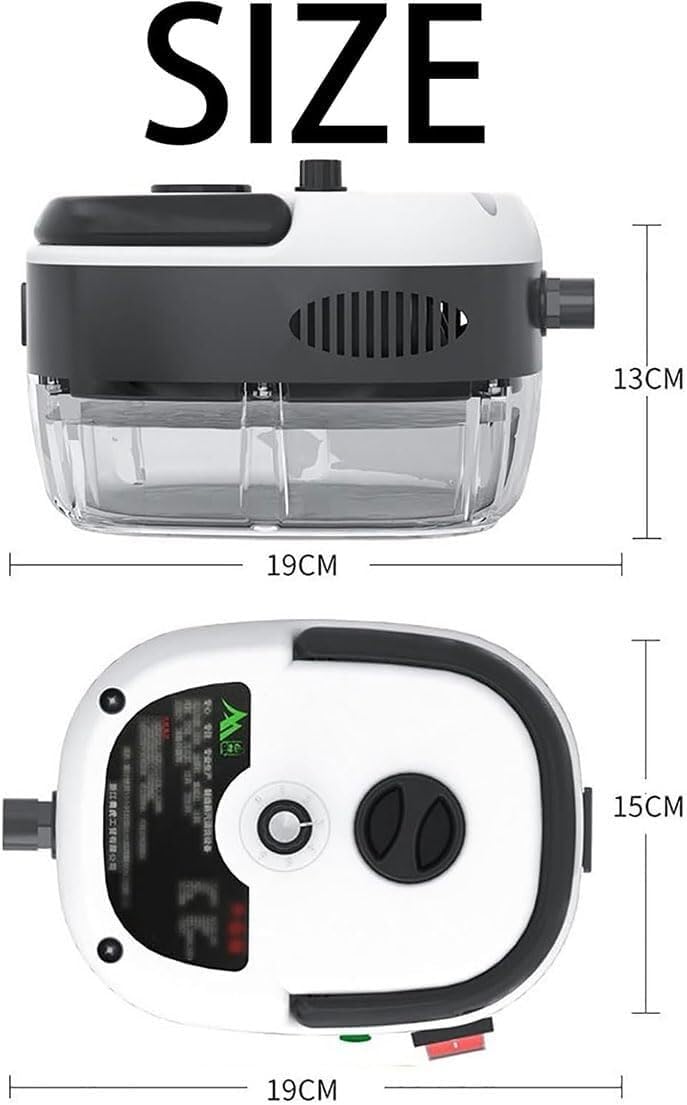

Image 8.1: Dimensional diagram of the steam cleaner, illustrating its compact size.
9. Bermea eta Laguntza
This product is manufactured by Generic. Specific warranty information is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact the seller directly through your purchase platform.
For general inquiries or assistance, you may also visit the manufacturer's official website or contact their customer service department if contact information is available on the product or packaging.
