Sarrera
Eskerrik asko erosketagatik.asing the Generic 3307714 Concrete Grey Wooden Wardrobe. This manual provides essential information for the safe assembly, proper use, and maintenance of your new wardrobe. Please read these instructions carefully before beginning assembly and retain them for future reference.
Segurtasun Informazioa
Garrantzitsua: To prevent tipping, this product must be secured to the wall using the provided wall attachment device. Failure to do so can result in serious injury or death. Always ensure the wardrobe is placed on a level surface.
- Mantendu muntaketa-osagai guztiak haurren eskura ez dauden lekuetan.
- Ez igo armairuaren gainean edo bertatik zintzilikatu.
- Banatu pisua apaletan uniformeki egonkortasuna mantentzeko.
- Always use appropriate tools for assembly.
Paketearen edukia
Muntatu aurretik, egiaztatu behean zerrendatutako osagai guztiak daudela eta kalterik gabe daudela. Pieza bat falta bada edo kaltetuta badago, ez jarraitu muntaketarekin eta jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
- Alboko panelak (2)
- Goiko panela (1)
- Beheko panela (1)
- Apal erregulagarriak (4)
- Atzeko panela (1)
- Assembly Hardware (screws, dowels, shelf pins, wall attachment kit)
- Argibide eskuliburua (dokumentu hau)
Konfigurazioa eta Muntaketa
Assembly requires at least two people. Clear a spacious area for assembly. You will need a Phillips head screwdriver and a hammer (not included).

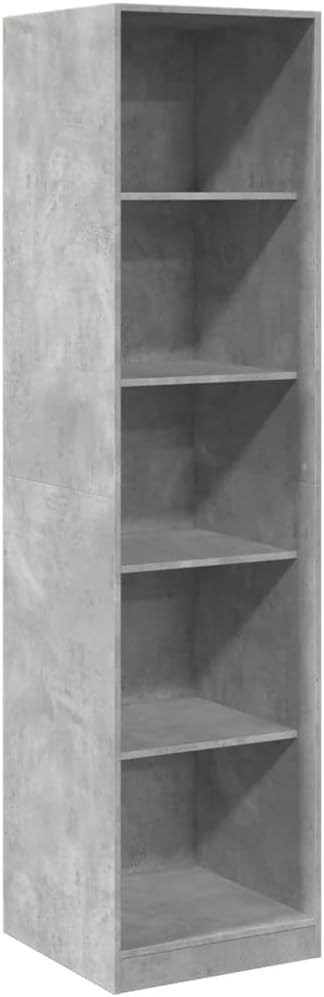

Figure 1: Fully assembled Generic 3307714 Concrete Grey Wooden Wardrobe, empty.
- Piezak desontziratu eta identifikatu: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Refer to the parts list to ensure all pieces are present.
- Oinarrizko egitura muntatu: Attach the bottom panel to one of the side panels using the provided screws and dowels. Ensure connections are secure.
- Bigarren alboko panela erantsi: Connect the second side panel to the bottom panel, mirroring the first side panel attachment.
- Instalatu apalategiak: Insert shelf pins into the pre-drilled holes at your desired height for the adjustable shelves. Slide the shelves onto the pins. The wardrobe includes four adjustable shelves.
- Goiko panela erantsi: Secure the top panel to the assembled side panels using screws and dowels.
- Atzeko panela instalatu: Carefully align and attach the back panel to the rear of the wardrobe using small nails or screws provided. Ensure the wardrobe is square before securing the back panel.
- Hormako eranskina: Position the assembled wardrobe in its final location. Using the provided wall attachment kit, secure the wardrobe to a solid wall stud or use appropriate wall anchors for your wall type. This step is critical for safety.
Figure 2: Close-up of an empty shelf, demonstrating internal finish and shelf support holes.
Funtzionamendu-argibideak
The Generic 3307714 wardrobe is designed for organizing clothing, accessories, and other personal items. Its five compartments offer ample biltegiratze.

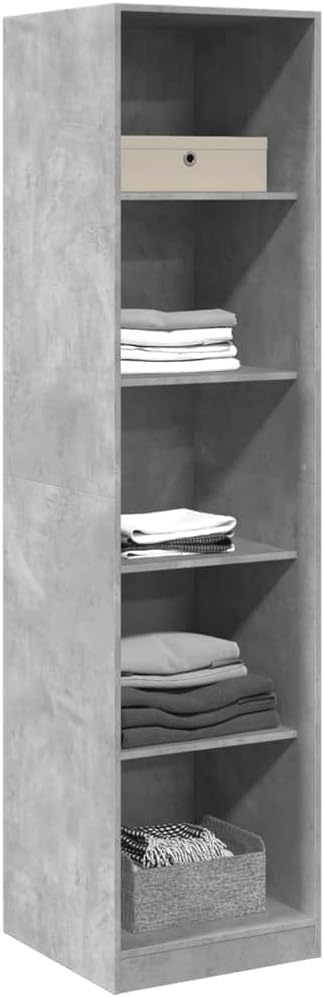

Figure 3: Wardrobe demonstrating storage capacity with various items.
- Kargatzen: Place items gently onto the shelves. Avoid overloading any single shelf to prevent bowing or damage.
- Pisuaren banaketa: Distribute heavier items on lower shelves to enhance stability.
- Apalategiak doitzea: To adjust shelf height, carefully remove all items from the shelf, lift the shelf, remove the pins, reposition the pins in new holes, and then reinsert the shelf.
Mantentzea eta zaintzea
Arreta egokiak zure armairuaren iraupena eta itxura bermatuko ditu.
Figure 4: Detail of the durable concrete grey wood material.
- Garbiketa: Garbitu gainazalak leun batekin, damp oihal. Saihestu garbitzaile urratzaileak edo produktu kimiko gogorrak, hauek akabera kaltetu baitezakete.
- Isurketak: Clean up spills immediately to prevent staining or moisture damage to the wood material.
- Eguzkiaren argia: Saihestu eguzki-argiaren eraginpean denbora luzez, kolorea galtzea saihesteko.
- Hezetasuna: Mantendu giro-tenperatura eta hezetasun maila egonkor bat egurrezko materiala deformatzea edo pitzatzea saihesteko.
- Ikuskapenak: Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, berriro estutu.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Armairua ezegonkorra edo dardartia iruditzen da. | Not properly secured to the wall; uneven floor; loose connections. | Ensure wall attachment is correctly installed. Check if the floor is level; use shims if necessary. Retighten all assembly screws. |
| Zaila da apalak sartzea edo kentzea. | Apaletako pintxoak ez daude guztiz sartuta edo gaizki lerrokatuta. | Ensure shelf pins are fully seated in the pre-drilled holes. Gently wiggle the shelf to align with pins. |
| Surface marks or smudges. | Dust accumulation or minor spills. | Garbitu leun batekin, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood finishes. |
Zehaztapenak
| Modelo zenbakia | 3307714 |
| Marka | Generikoa |
| Kolorea | Concrete Grey |
| Materiala | Wood-based material (durable and robust with a smooth surface, characterized by resistance, stability, and moisture resistance) |
| Produktuaren neurriak (L x W x H) | 50 cm x 50 cm x 200 cm (19.7" x 19.7" x 78.7") |
| Muntatze Mota | Floor Mount (with required wall attachment) |
| Konpartimentu kopurua | 5 |
Bermea eta Laguntza
For warranty information or technical support, please refer to the retailer's policy or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.
