K-Duo Essentials Hot & Iced Coffee Maker User Manual

Sarrera

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your K-Duo Essentials Hot & Iced Coffee Maker. Please read this manual thoroughly before first use and retain it for future reference.

Figure 1: The K-Duo Essentials Hot & Iced Coffee Maker, a versatile appliance for both single-serve and carafe brewing.

Berme garrantzitsuak

Etxetresna elektrikoak erabiltzean, oinarrizko segurtasun-neurriak jarraitu behar dira beti sute, deskarga elektriko eta/edo pertsonentzako lesio arriskua murrizteko, besteak beste:

• Irakurri argibide guztiak.
• Ez ukitu gainazal beroak. Erabili heldulekuak edo eskutokiak.
• Suteen, deskarga elektrikoen eta lesio pertsonalen aurka babesteko, ez murgildu kablea, entxufeak edo etxetresna elektrikoa uretan edo beste likido batzuetan.
• Gainbegiratzea beharrezkoa da aparaturen bat umeek edo umeen ondoan erabiltzen dutenean.
• Deskonektatu entxufetik erabiltzen ez duzunean eta garbitu aurretik. Utzi hozten piezak jarri edo kendu aurretik, eta aparatua garbitu aurretik.
• Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo gailuak gaizki funtzionatzen duenean, edo nolabait hondatu bada. Itzul ezazu aparatua baimendutako zerbitzu-instalazio hurbilenera, aztertzeko, konpontzeko edo doitzeko.
• Gailuaren fabrikatzaileak gomendatzen ez dituen osagarri osagarriak erabiltzeak sua, deskarga elektrikoa edo lesio pertsonalak eragin ditzake.
• Ez erabili kanpoan.
• Ez utzi kablea mahaiaren edo erakusmahaiaren ertzetik zintzilik zintzilik, ezta gainazal beroak ukitu ere.
• Ez jarri gas edo erregailu elektriko bero baten gainean edo inguruan, edo berotutako labe batean.
• Beti konektatu entxufea lehenik etxetresna elektrikora, eta gero konektatu kablea hormako entxufean. Deskonektatzeko, jarri edozein kontrol "itzali" posizioan, eta gero atera entxufea hormako entxufetik.
• Ez erabili aparatua aurreikusitako erabilera ez den beste baterako.

Osagaiak

Familiarize yourself with the parts of your K-Duo Essentials Coffee Maker:

• Ur biltegia: Large 72 oz capacity, shared for both single-serve and carafe brewing.
• K-Cup Pod-en euskarria: For single-serve brewing.
• Ground Coffee Filter Basket: For carafe brewing with ground coffee.
• 12 edalontziko beirazko garrafa: Included for multi-cup brewing.
• Berotzeko plaka: Keeps brewed carafe coffee warm.
• Kontrol-panela: Features buttons for brew size, strong brew, brew over ice, and power.
• Tantaketarako erretilua: Removable for easy cleaning and to accommodate taller mugs.

2 Irudia: Gainetikview of the K-Duo Essentials Coffee Maker's key features and components.

Konfigurazioa

Initial Setup and First Brew

1. Desegin: Remove all packaging materials and tape from the coffee maker.
2. Garbitu: Wash the carafe, carafe lid, and K-Cup pod holder in warm, soapy water. Rinse thoroughly and dry.
3. Bete urtegia: Fill the water reservoir with fresh, filtered water up to the MAX fill line.


   Figure 3: The 72oz removable water reservoir being filled, located on the side of the coffee maker.

4. Konektatu: Plug the coffee maker into a grounded outlet. The power button will illuminate.
5. Cleansing Brew (Single Serve):
   • Jarri katilu handi bat tantaka.
   • Lift the handle and lower it without inserting a K-Cup pod.
   • Select the 8 oz brew size.
   • Sakatu BREW botoia.
   • Once complete, discard the hot water.
6. Cleansing Brew (Carafe):
   • Jarri karafa hutsa berogailu-plakan.
   • Open the carafe brew lid and insert an empty paper filter into the filter basket. Close the lid.
   • Select the 12-cup brew size.
   • Sakatu BREW botoia.
   • Once complete, discard the hot water.

Funtzionamendu-argibideak

Brewing a Single-Serve Cup

1. Ziurtatu ur-depositua beteta dagoela.
2. Jarri katilu bat tantakako erretiluan.
3. Lift the handle and insert a K-Cup pod into the K-Cup pod holder. Close the handle firmly.


   Figure 4: A K-Cup pod being inserted into the single-serve side of the K-Duo Essentials Coffee Maker.
4. Select your desired brew size (8, 10, or 12 oz).
5. (Optional) Press the INDARRA button for a bolder cup or the IZOTZ GAINEAN EGINDA button for iced coffee.
6. Press the illuminated BREW button. The coffee maker will begin brewing.
7. Once brewing is complete, carefully remove the K-Cup pod.

Figure 5: The K-Duo Essentials Coffee Maker preparing an iced coffee, demonstrating its versatility.

Garrafa bat prestatzea

1. Ziurtatu ur-depositua beteta dagoela.
2. Jarri 12 edalontziko beirazko garrafa berogailu-plakan.


   Figure 6: The included 12-cup glass carafe positioned on the heating plate, designed to keep coffee warm.
3. Open the carafe brew lid. Insert a paper filter (basket style) into the filter basket.
4. Add desired amount of ground coffee to the filter. For best results, use 1 tablespoon of ground coffee per cup. Do not exceed 15 tablespoons. Close the carafe brew lid firmly.
5. Select your desired carafe brew size (8, 10, or 12 cups).
6. Press the illuminated BREW button. The coffee maker will begin brewing.
7. The heating plate will remain on for 2 hours after brewing is complete.
8. The Pause & Pour feature allows you to pour a cup mid-brew without waiting for the full carafe to finish.

Figure 7: The K-Duo Essentials Coffee Maker brewing a full carafe of coffee, ideal for multiple servings.

Produktuaren bideo ofiziala

Mantentzea

Garbiketa

• Deskonektatu beti kafe-makina garbitu aurretik.
• Kanpoko garbiketa: Garbitu kanpoaldea iragarkiarekinamp, soapy cloth. Do not immerse the coffee maker in water.
• Tantaketarako erretilua: The drip tray can hold up to 8 oz of overflow. It should be emptied and cleaned regularly. Remove the drip tray and wash with warm, soapy water.
• K-Cup Pod-en euskarria: The K-Cup pod holder can be removed for cleaning. Separate the funnel from the holder and wash both parts.
• Karafa eta iragazki-saskia: Wash the glass carafe, carafe lid, and reusable filter basket (if applicable) with warm, soapy water.

descaling

Minerals in water can build up in your coffee maker over time, affecting performance. The DESCALE indicator light will illuminate when descaling is recommended.

1. Prestatu: Turn off the coffee maker. Empty the water reservoir and remove any K-Cup pods or ground coffee.
2. Irtenbidea: Pour a full bottle of Keurig Descaling Solution into the water reservoir. If using a homemade solution (e.g., white vinegar), use 10 oz of white vinegar and 10 oz of water.
3. First Rinse Brew (Carafe): Place the empty carafe on the heating plate. Select the 12-cup brew size and press BREW. Discard the solution once complete.
4. First Rinse Brew (Single Serve): Place a large mug on the drip tray. Lift and lower the handle without a K-Cup. Select the 12 oz brew size and press BREW. Discard the solution once complete.
5. Busti: Let the coffee maker stand for at least 30 minutes.
6. Second Rinse Brews: After soaking, perform several rinse brews using only fresh water until the reservoir is empty. Repeat this process at least 3 times for both single-serve and carafe sides to ensure all descaling solution is flushed out.
7. The DESCALE light should turn off. If it remains on, repeat the descaling process.

Arazoak konpontzea

Zehaztapenak

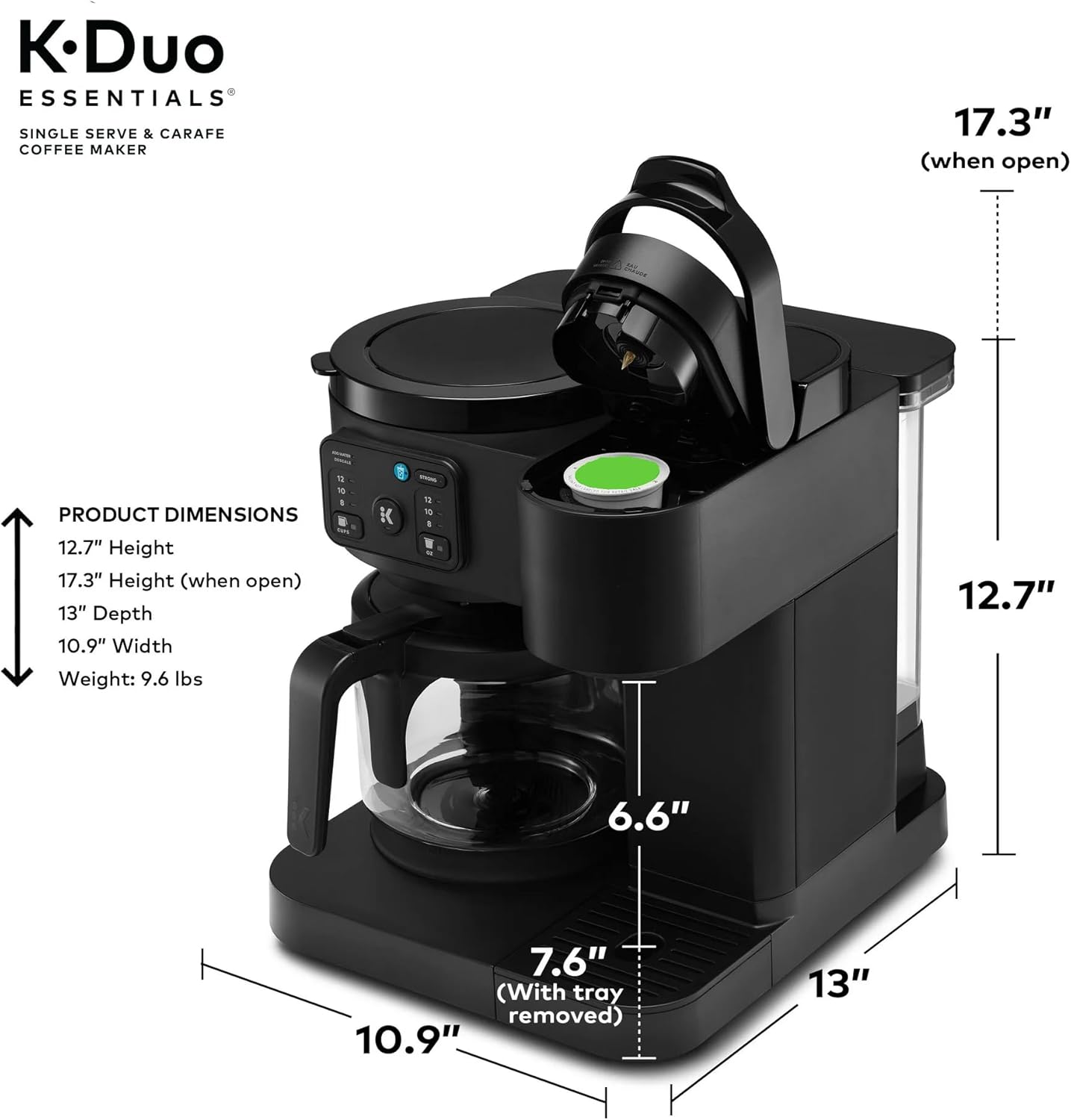

Figure 8: Detailed dimensions of the K-Duo Essentials Coffee Maker for proper placement.

Bermea eta Laguntza

For warranty information and customer support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For additional assistance, you may visit the manufacturer's official website or contact their customer service line. Contact details are typically provided in the product's original packaging.
