vidaXL Kitchen Base Cabinet (1 Door, 1 Drawer) Instruction Manual

1. Sarrera

Thank you for choosing the vidaXL Kitchen Base Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions carefully before beginning assembly or use to ensure proper installation and to maximize the lifespan of your product. Keep this manual for future reference.

This kitchen base cabinet is designed to offer functional storage and a minimalist aesthetic to your kitchen space. It features a single door and a single drawer, providing versatile storage options for various kitchen items.

1.1. irudia: Aurrealdea view of the assembled vidaXL Kitchen Base Cabinet.

2. Segurtasun informazioa

• Irakurri argibide guztiak: Aurrera jarraitu aurretik, ziurtatu muntaketa-urrats eta segurtasun-abisu guztiak ulertzen dituzula.
• Two-person assembly: Osagaien tamaina eta pisua direla eta, bi pertsonentzat muntatzea gomendatzen da.
• Erabili tresna egokiak: Ensure you have the correct tools for assembly.
• Kontuz maneiatu: Some components may have sharp edges. Handle all parts carefully to prevent injury.
• Instalazio segurua: Ensure the cabinet is placed on a level, stable surface. If necessary, use wall anchoring devices (not included) to prevent tipping, especially in households with children or pets.
• Pisu muga: Do not exceed the maximum weight capacity of 110.2 lbs (50 kg) for the cabinet.
• 65. proposamena Abisua: Produktu honek Kaliforniako estatuak minbizia eta jaiotzako akatsak edo ugalketa beste kalteak sor ditzakeen produktu kimikoak izan ditzake.

3. Paketearen edukia

Before starting assembly, verify that all parts and hardware are present and undamaged. Refer to the included parts list (usually found in the packaging) to cross-reference all components. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Armairuko panelak (alboak, goikoa, behekoa, atzealdea)
• Tiraderaren osagaiak
• Ateko panela
• Oin erregulagarriak
• Heldulekuak
• Txangak eta tiraderen irristagailuak
• Muntaketa-osagarriak (torlojuak, espiga, kama-blokeoak, etab.)

4. Konfigurazioa eta Muntaketa

4.1 Beharrezko tresnak

• Phillips buruko bihurkina
• Mailua (estakoetarako)
• Neurtzeko zinta
• Maila

4.2 Muntaketa urratsak

Follow the step-by-step diagrams provided in the separate assembly instructions included with your product. The general sequence is as follows:

1. Prepare the workspace: Muntaketa egiteko, garbitu gune zabal, garbi eta laua. Jarri manta edo kartoi bat armairuko piezak eta zorua babesteko.
2. Muntatu marko nagusia: Konektatu alboko panelak beheko eta goiko paneletara emandako hardwarea erabiliz. Ziurtatu konexio guztiak ondo finkatuta daudela.
3. Instalatu atzeko panela: Lotu atzeko panela marko nagusira.
4. Attach adjustable feet: Screw the adjustable feet into the designated holes on the bottom of the cabinet. These feet allow for leveling on uneven surfaces.
5. Assemble the drawer: Follow the instructions to assemble the drawer box and attach the drawer slides.
6. Install drawer into cabinet: Carefully slide the assembled drawer into the cabinet frame.
7. Attach door hinges: Mount the hinges to the door panel and then to the cabinet frame.
8. Instalatu heldulekuak: Attach the handles to the drawer front and door panel.
9. Azken doikuntzak: Once assembled, place the cabinet in its desired location. Use a level to ensure it is perfectly balanced by adjusting the feet. Adjust door hinges if necessary for proper alignment.

4.1. irudia: Atzekoa view of the cabinet, illustrating the back panel and adjustable feet.

Image 4.2: Detail of the height-adjustable foot.

5. Funtzionamendu-argibideak

5.1 Storage Access

The cabinet features one top drawer and one lower compartment behind a door. Use the handles to open and close the drawer and door smoothly. The spacious interior is suitable for storing various kitchen essentials, from utensils to pots and pans.

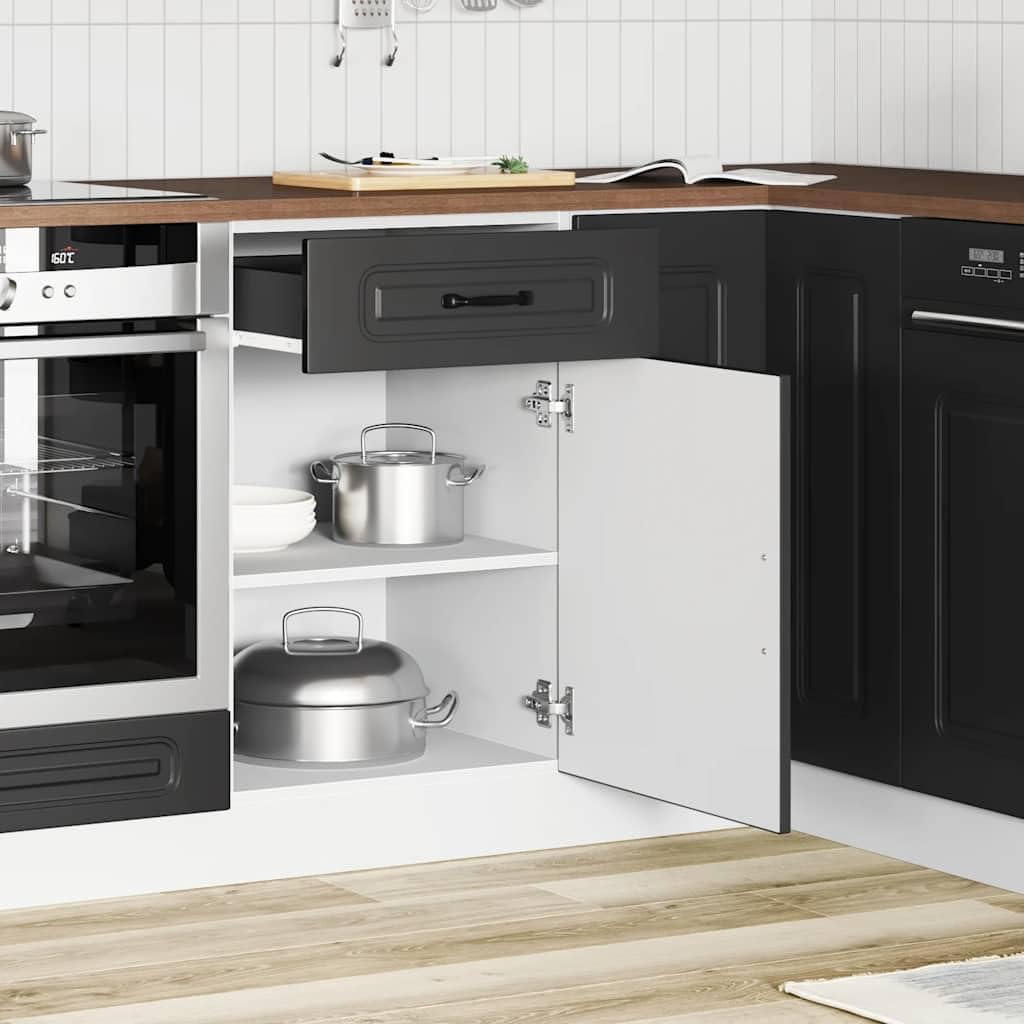

Image 5.1: Cabinet interior with door and drawer open, showing storage capacity.

5.2 Adjusting Stability

The cabinet is equipped with manual height-adjustable feet. If the cabinet feels wobbly or uneven after placement, gently lift the cabinet slightly and rotate the feet clockwise to raise or counter-clockwise to lower until the cabinet is stable and level. Use a spirit level to confirm stability.

6. Mantentzea

To ensure the longevity and appearance of your vidaXL Kitchen Base Cabinet, follow these maintenance guidelines:

• Garbiketa: Garbitu gainazalak leun batekin, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the engineered wood finish.
• Isurketak: Garbitu isuriak berehala, hezetasunak egurraren kalteak saihesteko.
• Hardwarea: Aldian-aldian egiaztatu torloju eta osagarri guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, estutu egituraren osotasuna mantentzeko.
• Avoid excessive weight: Do not overload the cabinet or drawer beyond the recommended weight capacity.
• Ingurumen baldintzak: Avoid placing the cabinet in direct sunlight or near heat sources, as this can cause discoloration or warping over time. Maintain a stable room temperature and humidity.

7. Arazoak

• Kabinetea ezegonkorra da: Adjust the height of the individual feet until the cabinet is stable and level on the floor. Use a spirit level to verify.
• Tiradera ez da leunki irristatzen: Check if the drawer slides are correctly installed and aligned. Ensure no objects are obstructing the slides. Lubricate slides with a silicone-based spray if needed.
• Door does not close properly or is misaligned: Adjust the hinges. Most cabinet hinges allow for minor adjustments in three directions (up/down, left/right, in/out) using a screwdriver. Refer to the hinge manufacturer's instructions if specific adjustments are unclear.
• Falta diren piezak edo kaltetutako osagaiak: Do not attempt to force assembly. Contact vidaXL customer support or your retailer for replacement parts.

8. Zehaztapenak

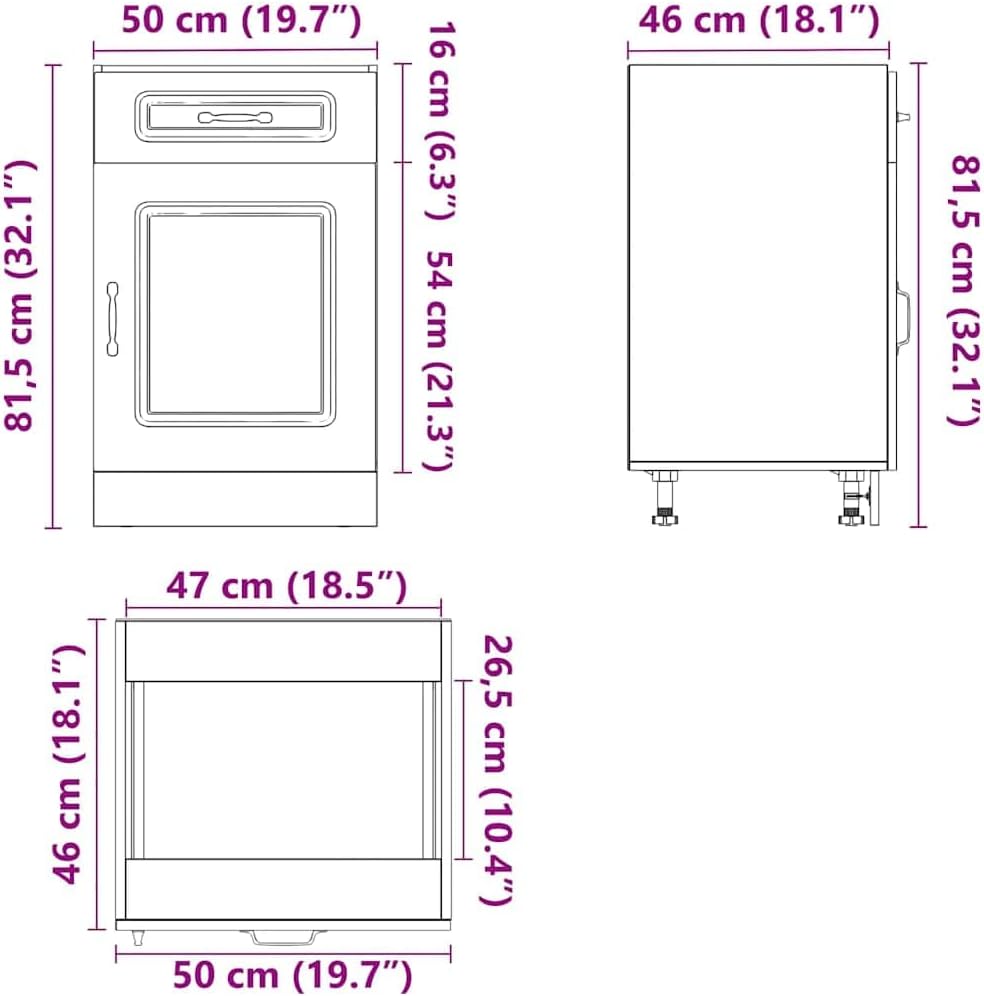

Image 8.1: Dimensional diagram of the cabinet.

9. Bermea eta Laguntza

For specific warranty information, please refer to the terms and conditions provided by your retailer or contact vidaXL customer support directly. Typically, products are covered against manufacturing defects for a specified period.

If you encounter any issues or require assistance with your vidaXL Kitchen Base Cabinet, please contact the retailer from whom you purchased the product. For purchases made on Amazon, a 30-day return policy is generally available for eligible items. Always retain your proof of purchase for warranty claims or support inquiries.

For further assistance, you may visit the official vidaXL webwebgunean edo jarri harremanetan bere bezeroarentzako arreta zerbitzuarekin.
