Instruction Manual for Replacement Turntable Stylus Needle

1. Sarrera

This manual provides essential information for the installation, operation, and maintenance of your new replacement turntable stylus needles. Designed for a wide range of record players, these ruby stylus needles ensure optimal sound reproduction and extend the life of your vinyl records. Please read this manual thoroughly before use to ensure proper handling and performance.

2. Produktua amaitu daview

The replacement stylus is a critical component of your turntable's cartridge, responsible for tracking the grooves of your vinyl records and converting mechanical vibrations into electrical signals. This product includes three high-quality ruby stylus needles, designed for durability and precise audio playback.

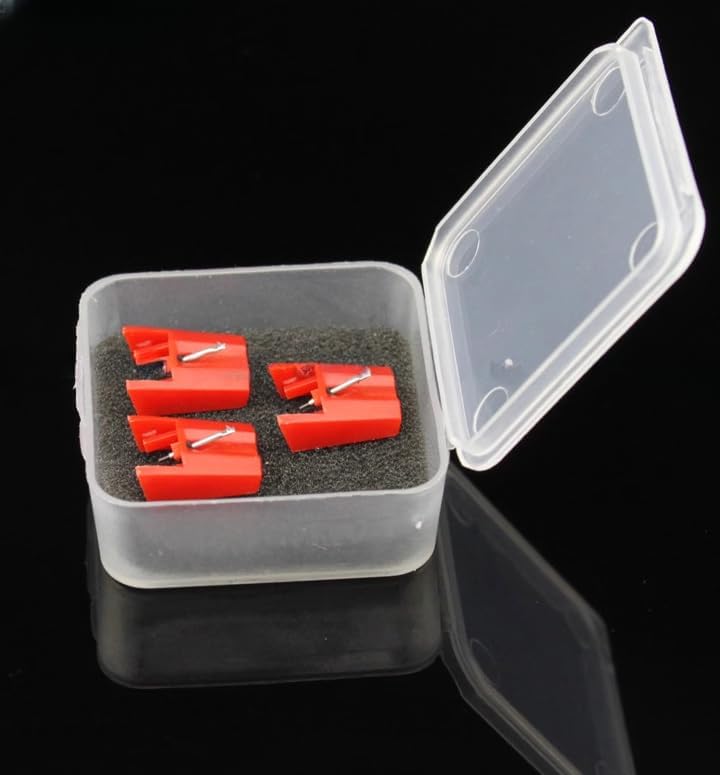

Figure 2.1: Three red replacement styluses neatly packaged in a protective clear plastic case.

Figure 2.2: The compact size of the replacement styluses, shown resting in a hand.

2.3. irudia: Zehaztutako irudia view of a single replacement stylus, emphasizing the ruby needle tip.

3. Bateragarritasuna

These replacement stylus needles are compatible with a wide range of turntable models. Please refer to the list below to confirm compatibility with your specific record player:

Compatible ION Turntables:

• ION PROFILE PRO, PROFILE, PROFILE PLUS, PROFILE LP USB DELUXEI
• ITTUSB05, ITTUSB, ITTUSB1, ITTCD10, IPTUSB
• TTUSB05, TTUSB, TTUSB10, PTUSB, LPDOCK
• ITT03X, IDJ03, DJ02M
• LPDock, LP2CD, LP2Flash, IProfile, Profile Flash, Profile Pro, Profile Lp
• ITTUSB05, ITTUSB, ITTUSB10, ITTCD10, IDJ03, ITT02A, ITT03
• TTUSB, TTUSB05, TTUSB05XL, TTUSB10, TTUSBDC

Compatible Fisher Turntables:

• ST09D, STW17J, STW40J
• MT223A, MT228, MT229, MT851, MT854, MT855A

Compatible Gemini Turntables:

• CN1000, XL series, XL100, XL300, XL500, TT01

Compatible Goodmans Turntables:

• CRN-2500-1, GSP400, GSP400S

Compatible Kenwood/Trio Turntables:

• N69, P31, P110

Compatible Sharp/Optonica Turntables:

• STY158

Compatible Steepletone Turntables:

• SSTY3

Compatible KAM Turntables:

• BDX350, KC1, KS1, DDX1200, DDX2000, DDX3000, DDX3800, DDX4000 (Note: Will not fit DDX1200B, DDX2000B)

Compatible MINISTRY OF SOUND Turntables:

• CT01, TT100, TT1000

Compatible Numark Turntables:

• Groovetool RS, GTRS, TTUSB, TT1600, TT1600 mk2, TT1610, TT1650

Compatible Otto Turntables:

• ST09D, STW40J, DCX702, DCX22, DCX1000, DCX1050

Compatible PFANSTIEHL Turntables:

• 901-D7, F1395, FP320

Compatible Pyle Turntables:

• PLTTB1, PLTT2BU, PLTTB3U

Compatible Sony Turntables:

• CN234, CN251, PSLX150, PSLX150H, PSJ10, PSJ11, PSJ20, PSLX495, PSLX49, PSLX49P, PSLX52, PSLX52P, PSLX55, PSLX56P, PSLX56, PSLX57, PSLX6, PSLX66, PSLX150H, PSLX300H (May also fit PSLX44P, PSLX46P in some countries)

4. Setup: Replacing Your Stylus

Replacing a turntable stylus is a delicate process that requires care to avoid damaging the cartridge or tonearm. Follow these steps carefully:

1. Itzali: Ensure your turntable is completely powered off and unplugged from the wall outlet to prevent accidental damage.
2. Secure Tonearm: Gently secure the tonearm in its rest to prevent it from moving during the stylus replacement.
3. Remove Old Stylus:
   • Locate the existing stylus on the cartridge. It is usually a small plastic housing with the needle protruding from the bottom.
   • Gently grasp the stylus housing (not the needle itself) and pull it straight down or forward, depending on your cartridge design. It should detach with a slight click or gentle pull. Avoid twisting or applying excessive force.
4. Install New Stylus:
   • Carefully align the new replacement stylus with the cartridge body. The stylus typically has a specific orientation and will only fit one way.
   • Gently push the new stylus upwards or backwards into the cartridge until it clicks securely into place. Ensure it is seated firmly and flush with the cartridge body. Do not force it.
5. Ikuskatu: Visually inspect the newly installed stylus to ensure it is straight and properly aligned. The needle should be clearly visible and centered.

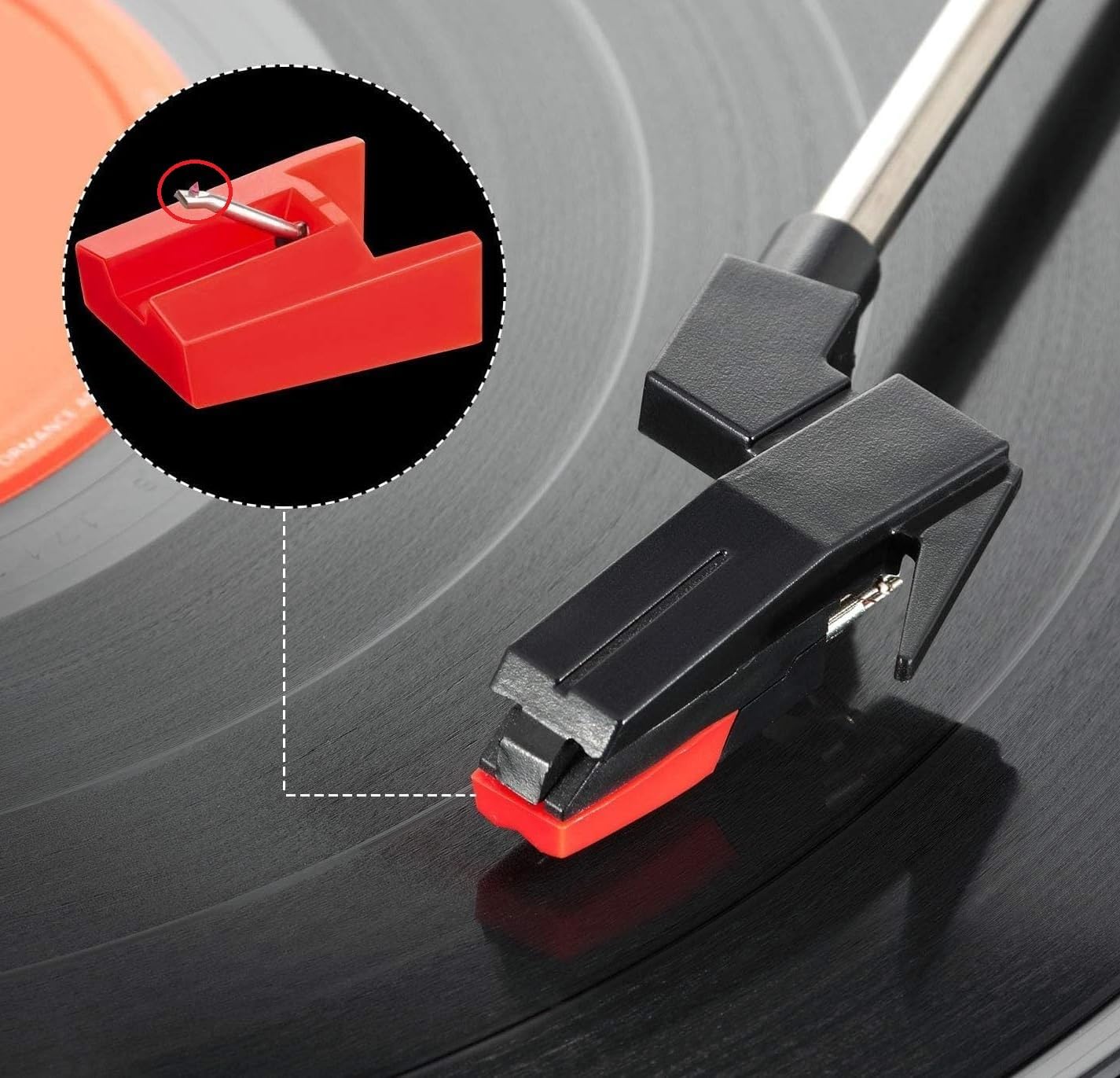

Figure 4.1: Illustration of a stylus being installed onto a turntable's tonearm and cartridge assembly.

5. Operating Your Turntable with New Stylus

Once the new stylus is installed, you can resume normal operation of your turntable. The stylus is designed to accurately track the grooves of your vinyl records, translating the physical undulations into electrical signals that are then amplified and converted into sound.

• Erregistroaren kokapena: Carefully place your vinyl record onto the turntable platter.
• Tonearm Positioning: Gently lift the tonearm using the cueing lever (if available) and position the stylus over the lead-in groove of the record.
• Lowering the Stylus: Slowly lower the tonearm using the cueing lever, allowing the stylus to gently descend onto the record. Avoid dropping the tonearm, as this can damage the stylus or record.
• Erreprodukzioa: The stylus will now begin to track the record's grooves, and audio playback will commence.

6. Mantentzea eta Zainketa

Proper maintenance of your stylus will ensure optimal sound quality and extend its lifespan. A clean stylus is crucial for accurate tracking and preventing damage to your records.

• Ohiko garbiketa: Use a soft stylus brush (sold separately) to gently brush the stylus tip from back to front (never side to side or front to back) after every few plays. This removes dust and debris that can accumulate.
• Saihestu ukitzea: Never touch the stylus tip with your fingers, as oils and dirt can transfer and degrade performance.
• Record Cleanliness: Always play clean records. Dust and grime on records are the primary cause of stylus wear and poor sound quality.
• Biltegiratzea: When not in use, ensure the tonearm is secured in its rest and, if your turntable has one, the stylus guard is in place. Store replacement styluses in their protective case.
• Ordezko ordutegia: Styluses wear out over time. While the lifespan varies based on usage and care, it is generally recommended to replace your stylus every 500-1000 hours of playback, or sooner if you notice a degradation in sound quality (e.g., distortion, sibilance) or visible wear on the tip.

7. Arazoak

If you encounter issues after replacing your stylus, consider the following common problems and solutions:

8. Zehaztapenak

• Produktu mota: Replacement Turntable Stylus Needle
• Stylus Material: Ruby
• Kolorea: Gorria
• Kantitatea: 3 PZ
• Bateragarritasuna: Designed for various ION, Fisher, Gemini, Goodmans, Kenwood/Trio, Sharp/Optonica, Steepletone, KAM, MINISTRY OF SOUND, Numark, Otto, PFANSTIEHL, Pyle, and Sony turntable models (refer to Compatibility section for full list).
• ASIN: B0DP3B3XG3
• Jatorrizko herrialdea: Txina
• Kartutxo mota: Moving Magnet (MM) (Note: Cartridge not included)

9. Bermea eta Laguntza

For specific warranty information regarding this product, please refer to the terms provided by your retailer or contact the seller directly. As this is a replacement part, warranty coverage may vary.

If you have further questions or require technical assistance, please reach out to the seller or manufacturer through the platform where the product was purchased. Always provide your product model number (B0DP3B3XG3) and a detailed description of your issue for efficient support.
