Bonsenkitchen Vacuum Sealer Machine User Manual

Sarrera

Thank you for choosing the Bonsenkitchen Vacuum Sealer Machine. This appliance is designed to preserve food freshness by removing air from specially designed bags and containers, extending the shelf life of your food up to 6 times longer than traditional storage methods. It helps prevent freezer burn, reduces food waste, and maximizes storage space in your refrigerator and freezer. Please read this manual thoroughly before operating the machine to ensure safe and efficient use.

Segurtasun-argibide garrantzitsuak

Etxetresna elektrikoak erabiltzean, oinarrizko segurtasun-neurriak bete behar dira beti, besteak beste:

• Irakurri argibide guztiak tresna hau erabili aurretik.
• Ez murgildu gailua, kablea edo entxufea uretan edo beste likido batzuetan.
• Gainbegiratzea beharrezkoa da aparatua umeek edo umeen ondoan erabiltzen dutenean.
• Deskonektatu entxufetik erabiltzen ez duzunean eta garbitu aurretik.
• Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
• Erabili gailua etxeko erabilerarako soilik.
• Ez jarri gas edo erregailu elektriko bero baten gainean edo inguruan, edo berotutako labe batean.
• Always ensure the lid is properly latched before operating.
• Allow the appliance to cool down for 20 seconds between sealing cycles to prevent overheating.

Paketearen edukia

Upon opening your Bonsenkitchen Vacuum Sealer Machine package, please verify that all the following items are included:

• 1 x Bonsenkitchen Vacuum Sealer Machine (Model VS3201-WS)
• 10 x 6in x 10in Pre-cut Vacuum Sealer Bags
• 10 x 8in x 12in Pre-cut Vacuum Sealer Bags
• 10 x 11in x 16in Pre-cut Vacuum Sealer Bags
• 1 x 11in x 20ft Vacuum Sealer Roll
• 1 x Aire xurgapen mahuka
• 3 x Air Suction Adapters
• 1 x Erabiltzailearen eskuliburua

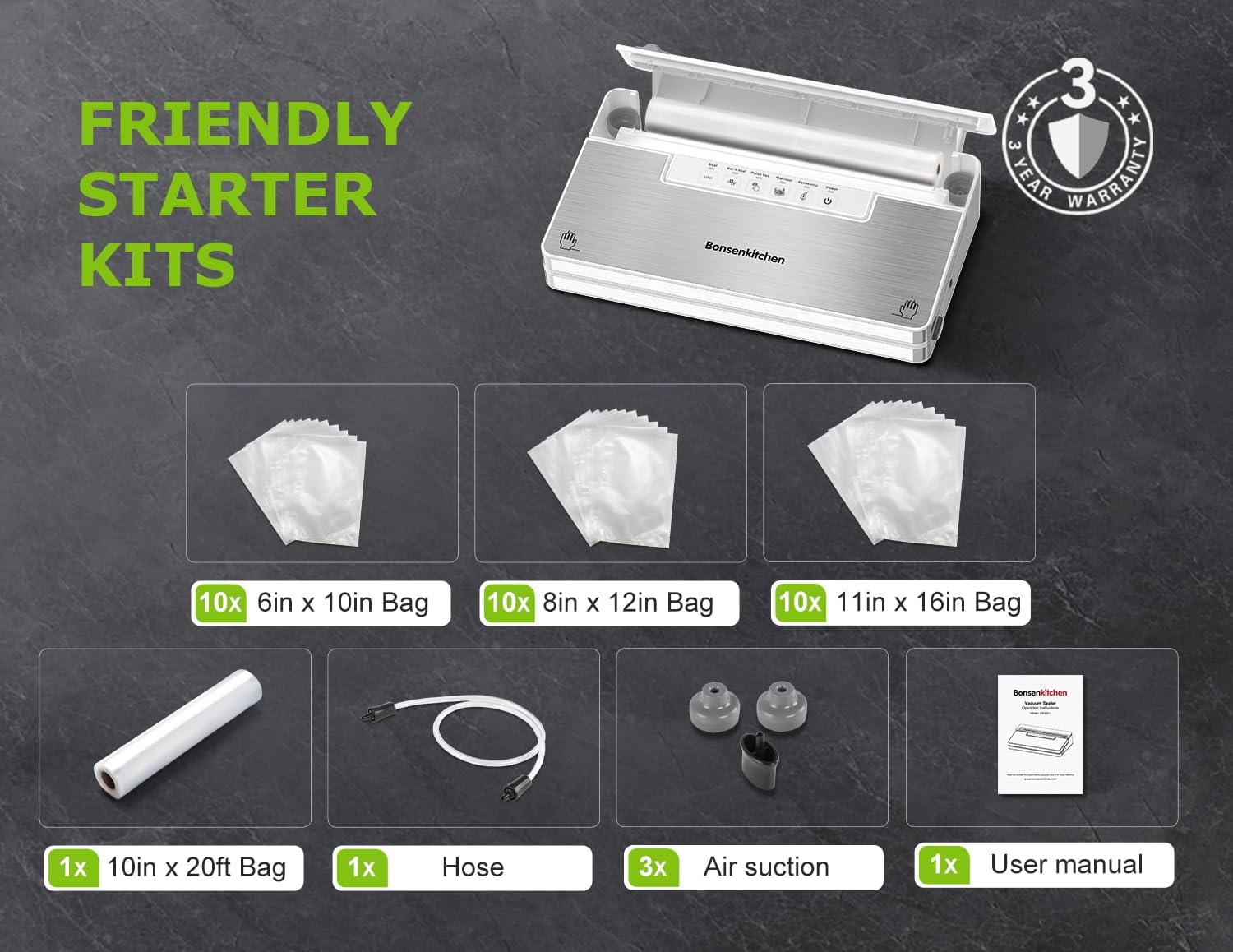

Image: All items included in the Bonsenkitchen Vacuum Sealer Machine starter kit, laid out for clear viewing.

Produktua amaituview

Familiarize yourself with the components of your vacuum sealer for optimal operation.

Image: The Bonsenkitchen Vacuum Sealer Machine, highlighting its sleek design and the accessories it comes with.

Funtsezko osagaiak:

• Kontrol-panela: Features intuitive buttons for different vacuum and sealing modes.
• Hutseko ganbera: The area where the bag is placed for air removal.
• Zigilatzeko banda: Heats up to create an airtight seal on the bag.
• Ebakitzaile integratua: Located within the lid for custom bag sizing.
• Bag Roll Storage: Convenient compartment for storing vacuum sealer rolls.
• Osagarrien Portua: For connecting the air suction hose to external containers.

Konfigurazioa

Before first use, ensure the machine is clean and placed on a flat, stable surface.

Using the Built-in Cutter and Bag Storage:

1. Open the top cover of the vacuum sealer.
2. Place a vacuum sealer roll (up to 11 inches wide) into the designated storage compartment.
3. Atera poltsa-materialaren nahi duzun luzera.
4. Close the lid and slide the built-in cutter from left to right to create a custom-sized bag.
5. Seal one end of the newly cut bag using the "Seal" function before filling.

Image: Step-by-step guide on utilizing the integrated bag cutter and storage for custom bag creation.

Funtzionamendu-argibideak

The Bonsenkitchen Vacuum Sealer offers multiple modes for various food types and preservation needs.

Irudia: Gainetikview of the vacuum sealer's five operating modes and their primary uses.

General Sealing Process:

1. Prepare your food and place it into a vacuum sealer bag, leaving at least 3 inches of space from the top.
2. Open the left and right locks of the machine and open the top lid.
3. Place the open end of the vacuum bag flat into the vacuum chamber, ensuring it is smooth and free of wrinkles.
4. Close the appliance lid firmly until you hear two "click" sounds, indicating it is securely locked.
5. Press the "Power" button, then select your desired mode to start the process.

Image: A visual sequence demonstrating the steps to prepare and vacuum seal a bag of food.

1. Vac & Seal Mode (Automatic Vacuum & Seal for Dry Food):

This mode is ideal for dry foods such as nuts, coffee beans, and non-liquid meats. The machine will automatically vacuum the air and then seal the bag.

• Place the bag in the vacuum chamber.
• Itxi eta blokeatu tapa.
• Press the "Vac & Seal" button. The machine will automatically complete the vacuuming and sealing process.

Image: The vacuum sealer operating in Vac & Seal mode, suitable for various dry food items.

2. Pulse Vac Mode (Manual Control for Delicate/Moist Food):

Use this mode for delicate foods like bread, marshmallows, or moist foods like strawberries and marinated meats, where you need precise control over the vacuum pressure to prevent crushing or drawing liquids into the machine.

• Place the bag in the vacuum chamber.
• Itxi eta blokeatu tapa.
• Press and hold the "Pulse Vac" button to start vacuuming. Release the button when the desired vacuum level is reached.
• Once vacuuming is complete, press the "Seal" button to seal the bag.

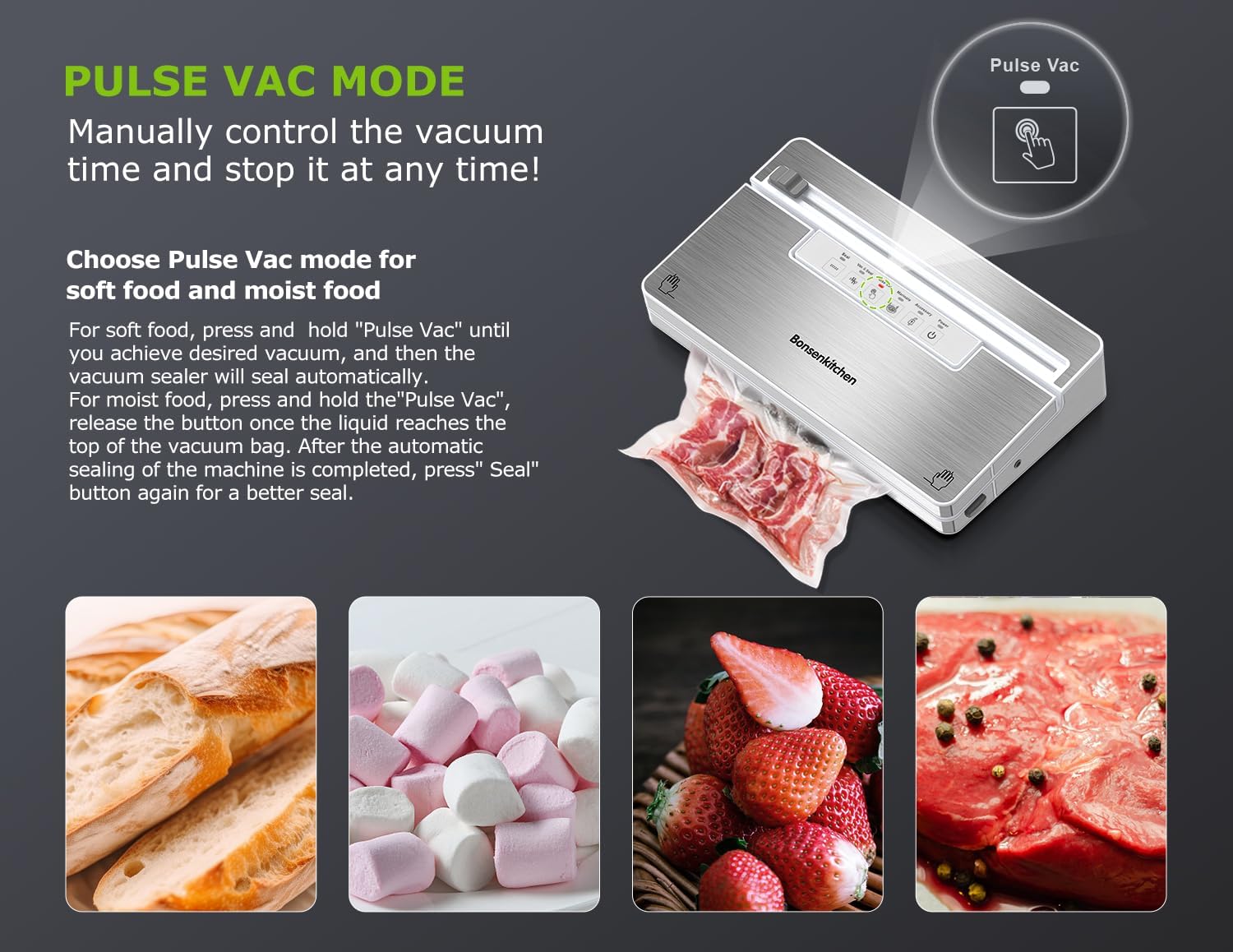

Image: The vacuum sealer in Pulse Vac mode, demonstrating its ability to handle soft or moist foods with manual vacuum control.

3. Seal Mode (Seal Only):

This mode is used to seal bags without vacuuming, perfect for resealing snack bags, chip bags, or creating custom-sized bags from a roll.

• Jarri poltsaren mutur irekia zigilatzeko zerrendan.
• Itxi eta blokeatu tapa.
• Press the "Seal" button. The machine will heat and seal the bag.

4. Marinate Mode:

This function helps to speed up the marination process for foods by creating a vacuum that opens the pores of the food, allowing marinades to penetrate deeper and faster.

• Place food and marinade into a vacuum-sealable container (sold separately).
• Connect one end of the air suction hose to the accessory port on the machine and the other end to the container's vacuum port.
• Close and lock the lid of the machine.
• Press the "Marinate" button. The machine will cycle through vacuum and release phases to infuse the marinade.

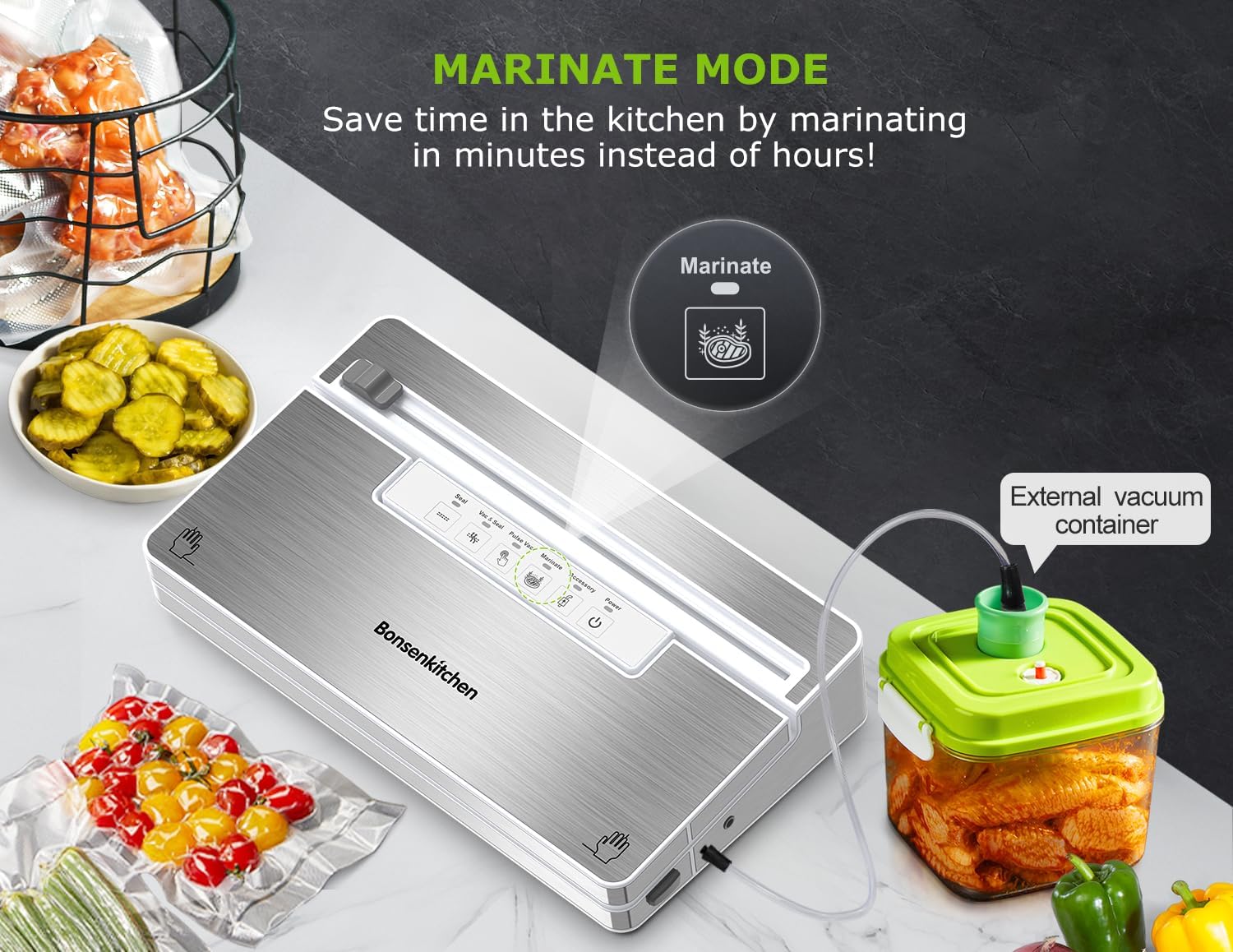

Image: The vacuum sealer connected to an external container, demonstrating the marinate function for quick flavor infusion.

5. Accessory Mode (External Vacuum System):

Use the accessory port and hose to vacuum seal external containers, jars, or wine bottles, preserving their contents.

• Connect one end of the air suction hose to the accessory port on the machine.
• Connect the other end of the hose to the vacuum port of your compatible container, wine stopper, or Ziplock bag with a valve.
• Close and lock the lid of the machine.
• Press the "Accessory" button to begin vacuuming the external item.

Image: Instructions for using the external vacuum system with various accessories like vacuum tanks, Ziplock bags, and wine bottles.

Mantentzea eta Garbiketa

Proper maintenance ensures the longevity and optimal performance of your vacuum sealer.

• Aparatua garbitzea: Always unplug the unit before cleaning. Wipe the exterior with a damp cloth and mild soap. Do not immerse the appliance in water.
• Huts-ganbera garbitzea: Wipe the vacuum chamber and sealing strip with a damp cloth after each use, especially if liquids or food particles have entered the area. Ensure it is completely dry before closing the lid or storing.
• Sealing Strip Care: The sealing strip can get hot during operation. Allow it to cool down between uses. Do not touch the sealing strip immediately after use.
• Biltegiratzea: Store the appliance in a cool, dry place with the lid unlatched to prevent compression of the sealing gasket, which can affect future seals.

Arazoak konpontzea

Zure xurgagailuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Zehaztapenak

Bermea eta Laguntza

The Bonsenkitchen Vacuum Sealer Machine comes with a 3-year warranty, ensuring peace of mind regarding its quality and performance. For any product inquiries, technical support, or warranty claims, please contact Bonsenkitchen customer service through their official webgunea edo erosketa-dokumentazioan emandako harremanetarako informazioa.

Informazio eta laguntza gehiago lortzeko, bisitatu Bonsenkitchen Store on Amazon.
