YOJOCK HD08 Carbon Monoxide Detector Instruction Manual

1. Sarrera

Thank you for choosing the YOJOCK HD08 Carbon Monoxide Detector. This compact, plug-in device provides essential protection by continuously monitoring carbon monoxide (CO) levels, along with displaying temperature and humidity for reference. Designed for versatility, it is suitable for use in homes, offices, RVs, hotels, and during travel. Please read this manual thoroughly before use to ensure proper installation, operation, and maintenance.

2. Produktua amaitu daview

Ezaugarri nagusiak

• 3-in-1 Monitorizazioa: Detects Carbon Monoxide (CO) and provides reference displays for temperature and humidity.
• Errendimendu handiko sentsorea: Equipped with an advanced electrochemical sensor for fast and reliable CO detection (0–999 PPM) with a response time of less than 5 seconds.
• 85dB Audio & Visual Alert: Triggers a loud 85 dB audio alarm and displays CO concentration on screen when dangerous levels are detected.
• Trinkoa eta eramangarria: Small size (8.6 x 6.9 x 5.2 cm, 70g) and detachable plug make it ideal for travel.
• Energia aurreztea: Low power consumption (≤2W).
• Erabiltzaileentzako pantaila: 2.1-inch HD color screen with adjustable brightness.
• Autotest funtzioa: Ensures the device is functioning correctly.

Osagaiak

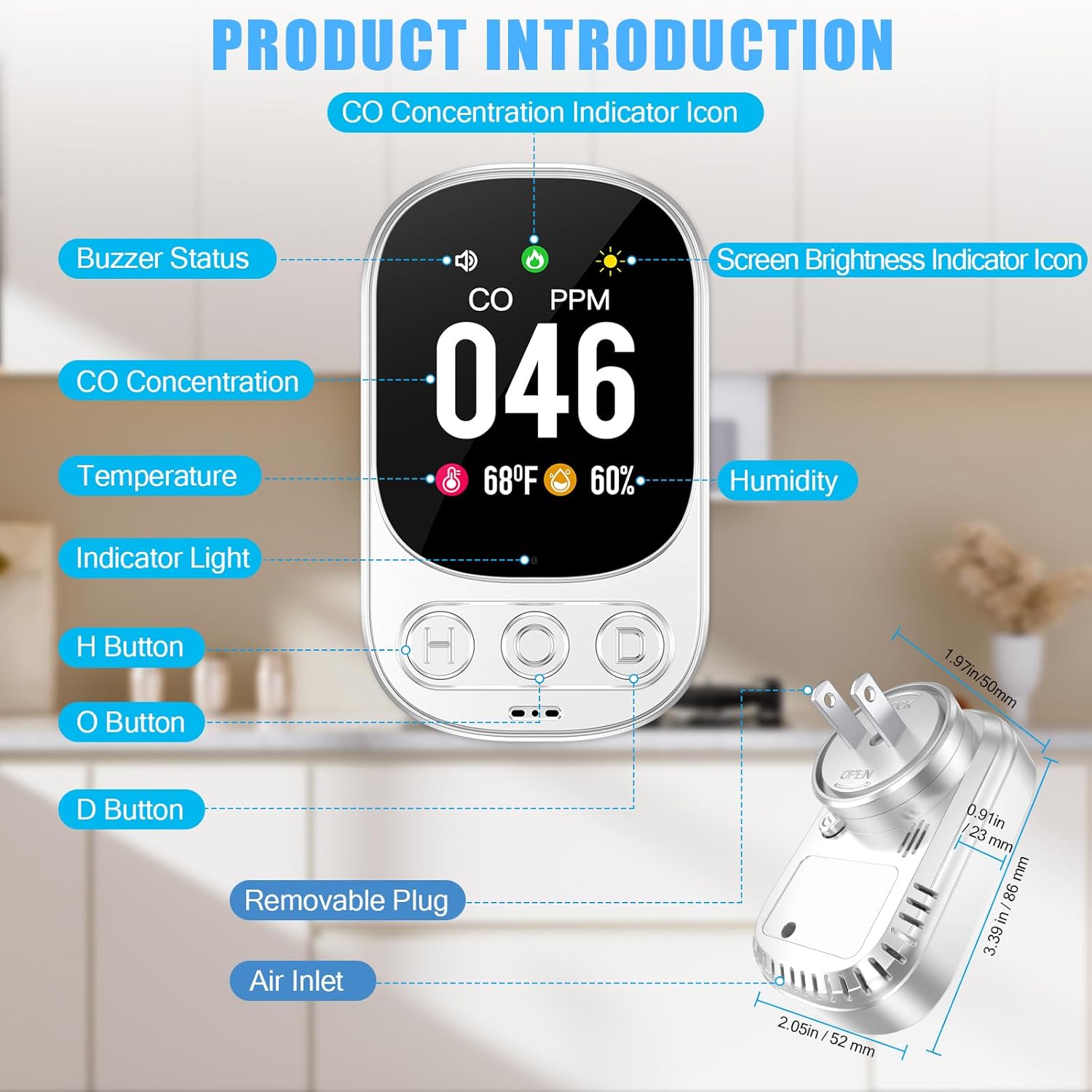

The device features a clear digital display showing CO levels, temperature, and humidity. It includes three control buttons (H, O, D) for various functions, an indicator light, and a removable plug for portability. Air inlets are located on the device for gas detection.

3. Konfigurazioa

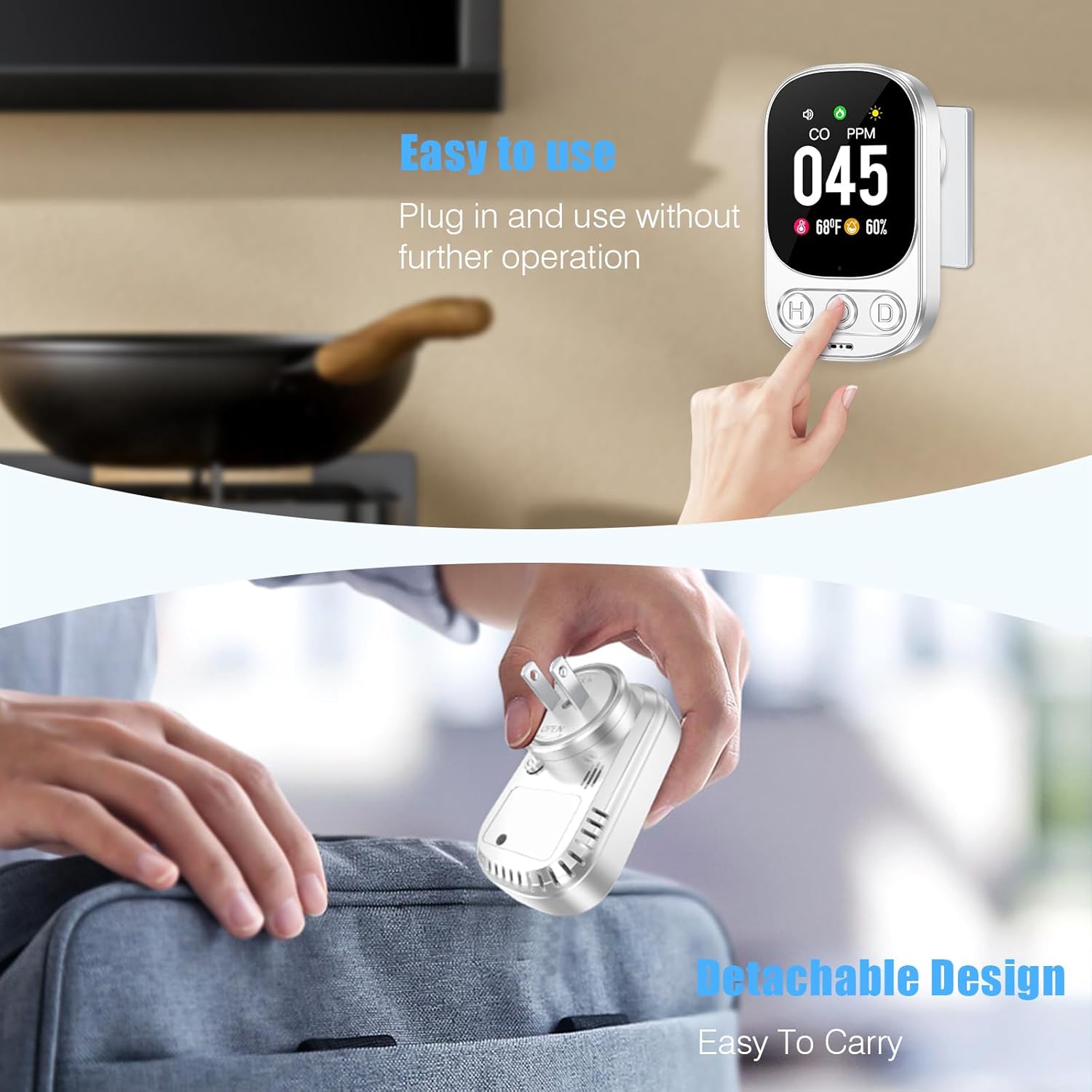

The YOJOCK HD08 Carbon Monoxide Detector is designed for easy plug-and-play setup.

1. Desegin: Carefully remove the detector from its packaging.
2. Attach Plug: Ensure the detachable plug is securely locked into the device.
3. Konektatu: Insert the detector into a standard wall outlet. The device will begin a warm-up period (approximately 28 seconds) and then enter monitoring mode.
4. Lekua: For optimal detection, place the detector in a room where CO sources might be present, such as near a furnace, water heater, or in living areas and bedrooms. Avoid placing it directly above heat sources or in areas with high humidity.

Hasierako proba

It is recommended to perform an initial test after plugging in the device to ensure it is working correctly.

1. Plug the CO detector into an outlet and wait for approximately 28 seconds to allow it to warm up.
2. Place a lit incense stick near the CO sensor (located at the bottom). The CO concentration will be detected and displayed shortly.

Oharra: The detector will show 000 PPM when no CO is detected. When testing near exhaust ducts or stoves, if your car engine or stove is burning cleanly, the detector may continue to display 000 PPM.

4. Funtzionamendu-argibideak

Pantaila eta Kontrolak

• CO2-aren kontzentrazioa: Displays in PPM (Parts Per Million).
• Tenperatura: Displays in °C or °F.
• Hezetasuna: Displays as a percentage (RH%).

Botoiaren funtzioak

• 'O' Button (Self-Test / Temperature Unit Switch):
  • Prentsa laburra: Initiates a self-test. The green light will blink 3 times and 3 beeps will sound if the device is functioning normally.
  • Prentsa luzea: Toggles the temperature unit between Celsius (°C) and Fahrenheit (°F).
• 'H' Button (Screen Brightness): Short press to adjust the screen brightness (Low, High, or Off).
• 'D' Button (Mute/Unmute Alarm): Short press to mute or unmute the alarm sound.

Alarm Levels and Indicators

• Safe (0-50 PPM): Green blinking icon, no audible alarm.
• Warning (51-200 PPM): Yellow blinking icon, "Di Di Di" alarm sounds every 2 minutes.
• Danger (201-999 PPM): Red blinking icon, continuous audible alarm. Press the 'D' button to activate or mute the alarm.

Oharra: When CO levels reach ≥200 PPM, the alarm will sound continuously and cannot be manually silenced until the CO level drops below 200 PPM.

Video Demonstration: Product Operation

5. Mantentzea

• Ohiko garbiketa: Gently wipe the exterior of the detector with a soft, damp oihal. Ez erabili produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Mantendu aireak garbi: Ensure the air inlets and vents are free from dust, debris, or obstructions to allow for accurate gas detection.
• Monthly Self-Test: Perform a self-test at least once a month by short-pressing the 'O' button to confirm proper operation.
• Saihestu muturreko baldintzak: Do not expose the detector to extreme temperatures, high humidity, or direct water.

6. Arazoak

• Alarma soinuak: If the alarm sounds, immediately move to fresh air, ventilate the area, and contact emergency services. Do not re-enter the premises until it has been deemed safe by professionals.
• Argi adierazle gorria: A red blinking indicator light may signal that the CO gas concentration exceeds the standard level, or there is a mute error or sensor failure. Refer to the alarm levels section for specific actions.
• No Display/Device Not Responding: Ensure the device is securely plugged into a working outlet. If the issue persists, unplug and re-plug the device.
• Inaccurate Temperature/Humidity: Small deviations (±5% / ±5°C) are normal. Readings become more accurate approximately 60 minutes after plugging in.

7. Zehaztapenak

8. Bermea eta Laguntza

The YOJOCK HD08 Carbon Monoxide Detector comes with a 2 urteko bermea erosketa-datatik aurrera. Berme honek ohiko erabileran materialen eta eskulanen akatsak estaltzen ditu.

For any questions, concerns, or technical support, please contact our customer support team. We are committed to providing assistance within 24 hours to ensure your peace of mind.

• Fabrikatzailea: Shenzhen Huidu Technology Co., Ltd.
• Markaren kontaktua: YOJOCK
