XWJNE 4000W Pure Sine Wave Power Inverter Instruction Manual

1. Sarrera

This manual provides essential information for the safe and efficient operation of your XWJNE 4000W Pure Sine Wave Power Inverter. This inverter converts 24V DC voltage to 120V AC voltage, providing a stable 4000W continuous power output with an 8000W peak. It is designed for various applications including off-grid solar systems, RVs, semi-trailer trucks, and home emergency backup. Please read this manual thoroughly before installation and use to ensure proper functionality and longevity of the device.

2. Segurtasun-argibideak

Beti eman lehentasuna segurtasunari inbertsorea instalatzean eta erabiltzean. Argibide hauek ez jarraitzeak lesio larriak edo ekipamendua kaltetu dezake.

• Aireztapena: Ensure adequate ventilation around the inverter to prevent overheating. Do not block the fan vents.
• Bateria konexioa: Connect the inverter only to a 24V DC battery system. Ensure correct polarity (positive to positive, negative to negative) to avoid damage. Power input should be a deep cycle battery of 80% discharge depth or above.
• Karga bateragarritasuna: This pure sine wave inverter is suitable for sensitive electronics like laptops, TVs, and refrigerators. Avoid exceeding the rated continuous power output of 4000W.
• Ingurumena: Keep the inverter away from water, moisture, direct sunlight, and flammable materials. Operate in a dry, cool, and well-ventilated area.
• Mantentzea: Ez saiatu inbertsorea zeuk irekitzen edo konpontzen. Konponketa guztiak langile kualifikatuen esku utzi.
• Fusibleak: The inverter includes 7 x 40A 32V fuses for protection. Do not replace with fuses of different ratings.

3. Paketearen edukia

Egiaztatu elementu guztiak paketean daudela:

• 1 x XWJNE 4000W Pure Sine Wave Power Inverter
• 2 x 2.62ft 3AWG Positive and Negative Battery Cables
• 1 x 1.64ft Ground Wire
• 1 x Remote Controller with 16.4ft Cable
• 7 x 40A 32V Fuses (extra)
• 1 x giltza
• 1 x Argibide eskuliburua (dokumentu hau)

Image: XWJNE 4000W Pure Sine Wave Power Inverter with included battery cables, remote controller, and wrench.

Image: Diagram showing the dimensions of the inverter and all included accessories: remote controller, fuses, earth wire, negative wire, positive wire, and wrench.

4. Konfigurazioa eta instalazioa

Follow these steps for proper setup of your inverter:

1. Aukeratu kokapena: Select a dry, cool, and well-ventilated area for the inverter. Ensure it is away from direct sunlight, heat sources, and flammable materials.
2. Bateriaren kableak konektatu:
   • Connect the positive (red) battery cable to the positive (+) terminal on the inverter and the positive (+) terminal on your 24V DC battery.
   • Connect the negative (black) battery cable to the negative (-) terminal on the inverter and the negative (-) terminal on your 24V DC battery.
   • Ensure all connections are tight and secure to prevent arcing and ensure efficient power transfer.
3. Konektatu lurreko kablea: Attach the included ground wire to the grounding terminal on the inverter and to a suitable ground point (e.g., vehicle chassis or earth ground).
4. Connect Remote Controller: Plug the remote controller cable into the "Remote" port on the inverter.

Image: Detailed diagram of the inverter's components, including power switch, fault indicator lamp, remote controller port, LED display, AC output ports, USB port, earth wire, AC terminal board, positive terminal, negative terminal, and intelligent cooling fan.

Image: The XWJNE 4000W Pure Sine Wave Power Inverter shown in an RV setting, demonstrating its adaptability to multiple battery inputs (LI, SLD, FLD, GEL, AGM) and various product outputs like laptops, microwaves, TVs, fridges, coffee makers, and lights.

5. Funtzionamendu-argibideak

Once the inverter is properly installed, follow these steps to operate it:

1. Piztu: Flip the main power switch on the inverter to the "ON" position. The LED display will illuminate.
2. LED pantaila monitorearen pantaila: The LED screen provides real-time information:
   • Battery Level: Indicates the remaining charge of your connected battery.
   • Sarrera boltage: Displays the DC voltage from the battery (e.g., 24.0V).
   • Irteera boltage: Shows the AC output voltage (adibidez, 120V).
   • Frequency: Displays the output frequency (e.g., 60Hz).
   • Output Load Percent: Visualizes the percentage of the inverter's capacity currently being used.
   • Inverter Normal Working: An indicator confirming the inverter is operating correctly.
3. Konektatu gailuak: Plug your 120V AC appliances into the two AC output ports or use the 5V 2.4A USB port for charging compatible devices.
4. Urruneko funtzionamendua: Use the remote controller to turn the inverter on/off and monitor key parameters from a distance.
5. Itzali: When finished, disconnect all appliances and then flip the main power switch to the "OFF" position.

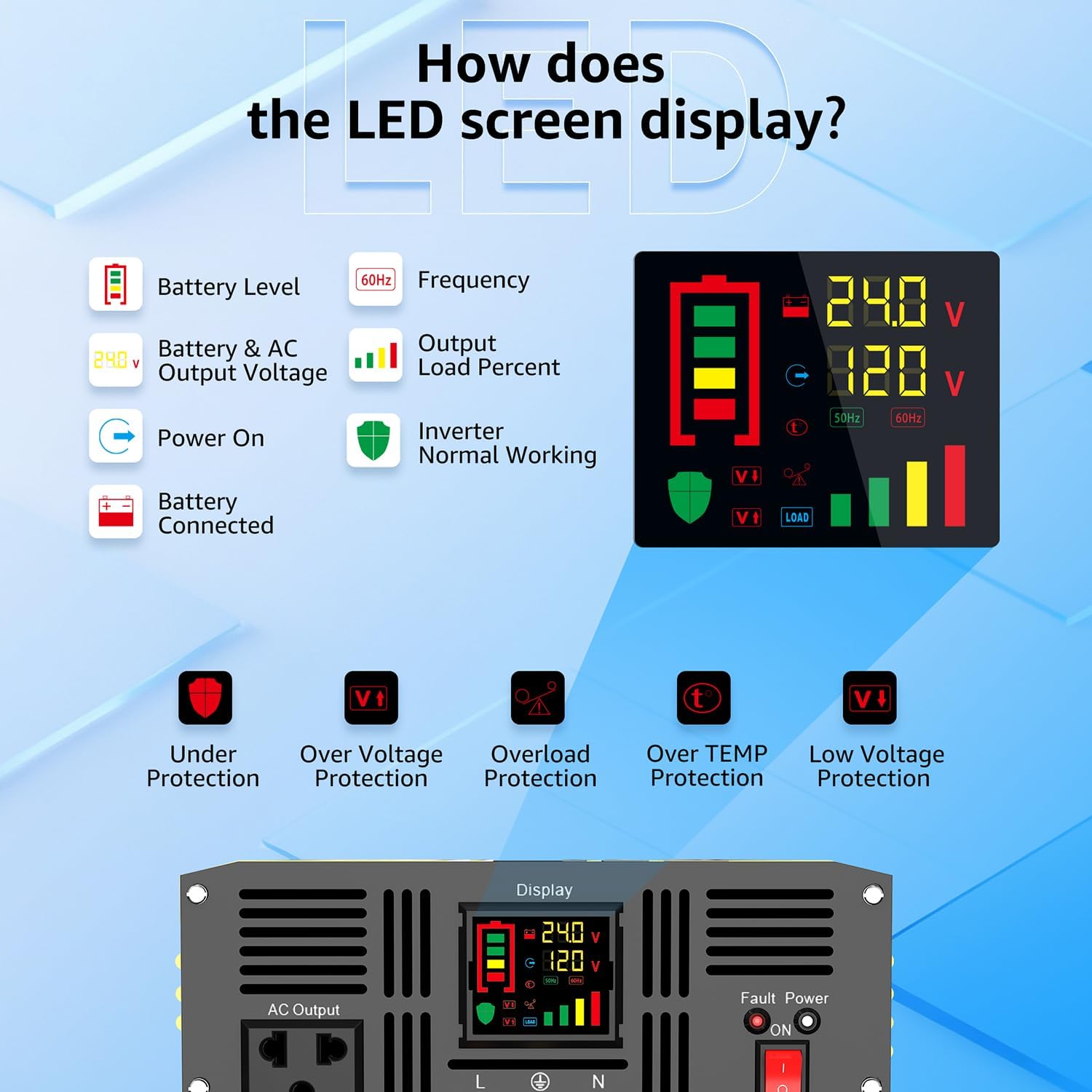

Image: Explanation of the LED screen display, showing indicators for battery level, frequency, output load percent, battery & AC output voltage, power on status, and inverter normal working status.

Image: The remote operation switch, ideal for use in cramped spaces, showing its display and on/off button. The body is designed for embedding with screw fixation points.

6. Protection Mechanisms

The XWJNE 4000W Pure Sine Wave Power Inverter is equipped with six powerful protection functions to ensure safe and reliable operation:

• Azpikontrolatage Babesa: Automatically shuts down if the input DC voltage drops below a safe level to protect the battery from deep discharge.
• Overboltage Babesa: Protects the inverter and connected devices from damage due to excessively high input DC voltage.
• Gainkarga babesa: Prevents damage when the connected load exceeds the inverter's rated capacity.
• Tenperaturaren gaineko babesa: Activates the smart cooling fan and/or shuts down the inverter if internal temperature becomes too high.
• Zirkuitu laburren babesa: Safeguards against damage from short circuits in the output.
• Alderantzizko konexioaren babesa: Protects the inverter from damage if battery polarity is accidentally reversed.

Image: Visual representation of the six safety protection functions: low-voltage, output short circuit, overvoltage, overpower, load shock, and overtemperature protection.

Image: Comparison of pure sine wave and modified wave, highlighting the inverter's >90% conversion efficiency and 40% power consumption reduction, ensuring sensitive appliances can be used with confidence.

7. Mantentzea

Mantentze-lan erregularrak zure inbertsorearen iraupena eta errendimendu optimoa bermatzen ditu:

• Garbiketa: Mantendu inbertsore-makina garbi eta hautsik eta hondakinik gabe. Erabili zapi lehor eta leun bat garbitzeko. Ez erabili garbitzaile likidorik.
• Aireztapena: Regularly check that the cooling fans and vents are clear and unobstructed. The smart fan will automatically activate when the internal temperature reaches 50 degrees Celsius or when the load reaches half capacity, operating at low decibel levels.
• Konexioak: Periodically inspect all electrical connections for tightness and corrosion. Loose connections can cause overheating and damage.
• Biltegiratzea: Inbertsorea denbora luzez gordetzen baduzu, deskonektatu bateriatik eta gorde leku fresko eta lehor batean.

Image: Close-up of the inverter's intelligent cooling fan system, showing DC- and DC+ terminals. The fan activates automatically at 50 degrees Celsius or half load, ensuring quiet operation below 60dB when on and below 20dB when off.

8. Arazoak

The LED display provides fault codes to help diagnose issues:

Irudia: Xehetasun handikoa view of the LED display and its fault codes (F01-F13) for quick problem identification and adjustment.

9. Zehaztapenak

10. Bermea eta Laguntza

XWJNE is committed to providing high-quality products and excellent customer service. For any questions, technical support, or warranty claims, please contact XWJNE customer service. Refer to your purchase documentation for specific warranty terms and contact information.

Over the past 10 years, XWJNE has continuously optimized and improved its inverters to meet diverse power demands. Our products are designed for reliable operation in off-grid solar energy systems, RV power supplies, home emergency standby systems, offshore power supply systems, and outdoor work.
