XWJNE 2000 Watt Pure Sine Wave Inverter Instruction Manual

1. Sarrera

Thank you for choosing the XWJNE 2000 Watt Pure Sine Wave Inverter. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your inverter. Please read this manual carefully before use to ensure safe and optimal performance.

The XWJNE 2000W Pure Sine Wave Inverter converts 12V DC battery power to clean, stable 120V AC energy, making it ideal for RVs, trucks, campers, off-grid solar setups, and home backup power. It delivers up to 4000W peak power with over 90% energy efficiency.

Segurtasun-argibideak:

• Always ensure proper grounding of the inverter.
• Do not use the inverter in the presence of flammable gases or liquids.
• Berotu gehiegi berotzea saihesteko, ziurtatu aireztapen egokia dagoela inbertsorearen inguruan.
• Connect the inverter to batteries with correct polarity (red to positive, black to negative).
• For best performance, use with deep-cycle batteries rated for 80% discharge or higher.

Figure 1: XWJNE 2000W Pure Sine Wave Inverter in various application settings.

1. bideoa: Over batview of the XWJNE high watt pure sine wave inverter, demonstrating its features and applications.

2. Paketearen edukia

The XWJNE 2000 Watt Pure Sine Wave Inverter package includes the following items:

• 1 x XWJNE 2000W Pure Sine Wave Inverter
• 2 x Car Battery Cables (Red for Positive, Black for Negative)
• 1 x Remote Controller with 16.4-ft cable
• 1 x Argibide eskuliburua
• 1 x Wrench (14mm/17mm)
• 4 x Fuses (40A)
• 1 x Earth Wire (1.64ft)

Figure 2: All items included in the XWJNE 2000W Pure Sine Wave Inverter package.

3. Produktua amaitu daview

The XWJNE 2000W Inverter features a robust design with multiple input/output options and an intuitive display for easy monitoring.

Aurrealdeko panelaren osagaiak:

• Switch potentziala: Inbertsorearen ON/OFF etengailu nagusia.
• Akatsen adierazlea Lamp: Illuminates to indicate system errors or protection activation.
• LED pantaila: Shows input/output voltage, load, battery status, and error codes.
• Korronte alternoko entxufeak (2x): Standard 120V AC outlets for connecting appliances.
• USB ataka (5V/2.4A): USB bidez elikatzen diren gailuak kargatzeko.
• Urruneko kontrolaren ataka: Connects the wired remote controller.
• AC Terminal Board: For hardwiring AC output connections (Line, Neutral, Earth).
• Lurreko kablearen terminala: For grounding the inverter.

Atzeko panelaren osagaiak:

• Positive Terminal (DC+): 12V-ko bateriaren terminal positibora konektatzen da.
• Negative Terminal (DC-): 12V-ko bateriaren terminal negatiboari konektatzen zaio.
• Intelligent Cooling Fans (2x): Automatically adjust speed based on load and temperature to maintain optimal operating conditions.

3. irudia: Xehetasuna view of the inverter's components.

Remote Controller & LED Display:

The wired remote controller allows for convenient operation from a distance, especially useful when the inverter is installed in cramped or hard-to-reach spaces. The integrated LED display on both the inverter and the remote provides real-time monitoring of key parameters.

Figure 4: Remote Operation Switch for convenient control.

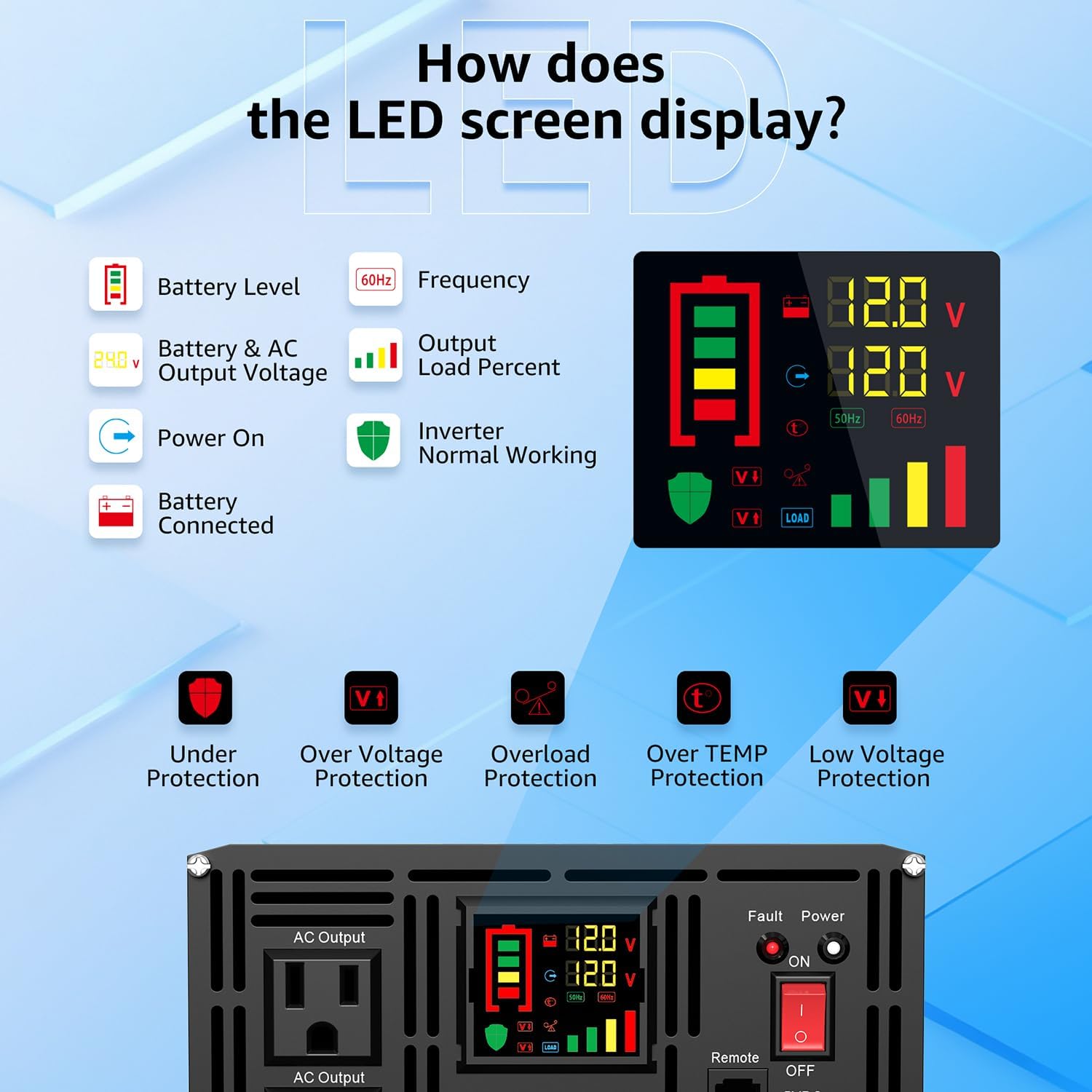

Figure 5: Understanding the LED screen display.

4. Konfigurazioa eta instalazioa

Proper installation is crucial for the safe and efficient operation of your inverter. Always ensure the inverter is placed in a well-ventilated, cool, and dry environment.

4.1 Bateriaren konexioa:

1. Ziurtatu inbertsorearen etengailua OFF posizioan dagoela.
2. Connect the red battery cable to the inverter's Positive (DC+) terminal and the positive terminal of your 12V battery.
3. Connect the black battery cable to the inverter's Negative (DC-) terminal and the negative terminal of your 12V battery.
4. Ensure all connections are tight and secure to prevent loose connections, which can cause overheating and damage.
5. If connecting multiple batteries in parallel, ensure proper wiring to balance the load across all batteries.

Figure 6: Battery connection diagram.

4.2 Lurreratzea:

Connect the provided earth wire from the inverter's grounding terminal to a proper grounding point (e.g., vehicle chassis, building ground). This is essential for safety and to prevent electrical shock.

4.3 Remote Control Setup:

Plug the remote controller cable into the 'Remote Control' port on the inverter's front panel. The remote can then be mounted in a convenient location for easy access.

Video 2: Instructions on how to replace the fuse of the pure sine wave inverter.

5. Funtzionamendu-argibideak

Once the inverter is properly installed and connected to your battery system, you can begin operation.

5.1 Piztu/Itzaltzea:

1. Ensure all appliances are disconnected from the inverter.
2. Flip the main power switch on the inverter's front panel to the 'ON' position. The LED display will illuminate.
3. Alternatively, use the ON/OFF button on the remote controller to power the inverter on or off.
4. To power off, reverse the steps. It is recommended to turn off the inverter when not in use to conserve battery power.

5.2 Connecting Appliances:

• Plug your 120V AC appliances into the AC outlets on the inverter's front panel.
• For hardwired applications, connect your AC wiring to the AC terminal board (L, N, PE).
• Connect USB-powered devices to the USB port for charging.
• Ziurtatu wat osoatage of connected devices does not exceed the inverter's continuous power rating (2000W).

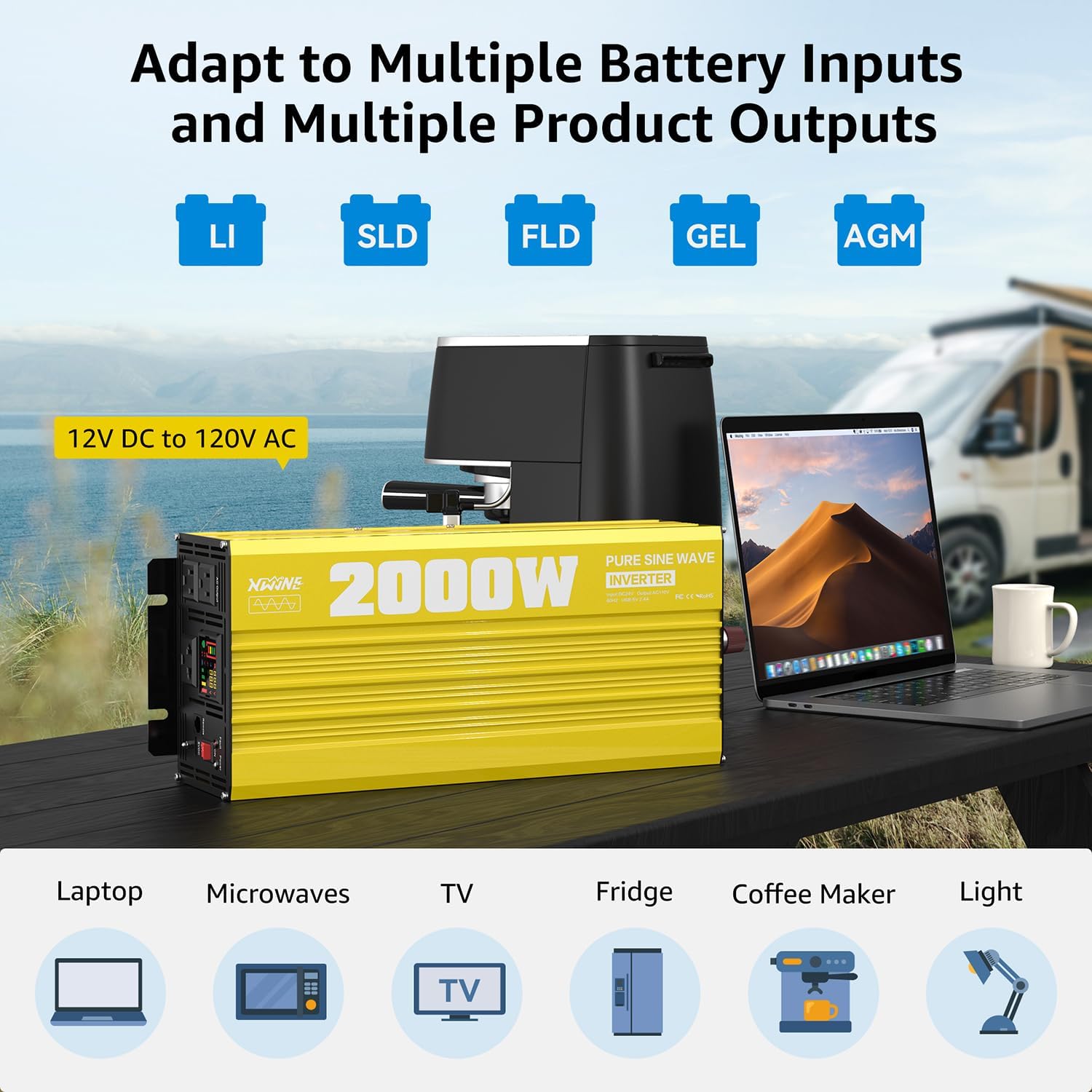

Figure 7: Inverter powering various devices from multiple battery inputs.

Figure 8: Pure Sine Wave Performance benefits.

6. Safety Features & Protections

The XWJNE 2000W Inverter is equipped with comprehensive protection mechanisms to ensure safe and reliable operation for both the unit and your connected devices.

• Azpikontrolatage Babesa: Shuts down the inverter if the input voltage drops below a safe threshold.
• Overboltage Babesa: Sarrerako bolumen gehiegizkoaren aurka babesten dutage.
• Gainkarga babesa: Automatically shuts down if the connected load exceeds the inverter's capacity.
• Zirkuitu laburren babesa: Prevents damage from short circuits in the output.
• Tenperatura gaindiko babesa: Activates if the internal temperature exceeds safe limits, often engaging cooling fans.
• Reverse-Polarity Protection: Guards against damage from incorrect battery connections.

Figure 9: Six-way protection mechanisms for the inverter.

7. Zehaztapenak

Below are the detailed specifications for the XWJNE 2000 Watt Pure Sine Wave Inverter (Model: 24IVA-2KW-12V-110).

Figure 10: Load compatibility table.

8. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your XWJNE inverter.

• Garbiketa: Keep the inverter clean and free from dust and debris. Use a dry cloth to wipe the exterior. Ensure ventilation openings are clear.
• Fan eragilea: The intelligent cooling fans automatically adjust their speed based on the internal temperature and load. Ensure the fans are not blocked.
• Konexioaren egiaztapena: Periodically check all battery and output connections for tightness and corrosion.
• Fusiblearen ordezkapena: In case of an overload or short circuit, the internal fuses may blow. Refer to the manual for fuse specifications and replacement procedures.

Figure 11: Intelligent Cooling Fan system.

9. Arazoak

The inverter's LED display provides error codes to help diagnose and resolve common issues. Refer to the table below for guidance.

Figure 12: Fault display indicators.

10. Bermea eta laguntza

The XWJNE 2000 Watt Pure Sine Wave Inverter comes with a standard warranty. For specific warranty terms and conditions, please refer to the product packaging or contact XWJNE customer service.

For any technical assistance or support, please contact XWJNE customer service. Our team is available 24/7 to provide prompt and helpful solutions.
